52 26 411 Replacing backrest cover for rear seat (through-loading system) on left

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove left seat back (through-loading system). Refer to 52 26 015 REMOVING AND INSTALLING / REPLACING LEFT OR RIGHT BACKREST FOR REAR SEAT (LOAD THROUGH SYSTEM) (TOURING) .

Remove rear head restraints. Refer to 52 26 390 REMOVING AND INSTALLING/REPLACING REAR HEAD RESTRAINTS (THROUGH-LOADING SYSTEM) .

Remove armrest for rear seat backrest (through-loading system). Refer to 52 26 030 REMOVING AND INSTALLING/REPLACING ARMREST FOR REAR-SEAT BACKREST (THROUGH-LOADING SYSTEM) .

Remove trim of actuator for rear left seat. Refer to 52 26 301 REMOVING AND INSTALLING /REPLACING ACTUATING MECHANISM FOR LEFT REAR SEAT BACKREST (THROUGH-LOADING SYSTEM) .

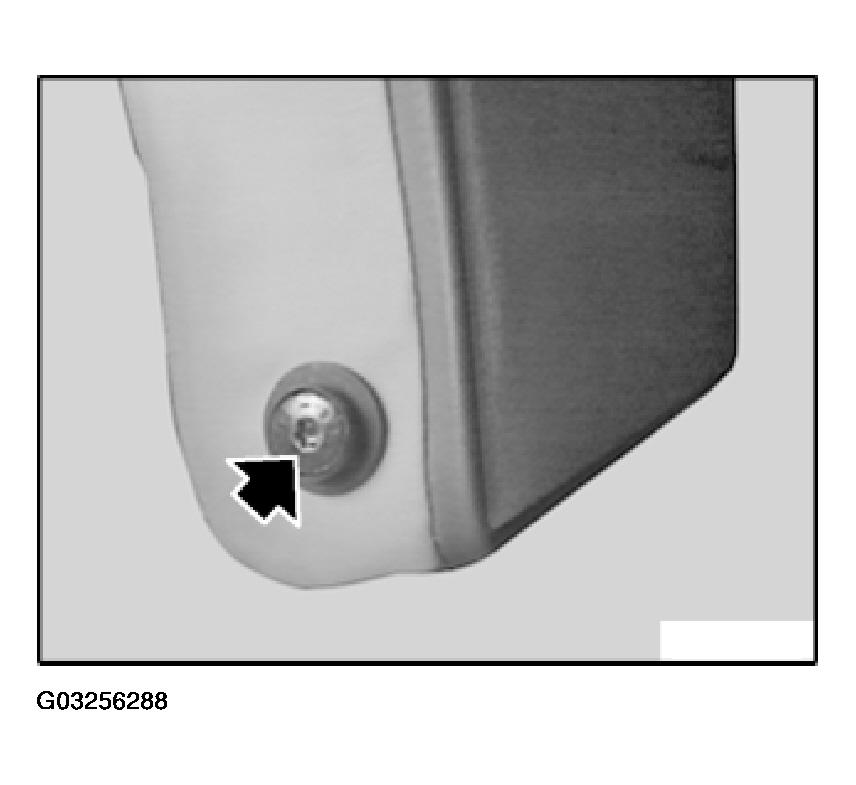

Release screw on seat outer mount.

Fig 1: Identifying Screw On Seat Outer Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

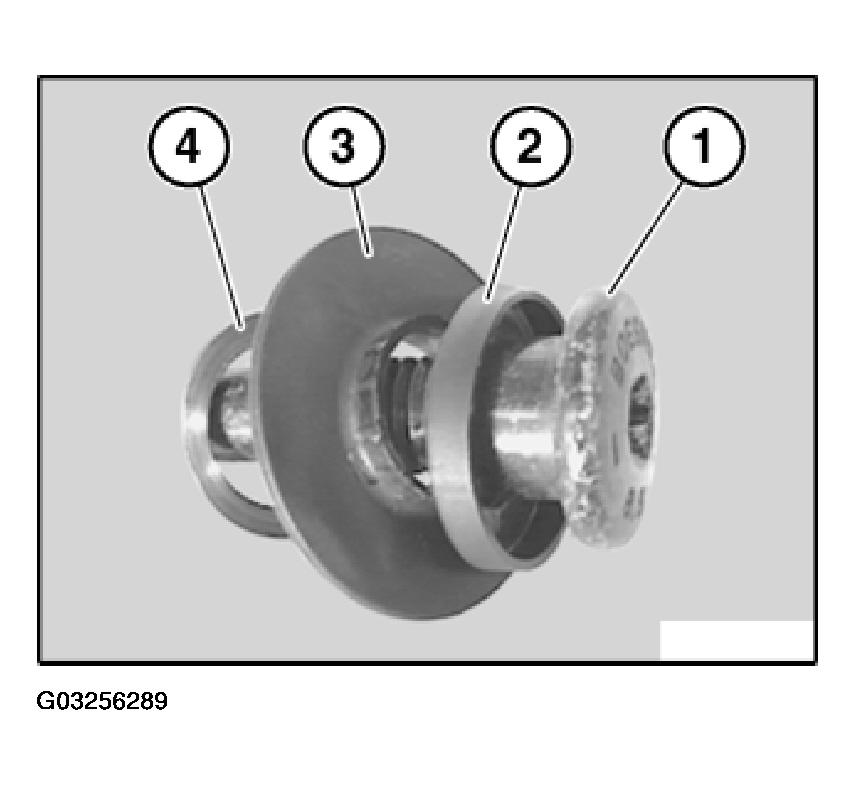

Screw down screw (1), cover (2), plastic washer (3) and washer (4) as illustrated.

Fig 2: Installation Sequence Of Screw Components

Courtesy of BMW OF NORTH AMERICA, INC.

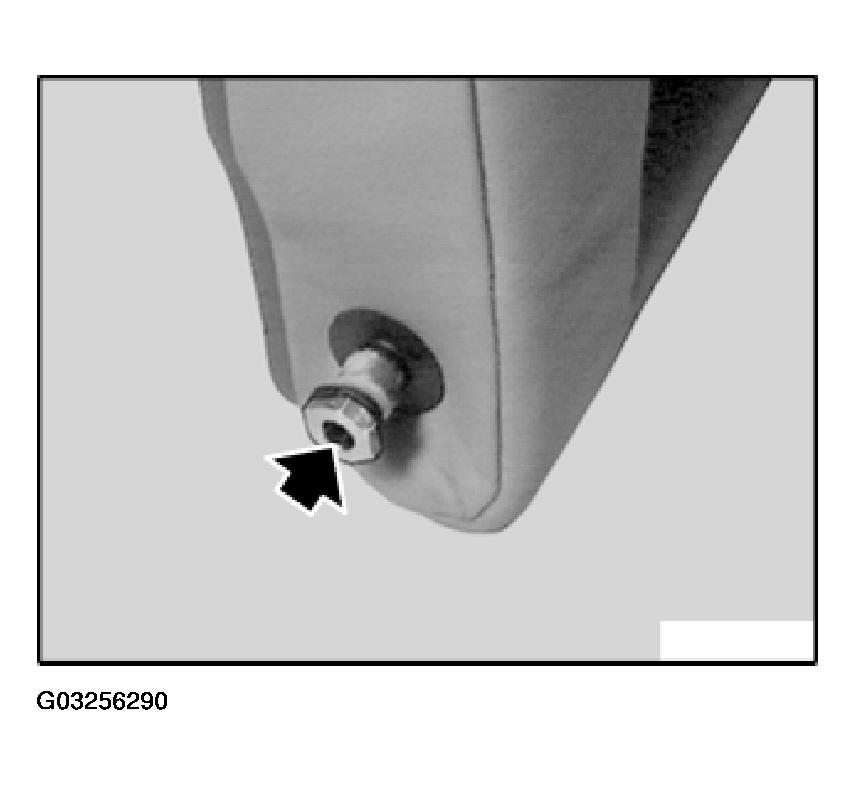

Unscrew seat center mount.

Fig 3: Unscrewing Seat Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

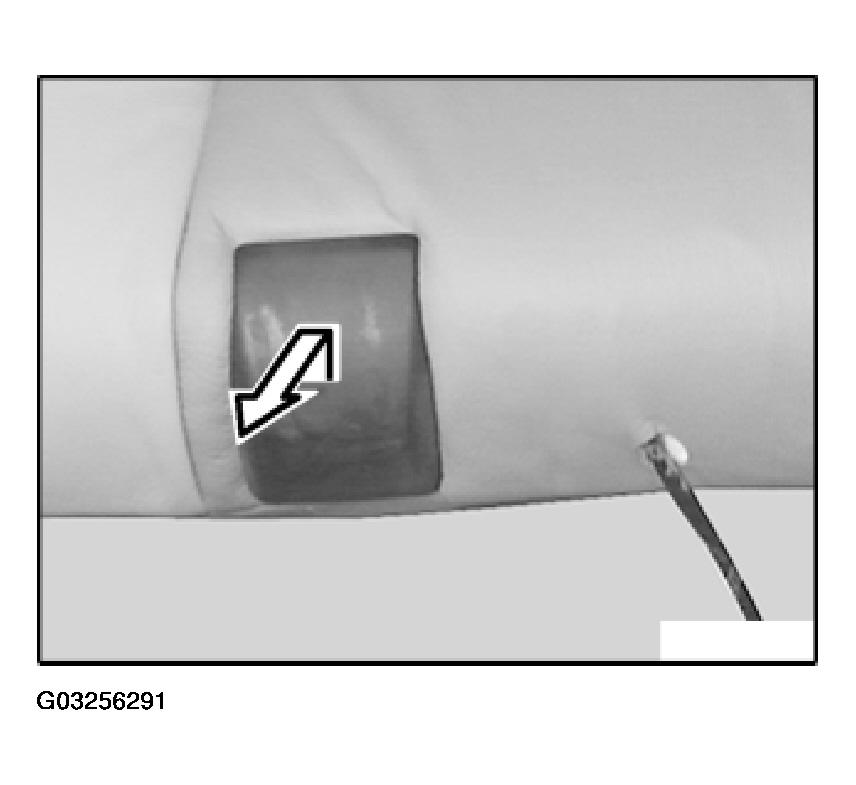

Unclip and remove cover.

Fig 4: Unclipping And Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

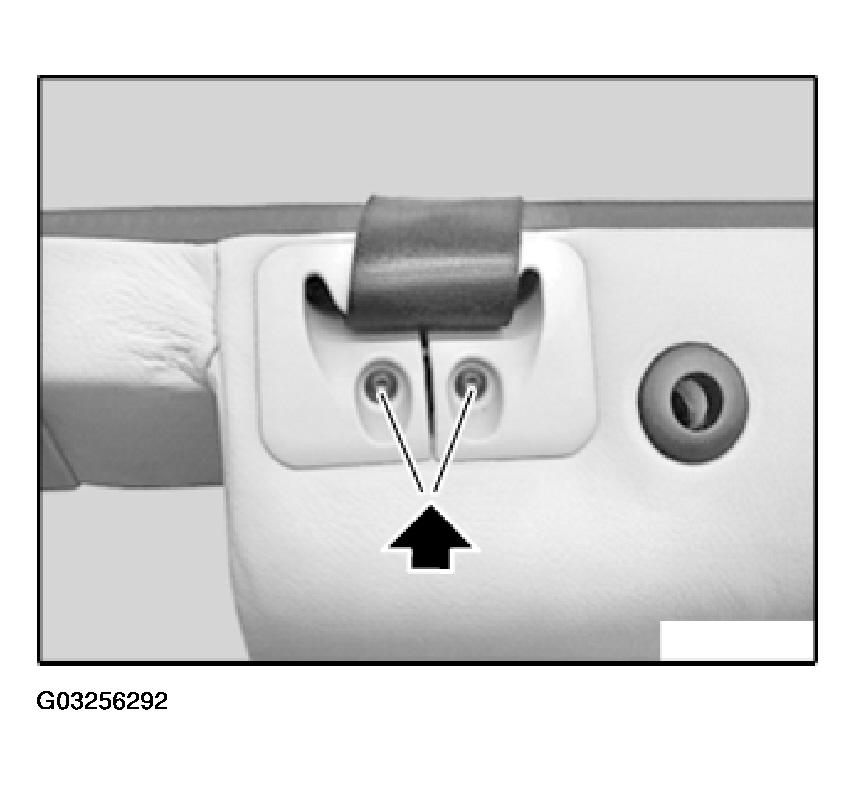

Unfasten screws.

Remove trim.

Fig 5: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

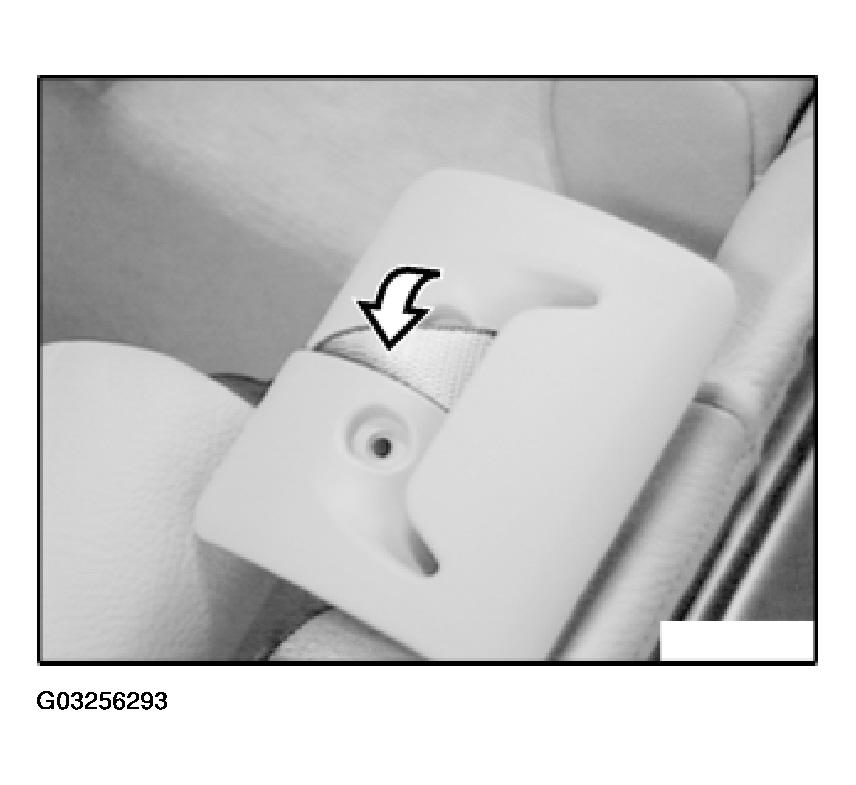

Separate webbing.

Fig 6: Separating Webbing

Courtesy of BMW OF NORTH AMERICA, INC.

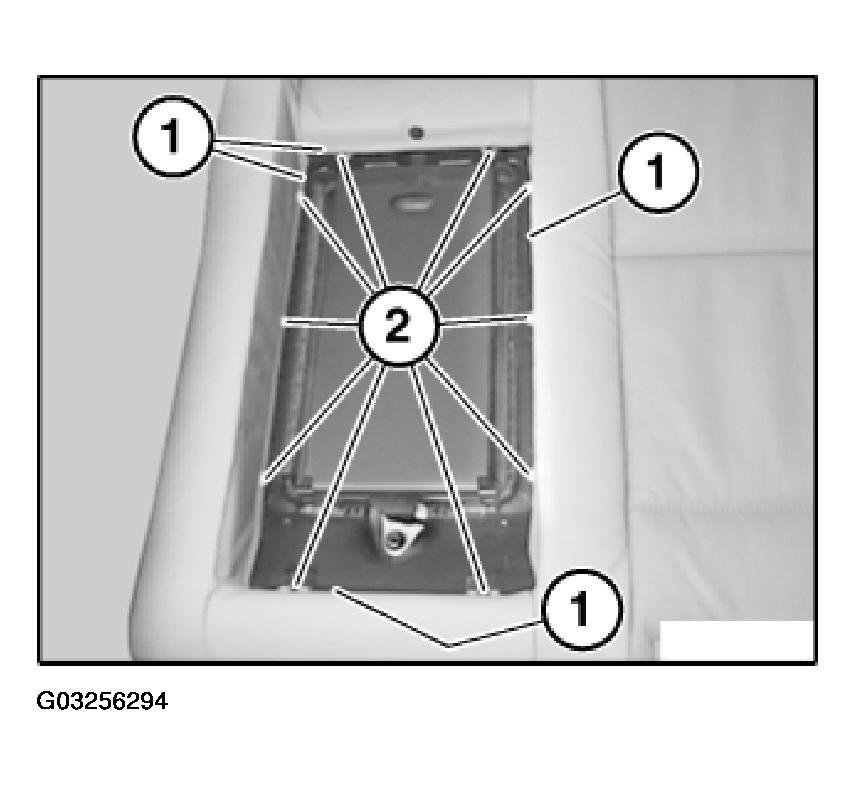

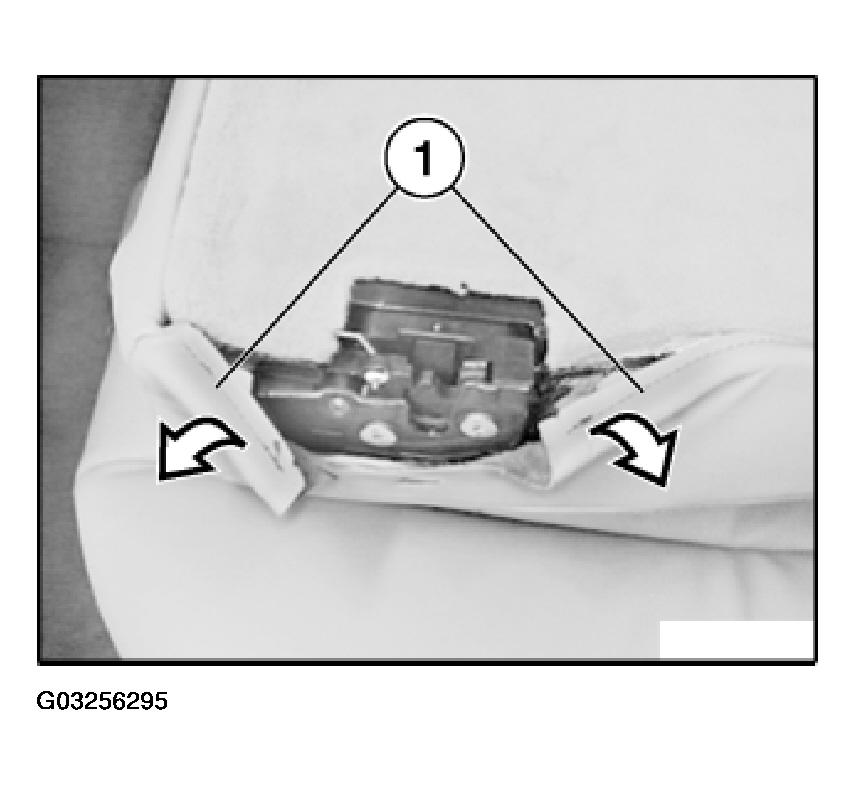

Lever cover with trim wires (1) out of metal clutches (2).

Fig 7: Identifying Metal Clutches

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover all around by levering out piping (1).

Fig 8: Detaching Cover From Piping

Courtesy of BMW OF NORTH AMERICA, INC.

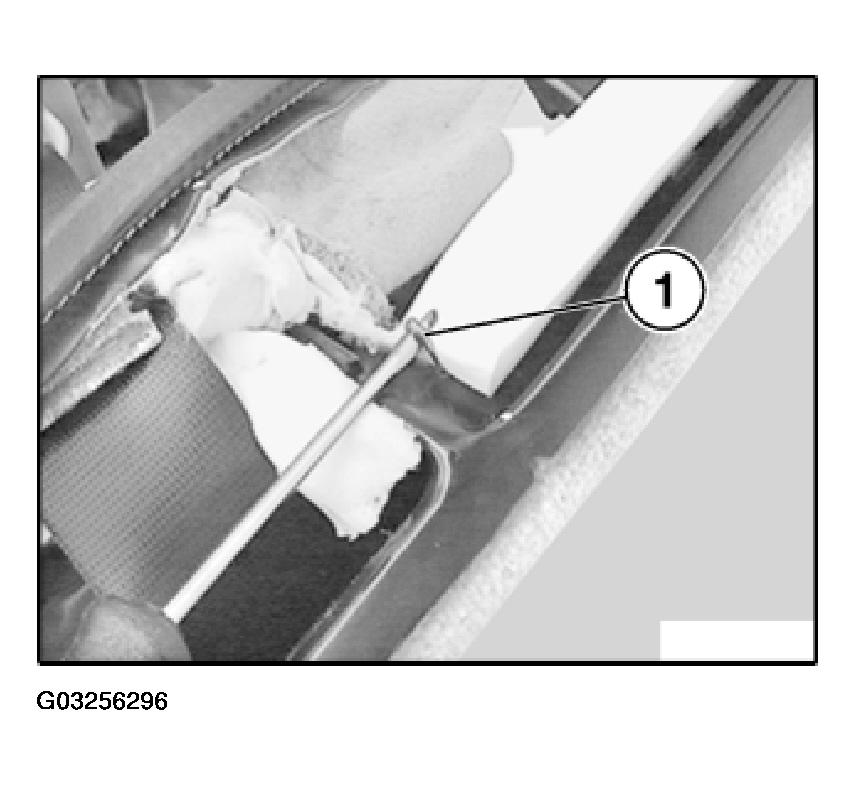

Detach trim wire (1) from rear panel.

Fig 9: Detaching Trim Wire From Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement, "Padding":

Note clip positions.

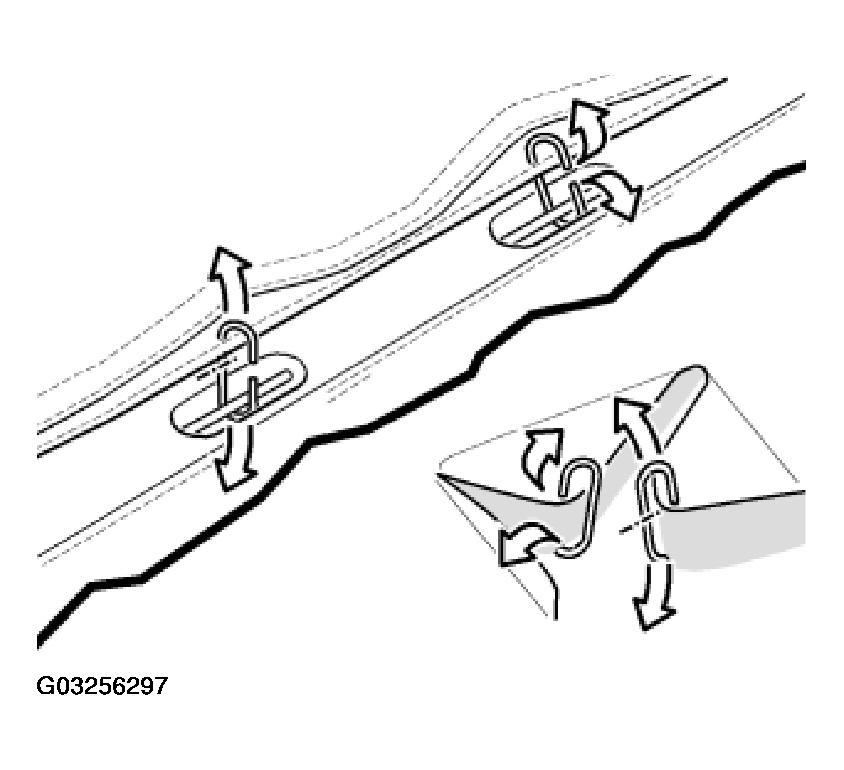

Cut through or bend open all clips, remove remnants of clips from cover and padding.

Fig 10: Removing Clips From Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lock new clips by bending with special tool 52 0 050.

Replacement Only, "Backrest Cover":

Remove all trim wires from cover.

Cut new cover and insert the trim wires.

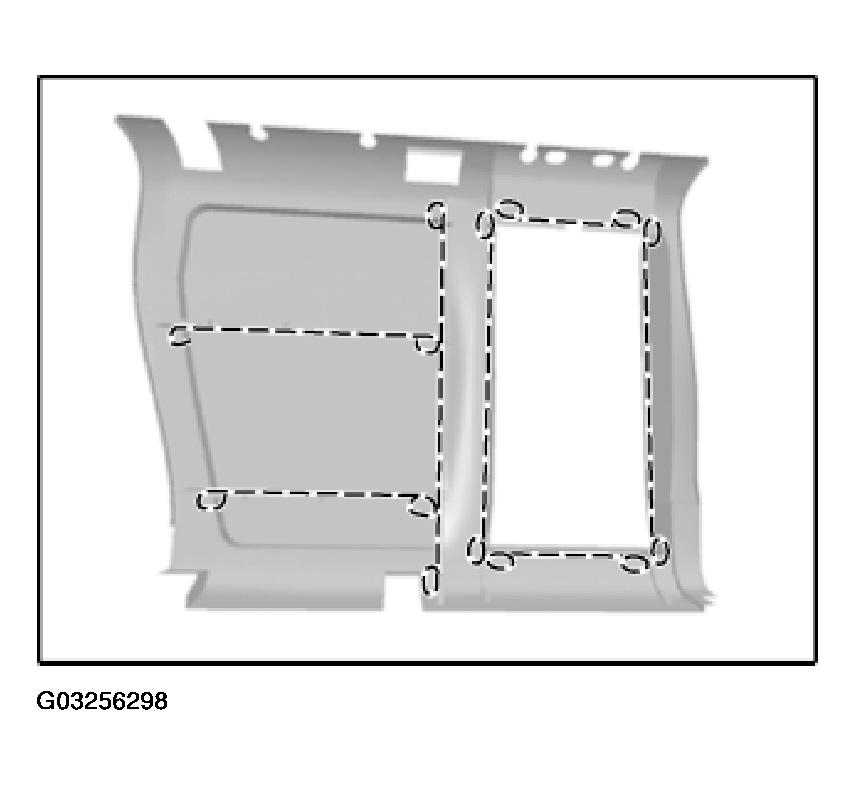

Fig 11: Removing Trim Wires From Cover

Courtesy of BMW OF NORTH AMERICA, INC.
