52 26 030 Removing and installing/replacing armrest for rear-seat backrest (through-loading system)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Fold armrest and detach leather or material cover at top.

Detach piping (1) on cover towards top.

Release screws (2) and remove armrest towards front.

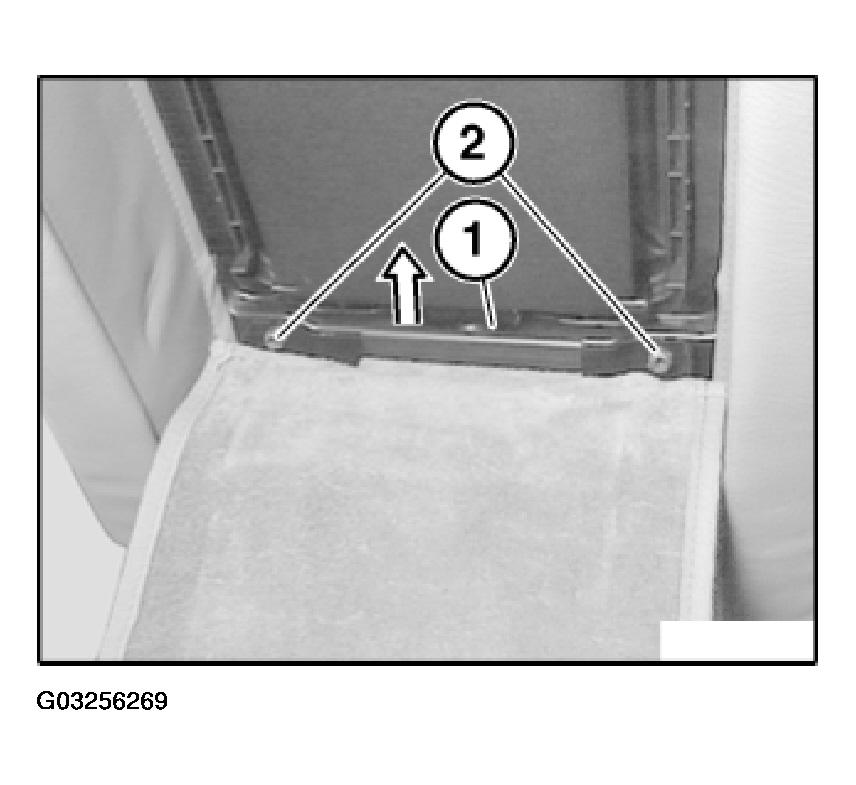

Fig 1: Detaching Piping On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
