52 17 030 Removing and installing/replacing backrest frame on left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove backrest cover at bottom. Refer to 52 17 405 REPLACING BACKREST COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT) .

CAUTION: Do not under any circumstances turn screw underneath screw (2), this would destroy the seat frame.

Press backrest cover (1) to one side and release screw (2) on left and right.

Detach backrest frame (3) with backrest cover upwards.

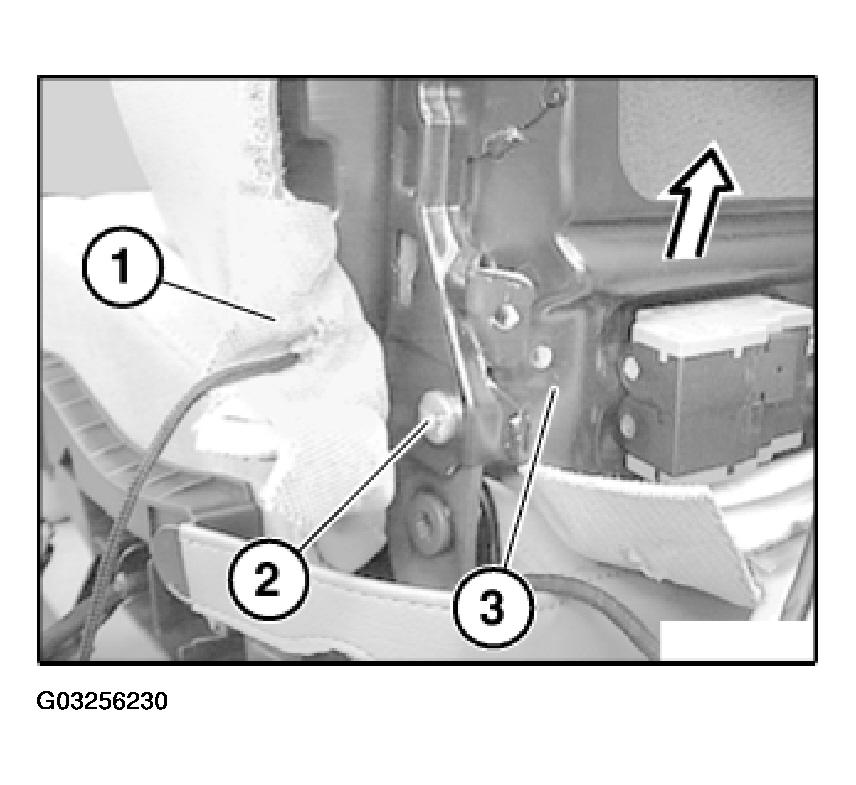

Fig 1: Locating Screw Under Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace screws (2) (microencapsulation).

Tightening torque, (45 N.m.).

End of partial operation:

"Removing and installing backrest frame".

Following operation:

"Replacing backrest frame."

Completely remove backrest cover and padding. Refer to 52 17 405 REPLACING BACKREST COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT) .

If necessary, remove lumbar cushion on front seat. Refer to 52 17 050 REPLACING LUMBAR CUSHION ON LEFT OR RIGHT FRONT SEAT (COMFORT) .

If necessary, remove valve housing for front lumbar support. Refer to 52 17 060 REMOVING AND INSTALLING/REPLACING VALVE HOUSING FOR LUMBAR CUSHION (COMFORT SEAT) .

If necessary, remove drive unit for lumbar support. Refer to 67 66 010 REMOVING AND INSTALLING/REPLACING LUMBAR SUPPORT DRIVE MECHANISM ON FRONT SEAT, LEFT OR RIGHT .

If necessary, remove shaft for head restraint adjustment. Refer to 52 17 034 REMOVING AND INSTALLING/REPLACING SHAFT FOR HEADREST ADJUSTMENT (COMFORT SEAT) .

Remove drive unit for head restraint adjustment. Refer to 67 31 540 REMOVING AND INSTALLING/REPLACING DRIVE UNIT FOR HEAD RESTRAINT ADJUSTMENT (COMFORT SEAT) .

If necessary, remove gearing for head restraint adjustment. Refer to 52 17 035 REMOVING AND INSTALLING/REPLACING GEARING FOR HEAD RESTRAINT ADJUSTMENT (COMFORT SEAT) .

If necessary, remove valve housing for lumbar support. Refer to 52 17 060 REMOVING AND INSTALLING/REPLACING VALVE HOUSING FOR LUMBAR CUSHION (COMFORT SEAT) .

Unclip mount for rear panel (clip) towards rear from backrest frame.

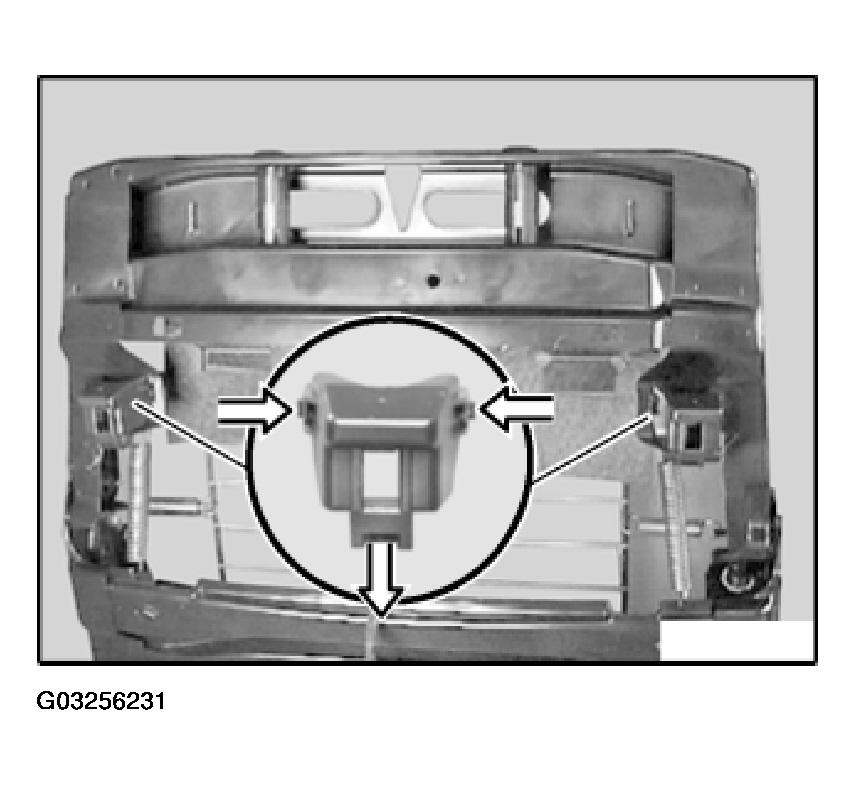

Fig 2: Removing Mount For Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release screw (1) and remove metal nut (2).

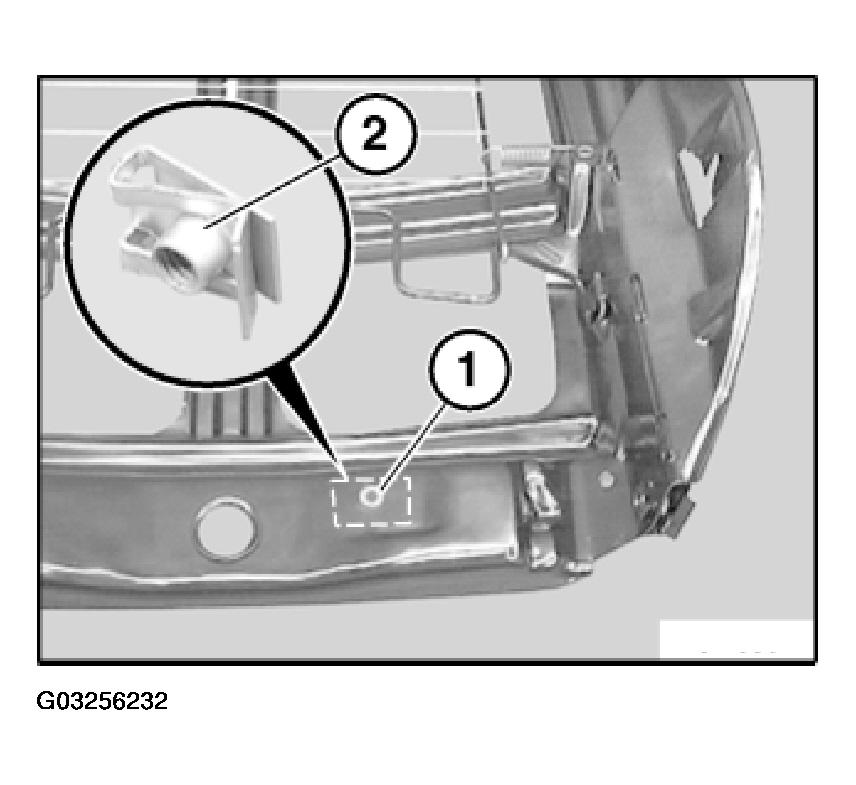

Fig 3: Releasing Screw And Metal Nut

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove mat (1) from spring wire (2) of backrest frame (3).

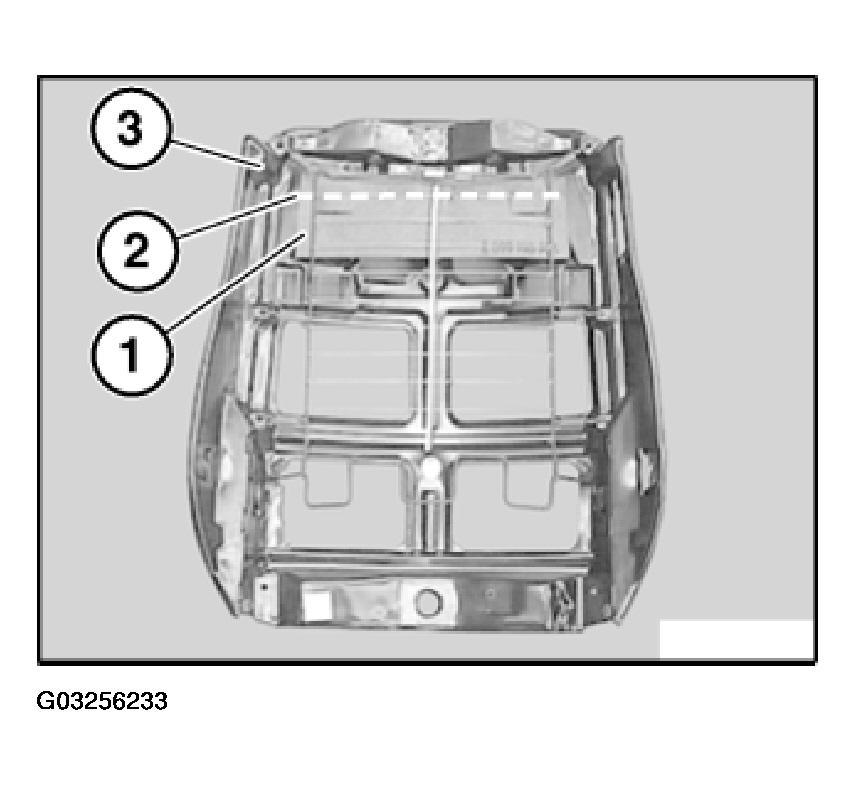

Fig 4: Removing Mat From Spring Wire Of Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, suspend mat (1) on uppermost spring wire (2) on backrest frame (3).

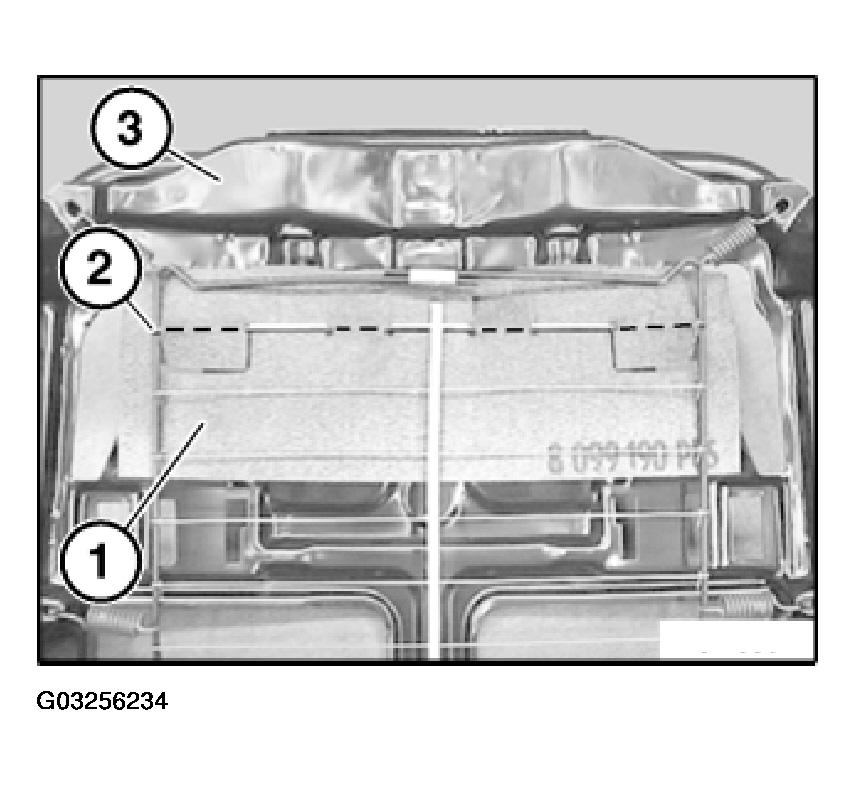

Fig 5: Installing Suspend Mat On Uppermost Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint guides.

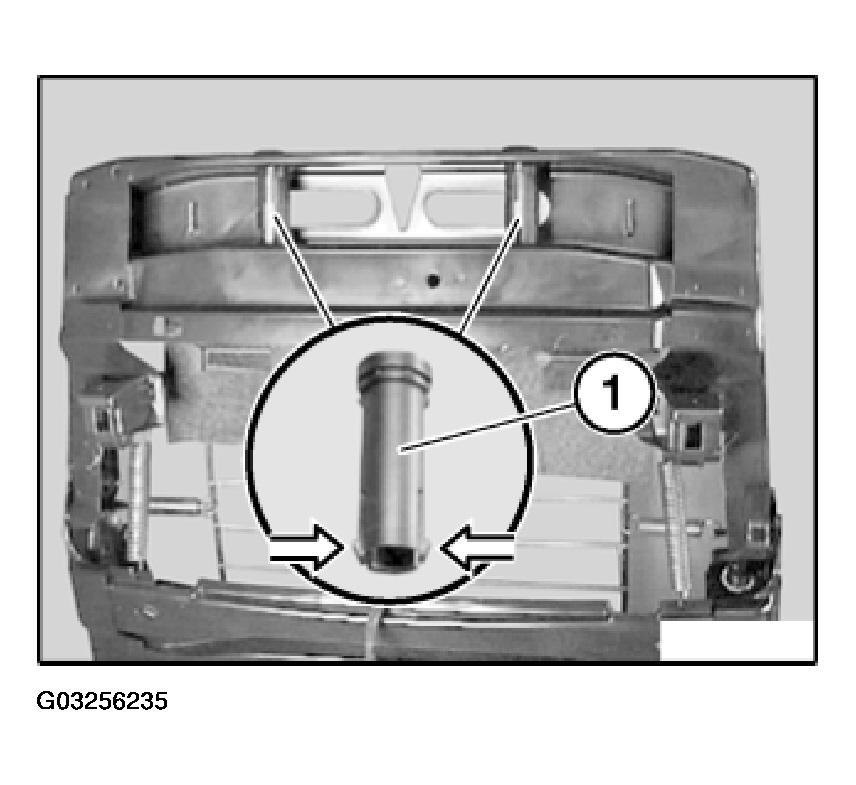

Fig 6: Lifting Head Restraint Guides

Courtesy of BMW OF NORTH AMERICA, INC.
