51 44 020 Removing and installing/replacing bracket on roof lining at front

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove lighting. Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

Open glasses compartment (1).

Unfasten screws (2).

Lower bracket, disconnect plug connections and remove bracket.

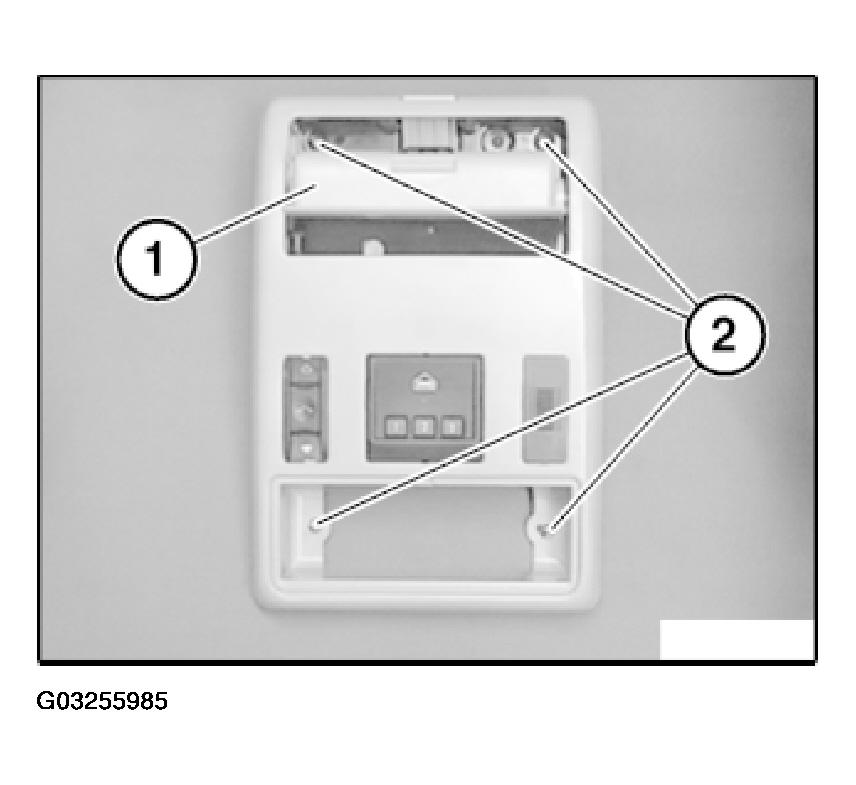

Fig 1: Identifying Glasses Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

REPLACEMENT ONLY:

Remove switch for slide/tilt sunroof. Refer to 61 31 175 REMOVING AND INSTALLING/REPLACING SWITCH FOR SLIDE/TILT SUNROOF .

Remove remote control for garage door opening. Refer to 61 31 405 REMOVING AND INSTALLING/REPLACING REMOTE CONTROL FOR GARAGE DOOR OPENING .

Remove hands-free microphone. Refer to 84 11 550 REMOVING AND INSTALLING/REPLACING HANDS-FREE MICROPHONE .
