63 31 000 Removing and installing/replacing complete ceiling light

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Front Ceiling Light:

Lever out ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove ceiling light (1).

Fig 1: Removing Front Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Rear Ceiling Light:

Lever out ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove ceiling light (1).

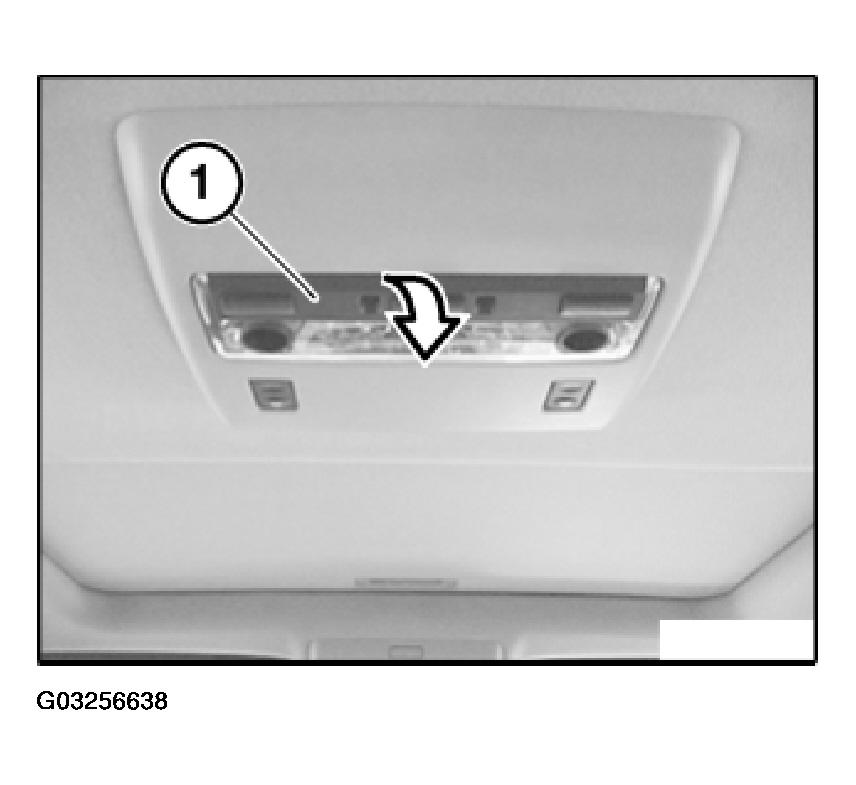

Fig 2: Removing Rear Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.
