84 11 550 Removing and installing/replacing hands-free microphone

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front ceiling light. Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

Press out hands-free microphone (3) from inside. Disconnect plug.

NOTE: (1) = Switch for sunroof. (2) = Remote control for garage door opening.

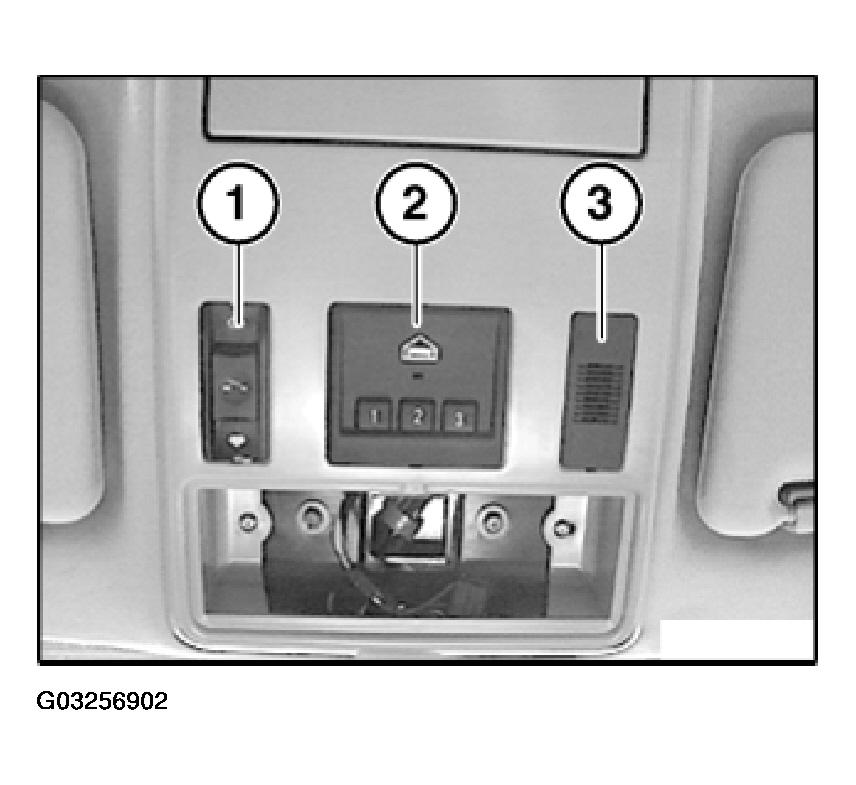

Fig 1: Identifying Hands-Free Microphone, Sunroof Switch And Garage Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.
