51 34 211 Replacing rubber guide for rear left or right door window

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove window cavity cover strip on outside of rear door. Refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

Remove cover (anti-trap protection) on inside of door window frame. Refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER (ANTI-TRAPPING PROTECTION) ON DOOR WINDOW FRAME (REAR DOOR), INSIDE LEFT OR RIGHT .

Remove rubber guide (1).

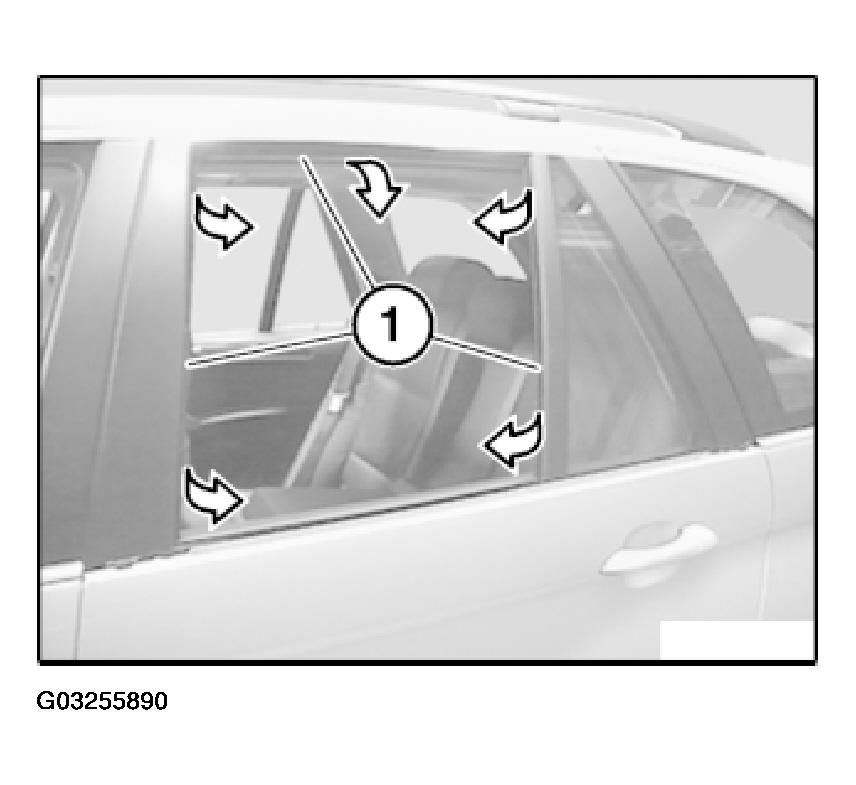

Fig 1: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

For installation, coat window cavity cover strip (1) with turpentine substitute.

Close door window glass a little.

Push rubber guide (1) onto door window glass and into window guide.

Installation:

Rubber guide (1) must not be damaged in corners (2).

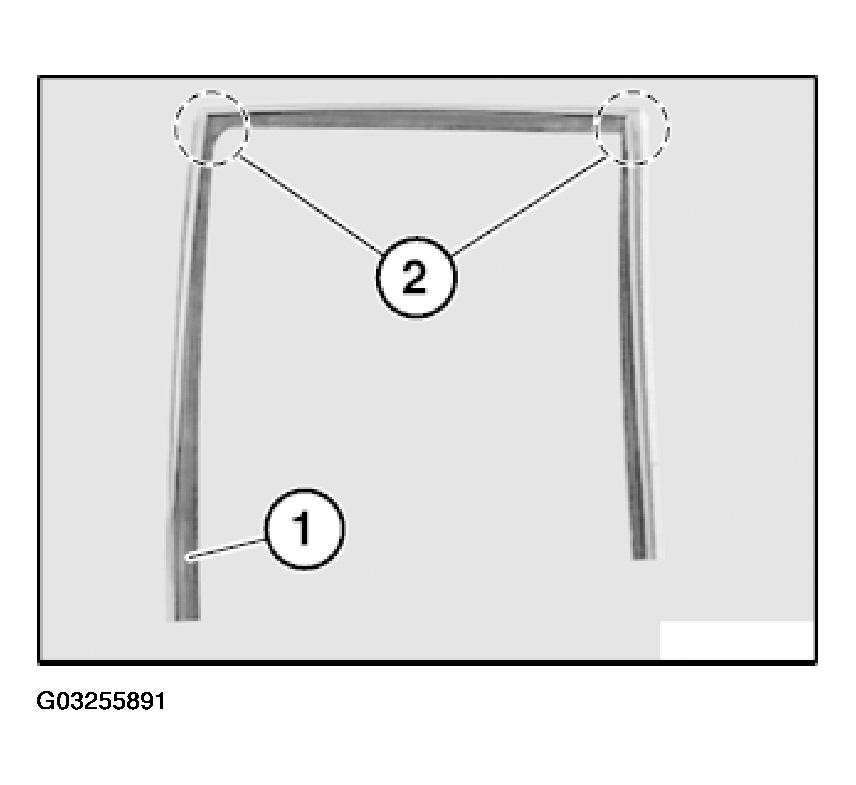

Fig 2: Identifying Rubber Guide Corners

Courtesy of BMW OF NORTH AMERICA, INC.
