51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 311

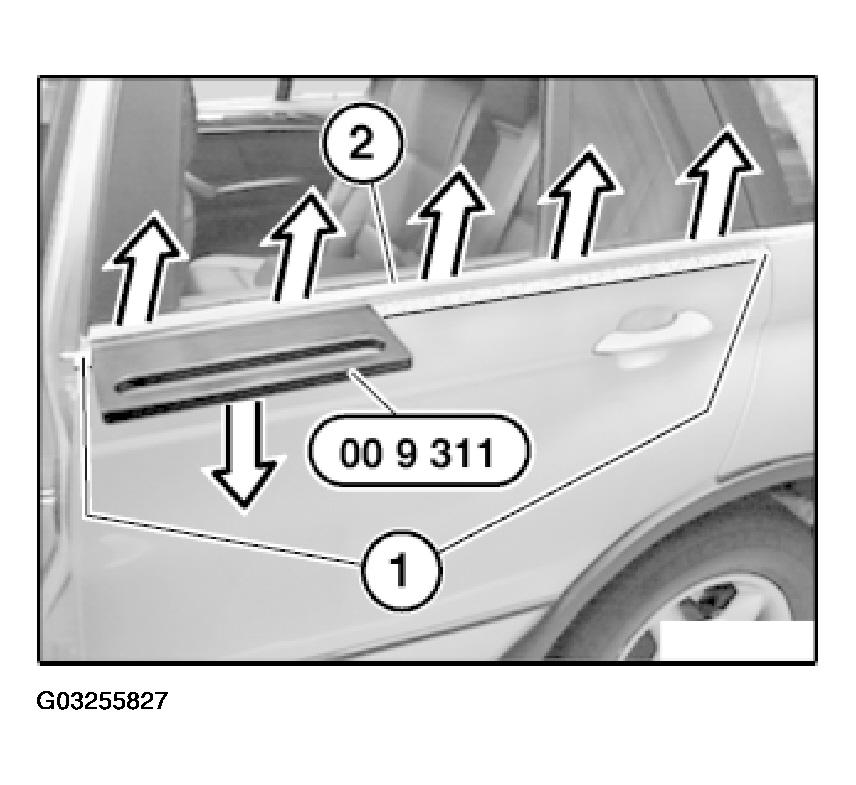

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Fig 1: Identifying Areas For Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Using special tool 009311 (beginning at front proceeding to rear), lever out window cavity cover strip (1).

Installation:

Coat window cavity cover strip (1) with water before fitting.

Window cavity cover strip (1) must be flush at front and rear with door edge.

Installation:

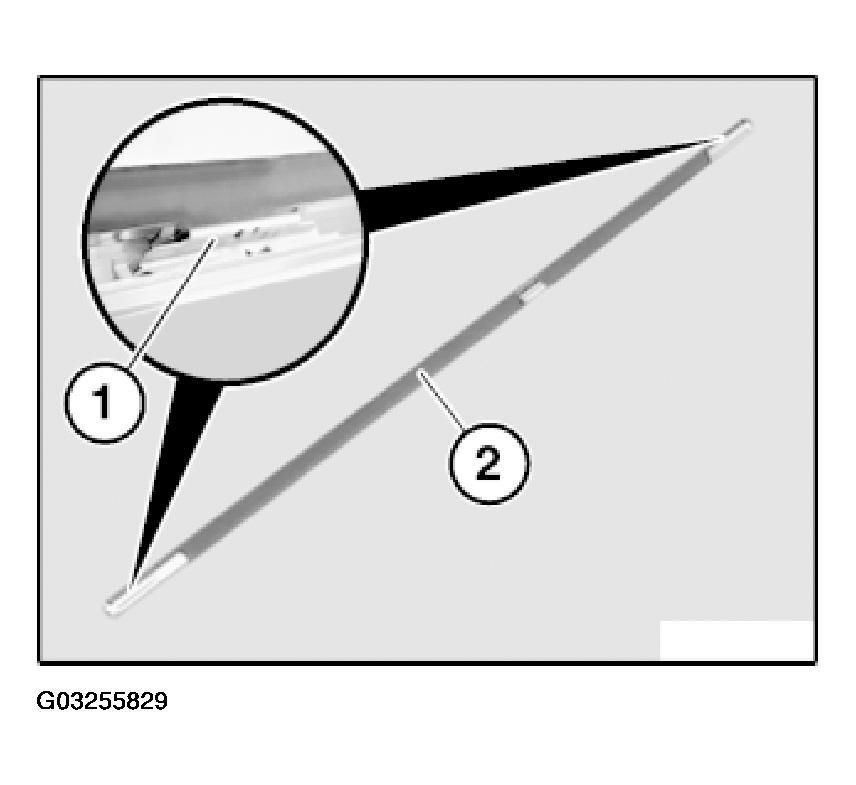

Clips (1) must not be damaged.

Fig 2: Identifying Window Cavity Cover Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

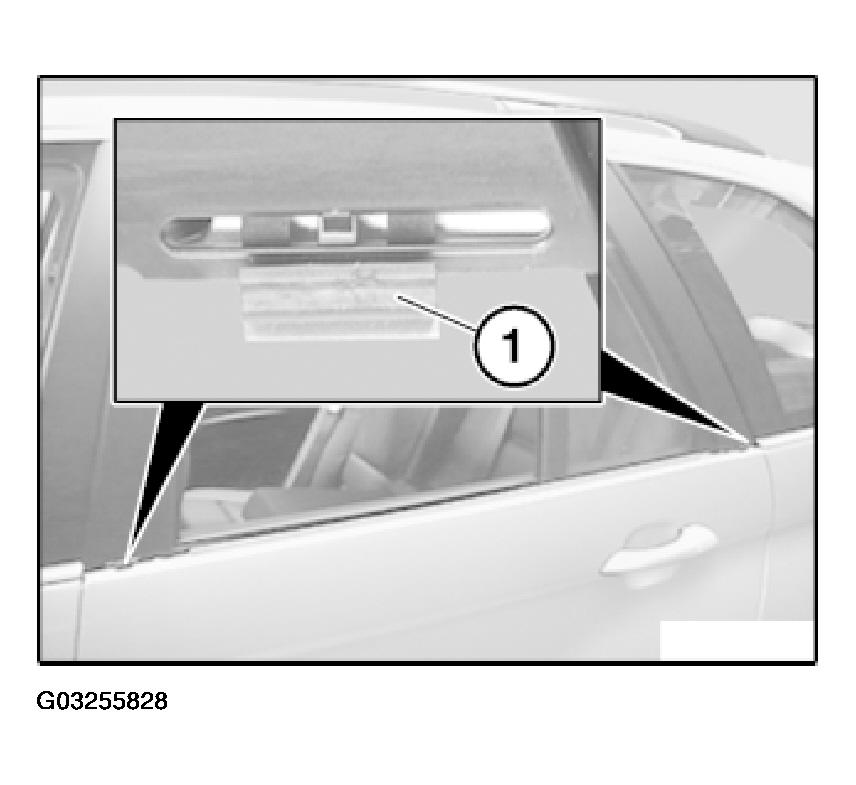

Retainers (1) of window cavity cover strip (2) must not be damaged.

Fig 3: Locating Retainers Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
