51 34 160 Removing and installing/replacing cover (anti-trapping protection) on door window frame (rear door), inside left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

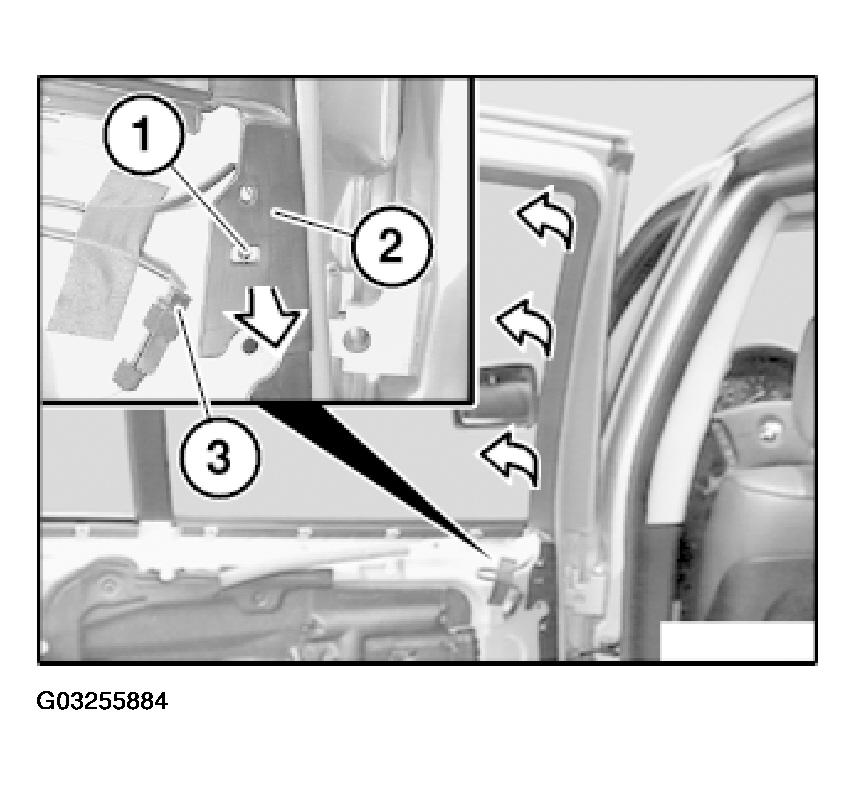

Carefully lever out clip (1) and lever out trim (2) in rear area. Disconnect plug connection (3).

Fig 1: Levering Out Clip And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out clip (1).

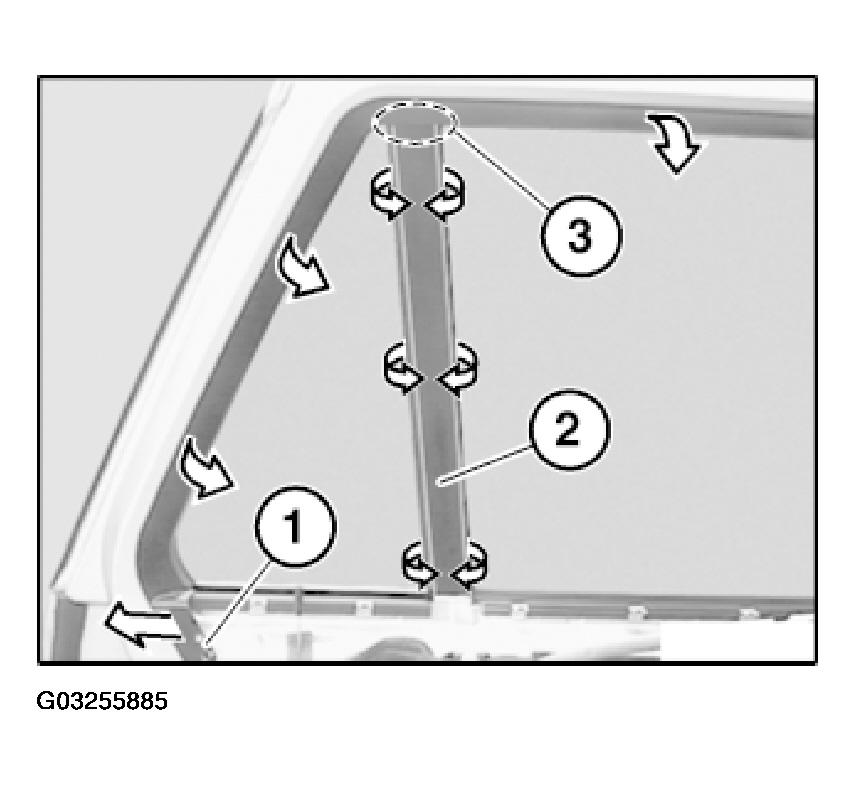

Lift out cover (1) from fixed door window.

Fig 2: Lifting Out Cover From Fixed Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not tear off cover (1) in area (2). Lift out and remove cover (2).

Installation:

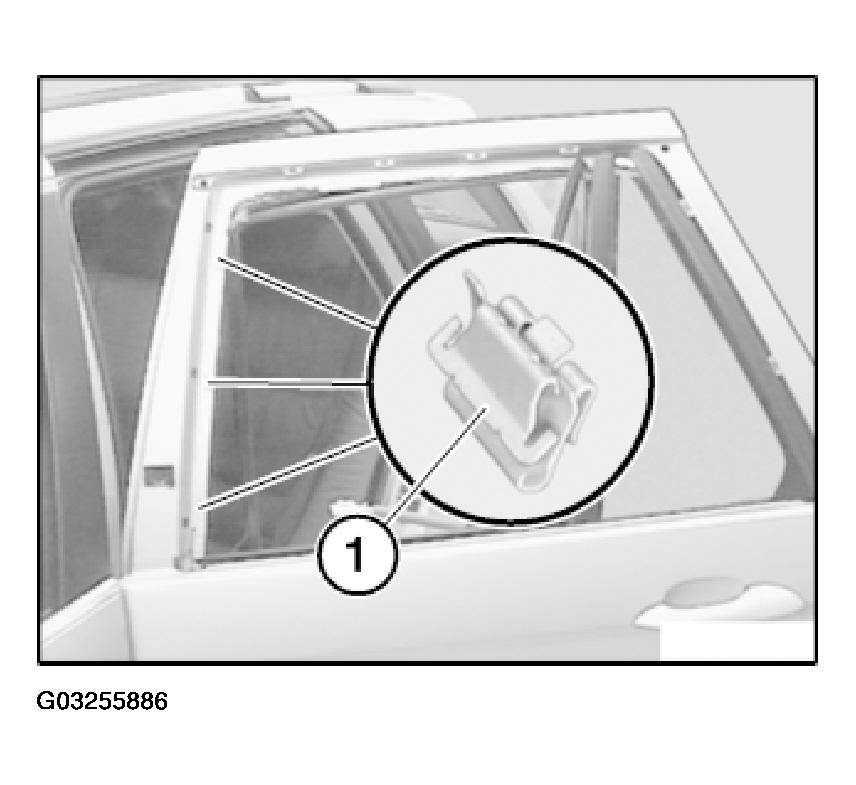

If applicable, replace defective clips (1).

Fig 3: Replacing Door Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

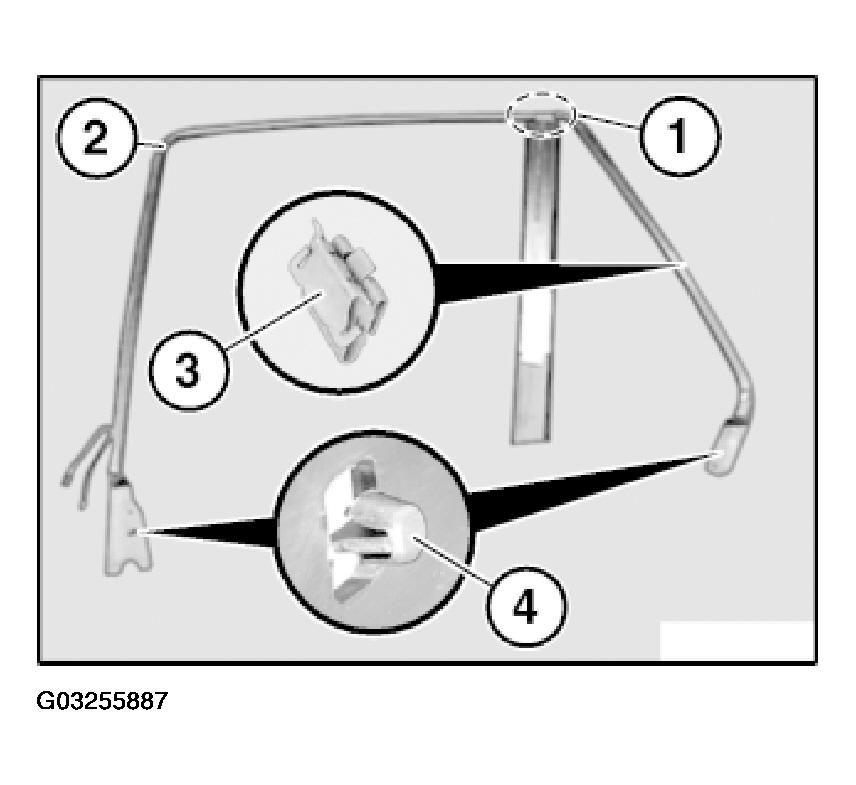

Connection (1) of cover (2) must not be damaged.

Fig 4: Identifying Door Trim Cover Connection

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace faulty clip (3).

Clips (4) must not be damaged.

Carry out function check.
