51 22 200 Removing and installing/replacing outside handle and lock control on left or right rear door

Remove sound insulation on rear door. Refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN REAR DOOR, LEFT OR RIGHT .

Remove outside handle on rear door. Refer to 51 22 170 REMOVING AND INSTALLING/REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .

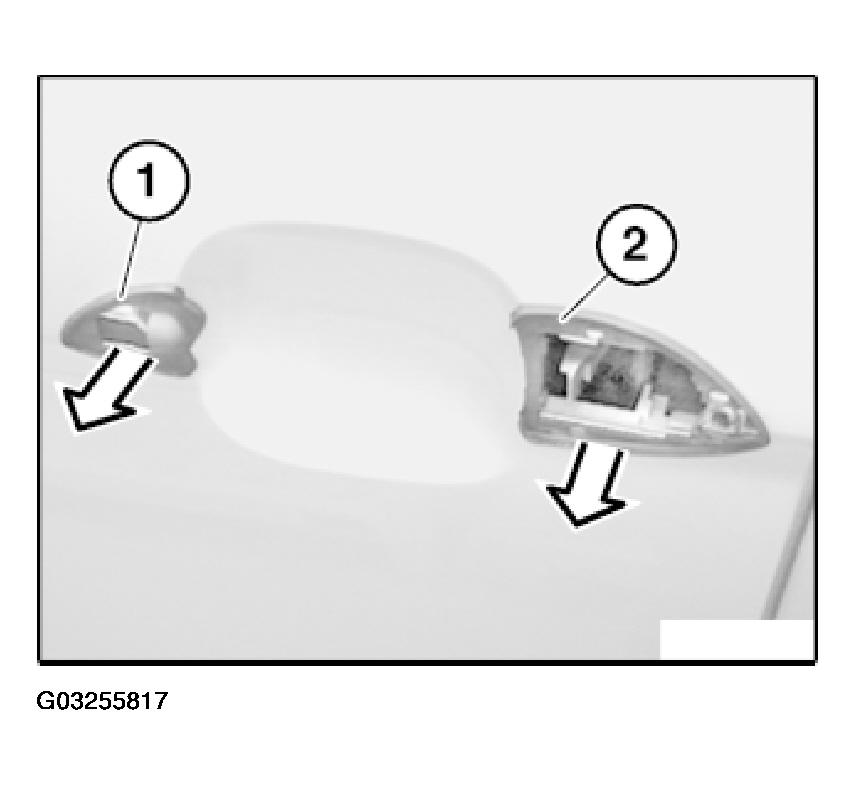

Remove seals (1) and (2) for outside handle.

Fig 1: Removing Seals For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

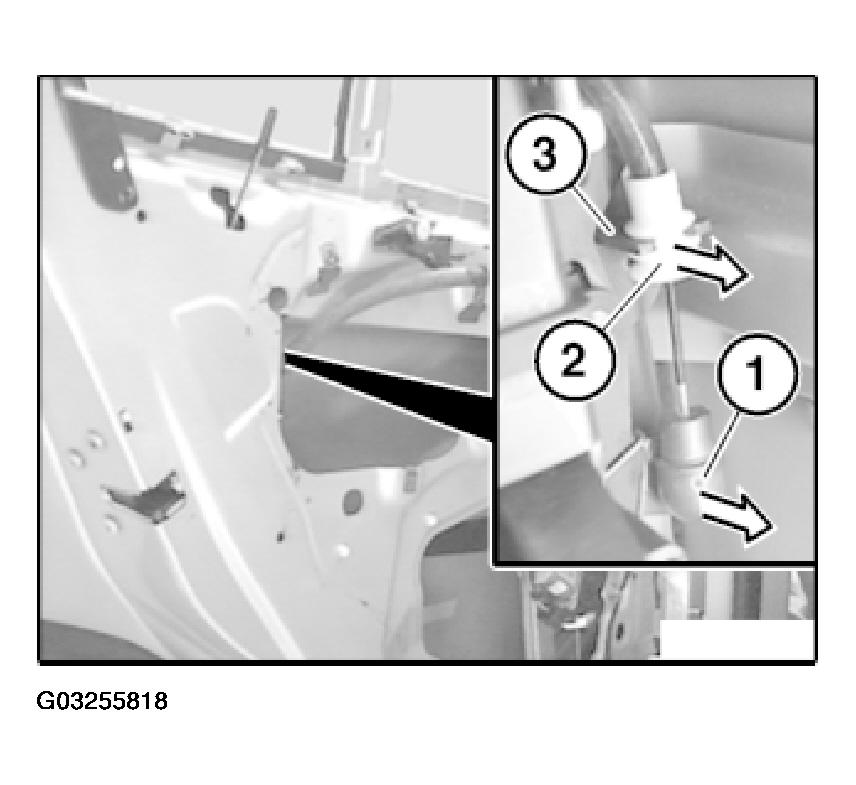

Unclip ball head (1).

Detach Bowden cable (2) from support (3) on door lock.

Fig 2: Detaching Bowden Cable From Support

Courtesy of BMW OF NORTH AMERICA, INC.

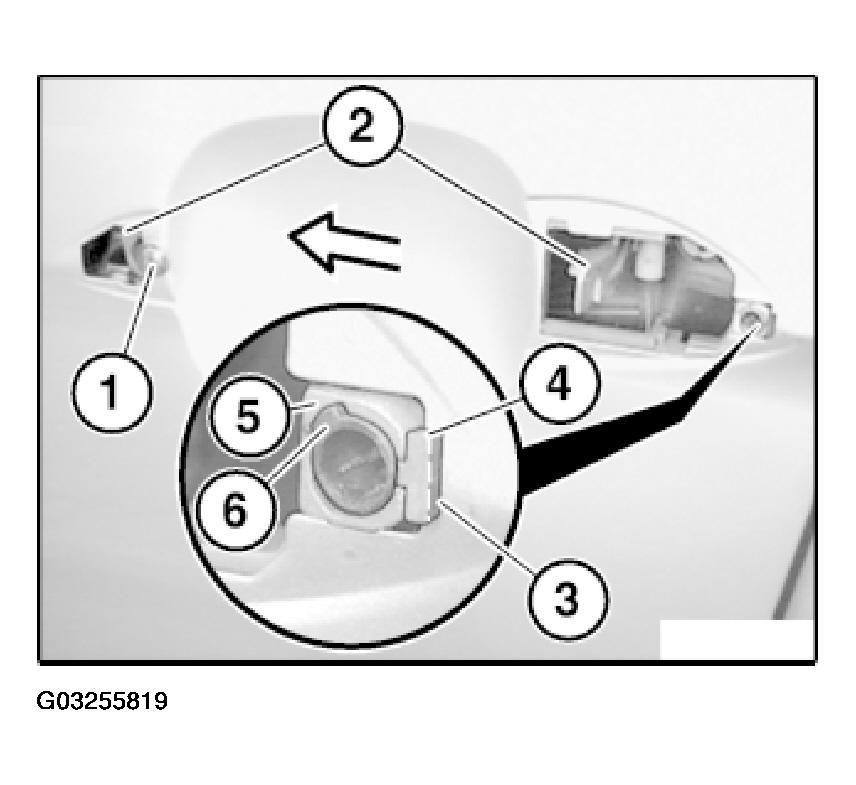

Slacken screw (1) (do not release fully).

Lift out lock actuator (2) towards front and remove to inner door panel.

Fig 3: Lifting Out Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (3) must be located outside metal edge (4).

Lock actuator (5) must be flush with guide (6).

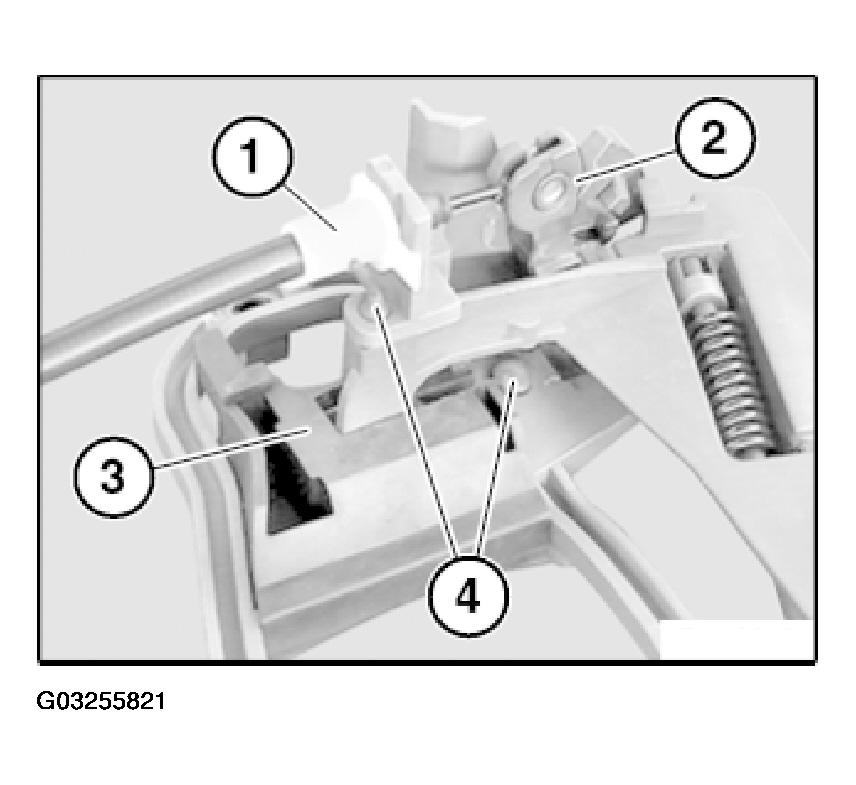

Fig 4: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bowden cable (1) must be fitted correctly with lock actuator (2).

Seal (3) must be fitted - wind noises.

Buffers (4) must be fitted.

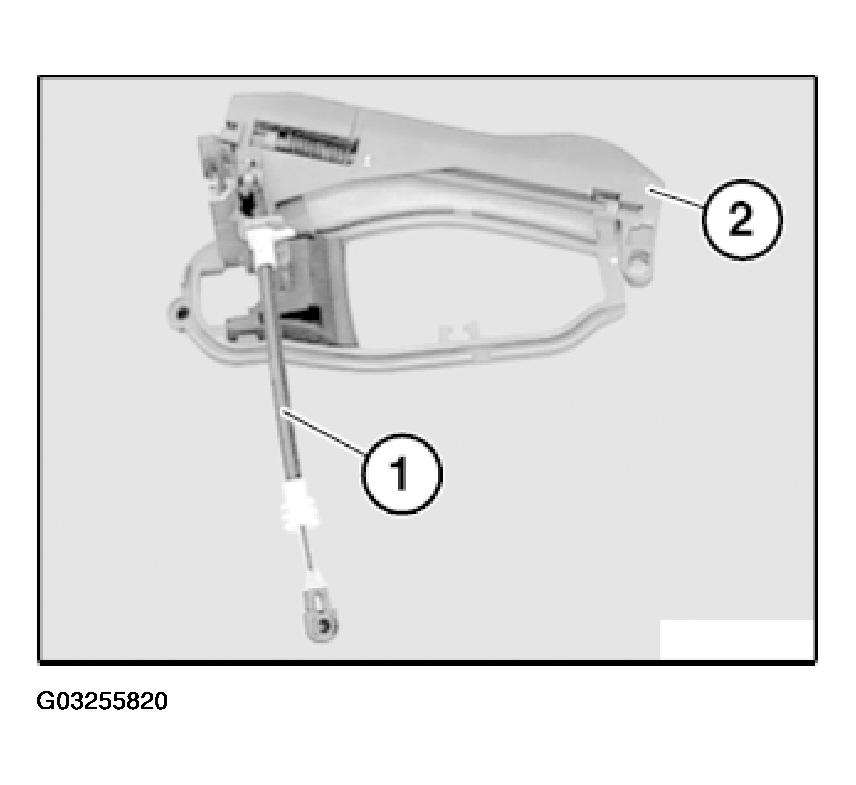

Fig 5: View Of Bowden Cable With Seal And Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

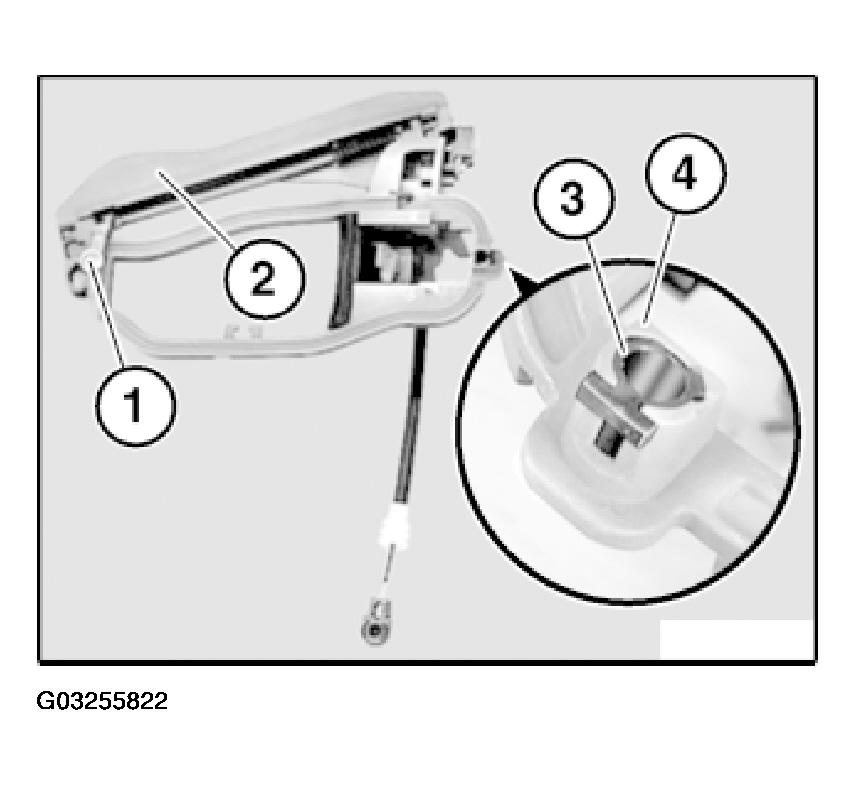

If necessary, replace screw (1) on lock actuator (2).

Fig 6: Replacing Screw On Lock Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Guide (3) must be flush with support (4).
