51 22 170 Removing and installing/replacing outside handle on left or right back door

Remove cover on outside handle. Refer to 51 22 180 REMOVING AND INSTALLING/REPLACING COVER ON OUTSIDE HANDLE, LEFT OR RIGHT .

Removal:

Slacken nut (1) on outside handle (2) (do not release fully).

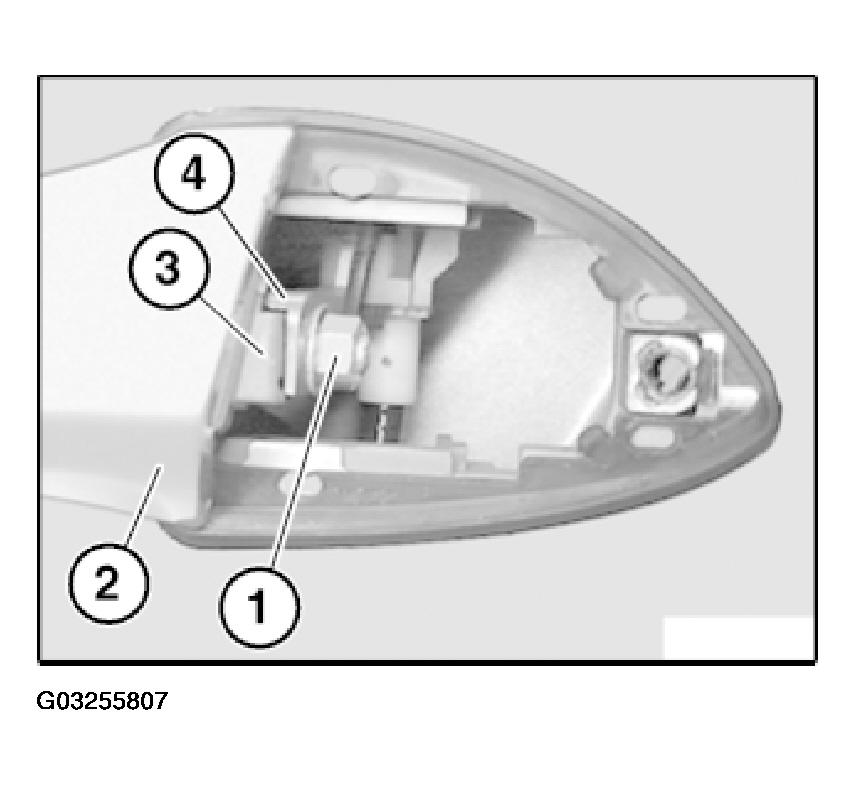

Fig 1: Locating Nut On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Contact surface (3) of outside handle (2) must rest without play against lock actuator (4).

Tightening torque, (3.2 N.m.).

Pull outside handle (2) as far outwards/upwards as possible and secure in this position with a screwdriver (3).

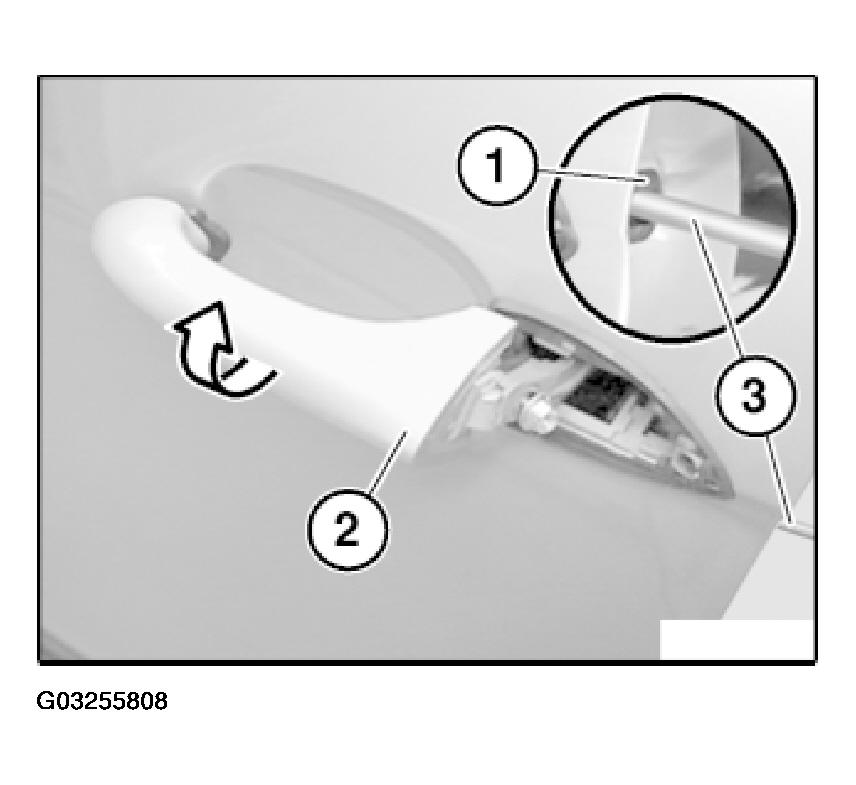

Fig 2: Pulling And Securing Outside Handle Outwards/Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

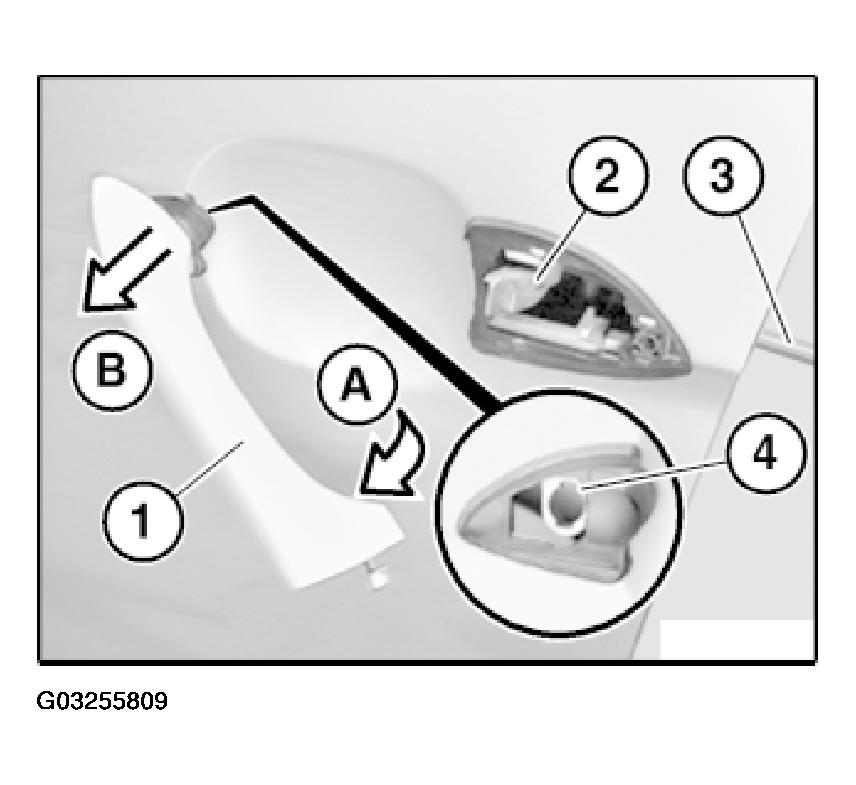

1. Pull off outside handle (1) from rear lock actuator (2).
2. Pull off outside handle (1) in lowest setting (as shown in illustration) from front lock actuator (4).

Fig 3: Removing Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Old outer frame (1) of screw cover must be fitted (damage to paint).

Press lock actuator (2) with a screwdriver (3) fully into "Open" setting.

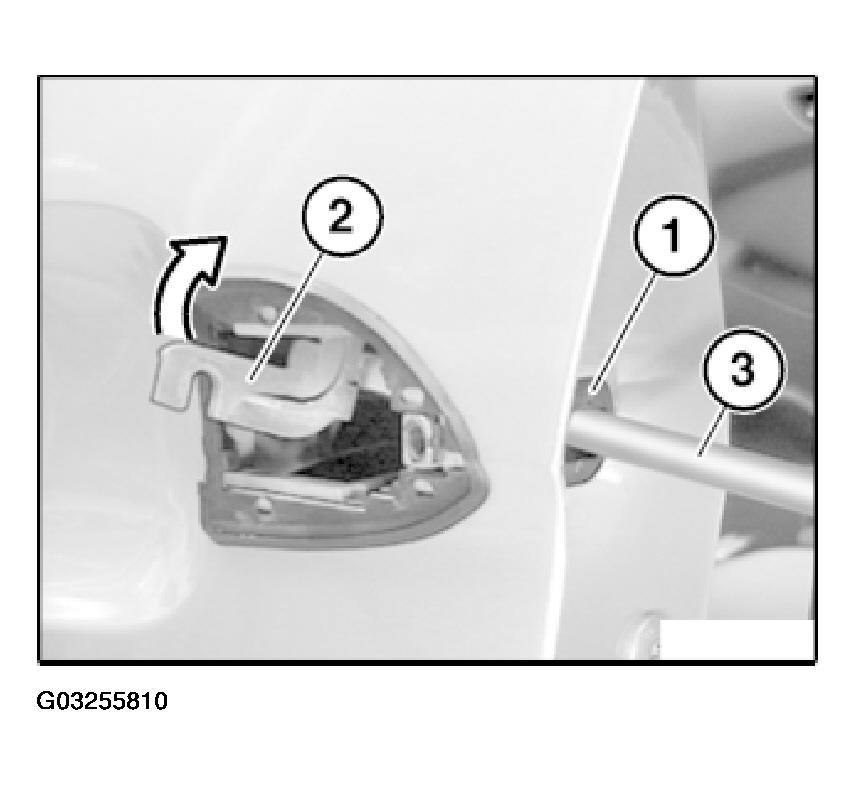

Fig 4: Pressing Lock Actuator With A Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Mount outside handle in this position.

Installation:

Supports (1) and (2) on outside handle (3) must not be damaged.

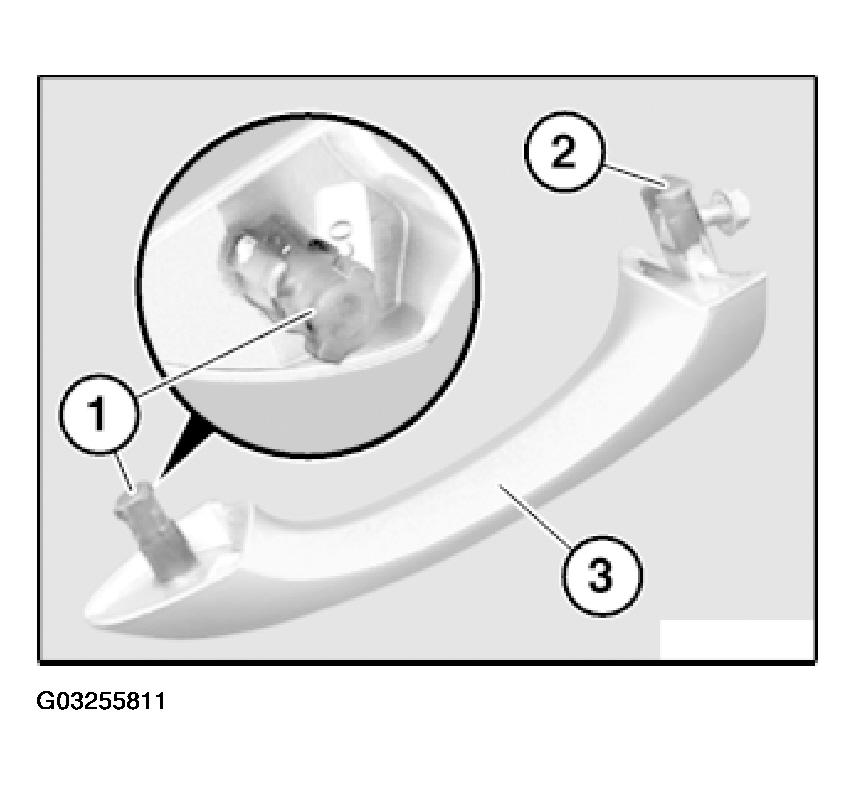

Fig 5: Identifying Supports On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty seals (1) and (2) for outside handle.

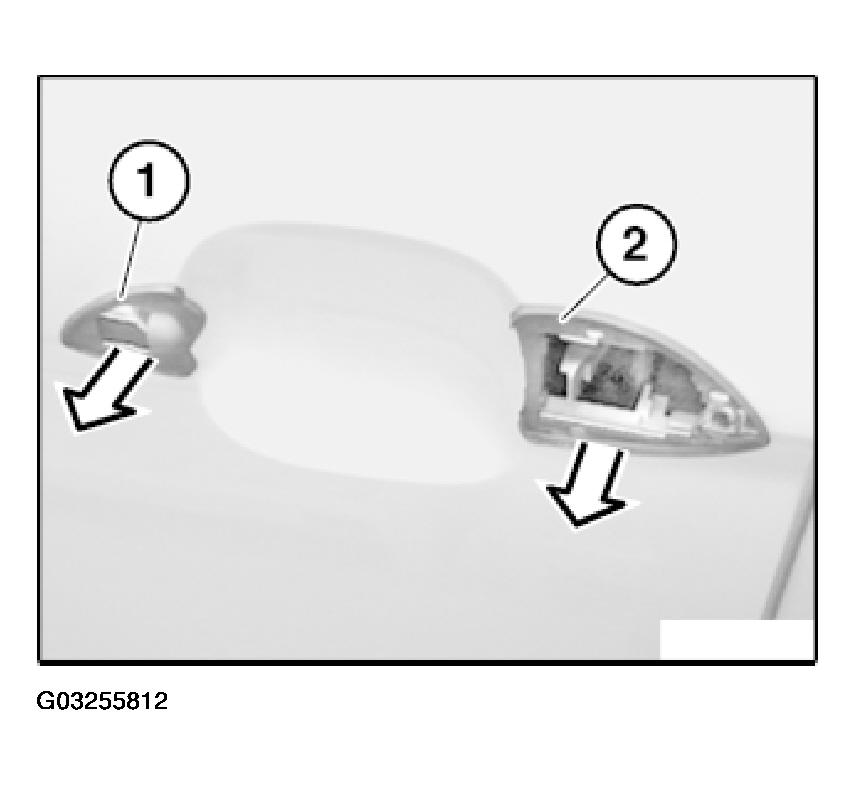

Fig 6: Locating Seals For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out function check only with door open.
