51 48 ... Removing and installing/replacing sound insulation in rear door, left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 317

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

If necessary, remove airbag module in rear door.

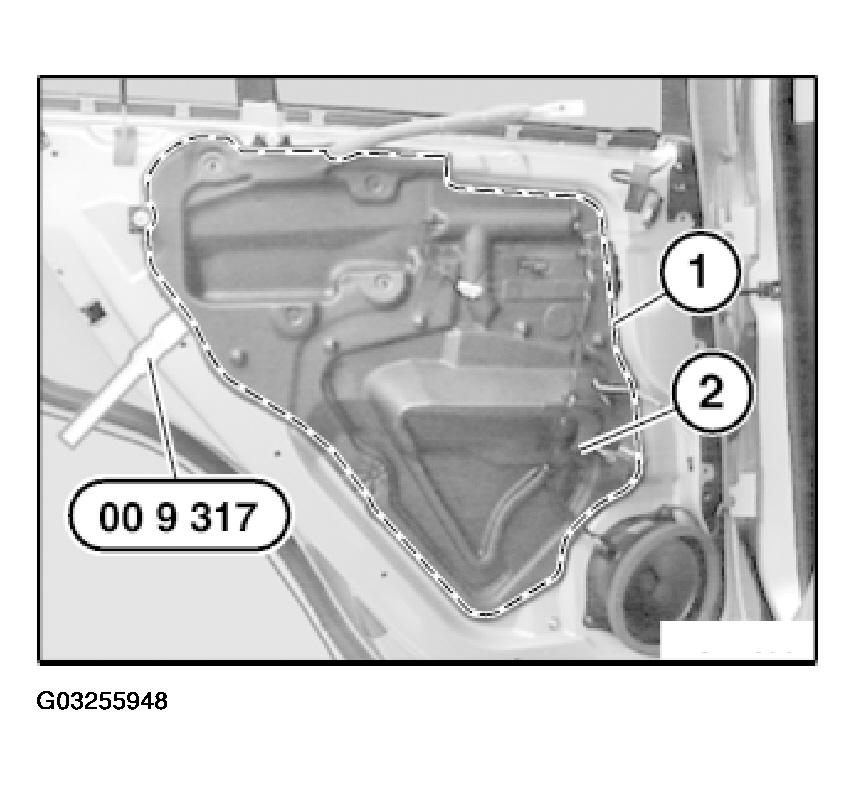

Using special tool 00 9 317 (trim panel wedge), lever out sealing bead (1) of sound insulation (2) completely or if necessary partially.

Fig 1: Removing Sealing Bead Using Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In event of replacement or partial detachment, lay butylene tape on inner door plate or sound insulation.

Seal cable penetrations with butylene tape.

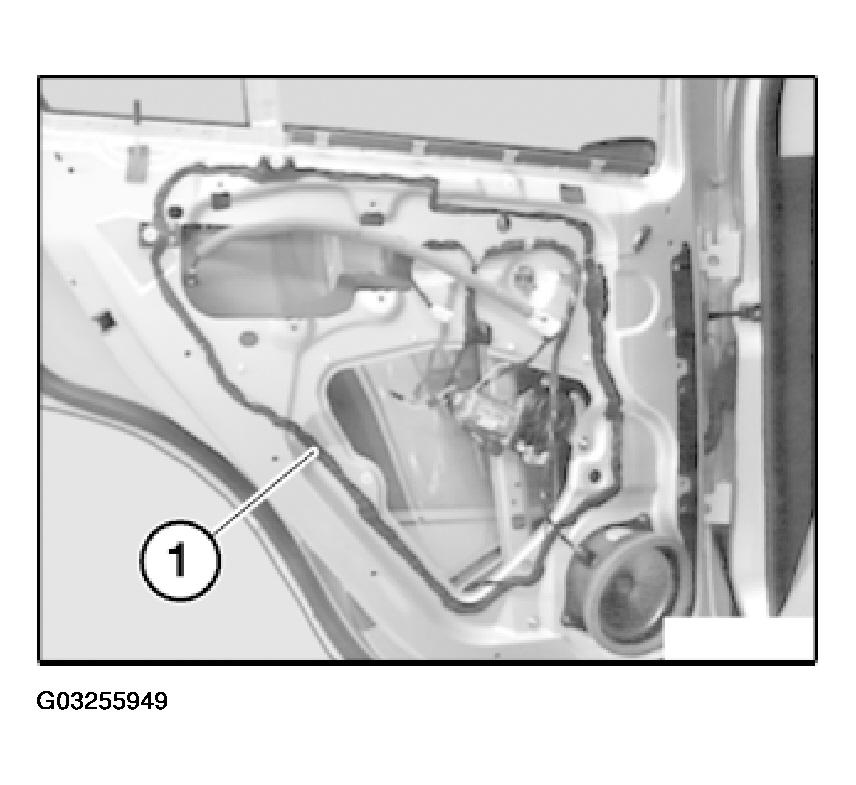

NOTE: Position of butylene tape (1) on inner door plate.

Fig 2: Locating Butylene Tape On Inner Door Plate

Courtesy of BMW OF NORTH AMERICA, INC.

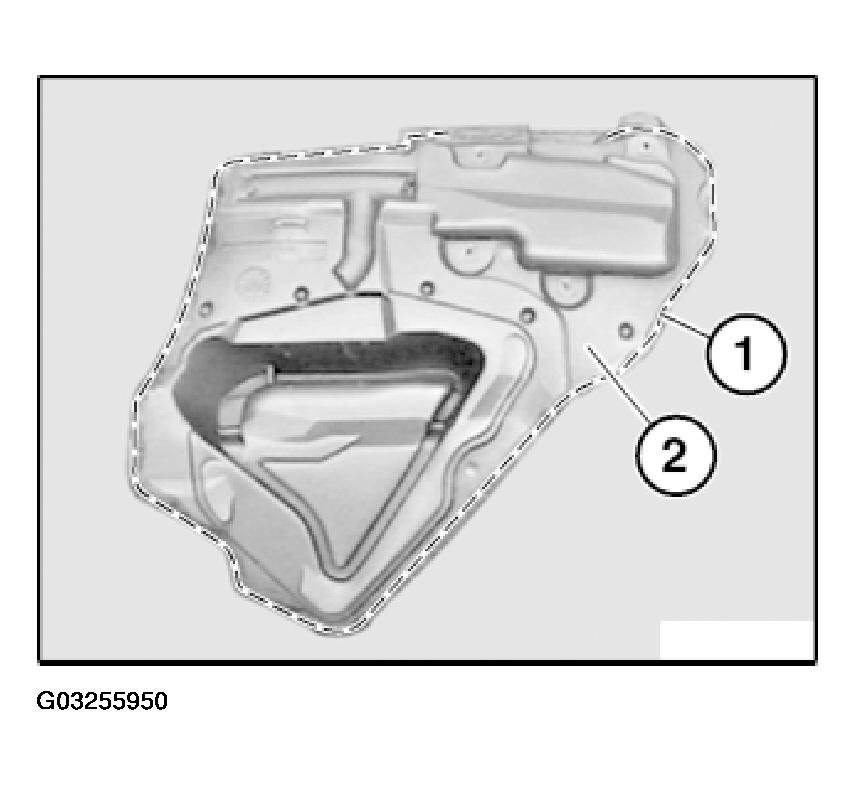

NOTE: Position of butylene tape (1) on sound insulation (2).

Fig 3: Positioning Of Butylene Tape On Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Clean specified adhesive area with adhesive cleaner.

Air drying time: 1 minute.

CAUTION: The adhesive areas must be dry and free from dust and grease. After cleaning, do not touch the adhesive areas with bare hands.

Lay single row of 6 mm dia. butylene tape or double row of 3 mm dia. tape in specified adhesive area.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all around.

Contact pressure with hand roller: approx. 30 N/cm² .

Manual contact pressure: approx. 10 N/cm² .

NOTE: Firm thumb pressure has approx. 50 N/cm² .
