51 16 201 Replacing center console

Remove trims for center console. Refer to 51 16 220 REPLACING TRIMS FOR CENTER CONSOLE .

Remove rear center console with cup holder. Refer to 51 16 204 REMOVING AND INSTALLING/REPLACING REAR CUP HOLDER .

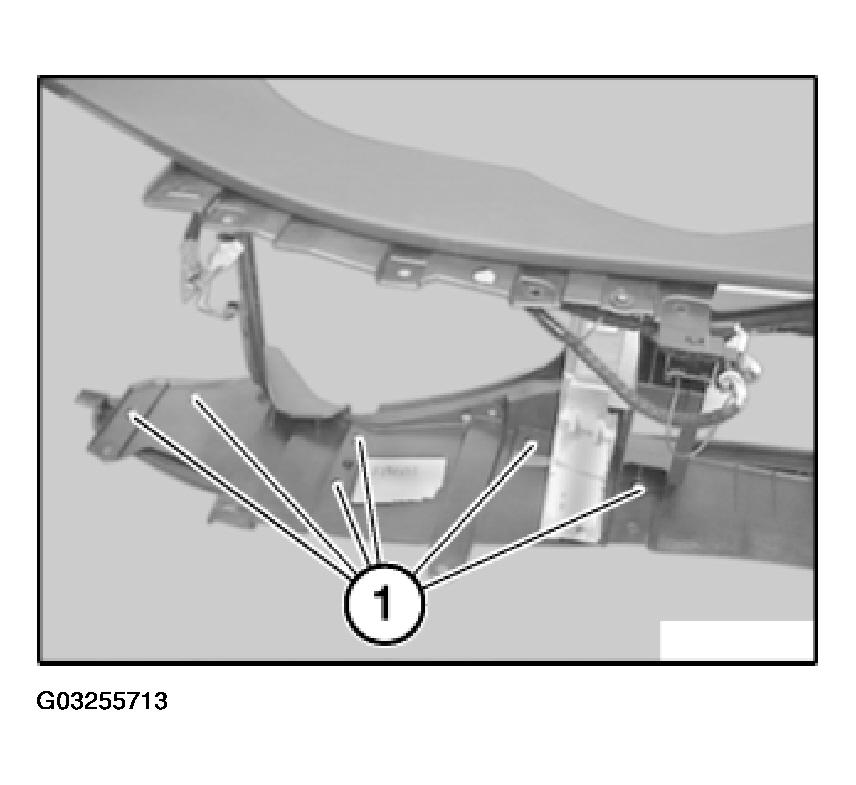

Release left/right screws (1).

Fig 1: Locating Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

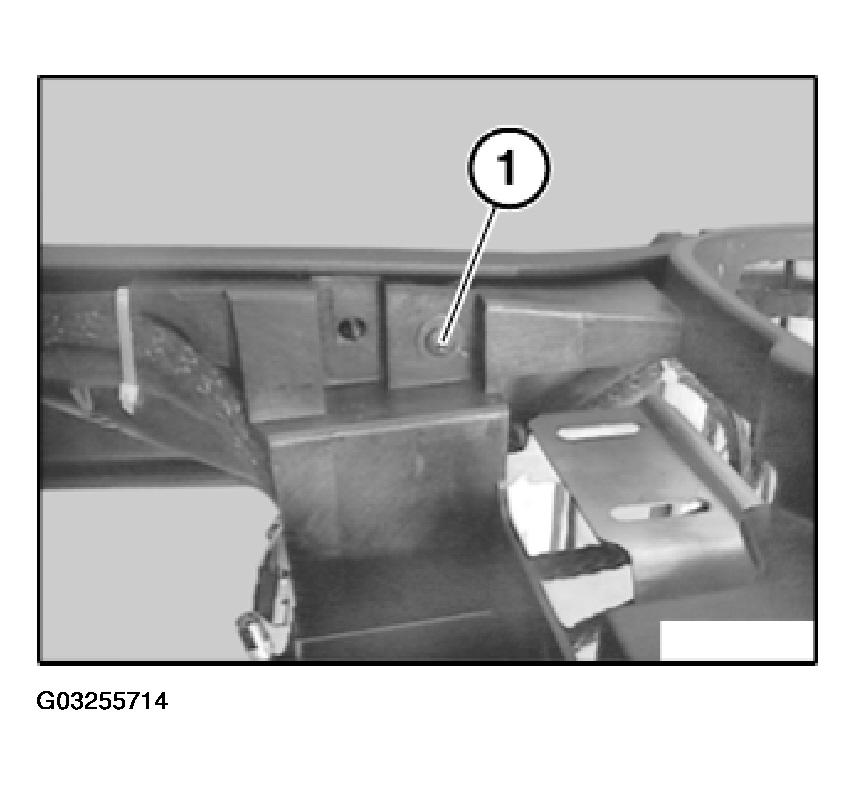

In addition, release screw (1) on driver's side.

Fig 2: Identifying Screw On Driver Side

Courtesy of BMW OF NORTH AMERICA, INC.

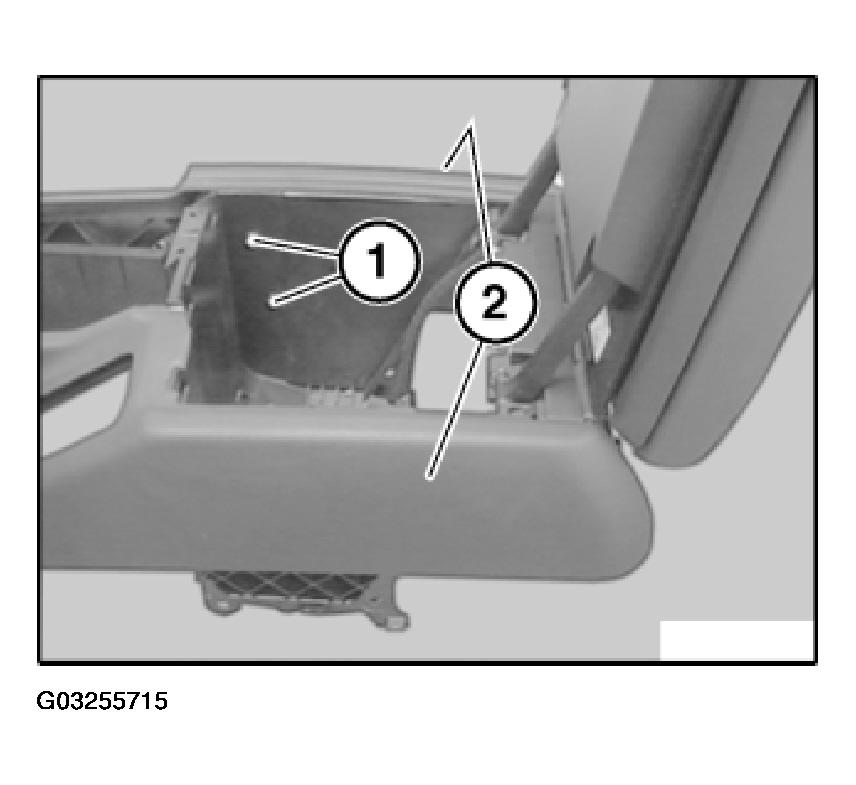

Release left/right screws (1) and remove side sections (2).

Fig 3: Releasing Left/Right Screws On Side Sections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

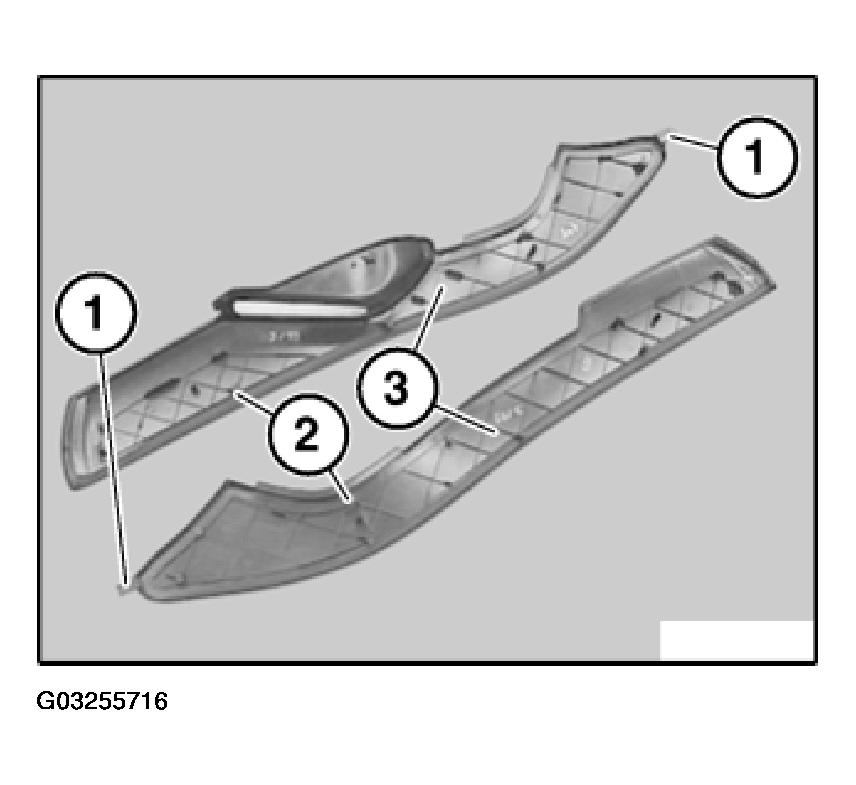

Guides (1) and all screw points (2) of side sections (3) must not be damaged.

Fig 4: Locating Guides And Screw Points Of Side Sections

Courtesy of BMW OF NORTH AMERICA, INC.

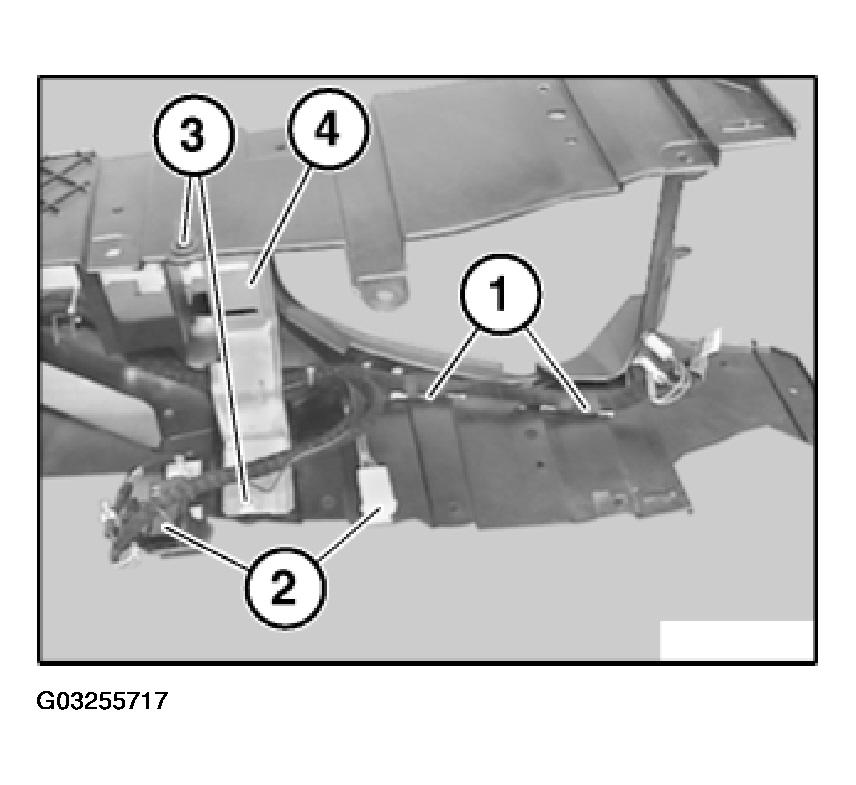

Release cable holder (1).

Turn and detach plug connections (2).

Fig 5: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) and remove holder (4).

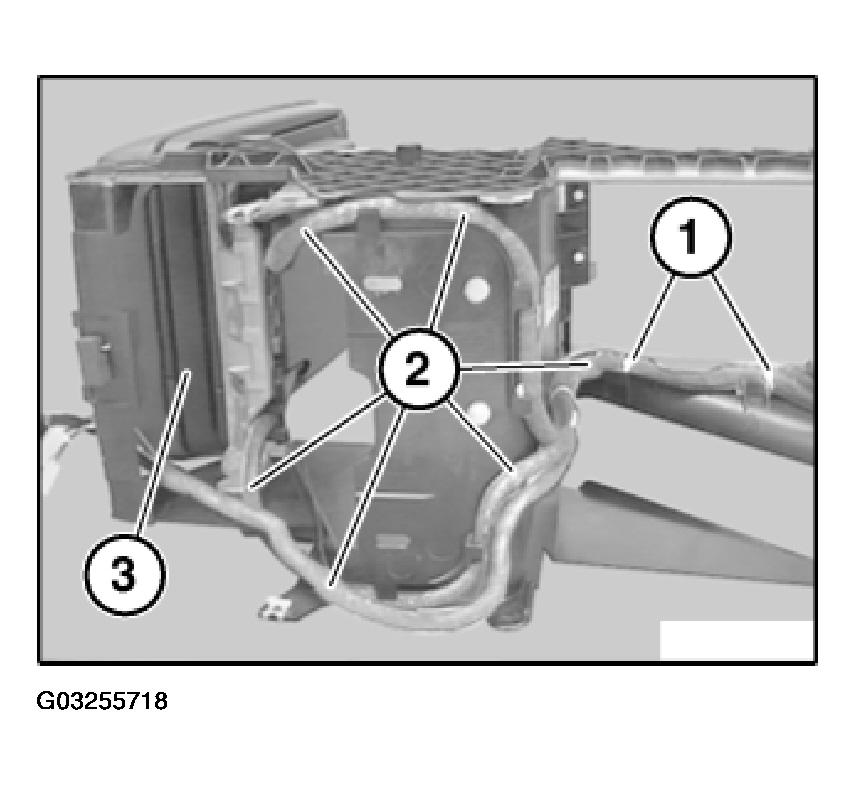

Unfasten cable clip (1).

Feed cable (2) out of center console (3).

Fig 6: Removing Cable Out Of Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

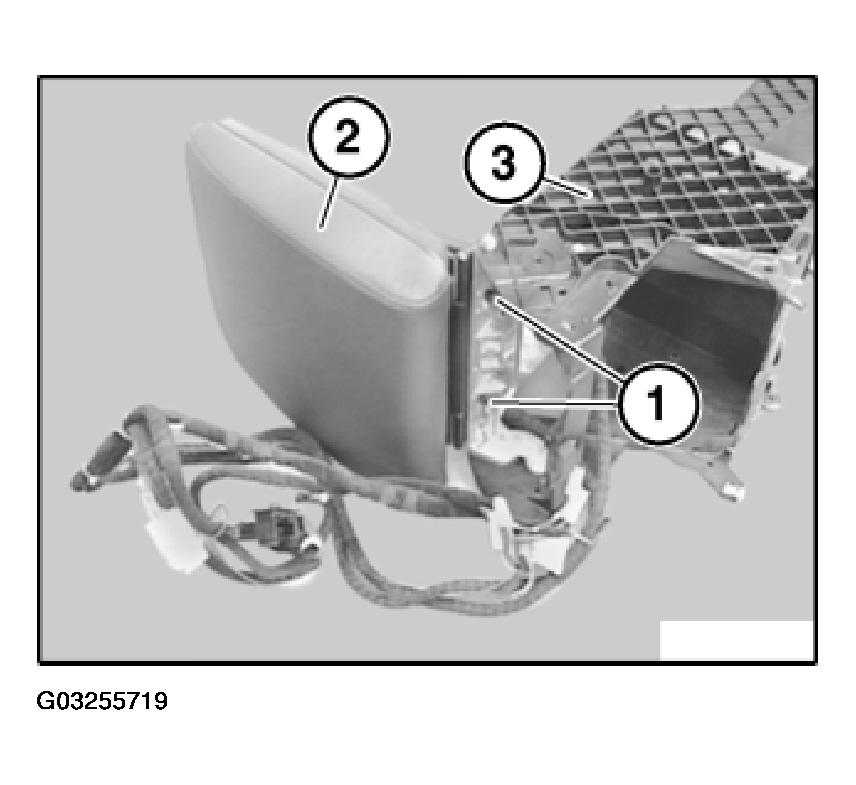

Release screws (1) and remove armrest (2) from center console (3).

Fig 7: Locating Screws On Center Console Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

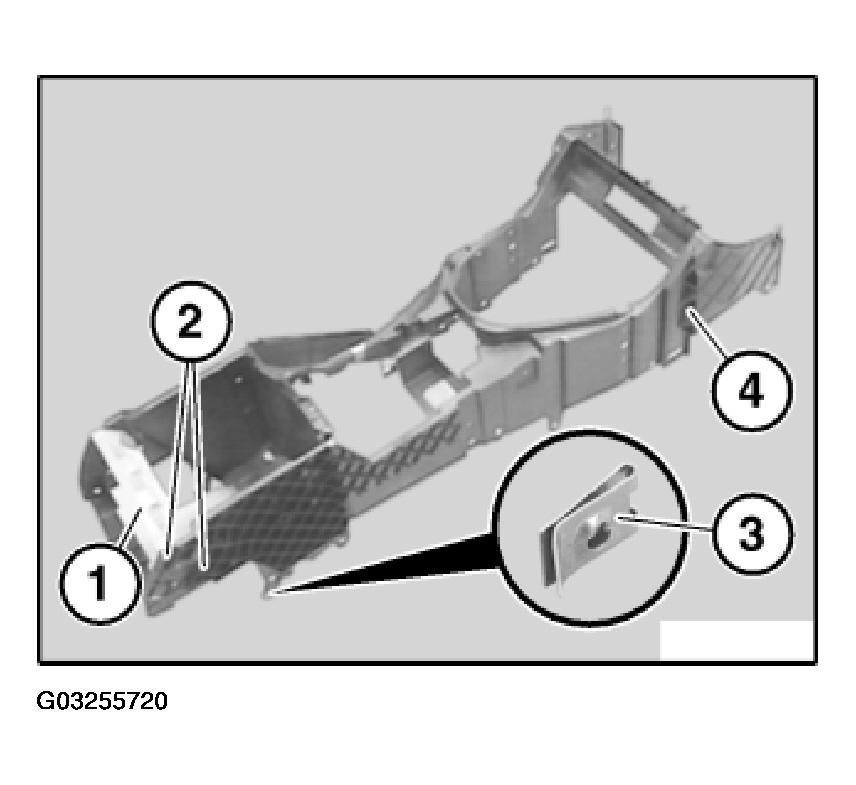

Release screws (2) and remove frame (1).

Remove left/right metal nuts (3) from center console (4).

Fig 8: Identifying Metal Nuts In Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
