51 16 220 Replacing trims for center console

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove oddments tray. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

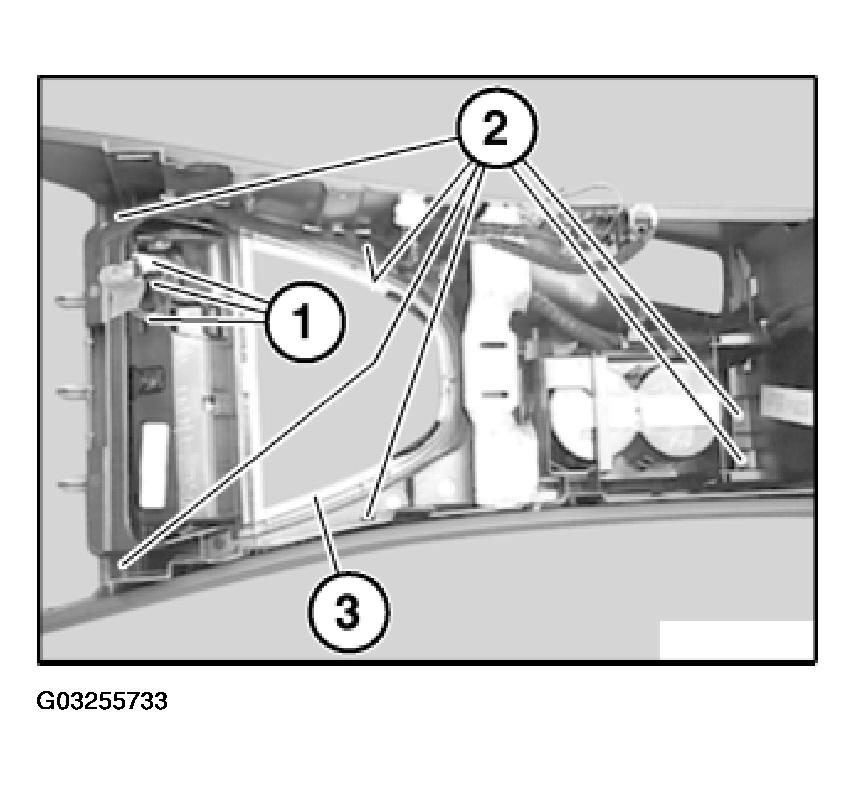

Disconnect plug connection (1).

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove base (3) for center console and place on a clean surface.

NOTE: The operation "Removing base for center console" ends here.

Removing Front Cup Holder:

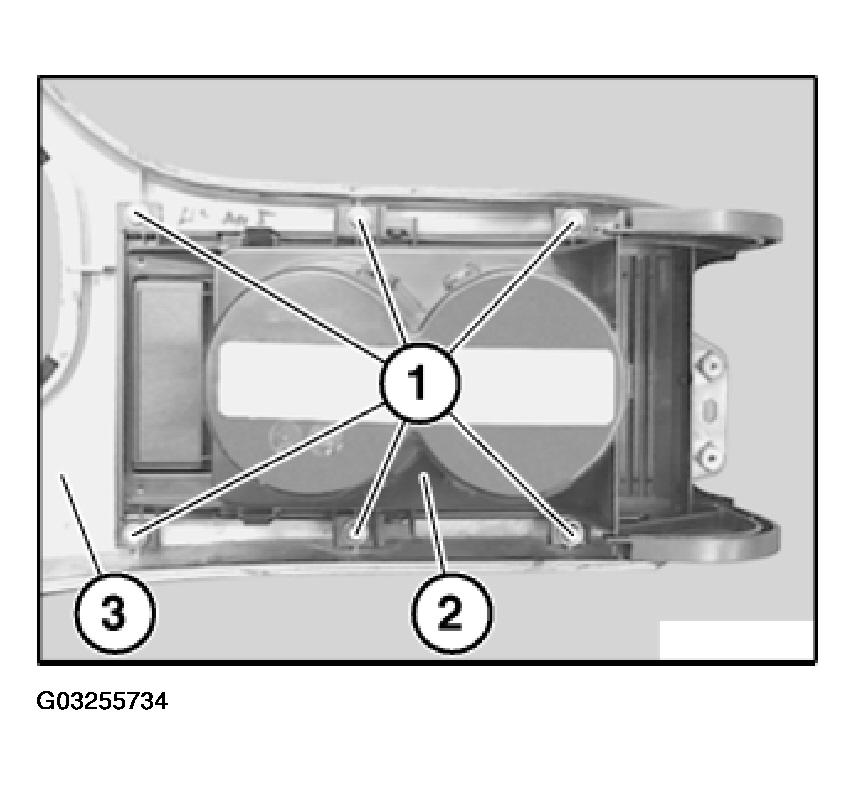

Release screws (1).

Fig 2: Identifying Cup Holder Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cup holder (2) from base (3) for center console.

Installation:

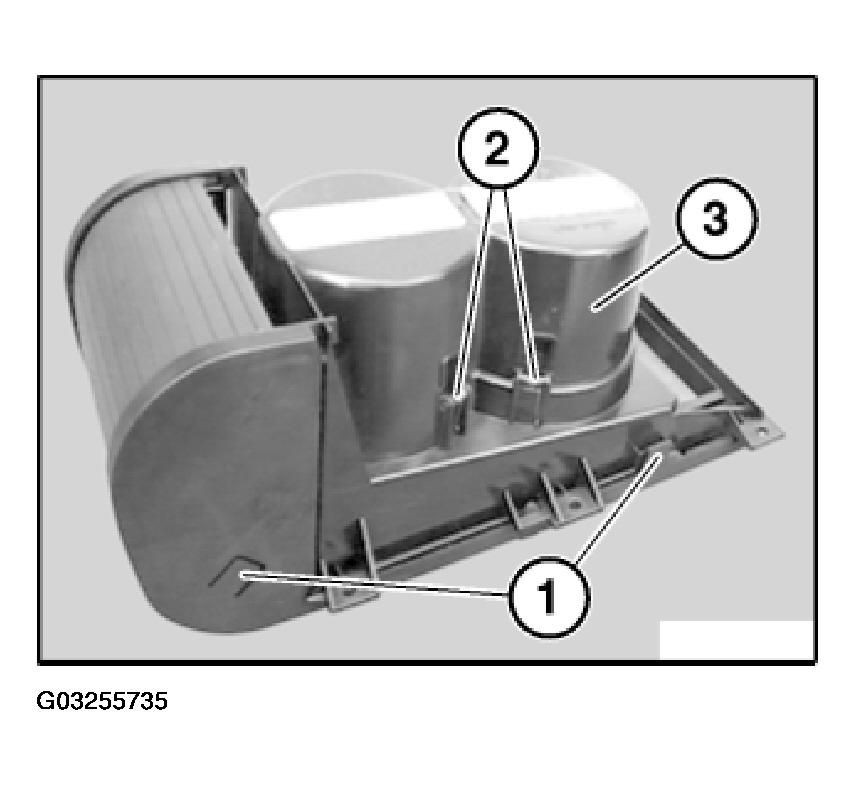

Left/right catches (1) must be correctly secured.

All springs (2) on cup holder (3) must not be damaged.

Fig 3: Locating Springs On Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Removing Decorative Trim On Front Ashtray Cover:

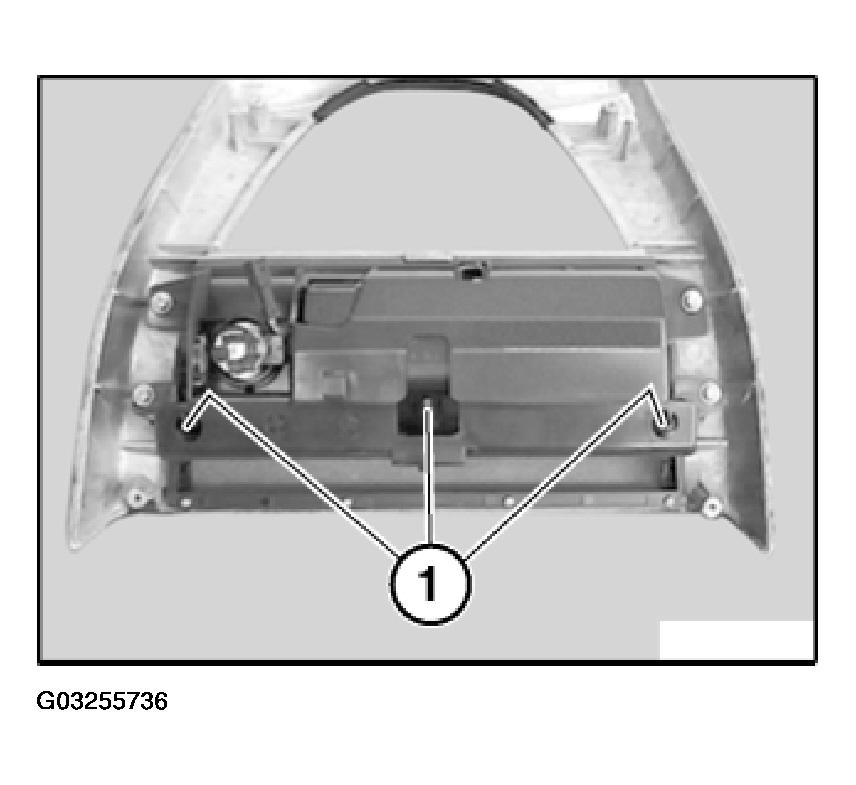

Release screws (1) and remove decorative trim from ashtray cover.

Fig 4: View Of Decorative Trim On Front Ashtray Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Removing Front Ashtray:

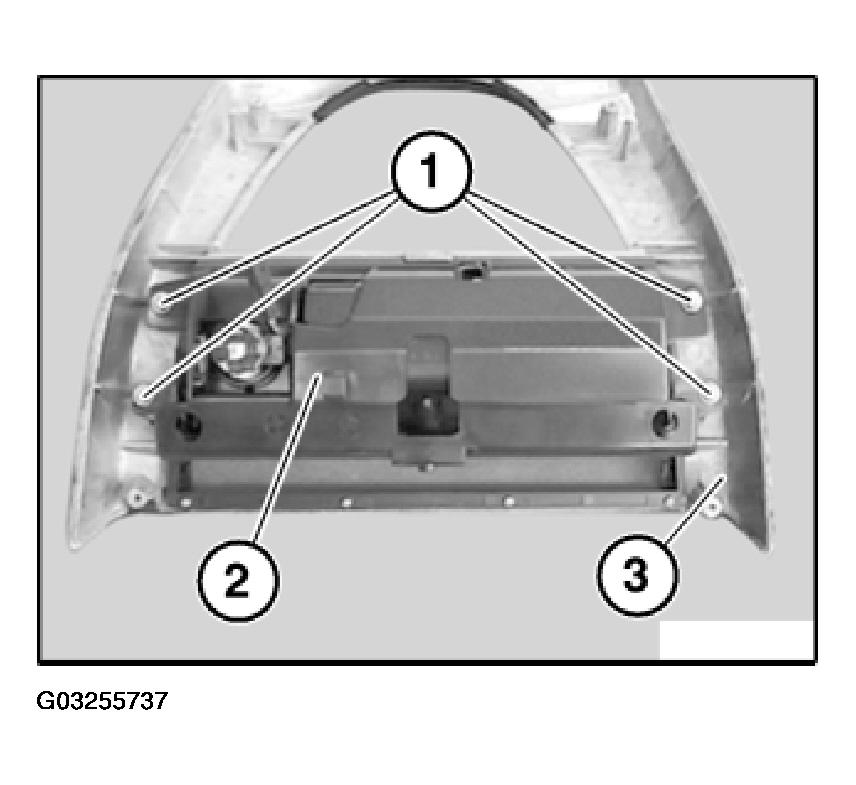

Release screws (1) and remove ashtray (2) from base (3) for center console.

Fig 5: Removing Front Ashtray Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Of Base Of Center Console Only:

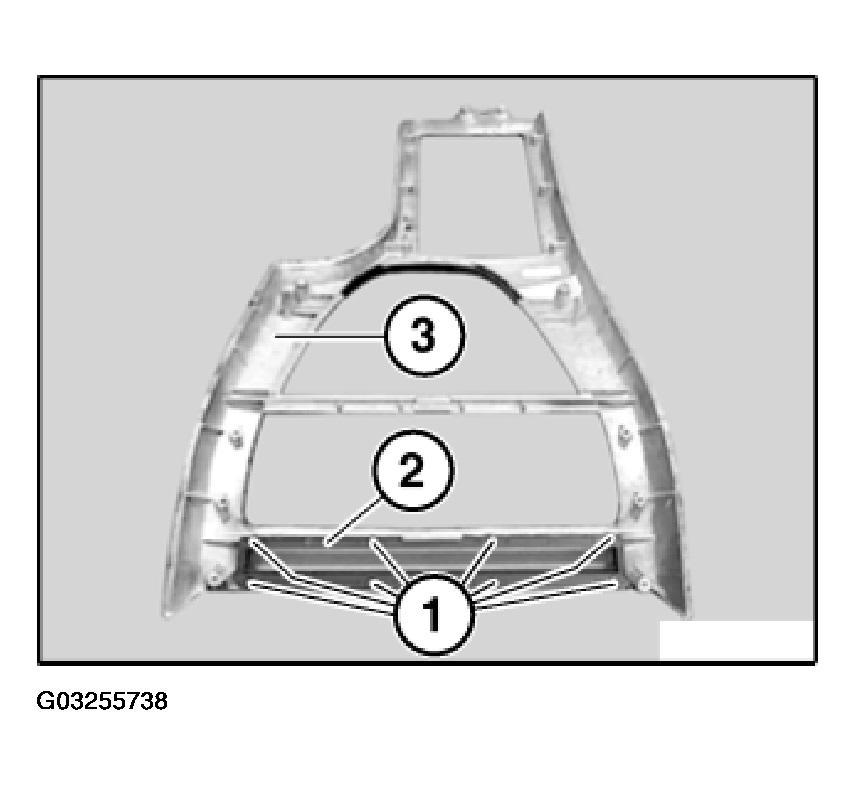

Release screws (1).

Fig 6: Removing Screws From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (2) for switch from base (3) for center console.
