51 16 204 Removing and installing/replacing rear cup holder

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release Center Console At Rear:

Remove fresh air grill in footwell. Refer to 64 22 190 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL IN REAR OF CAR .

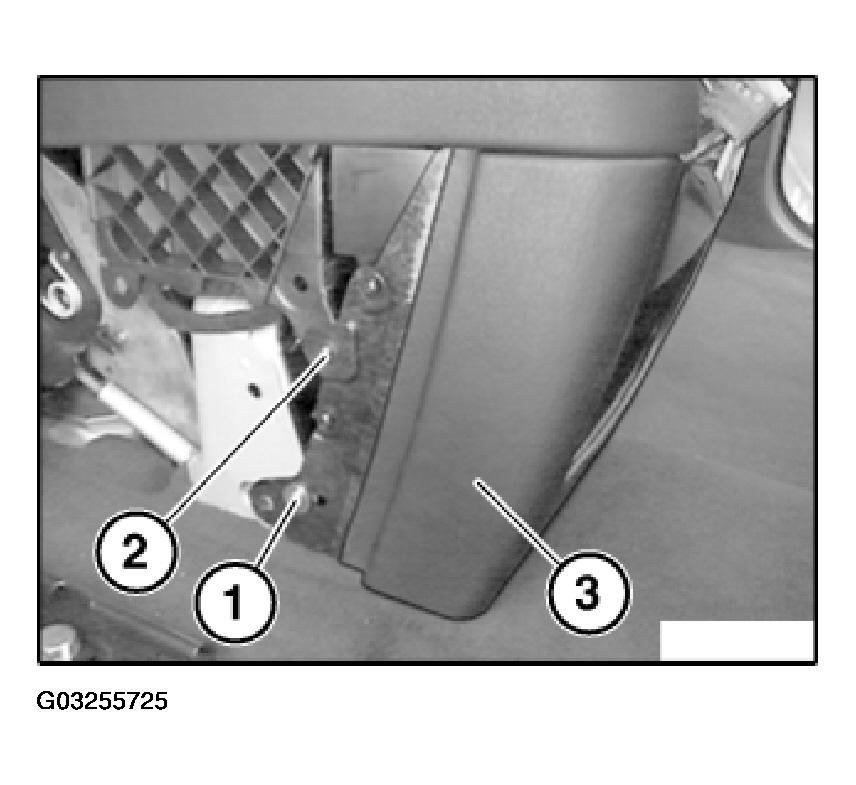

Remove air duct (2).

Installation:

Prior to tightening down all screws, fit air duct (2) correctly.

Fig 1: Identifying Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

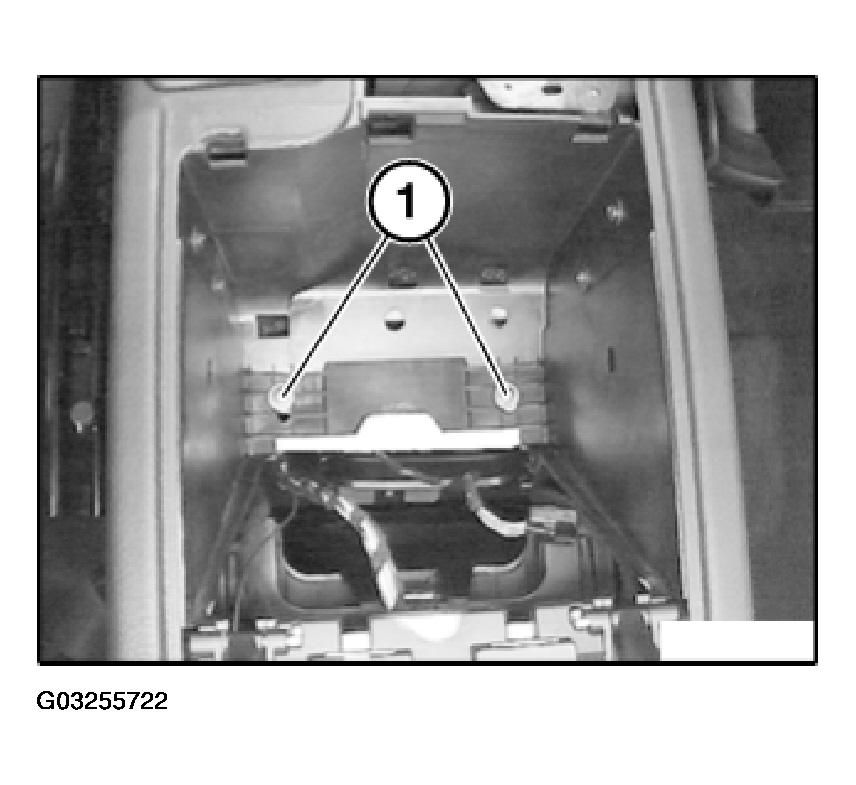

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

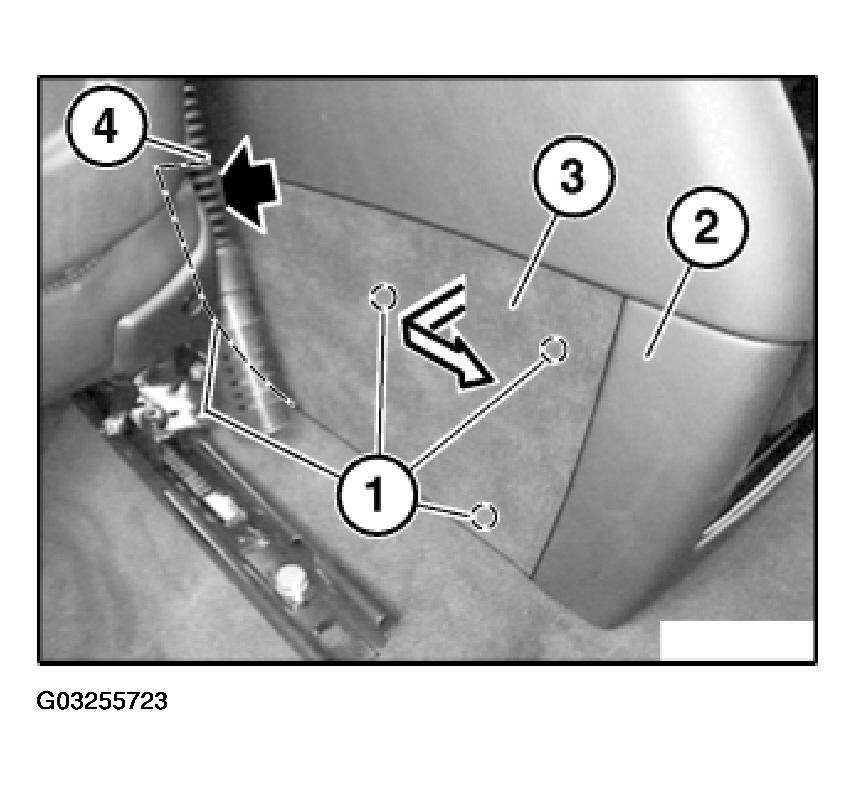

CAUTION: Last clip on front carpet (4) must be unclipped (risk of damage).

Unclip clips (1) on left/right with carpet (3) outwards from center console (2).

Pull out carpet (3) towards rear.

Fig 3: Locating Clips On Left/Right From Carpet Outwards From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

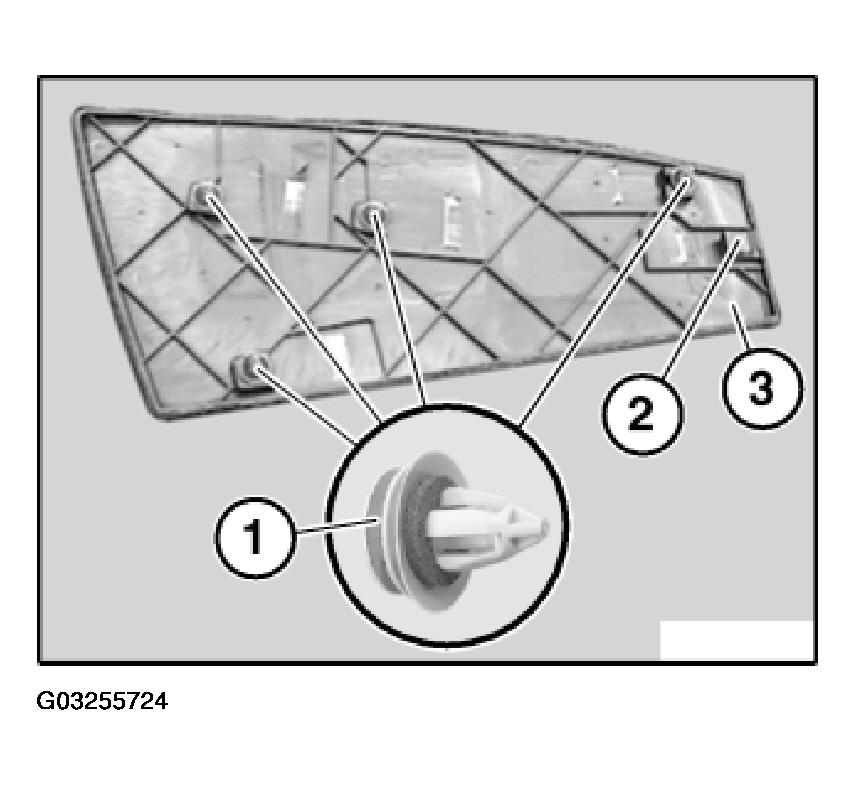

If necessary, replace faulty clips (1) with sealing washer and retainer (2) on carpet (3).

Fig 4: View Of Clips With Sealing Washer And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screw (2) is only released for removal of cup holder (3).

Unfasten screws (1) and (2) left/right.

Fig 5: Removing Cup Holder Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Releasing center console at rear" ends here.

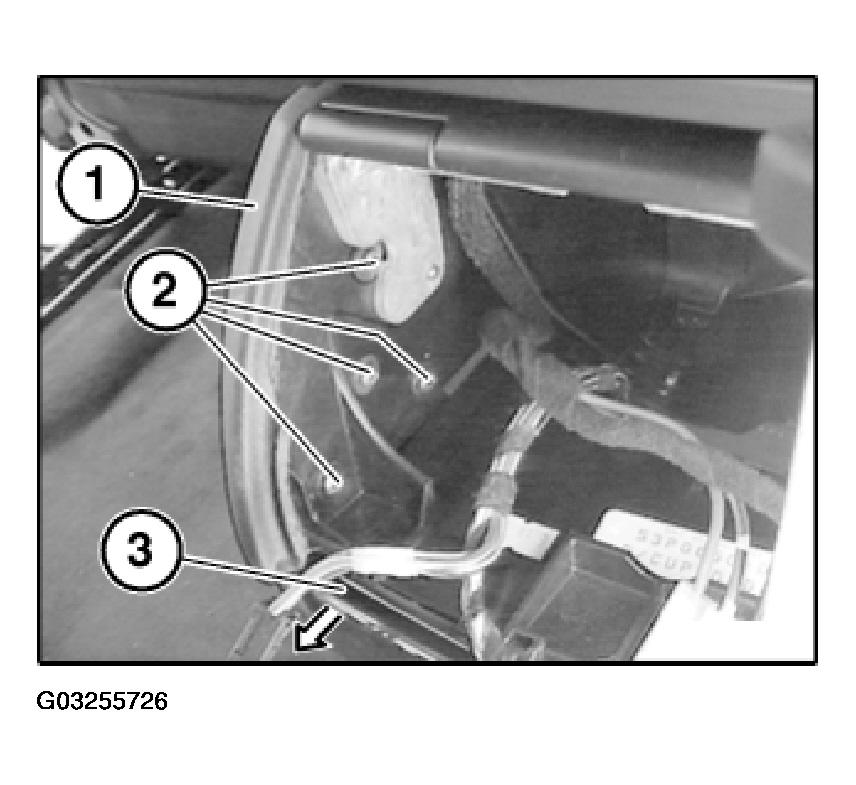

Release left/right screws (2).

Pull left/right side sections (1) apart and pull out center console (rear) with cup holder (3).

Fig 6: Releasing Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

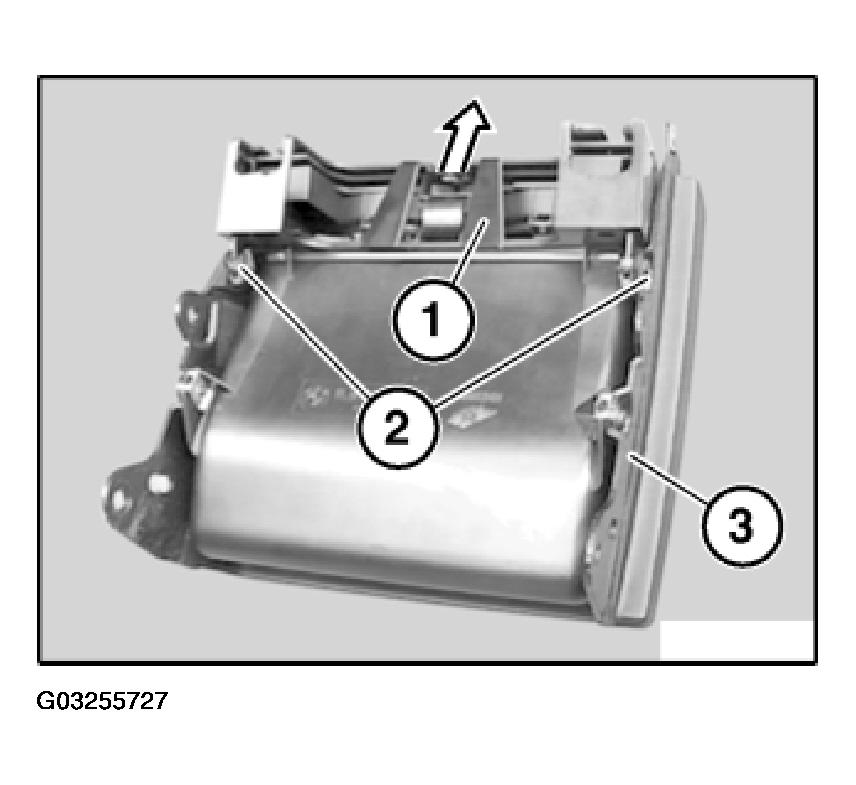

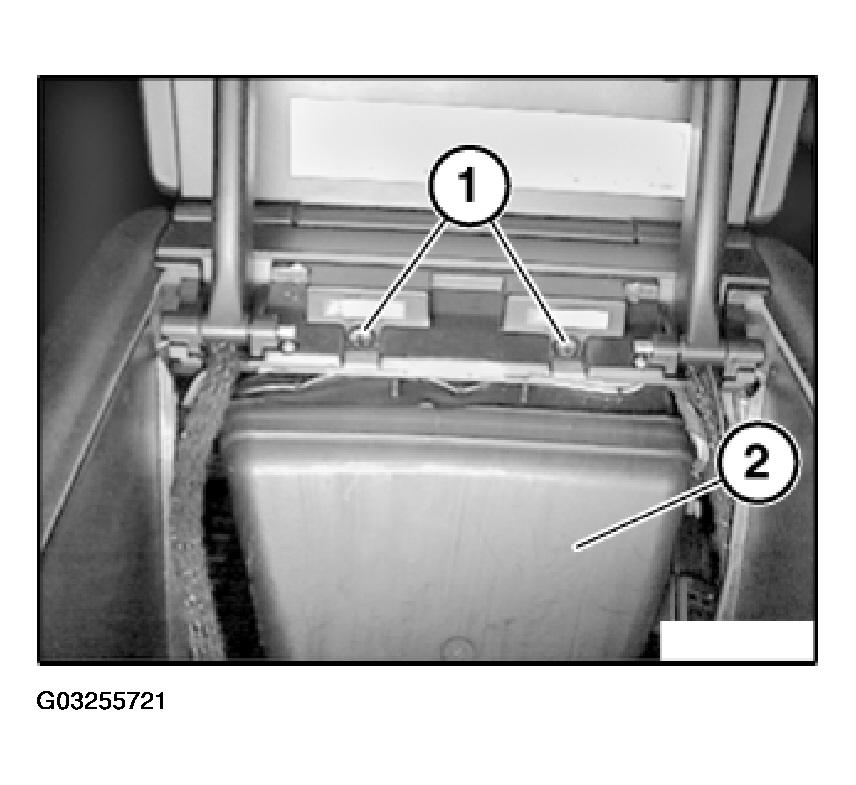

Release screws (2).

Detach cup holder (1) from carrier (3).

Fig 7: View Of Cup Holder And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

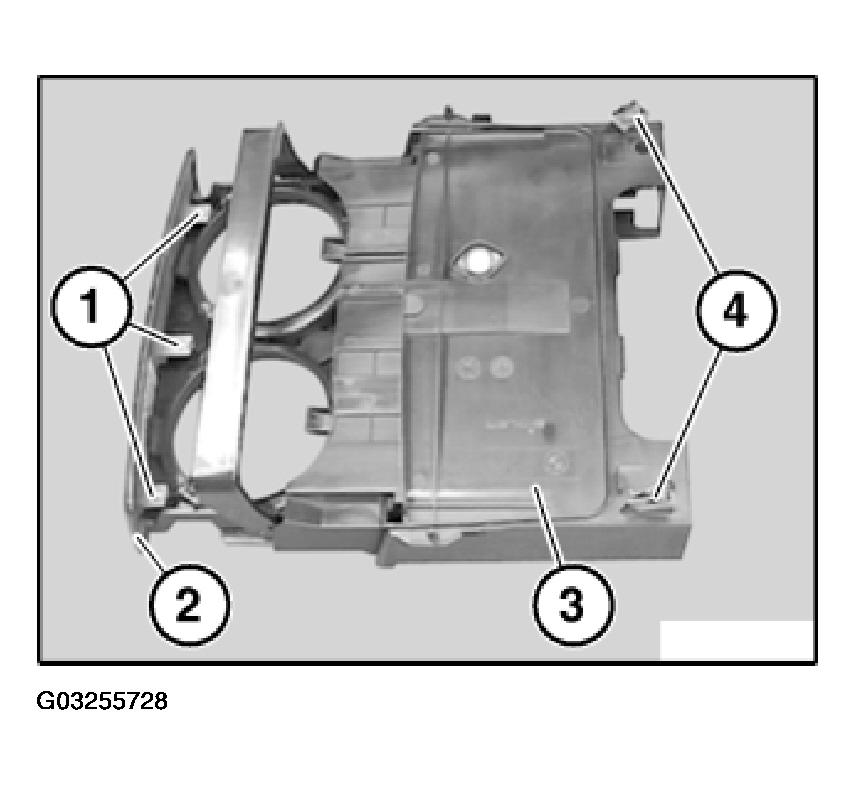

Replacement only:

Open cup holder.

Release screws (1) and detach moulding (2).

Detach metal nuts (4) from cup holder (3).

Fig 8: Locating Metal Nuts On Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.
