51 41 019 Removing and installing/replacing door handle on door trim panel, front left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Remove cover on door handle. Refer to 51 41 017 REMOVING AND INSTALLING/REPLACING COVER ON DOOR HANDLE, FRONT LEFT OR RIGHT .

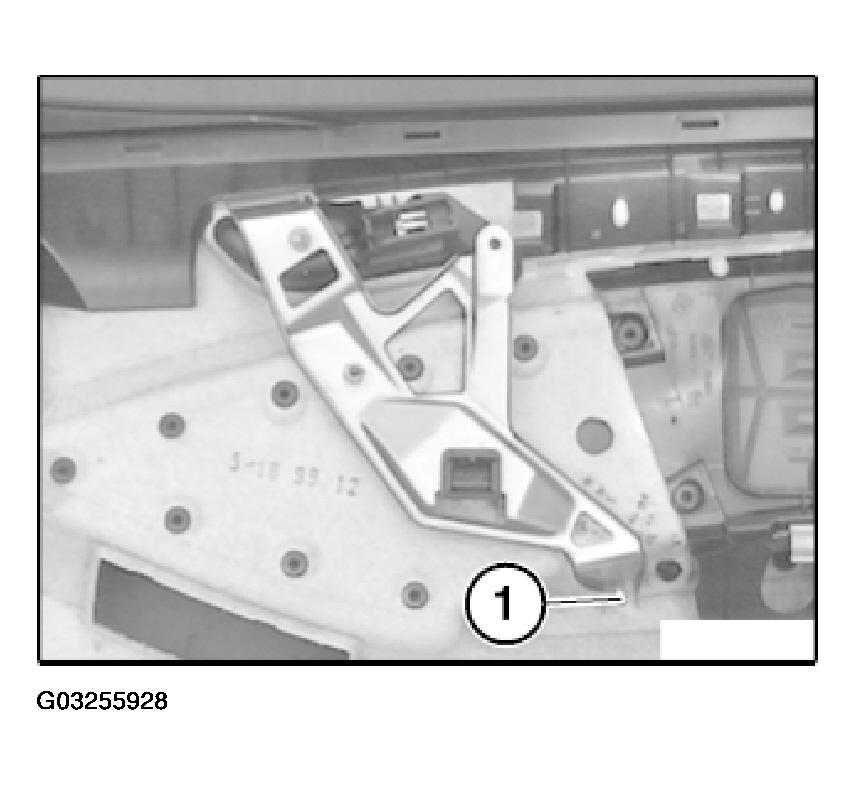

Release screw (1).

Fig 1: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

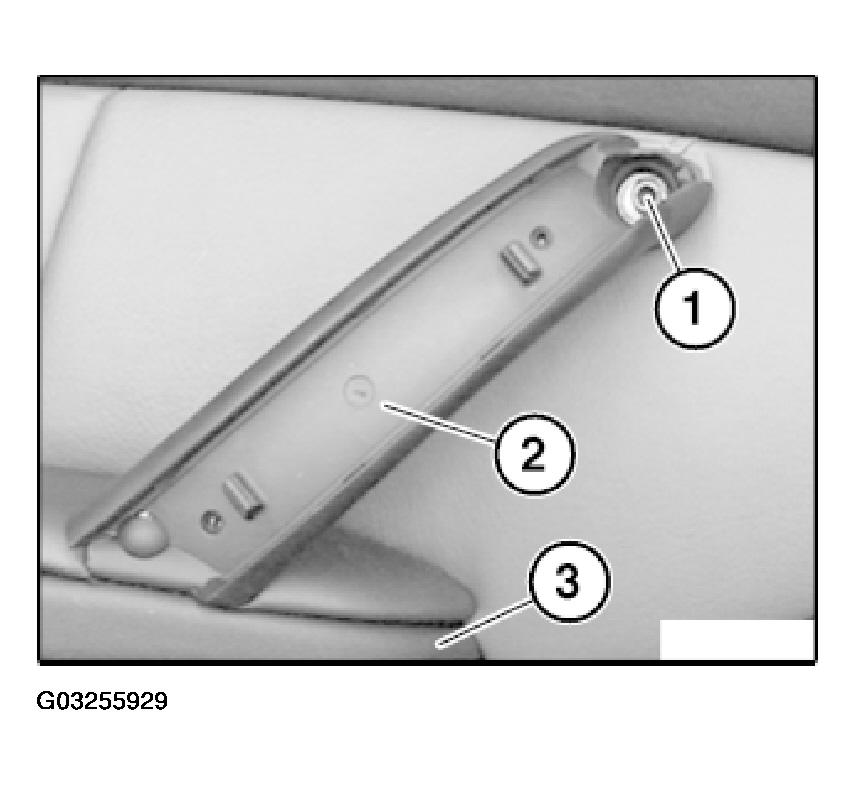

Release screw (1) and detach door handle (2) from door trim panel (3).

Fig 2: Identifying Door Handle And Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

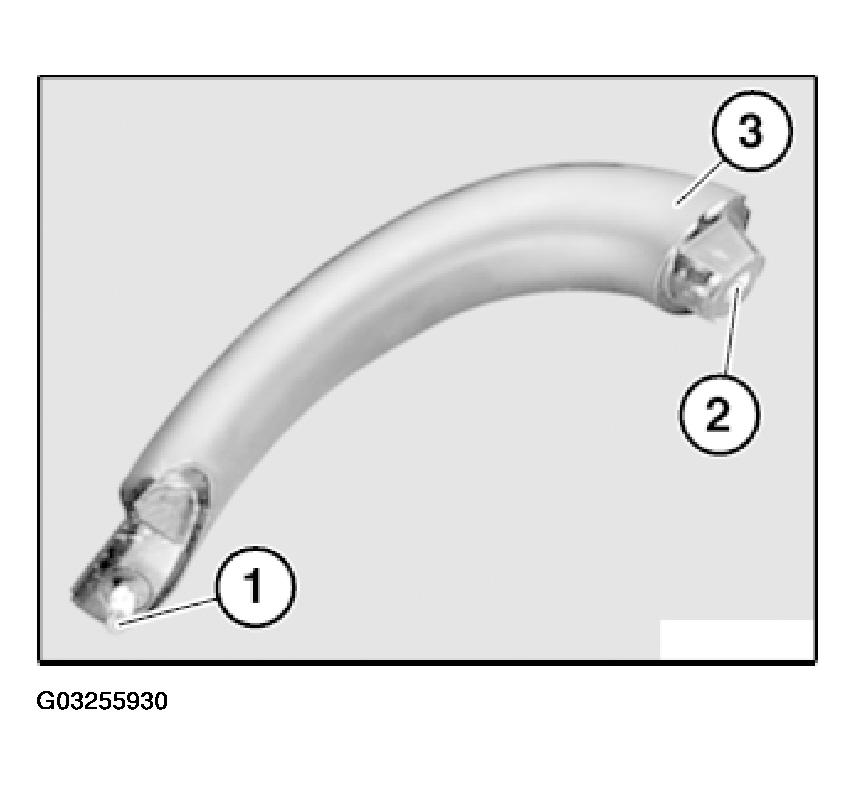

Screw (1) and sleeve (2) on door handle (3) must not be damaged.

Fig 3: Identifying Screw And Sleeve On Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
