51 41 000 Removing and installing left or right front door trim panel

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 317

WARNING: Version with side airbag: Follow safety instructions for working on cars with airbag systems, refer to 51 00 ... SERVICE POSITION OF ENGINE HOOD .

CAUTION: Do not use any sharp-edged tools to remove the panel - risk of damage to airbag.

Remove clipped-in trim (decorative strip) on door trim panel. Refer to 51 16 221 REPLACING A CLIPPED FINISHER (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

Remove toggle switch for door window operation. Refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (DOOR SWITCH CENTER) .

Remove footwell light on bottom of door.63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

Release screws (1).

Lever out airbag label (2) and release screw underneath.

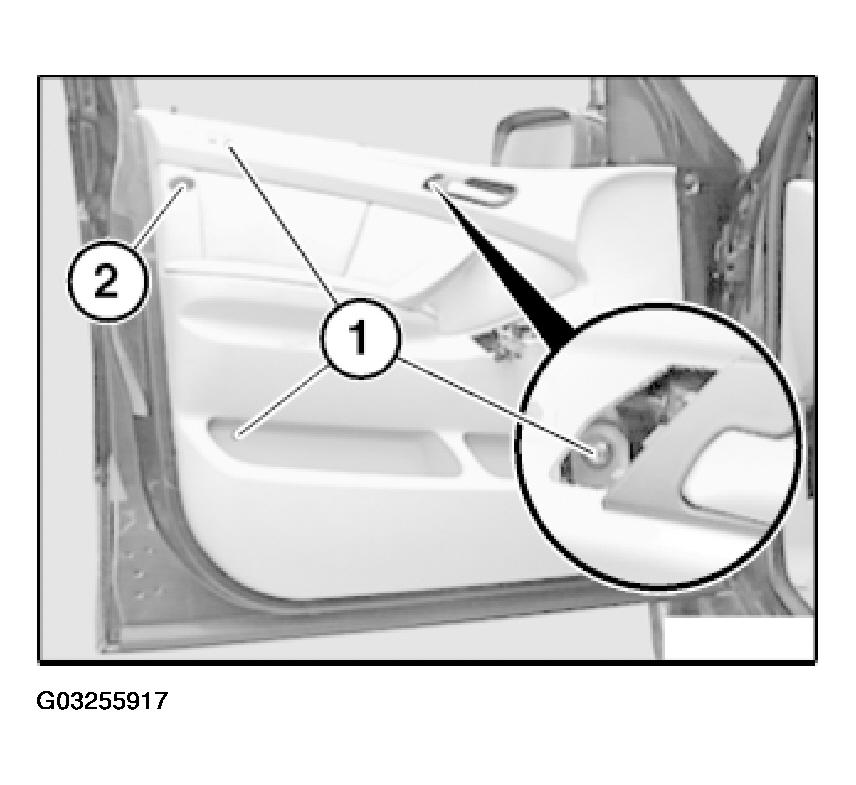

Fig 1: Removing Airbag Label To Access Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) of door trim panel with special tool 00 9 317 (trim panel wedge).

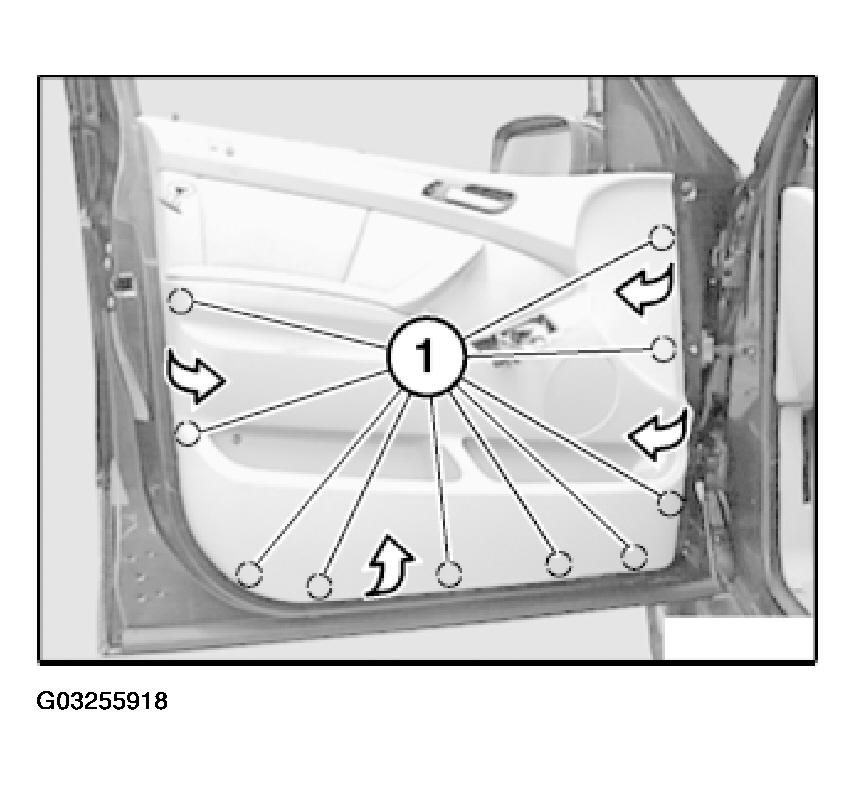

Fig 2: Unclipping Door Trim Panel Clips With Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip door trim panel (1) at top with special tool 00 9 317 (trim panel wedge).

Feed door trim panel (1) out of unlocking button (3).

Installation:

Bend open retainers on inner door plate for accommodating central clip (2) for installation.

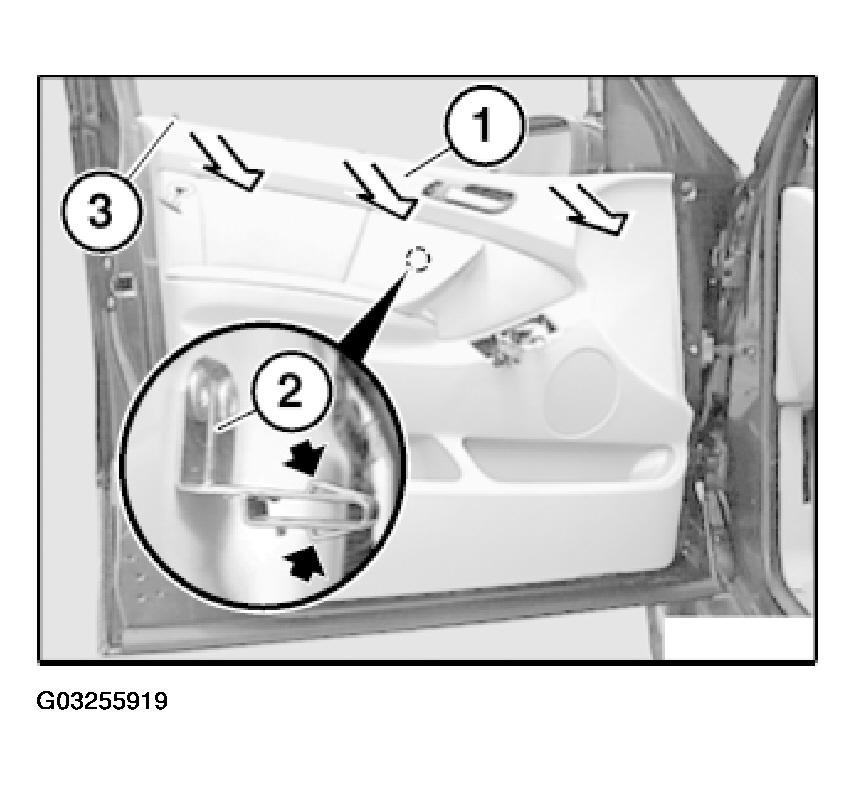

Fig 3: Locating Retainers For Central Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with lighting for inside door handle:

If necessary, disconnect plug connection (1) on door opener (2).

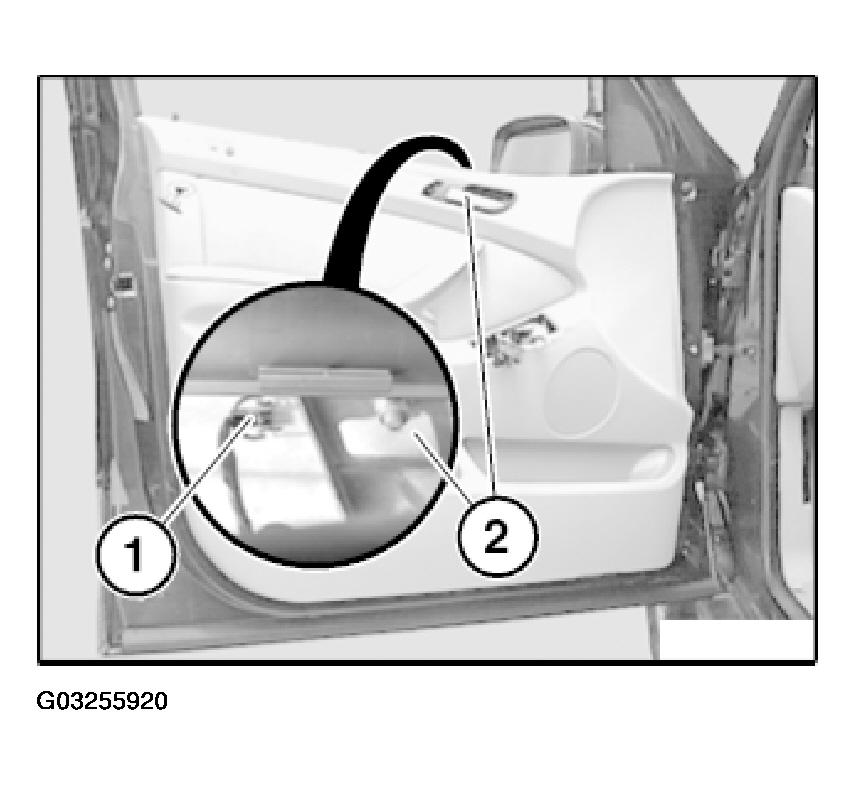

Fig 4: Disconnecting Plug Connection On Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable for release lever:

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable towards inside/rear.

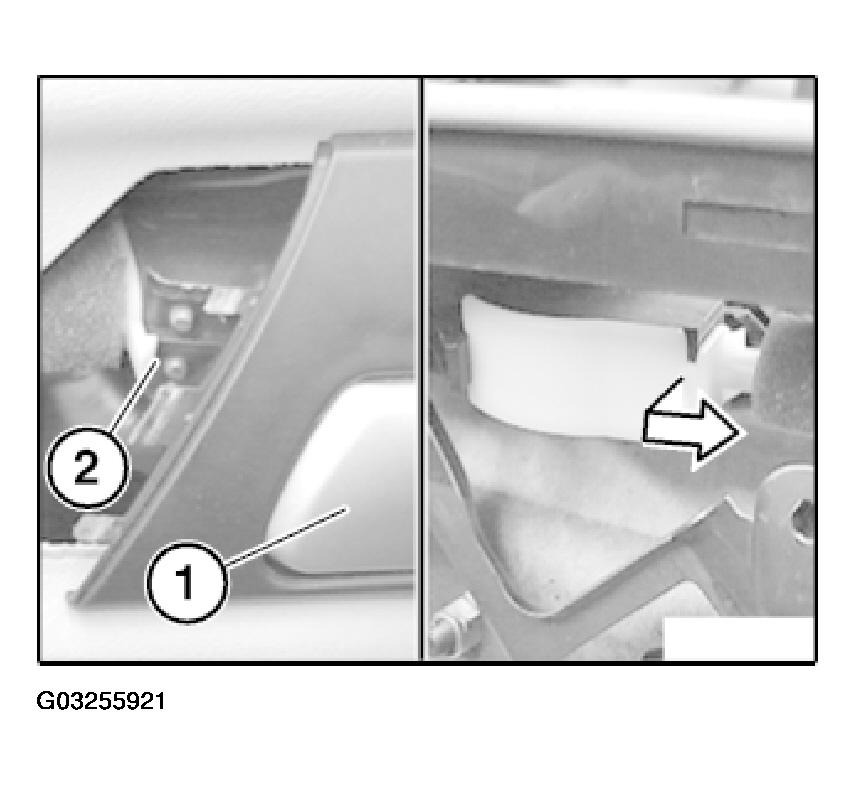

Fig 5: Detaching Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press unlocking lever (1) for installation fully on door trim panel.

Installation:

Clips (1) are longer than the other clips.

Clips (1) are gray, the other clips are white.

Fit all clips with sealing ring.

If necessary, replace faulty clips.

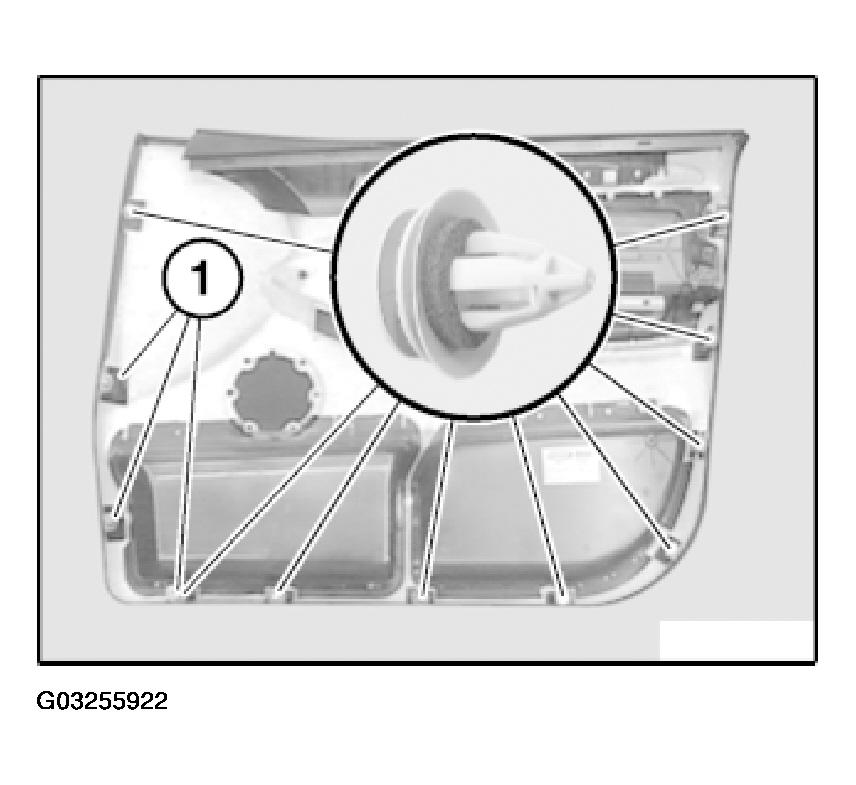

Fig 6: Identifying Clips With Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check whether linkage of safety button can move freely.
If necessary, align linkages.
