51 41 017 Removing and installing/replacing cover on door handle, front left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

Lever out cover (1) with special tool 00 9 317 (trim panel wedge).

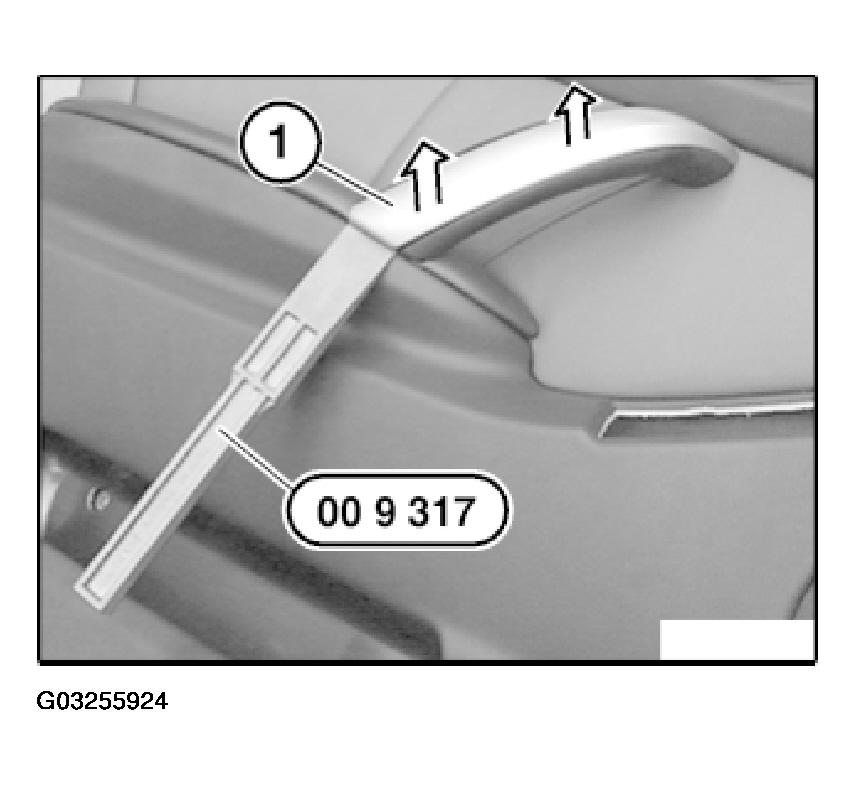

Fig 1: Levering Out Cover With Assembly Wedge
G03255924Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on cover (2) must not be damaged.

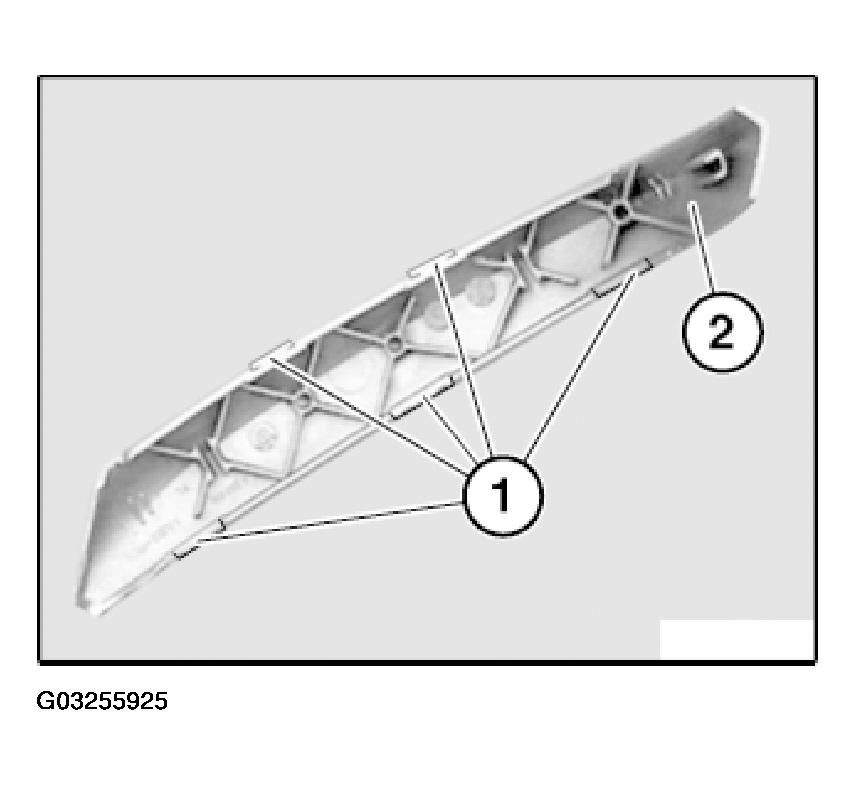

Fig 2: Identifying Catches On Cover
G03255925Courtesy of BMW OF NORTH AMERICA, INC.
