51 37 261 Removing and installing/replacing window cavity cover strip for door window, rear left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing roller cover from luggage compartment, refer to Owner's Handbook.

Fold rear-seat backrest forwards.

Remove panel for roof pillar at rear (C-pillar). Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .

Remove panel for roof pillar at rear (D-pillar). Refer to 51 43 252 REMOVING AND INSTALLING/REPLACING PANEL FOR REAR ROOF PILLAR (D-PILLAR), LEFT OR RIGHT .

Remove screws (1 and 2).

Remove window cavity cover strip (3).

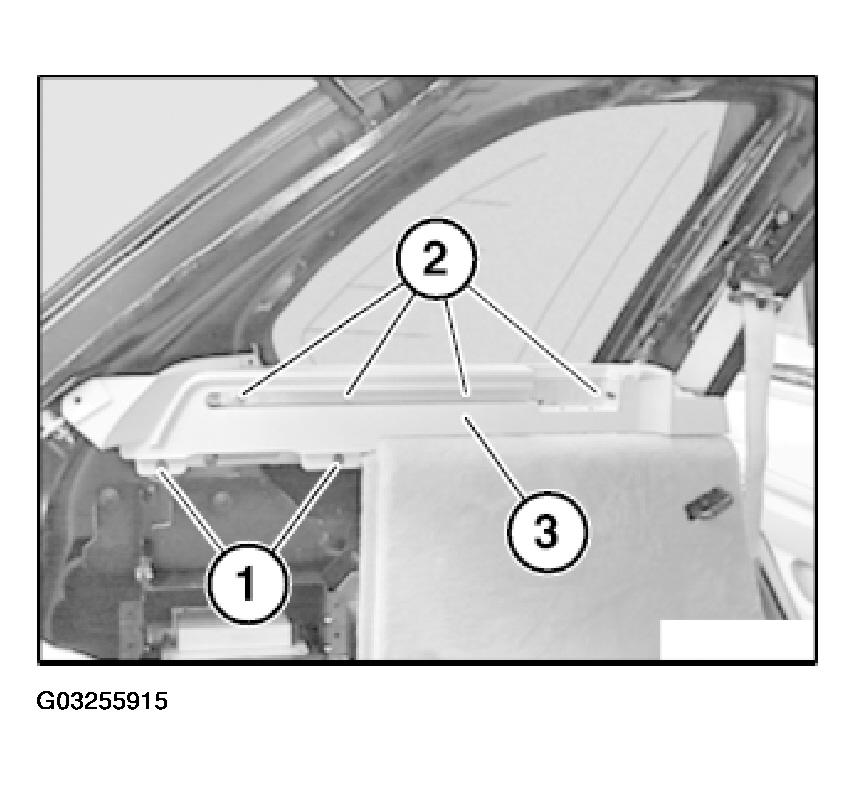

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide guides (1) into mounts of window frame.

Press guides (2) onto mount for window cavity cover strip.

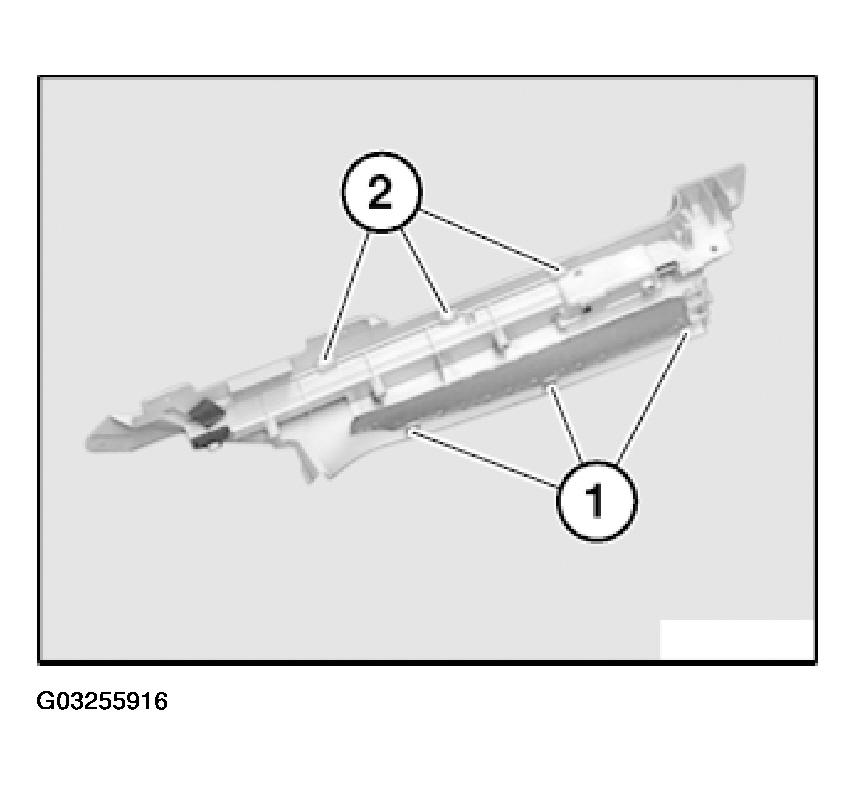

Fig 2: Pressing Guides Onto Mount For Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
