11 51 000 Removing and installing complete water pump (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove alternator drive belt, refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M52 / S52 / M52TU / M54 / M56) .

NOTE:

M52TU / M54 / M56: Water drain plug is located on exhaust side on cylinder 2 in engine block.

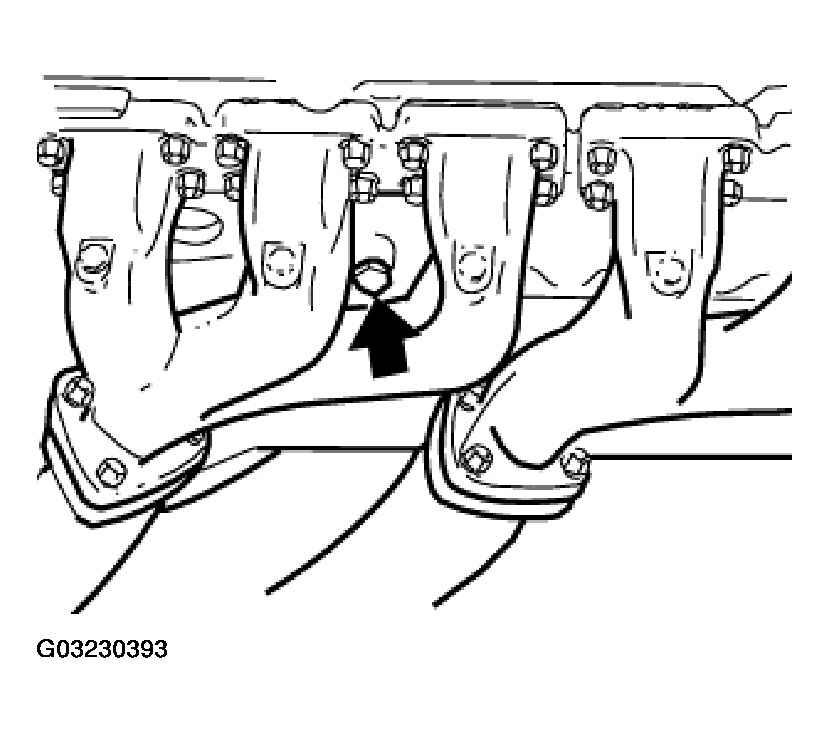

Fig 1: Locating Water Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Drain and dispose of coolant.

Installation:

Replace seal.

Tightening torque, (25 N.m.).

Vent cooling system and check for leaks, refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (M54 / M56) .

Release belt pulley.

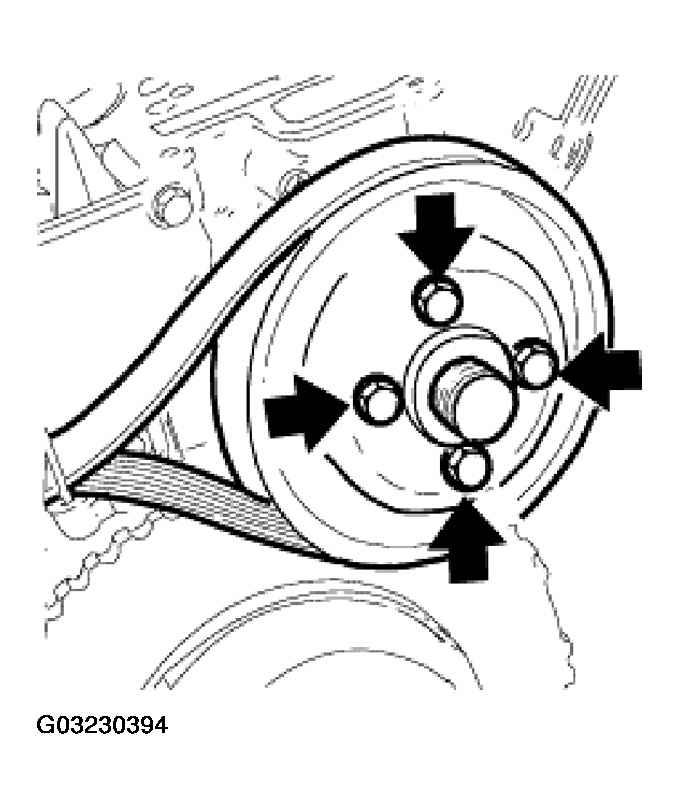

Fig 2: Identifying Belt Pulley Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release water pump.

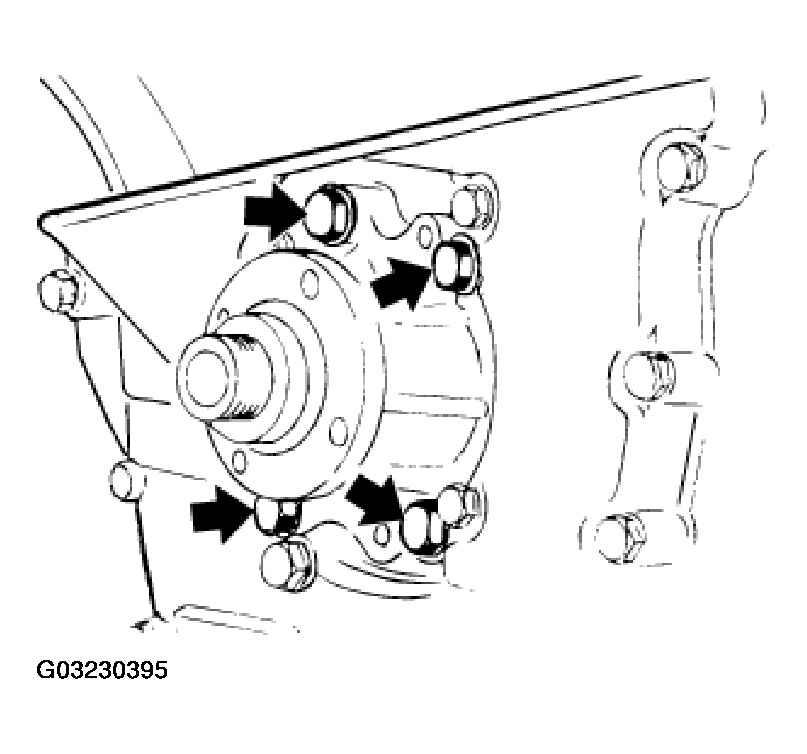

Fig 3: Locating Water Pump Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten two screws (M 6) into thread of water pump and release water pump out of timing case.

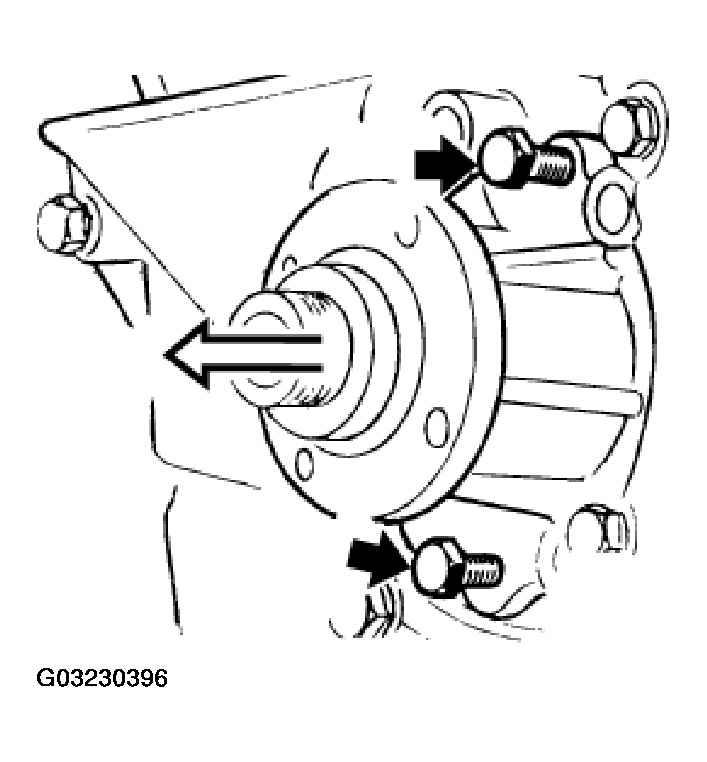

Fig 4: Inserting Screws Into Threads Of Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring and coat with coolant as anti-friction agent.

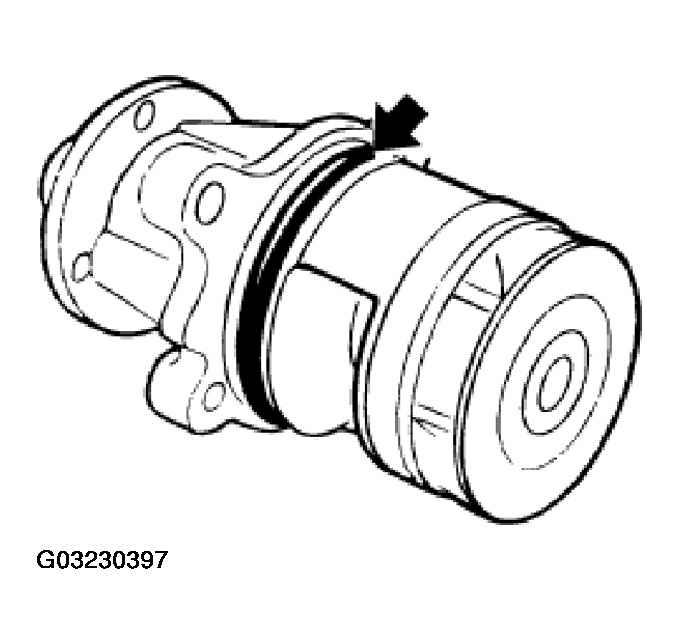

Fig 5: Identifying Water Pump O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.
