11 28 010 Replacing alternator drive belt (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the drive belt is to be subsequently reused: Mark direction of travel and reinstall drive belt in same direction of travel.

Necessary Preliminary Tasks:

Remove fan clutch with fan impeller, refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56) .
Remove A/C compressor drive belt, refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (M52 / S52 / M52TU / M54 / M56) .

Remove cap from tensioning roller.

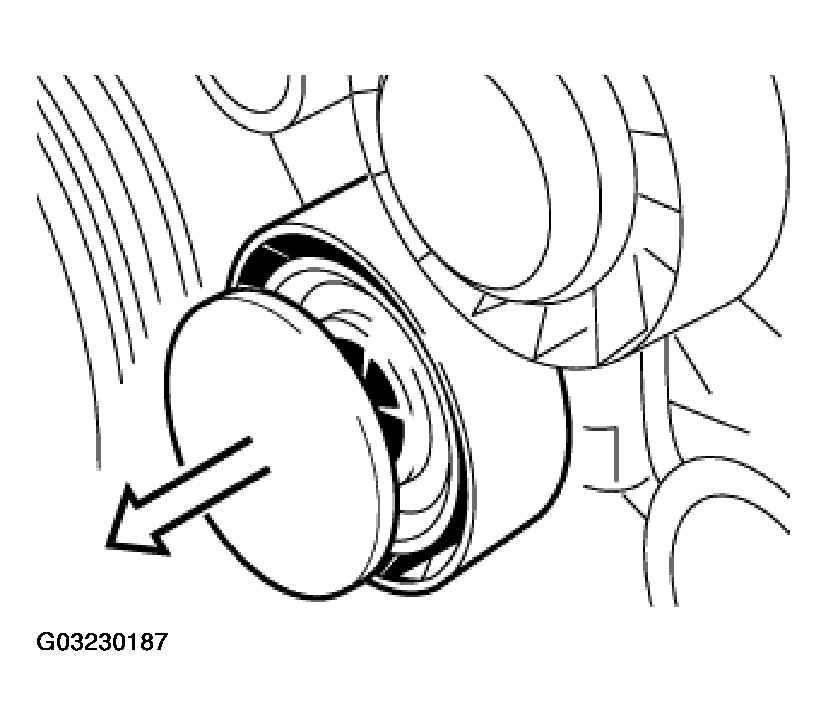

Fig 1: Removing Cap From Tensioning Roller

Courtesy of BMW OF NORTH AMERICA, INC.

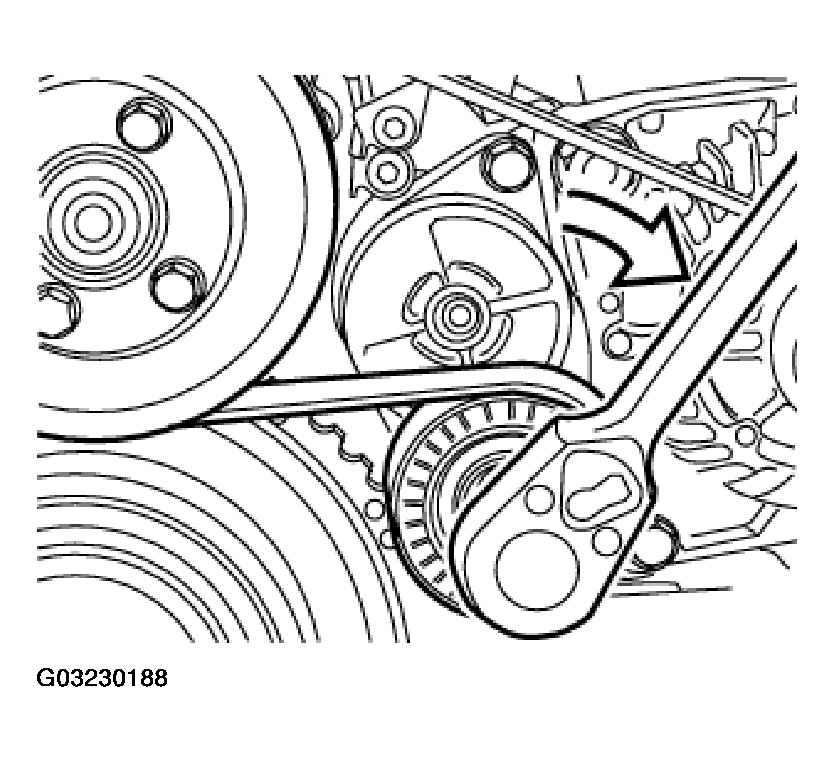

Relieve tension on belt drive.

Remove drive belt.

Important!

Drive belt must be replaced if fouled with hydraulic fluid.

Installation:

Check drive belt for coolant and oil residues, replace if necessary.

Fig 2: Removing Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check that belt is correctly positioned on belt pulleys.

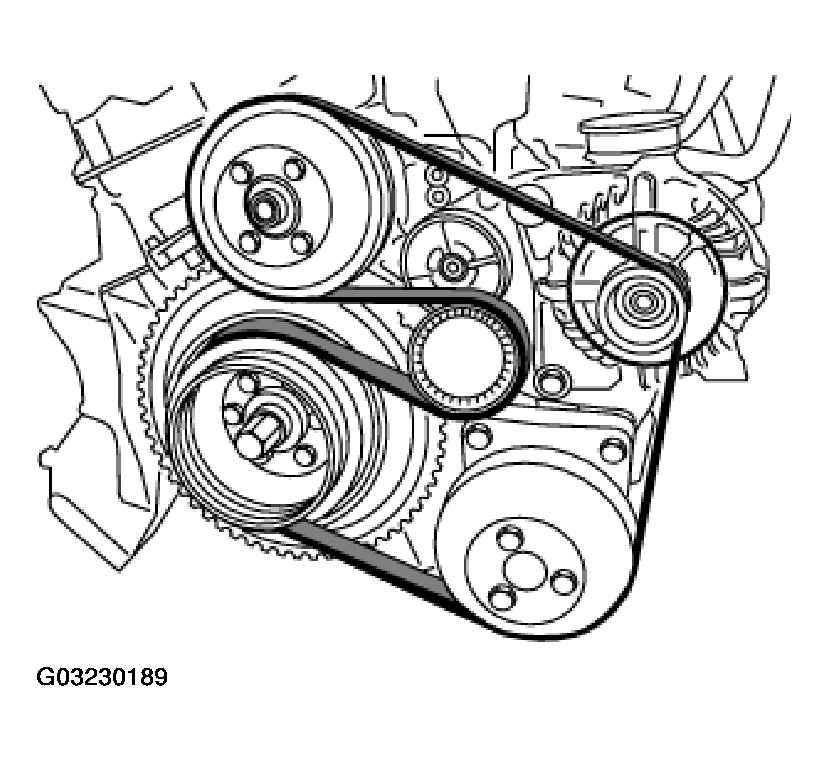

Fig 3: Aligning Drive Belt On Belt Pulleys

Courtesy of BMW OF NORTH AMERICA, INC.

Version with auxiliary tensioning roller.

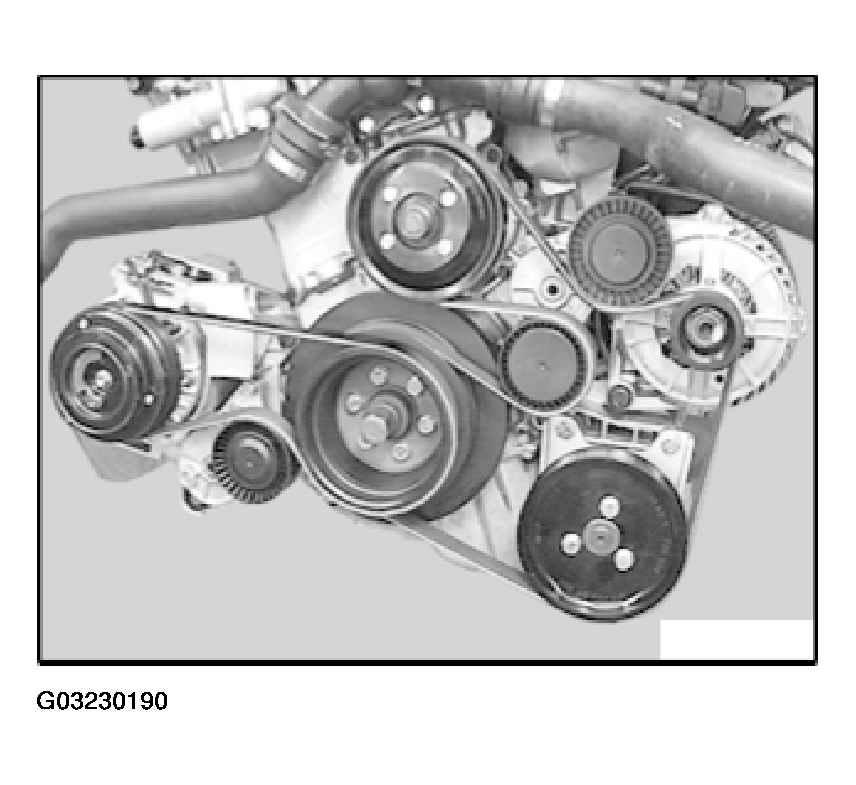

Fig 4: Aligning Drive Belt (With Auxiliary Tensioning Roller)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking device of auxiliary tensioning roller must snap into groove on alternator.

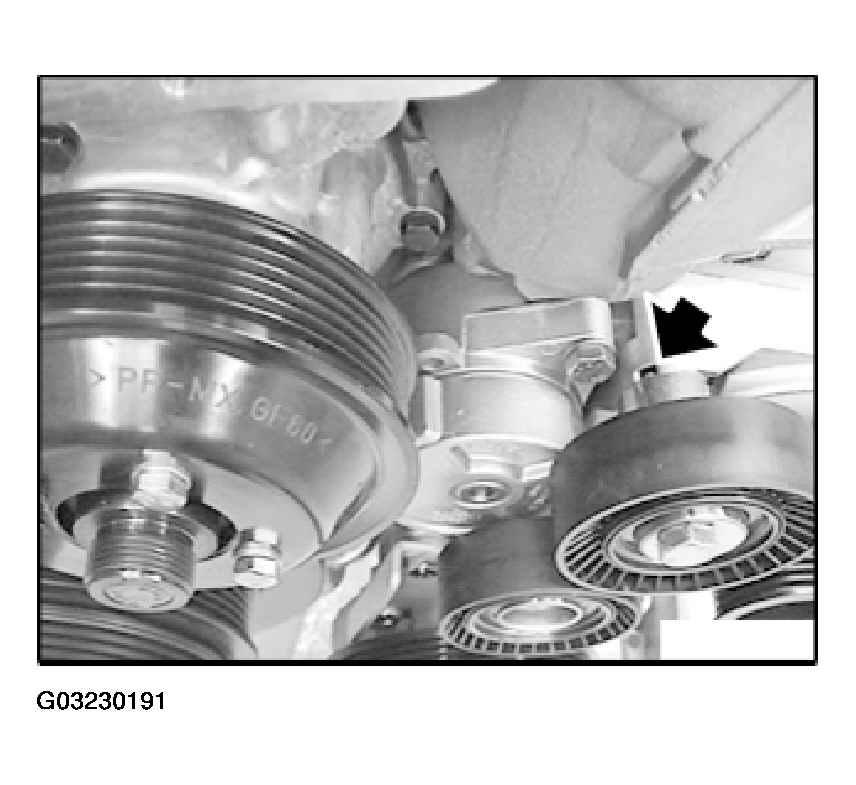

Fig 5: Locating Groove On Alternator

Courtesy of BMW OF NORTH AMERICA, INC.
