11 34 715 Replacing all valve springs (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

11 0 342
11 0 345
11 1 045
11 1 065
11 1 441
11 3 030
11 3 250

(Cylinder head removed.)

Preliminary tasks are described in 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52 / S52 / M52TU / M54 / M56) .

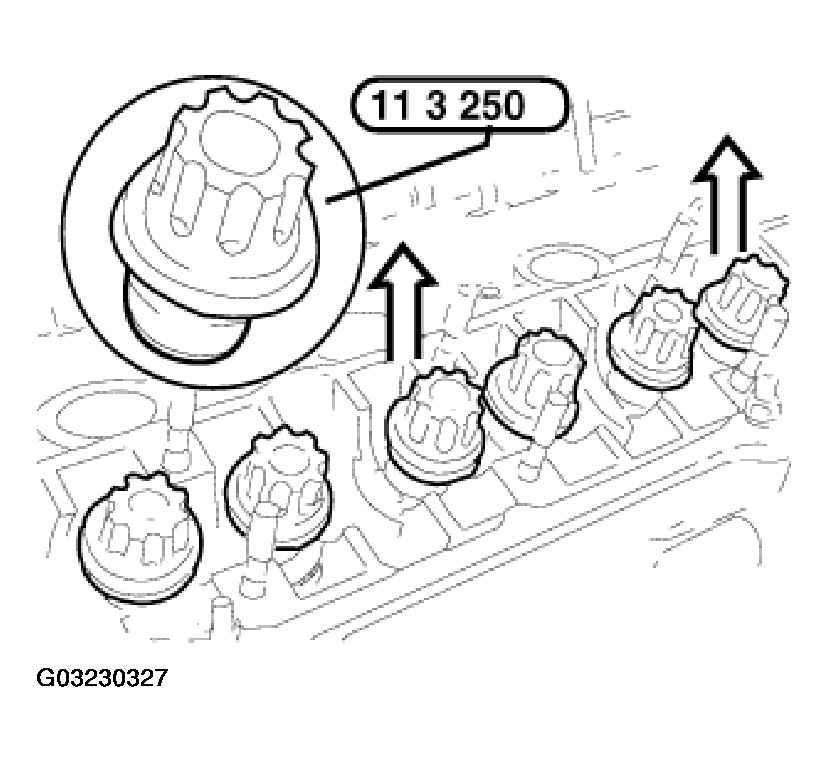

Brace bucket tappets with special tool 11 3 250 .

Lift out bearing strip with bucket tappet.

Installation:

Only re-use used bucket tappets in the same tappet bore.

Fig 1: Bracing Bucket Tappets With Suction Cups

G03230327

Courtesy of BMW OF NORTH AMERICA, INC.

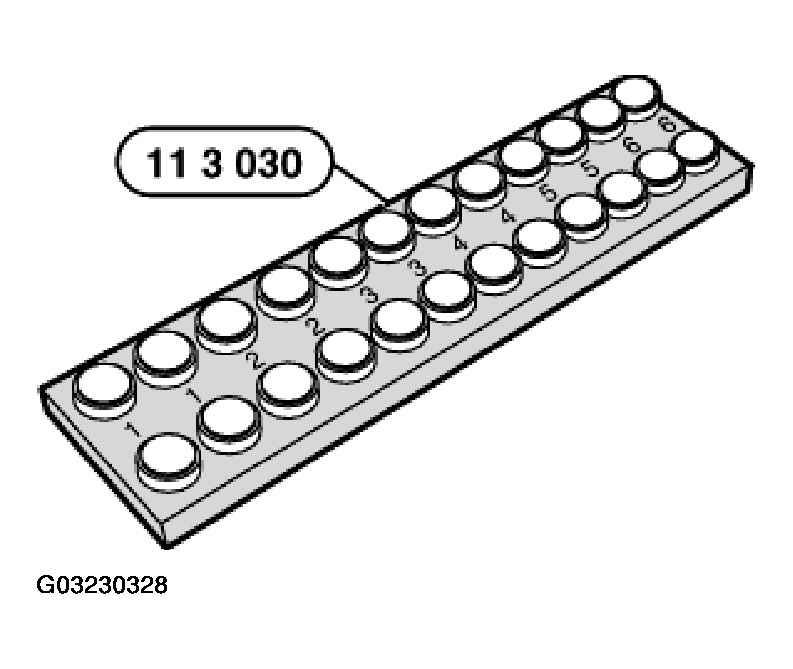

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

Fig 2: Arranging Tappets On Placemat Board

G03230328

Courtesy of BMW OF NORTH AMERICA, INC.

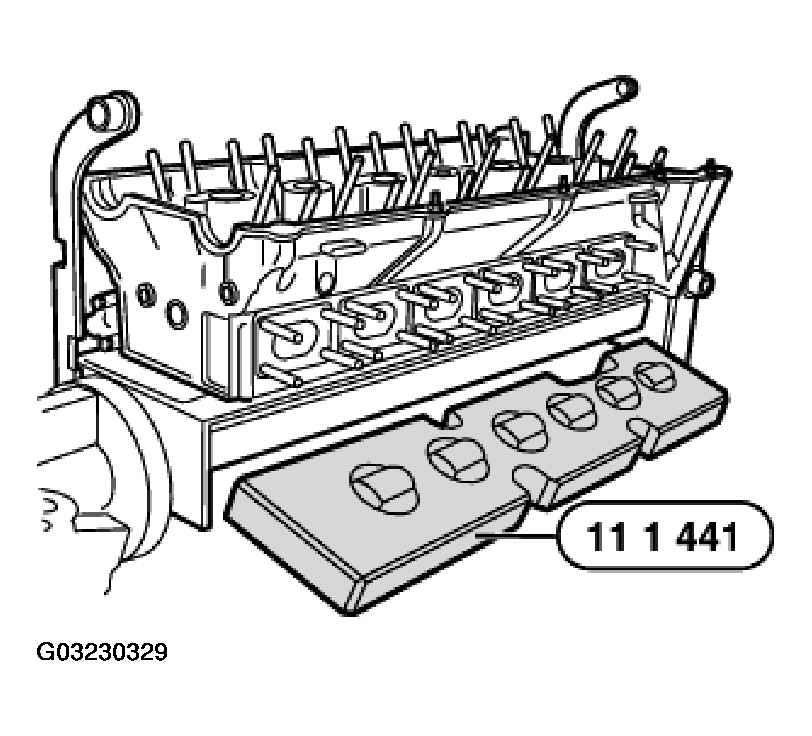

Insert special tool 11 1 441 from below in special tool 11 1 065 and secure with special tool 11 1 045 .

Fig 3: Installing Holding Fixture

G03230329

Courtesy of BMW OF NORTH AMERICA, INC.

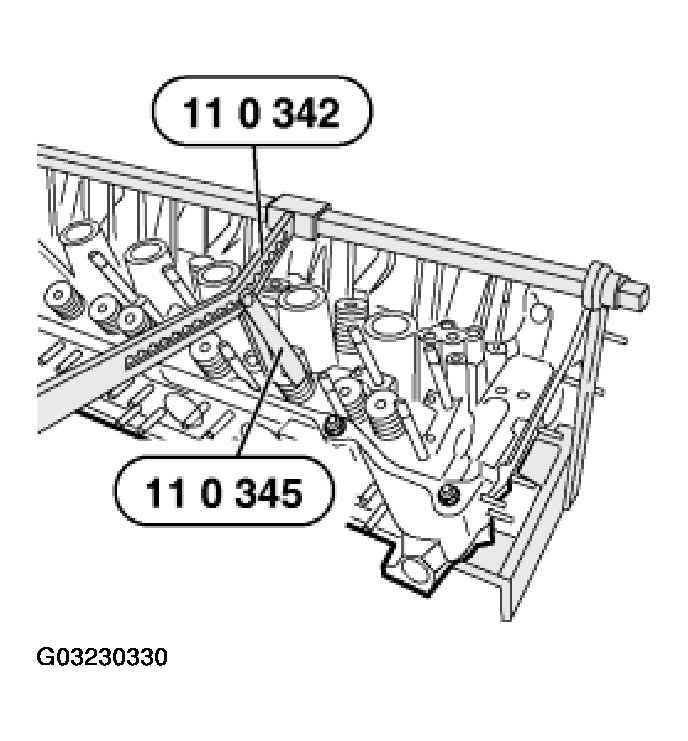

Align special tool 11 0 345 in direction of valve shaft and select appropriate groove in special tool 11 0 342 .

Fig 4: Installing Valve Spring Compressor

G03230330

Courtesy of BMW OF NORTH AMERICA, INC.

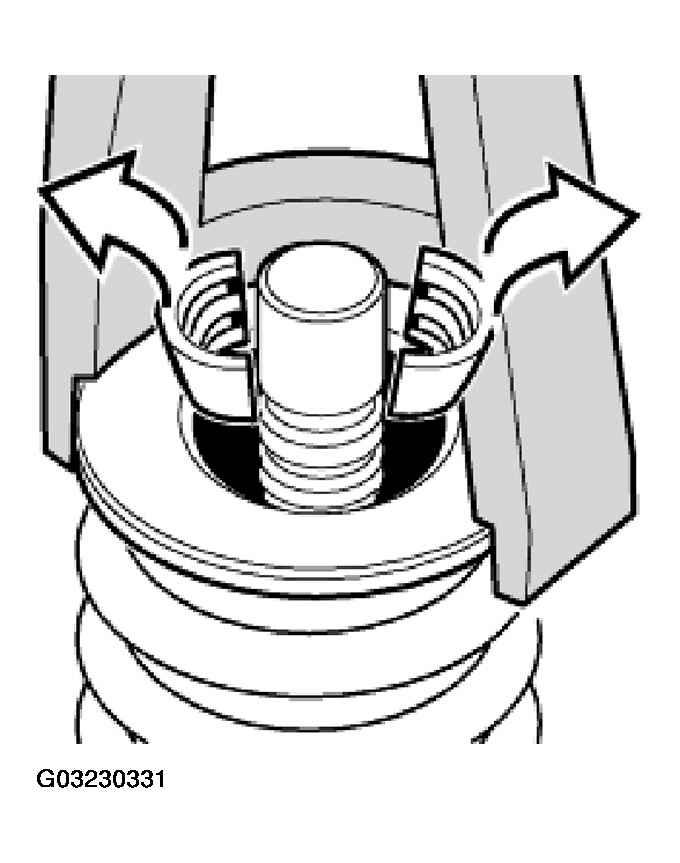

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

Fig 5: Removing Valve Spring Components

G03230331

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

Valve.
Valve-stem seal.
Lower plate spring.
Valve spring.
Top plate spring.
Valve tapers.

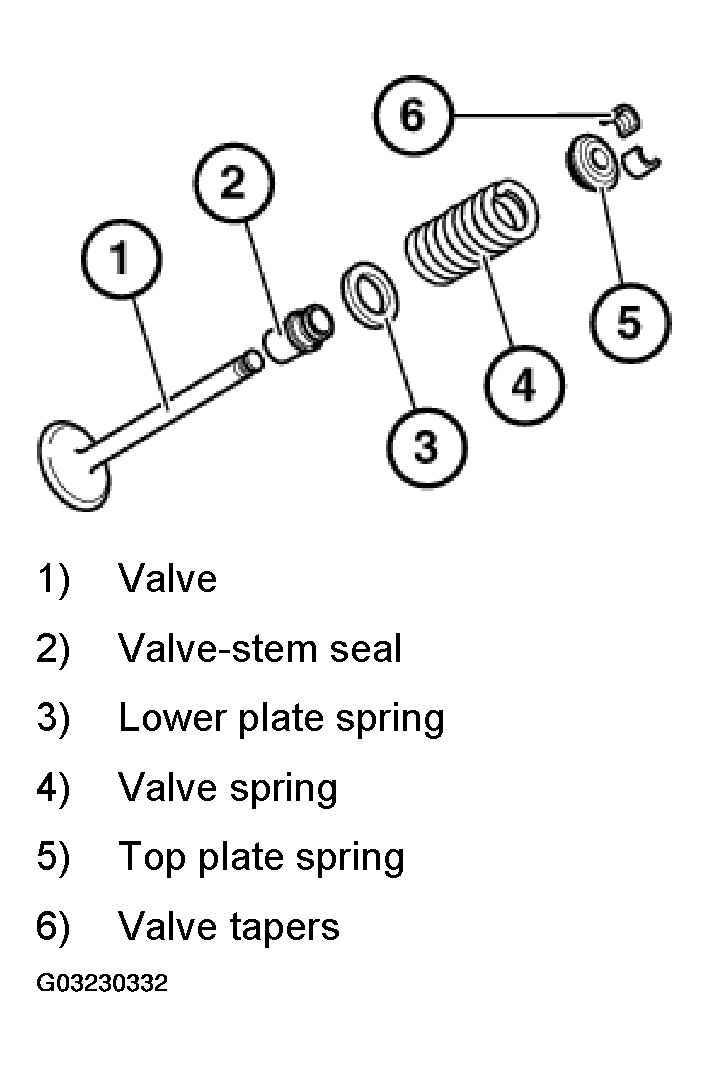

Fig 6: Exploded View Of Valve
Courtesy of BMW OF NORTH AMERICA, INC.
