11 12 503 Disassembling and assembling cylinder head (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 1 490
11 0 192
11 0 342
11 0 343
11 0 345
11 1 045
11 1 065
11 1 067
11 1 071
11 1 441
11 1 442

(Cylinder head removed.)

If necessary, remove coolant thermostat.

Screw on special tool 11 1 442 .

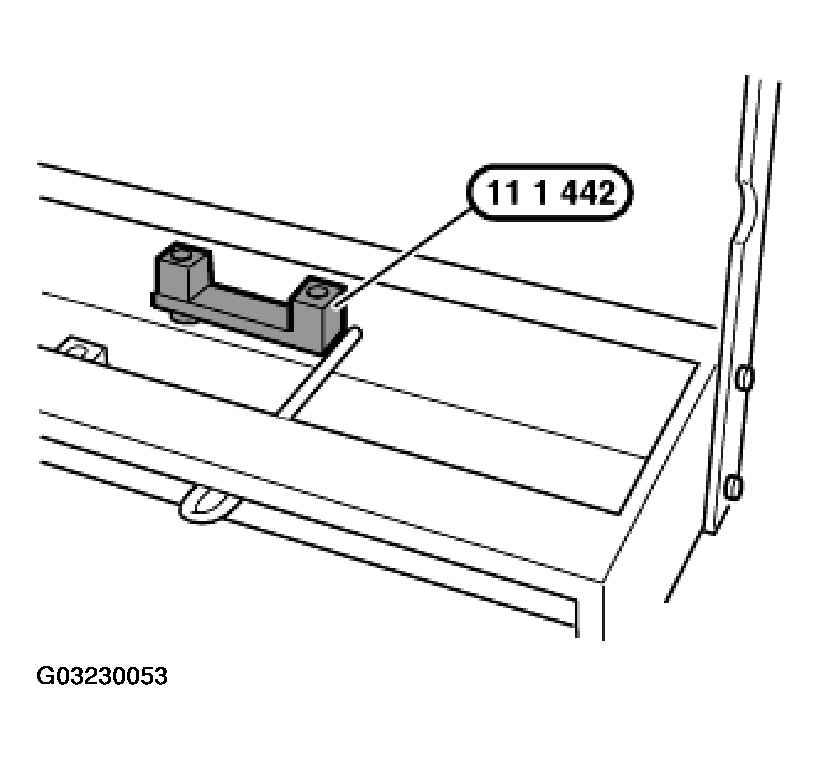

Fig 1: Installing Special Tool 11 1 442

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 1 065 onto special tool 00 1 490 .

Provide special tools for disassembling cylinder head:

Special tool 11 1 071 .
Special tool 11 1 067 .
Special tool 11 0 192 .

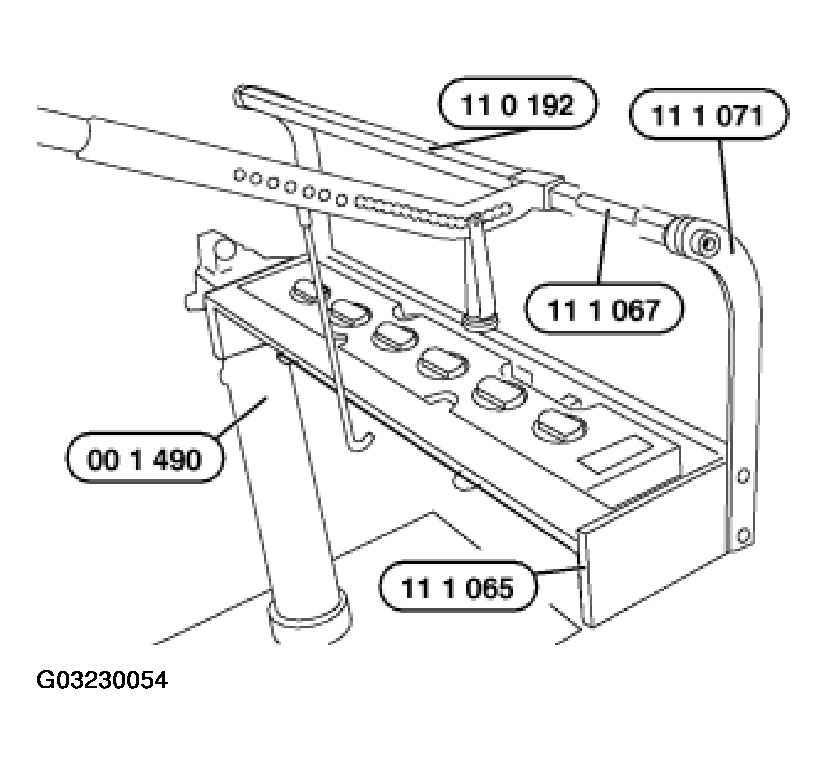

Fig 2: View Of Engine Hoist
Courtesy of BMW OF NORTH AMERICA, INC.
Special tool 11 1 045
Special tool 11 0 342
Special tool 11 0 343
Special tool 11 0 345
Special tool 11 1 441 .
Assemble special tools.

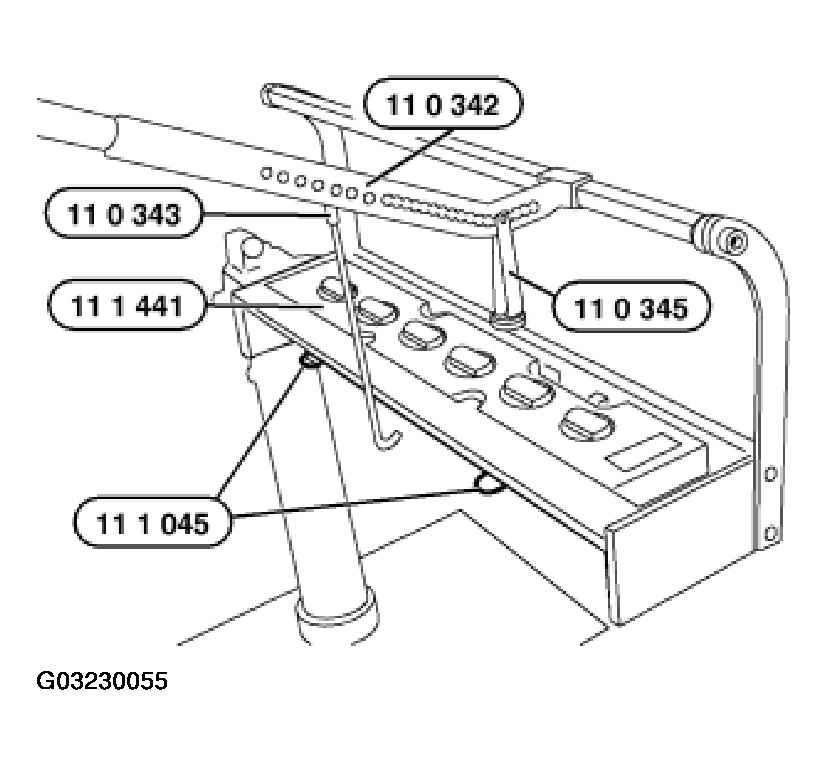

Fig 3: Identifying Special Tools 11 0 340 Accessories
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not install special tool 11 1 441 (locating board) in special tool 11 1 065 at this stage.

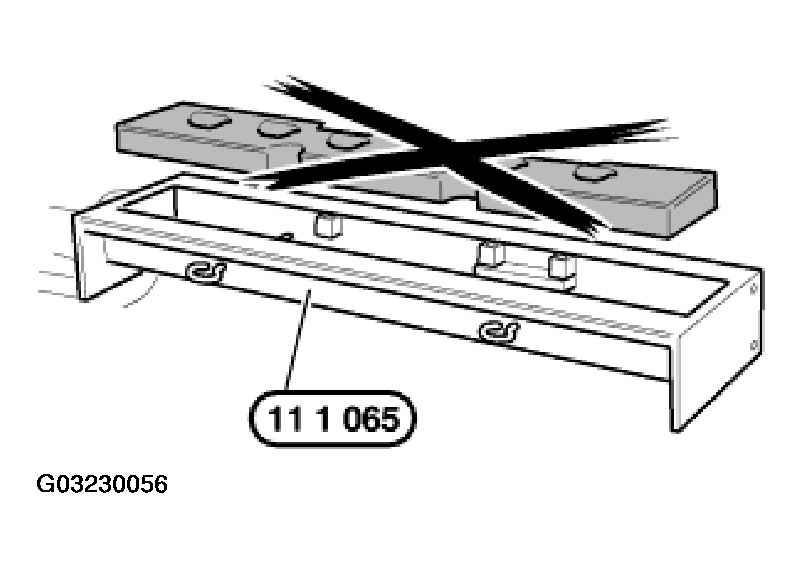

Fig 4: Identifying Locating Board

Courtesy of BMW OF NORTH AMERICA, INC.

Place cylinder head on special tool 11 1 065 and screw on with two screws.

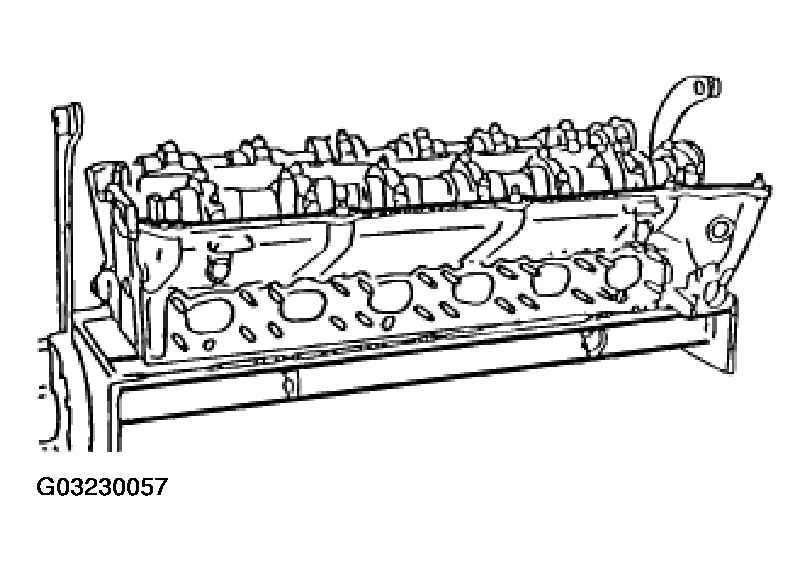

Fig 5: Placing Cylinder Head On Locating Board

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all valve springs, refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52 / S52 / M52TU / M54 / M56) .

Remove all valve stem seals, refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M52 / S52 / M52TU / M54 / M56) .

Remove all valves, refer to 11 34 552 REMOVING AND INSTALLING OR REPLACING ALL VALVES (M52 / S52 / M52TU / M54 / M56) .
