54 21 100 Removing and installing/replacing molded roof lining on hard top

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove hard top, refer to 54 21 001 REMOVING HARD TOP .

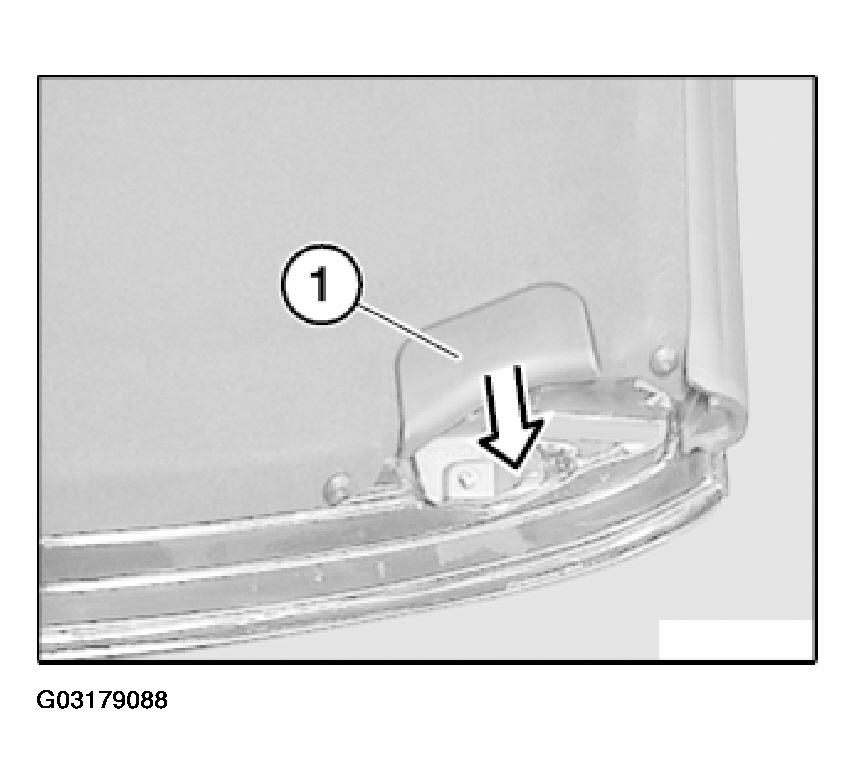

Detach cover (1) on mounting plate towards front.

Fig 1: Detaching Cover On Mounting Plate

G03179088

Courtesy of BMW OF NORTH AMERICA, INC.

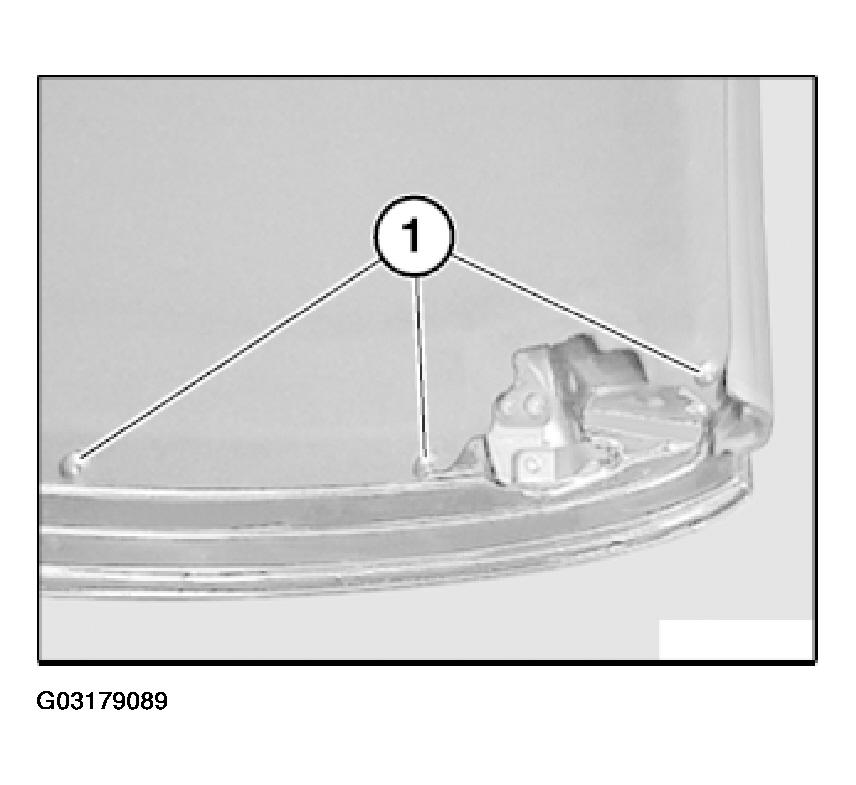

Release expansion rivets (1).

Fig 2: Releasing Expansion Rivets

G03179089

Courtesy of BMW OF NORTH AMERICA, INC.

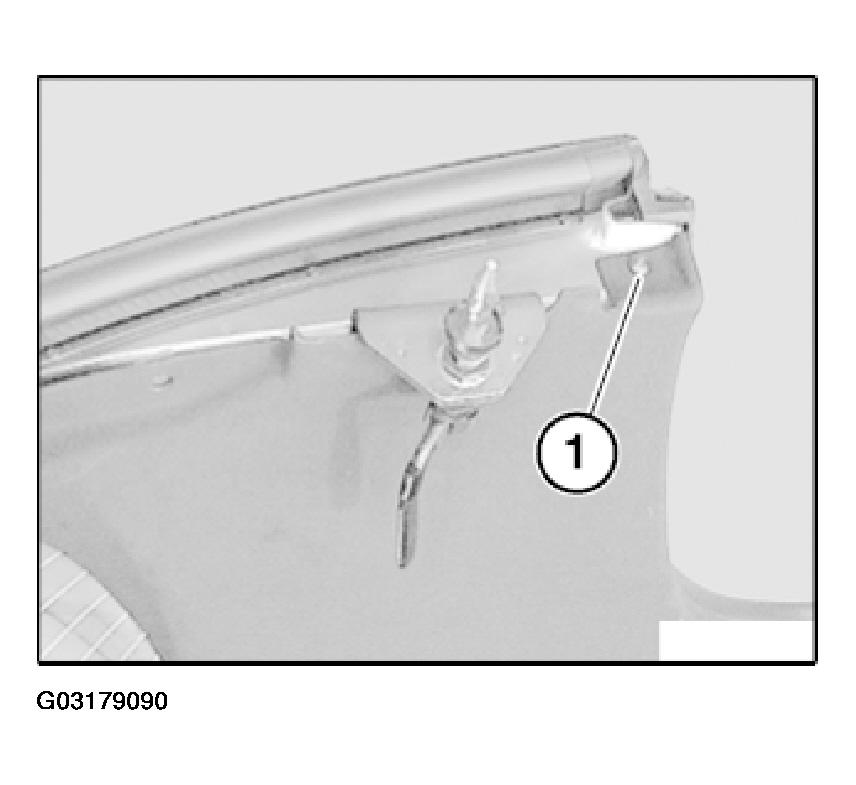

Release expansion rivets (1) on left and right.

Fig 3: Releasing Expansion Rivets On Left And Right

G03179090

Courtesy of BMW OF NORTH AMERICA, INC.

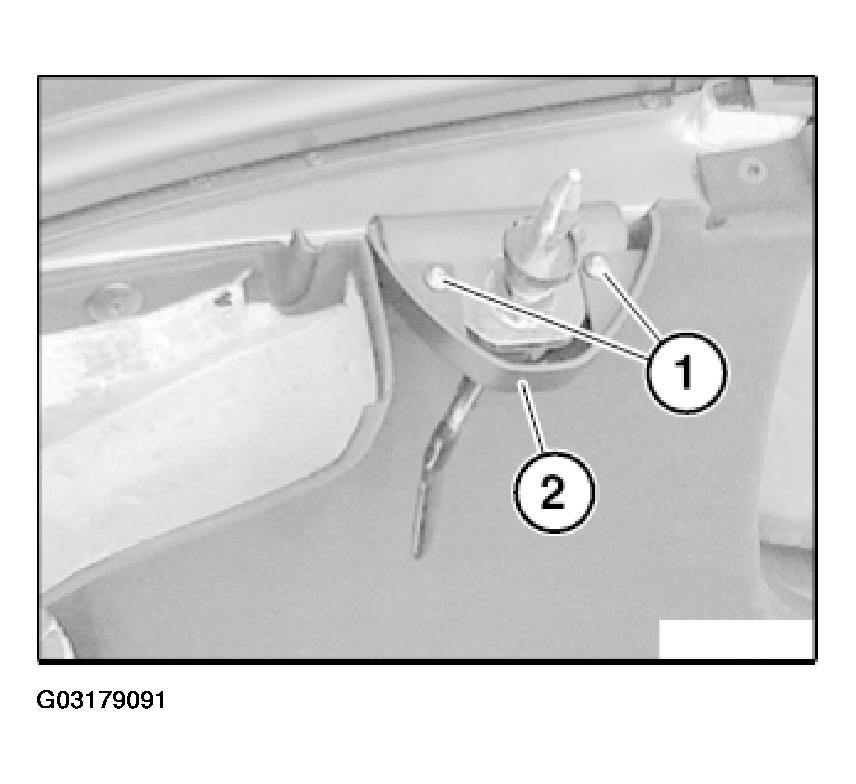

Release screws (1) and remove cover (2).

Remove panel, rear window frame, bottom, refer to 54 21 090 REMOVING AND INSTALLING/REPLACING PANEL, REAR WINDOW FRAME, BOTTOM .

Fig 4: Releasing Screws

G03179091

Courtesy of BMW OF NORTH AMERICA, INC.

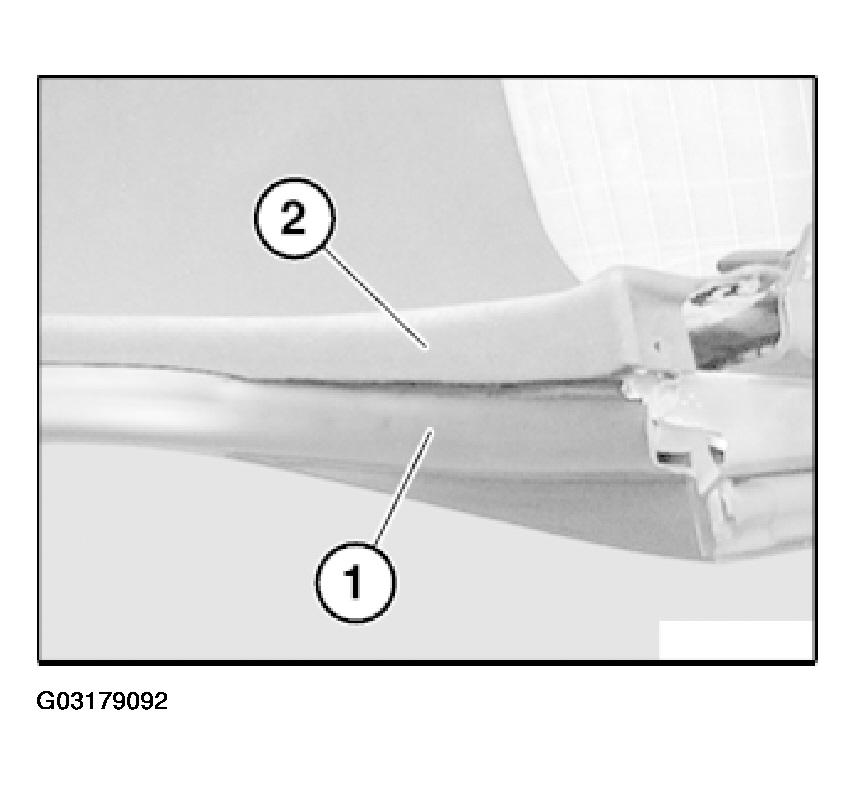

Pull off molded roof lining (2) from rubber seal at front (1) towards inside.

Fig 5: Pulling Off Molded Roof Lining

G03179092

Courtesy of BMW OF NORTH AMERICA, INC.

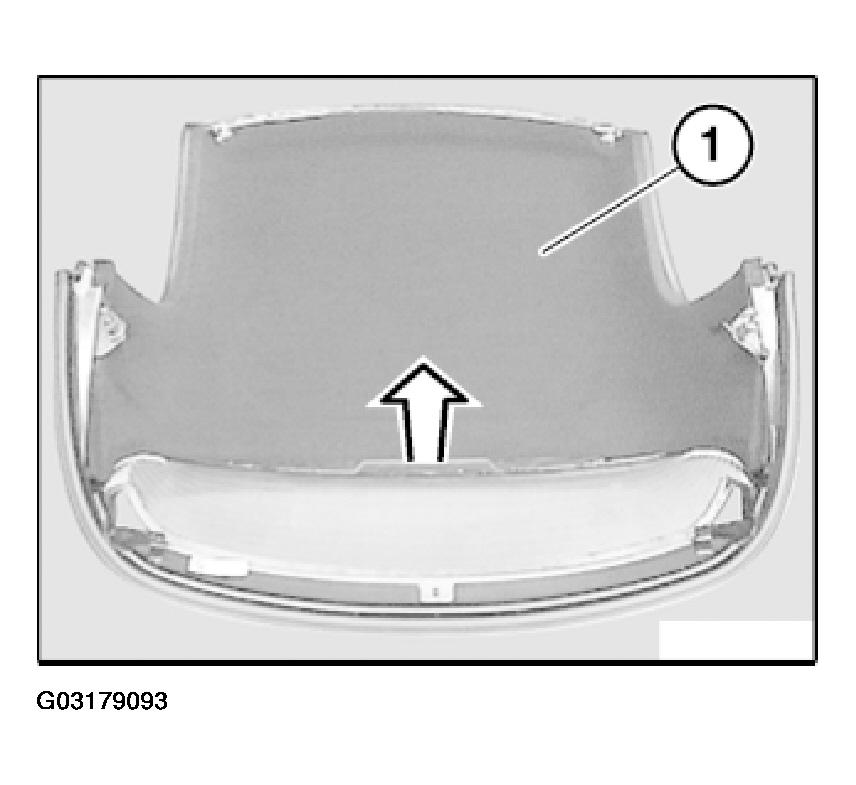

Raise molded roof lining (1) at rear window and slide towards front.

Fig 6: Raising Molded Roof Lining

G03179093

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

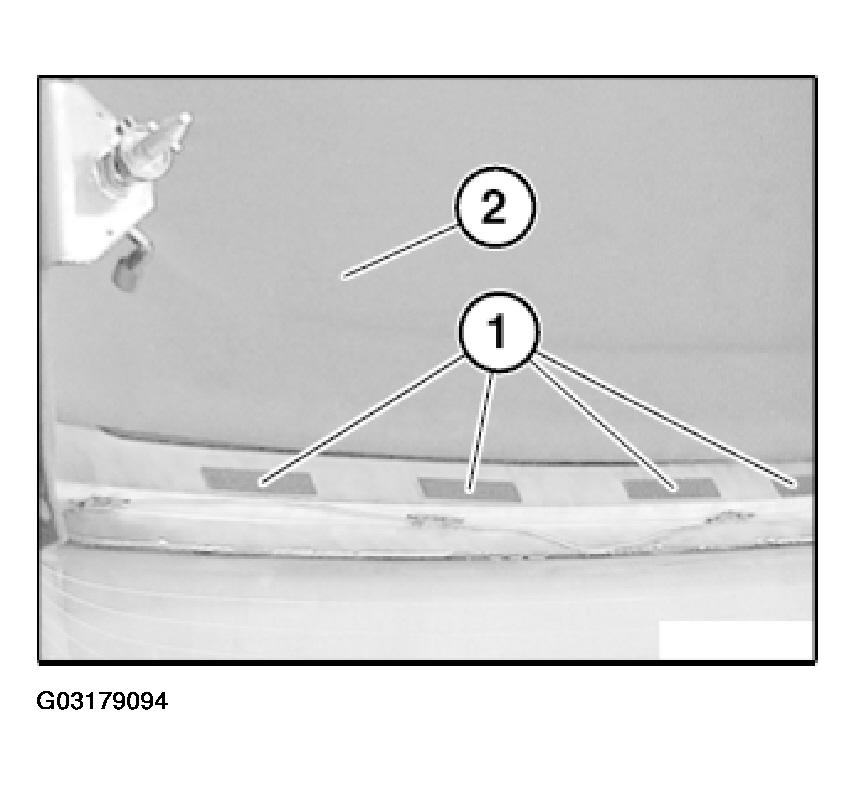

There must be four Velcro-type strips (1) on the hard top and roof lining (2).

Fig 7: Identifying Velcro-Type Strips

G03179094

Courtesy of BMW OF NORTH AMERICA, INC.
