54 21 090 Removing and installing/replacing panel, rear window frame, bottom

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove hard top, refer to 54 21 001 REMOVING HARD TOP .

Release expansion rivets (1) and remove panel, rear window frame, bottom (2).

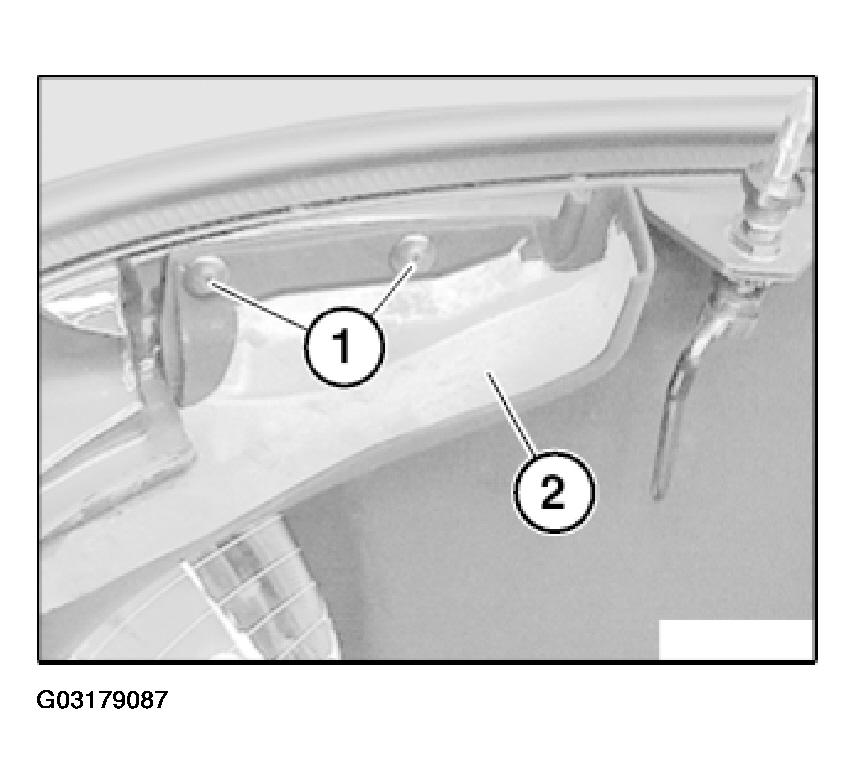

Fig 1: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
