54 21 001 Removing hard top

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

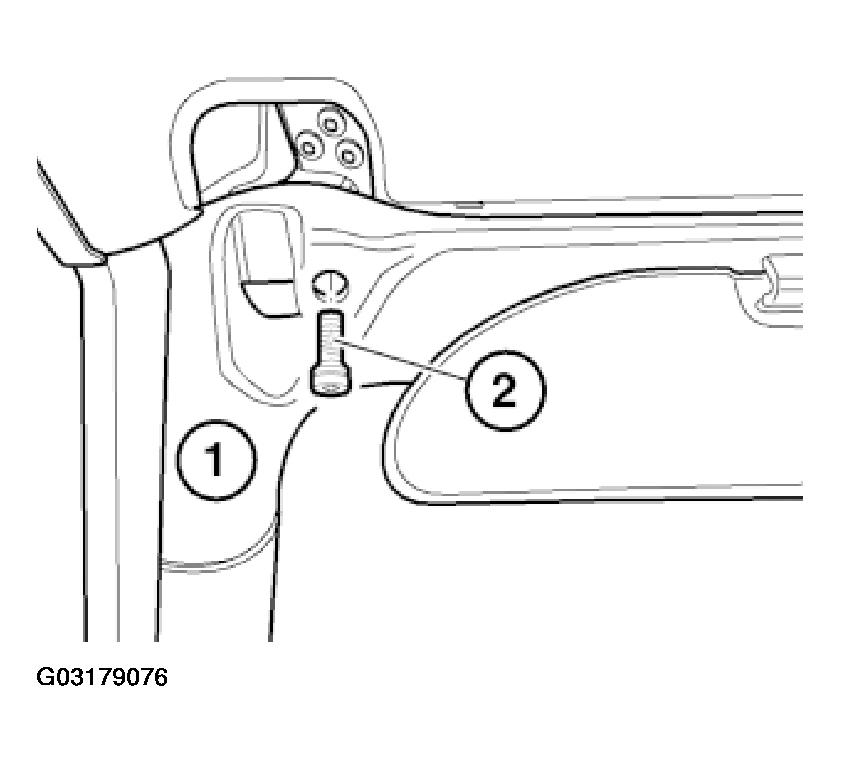

Release screws (2) on left and right in cowl panel (1).

NOTE: Keep screws (2) in cowl panel (1).

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

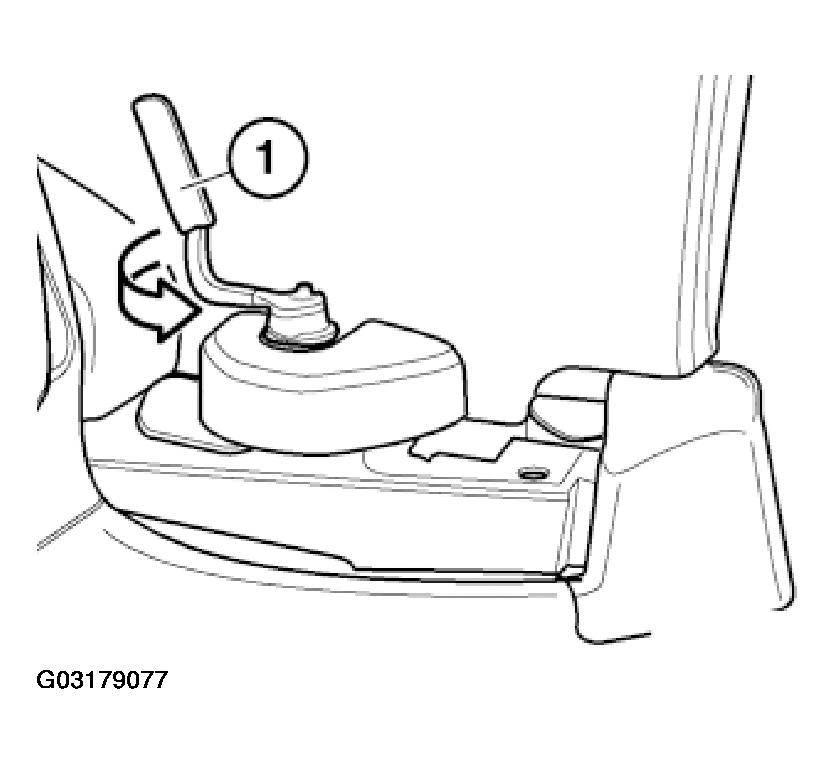

Turn locking lever (1) on left and right forwards.

Fig 2: Turning Locking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

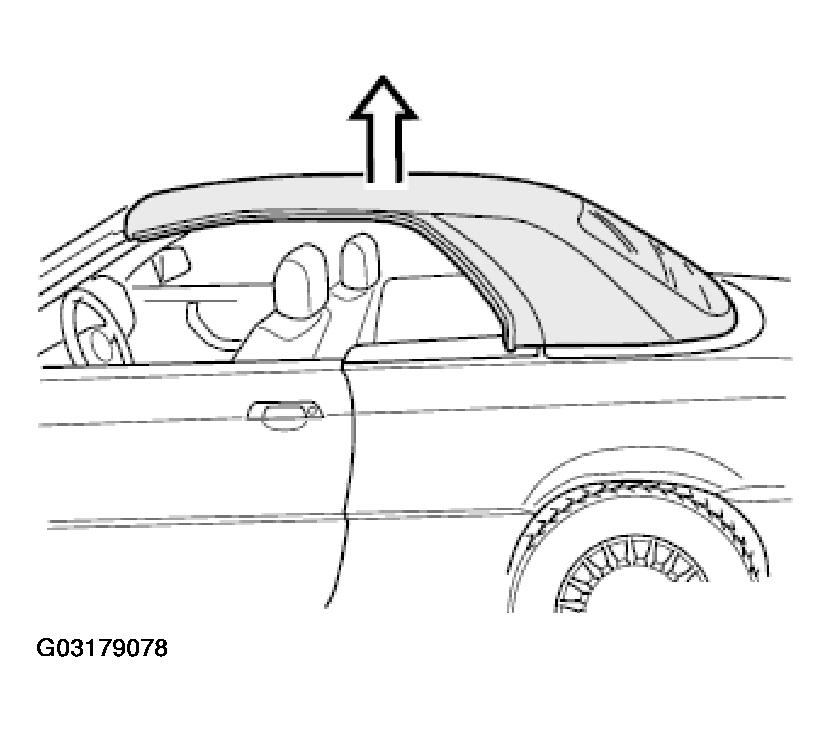

Lift off hard top with a second person.

Fig 3: Lifting Off Hard Top

Courtesy of BMW OF NORTH AMERICA, INC.

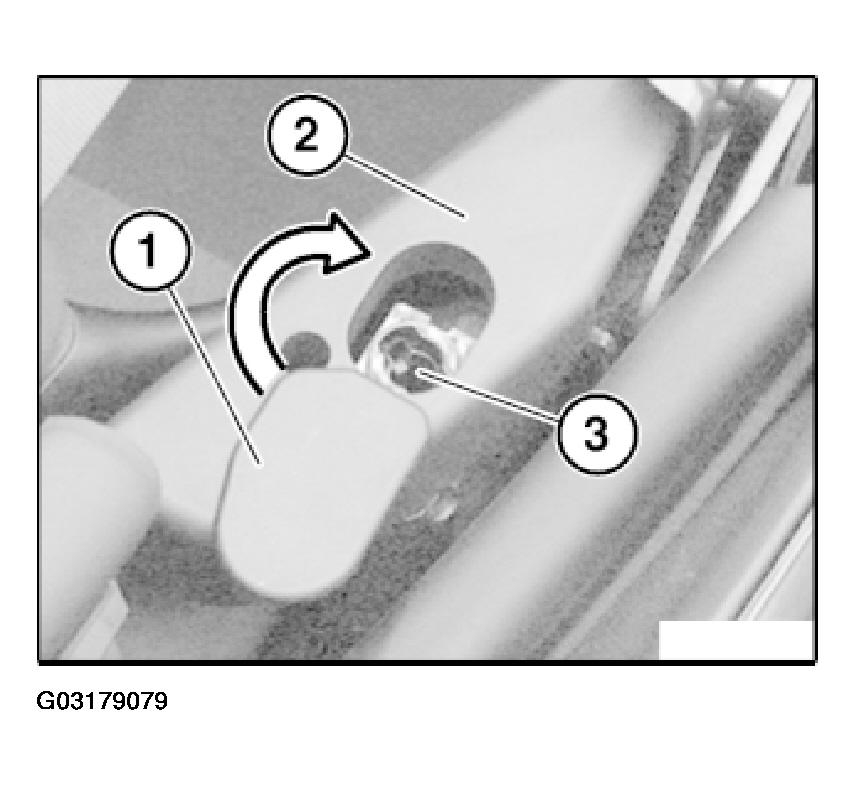

Close off hard top locating point (3) with cap (1) on cover at top of B-pillar (2).

Fig 4: Closing Off Hard Top Locating Point With Cap

Courtesy of BMW OF NORTH AMERICA, INC.
