51 44 150 Removing and installing/replacing finisher for headliner, front (cowl panel, top) (Z3 Roadster, M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing both trim sections for front roof pillar (A-pillar finishers), refer to 51 43 201 REMOVING AND INSTALLING/REPLACING PANEL FOR ROOF PILLAR, FRONT LEFT OR RIGHT (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Removing and installing both sun visors, refer to 51 16 104 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT SON VISOR (Z3 ROADSTER) .

Removing and installing complete ceiling light, refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (Z3 ROADSTER) .

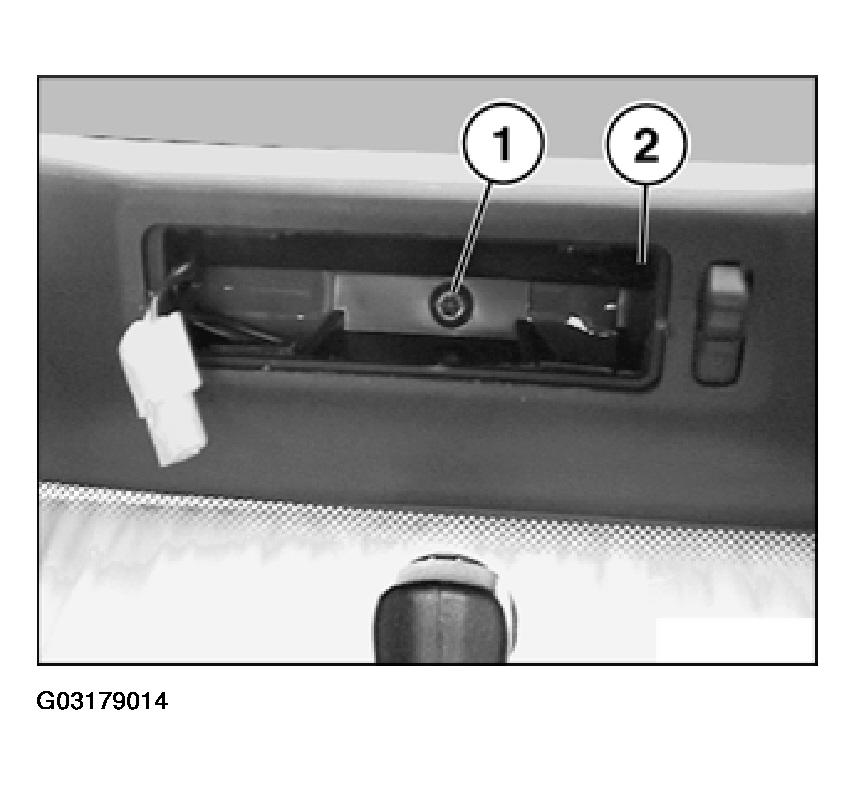

Unfasten screw (1) on finisher strip (2).

Fig 1: Removing Screw On Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

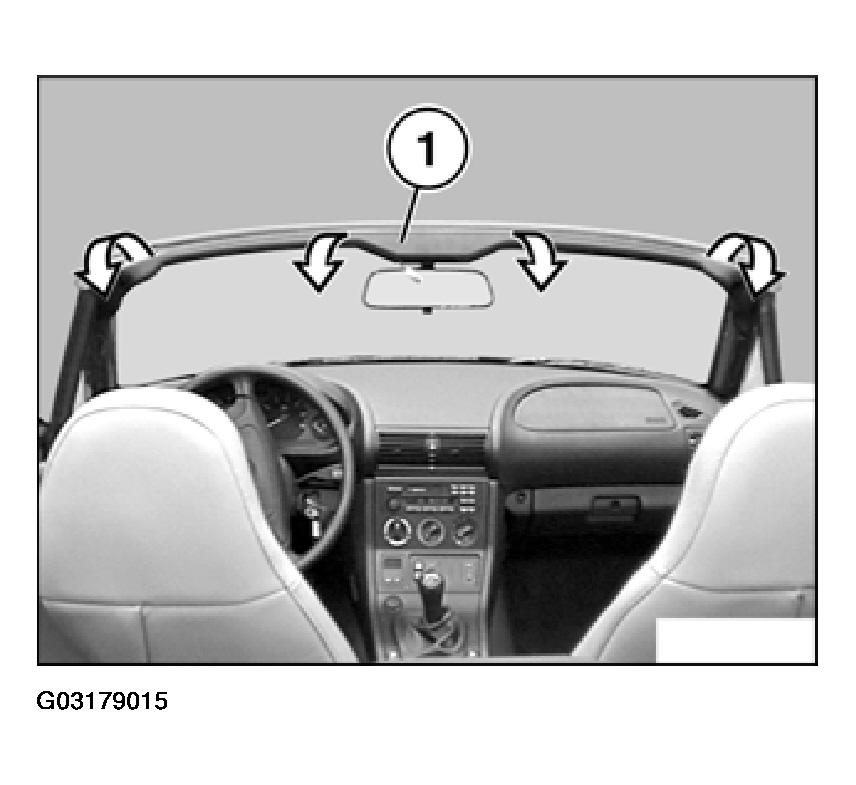

Lift finisher strip (1) up sideways and remove.

Fig 2: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

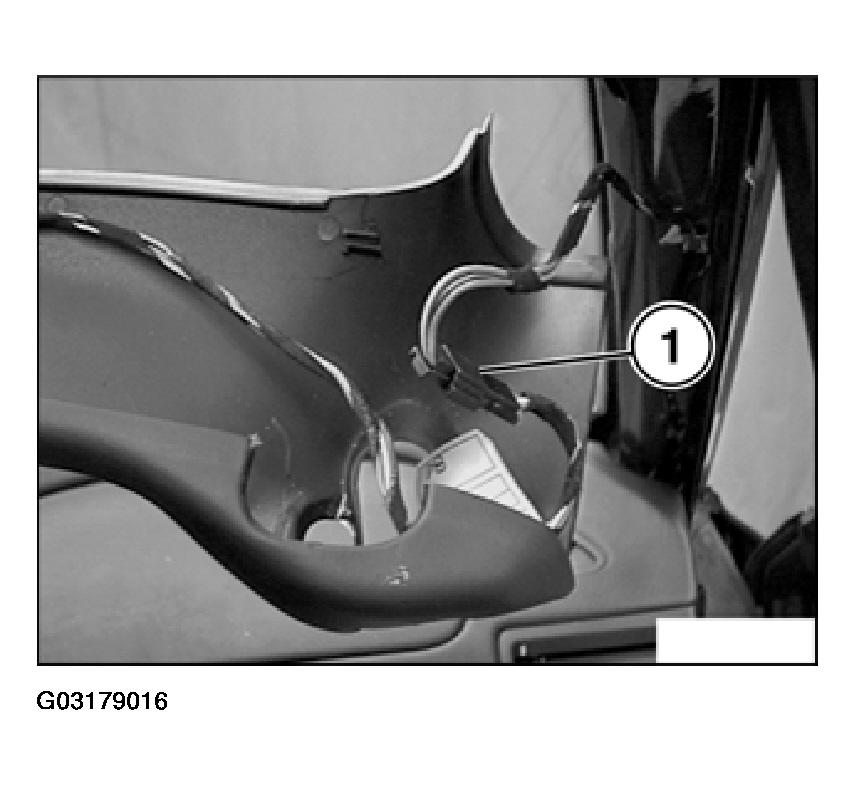

Disconnect connector (1).

Fig 3: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

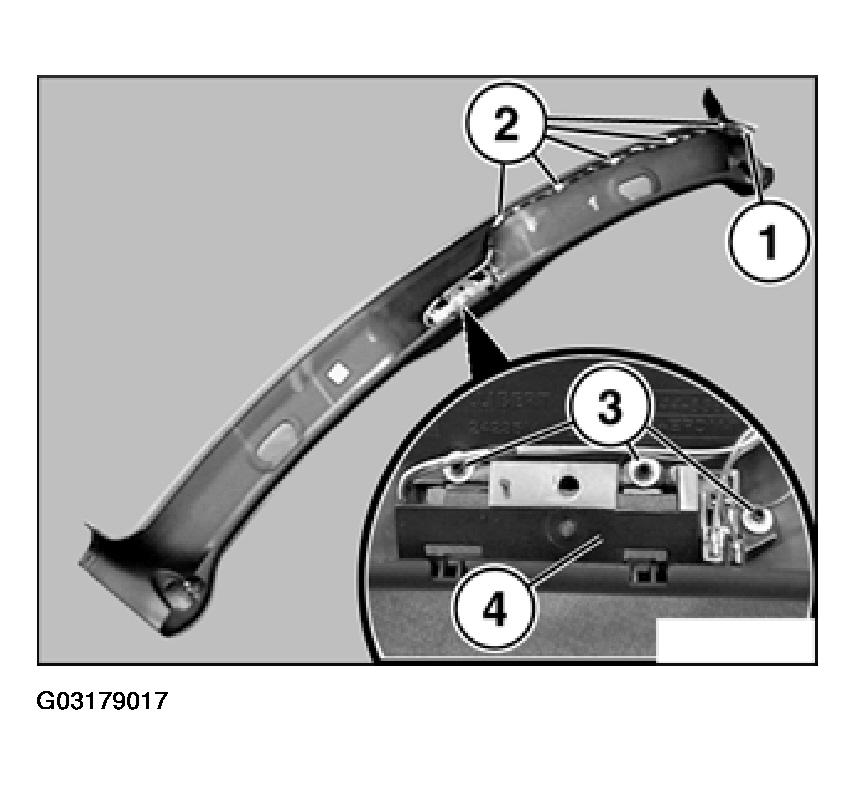

Lift cable (1) out of brackets (2).

Unfasten retaining disks (3) and remove bracket for interior light (4).

Fig 4: Removing Bracket For Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.
