63 31 000 Removing and installing/replacing complete ceiling light (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

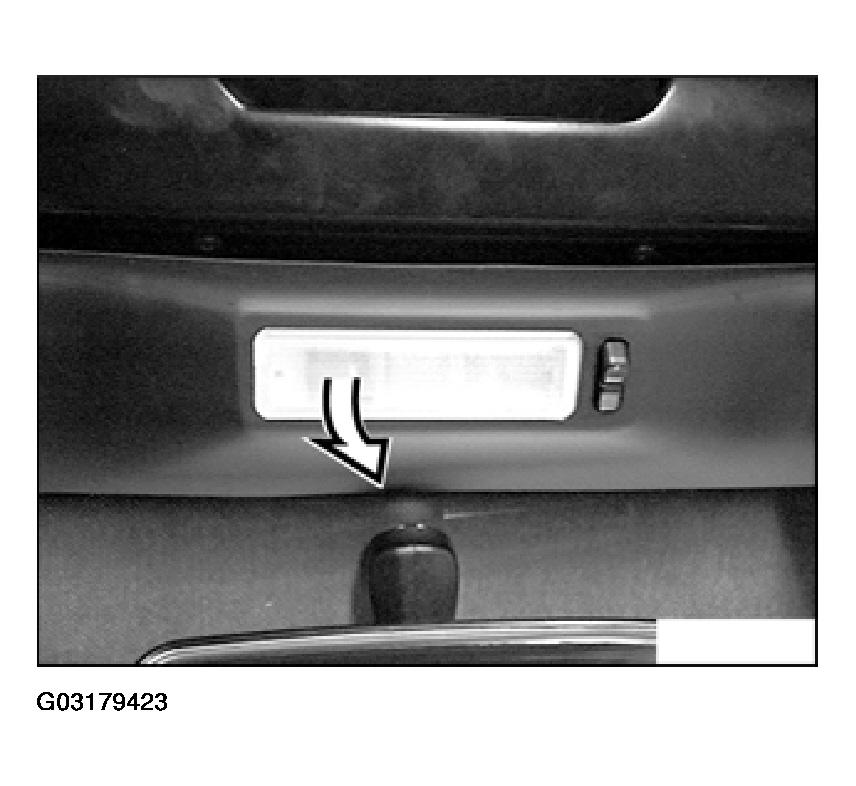

Unclip lamp glass.

Fig 1: Unclipping Lamp Glass

Courtesy of BMW OF NORTH AMERICA, INC.

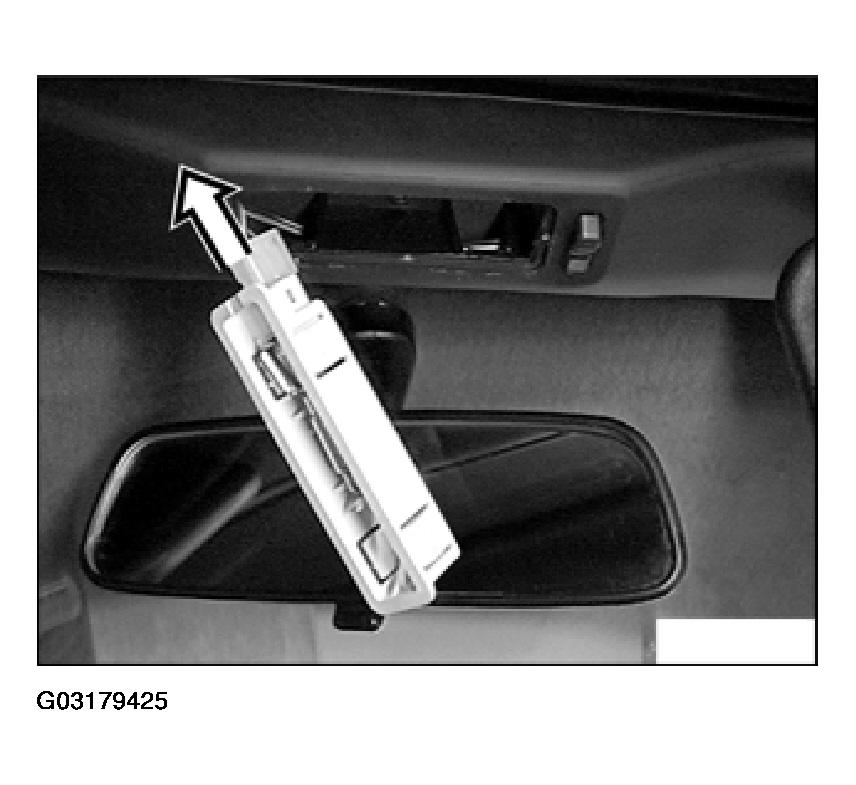

Unclip ceiling light from one side.

Fig 2: Unclipping Ceiling Light From One Side

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

Fig 3: Pulling Off Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
