51 32 170 Removing and installing/replacing front left or right door windows (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing front door window (fixed), refer to 51 32 140 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT DOOR WINDOW (FIXED) (Z3 ROADSTER) .

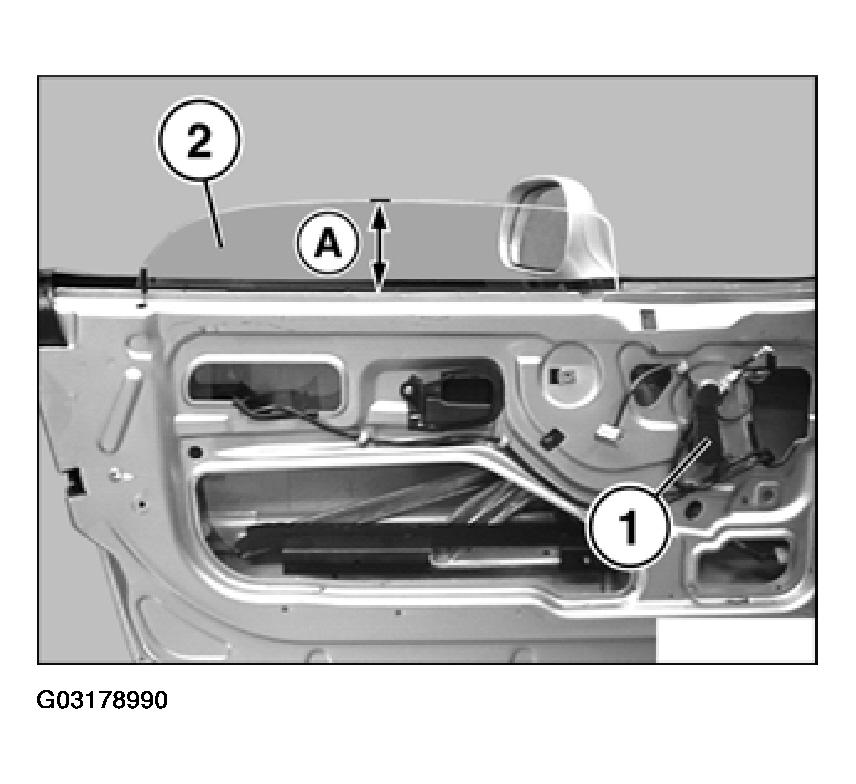

Fit window crank (1) and close door window (2) down to dimension (A).

Distance (A) = approx. 100 ... 200 mm.

Fig 1: Adjusting Door Window Height

Courtesy of BMW OF NORTH AMERICA, INC.

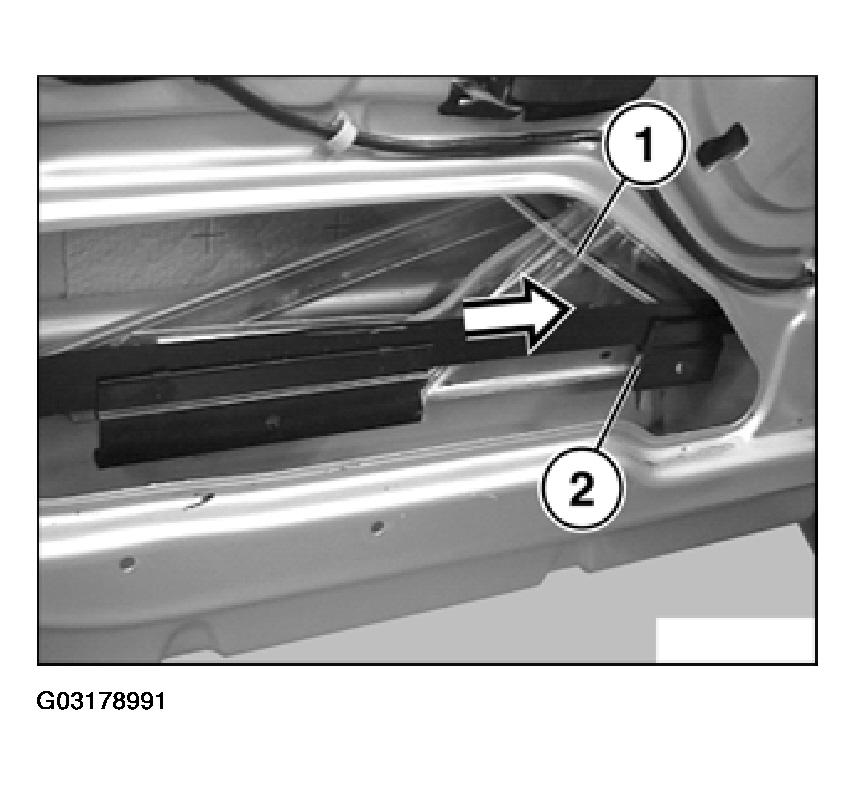

Slide door window (1) forwards out of window regulator support (2).

Fig 2: Identifying Window Regulator Support

Courtesy of BMW OF NORTH AMERICA, INC.

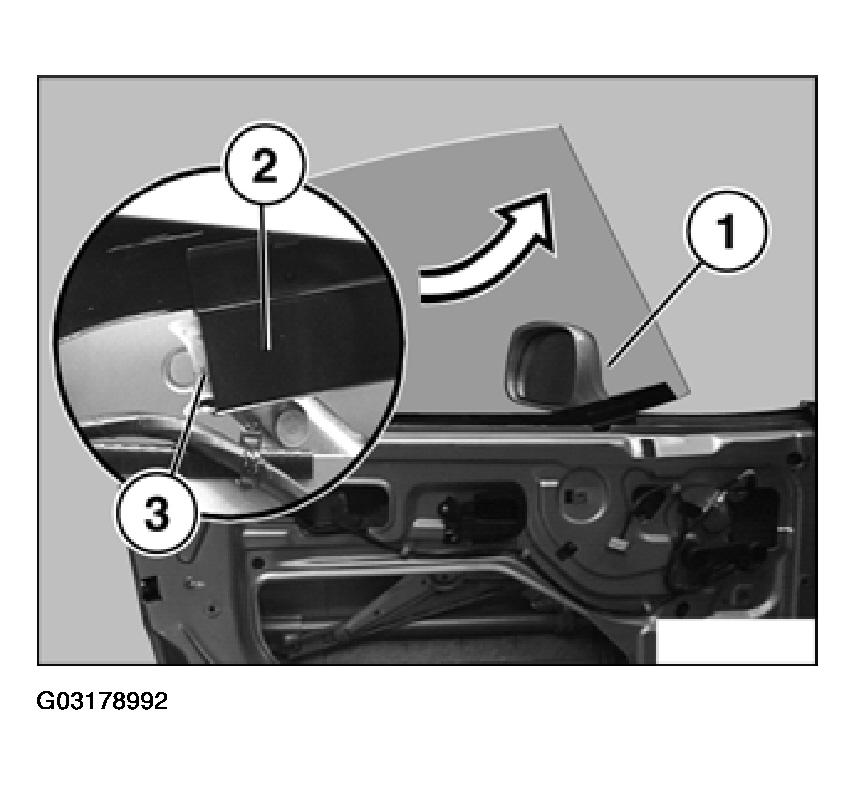

Carefully push door window (1) upwards and slide bracket (2) out of window regulator support (3).

Fig 3: Identifying Window Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

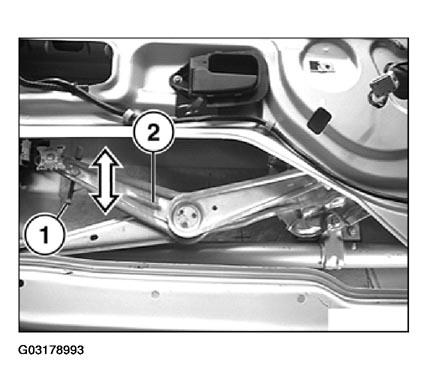

Height of door window is adjusted by turning screw (1).

Adjust door window, refer to 51 32 154 ADJUSTING FRONT LEFT OR RIGHT DOOR WINDOW (Z3 ROADSTER) .

Fig 4: Adjusting Door Window

Courtesy of BMW OF NORTH AMERICA, INC.
