51 32 140 Removing and installing or replacing front left or right door window (fixed) (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Partially remove inner foil.

Installation:

If necessary, replace defective inner foil.

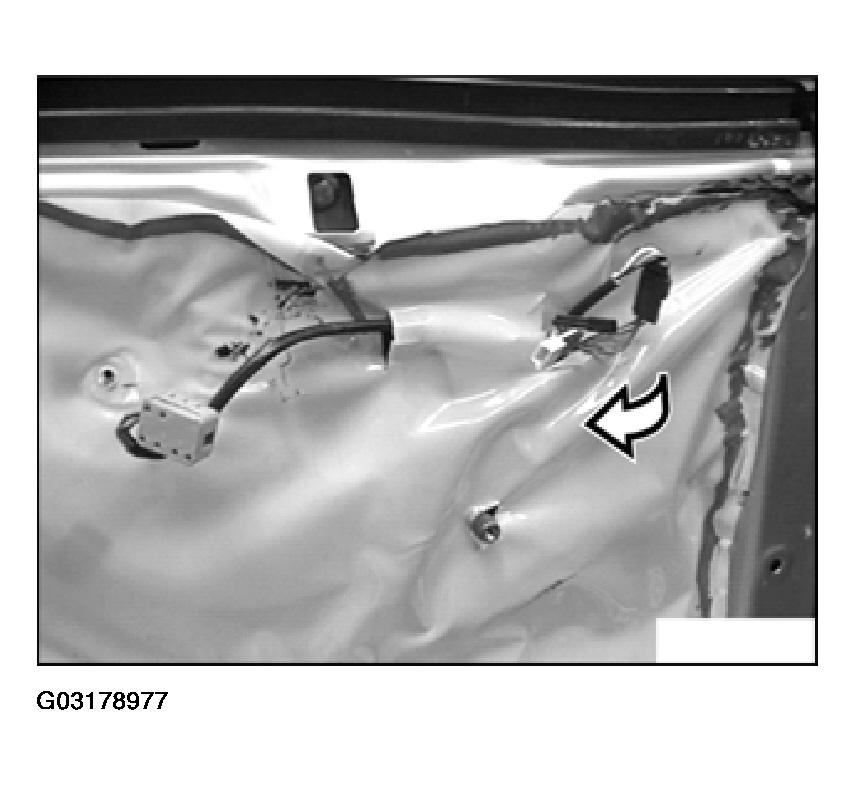

Fig 1: Removing Defective Inner Foil

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw.

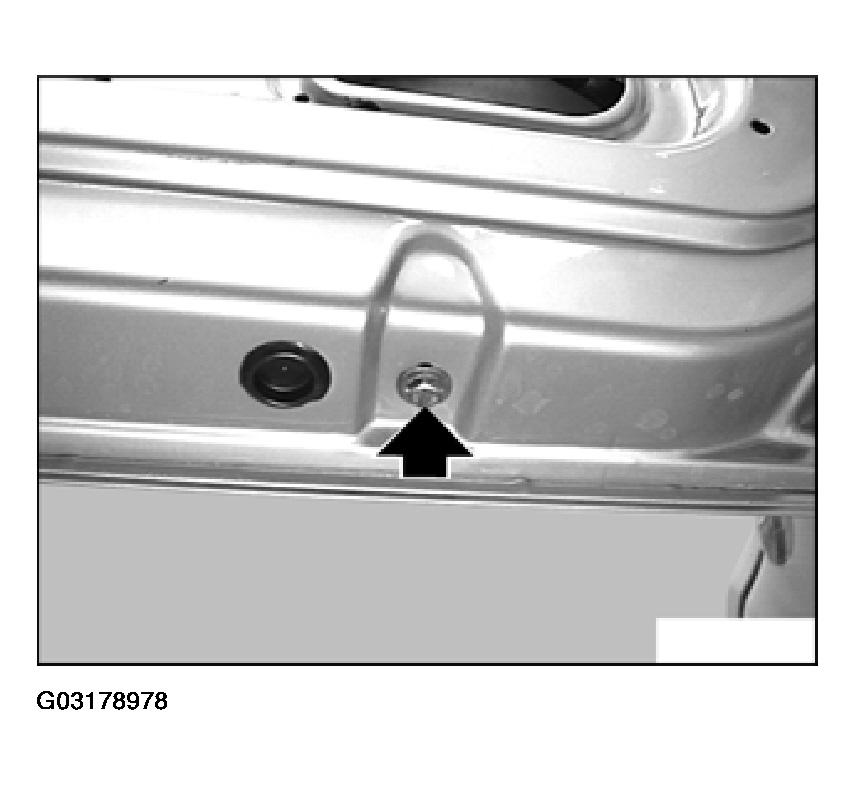

Fig 2: Removing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

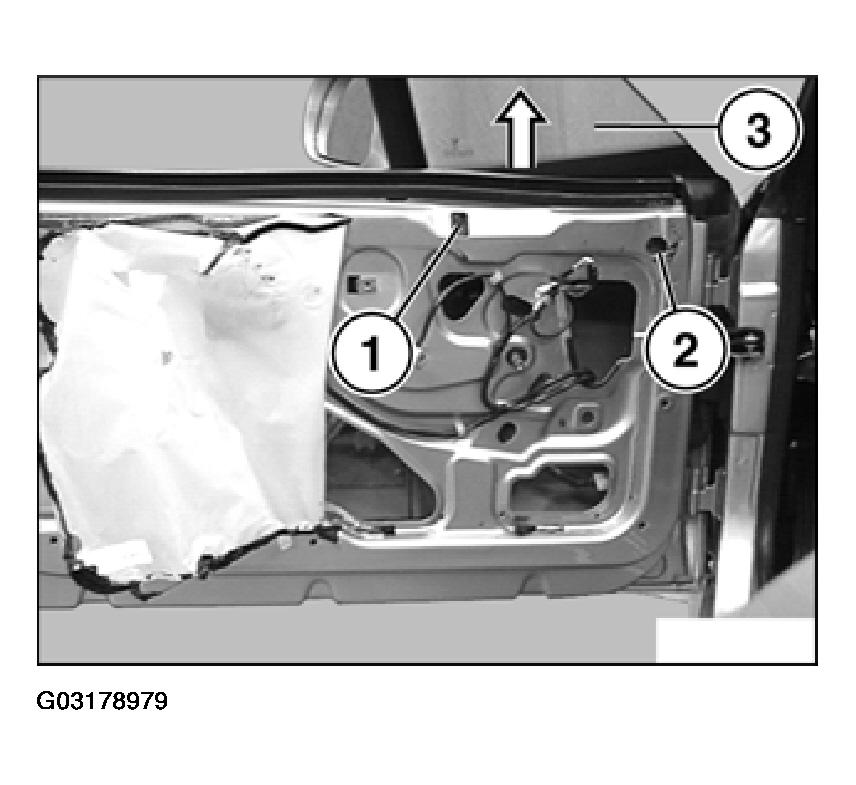

Unfasten screws (1 ... 2) and carefully lift door window (3) up to remove.

Fig 3: Adjusting Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw (1) is longer than the remaining screw.

Adjusting door window, refer to 51 32 154 ADJUSTING FRONT LEFT OR RIGHT DOOR WINDOW (Z3 ROADSTER) .

Only replace:

If necessary, remove guide rubber (1).

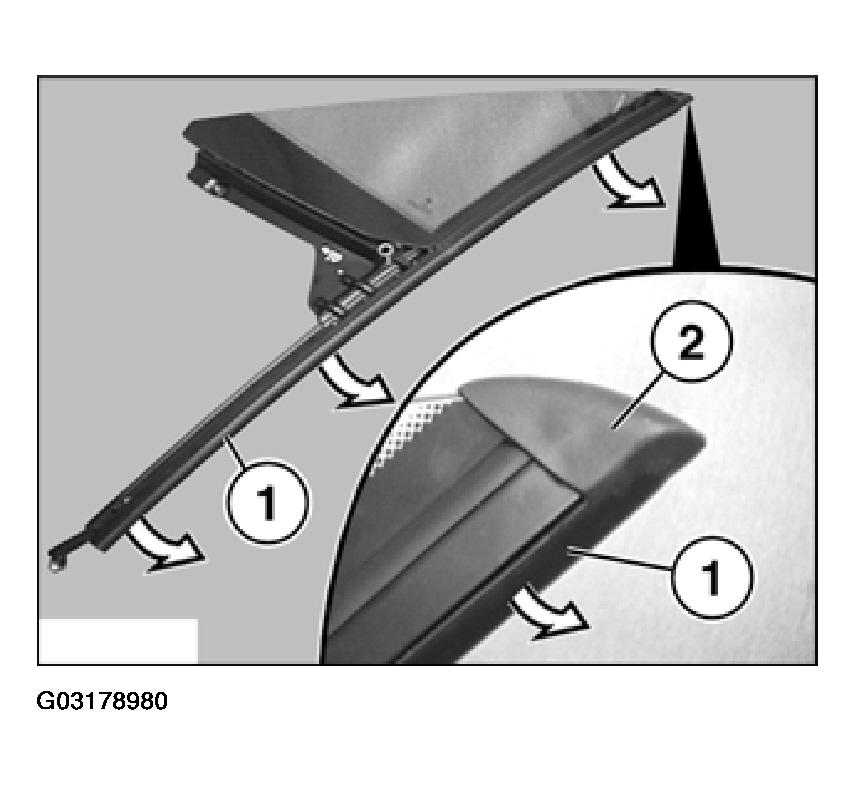

Fig 4: Removing Guide Rubber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide rubber (1) is cemented in area (2).
