51 32 154 Adjusting front left or right door window (Z3 roadster)

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Ideal adjustment:

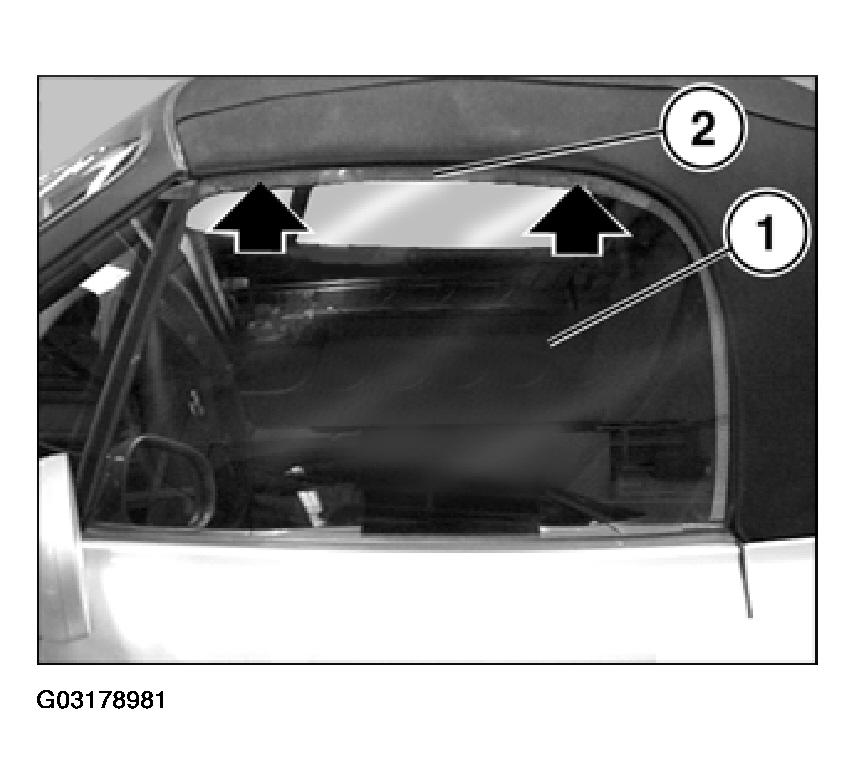

The door window (1) gasket (2) must locate evenly all round (wind noise, water ingress).

Fig 1: Identifying Door Window Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

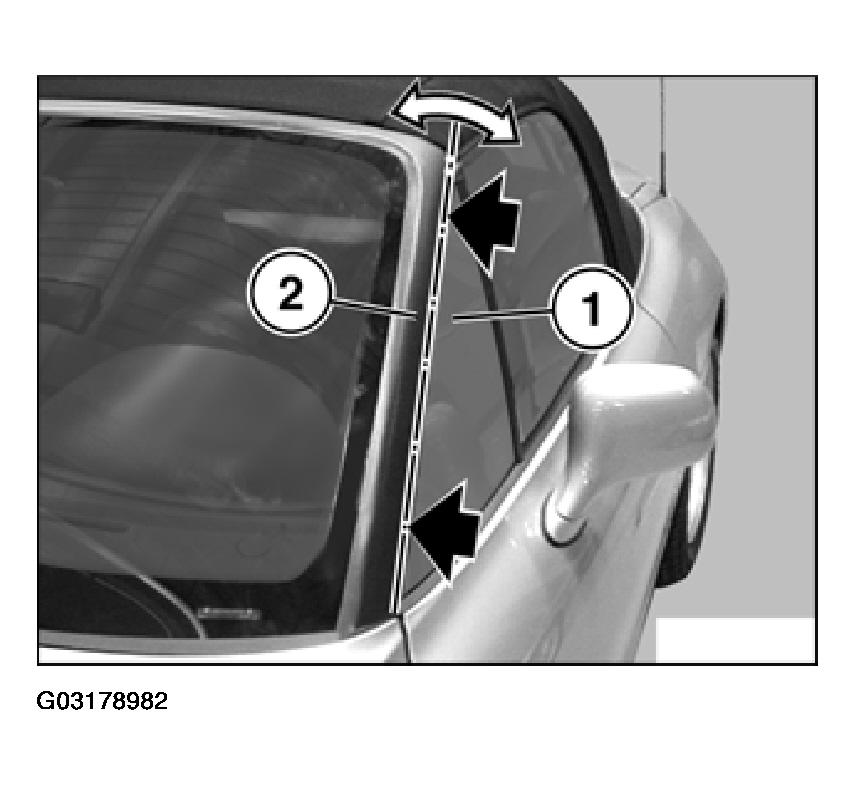

Door window (1) locates flush against A-pillar (2).

Fig 2: Identifying Door Window And A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover.

Installation:

Replace cover.

Fig 3: Replacing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Parallelism:

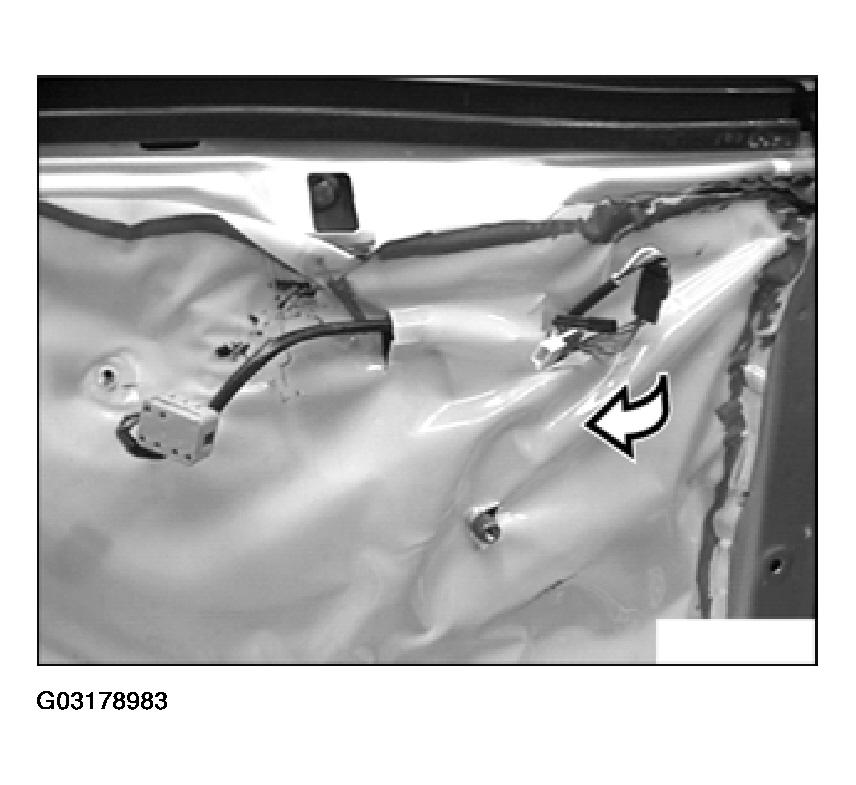

Adjust door window so that it is parallel to the window frame by adjusting the guide rails.

Fig 4: Adjusting Guide Rails

Courtesy of BMW OF NORTH AMERICA, INC.

Preload on door window (fixed):

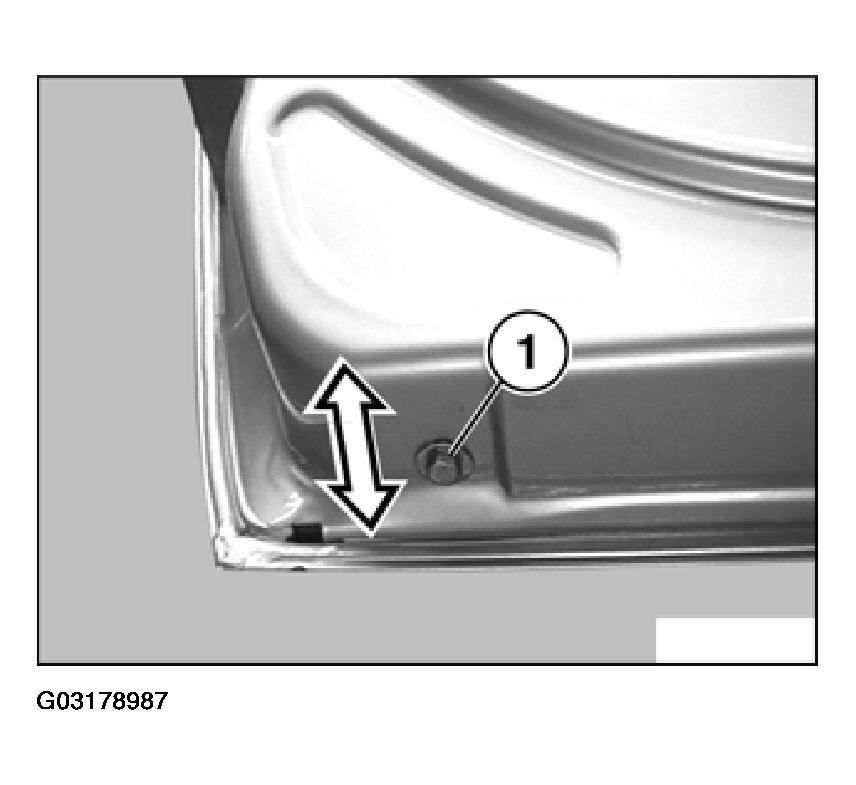

Adjust window guide rail until door window (1) locates flush against the A-pillar (2).

Fig 5: Identifying Door Window And A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

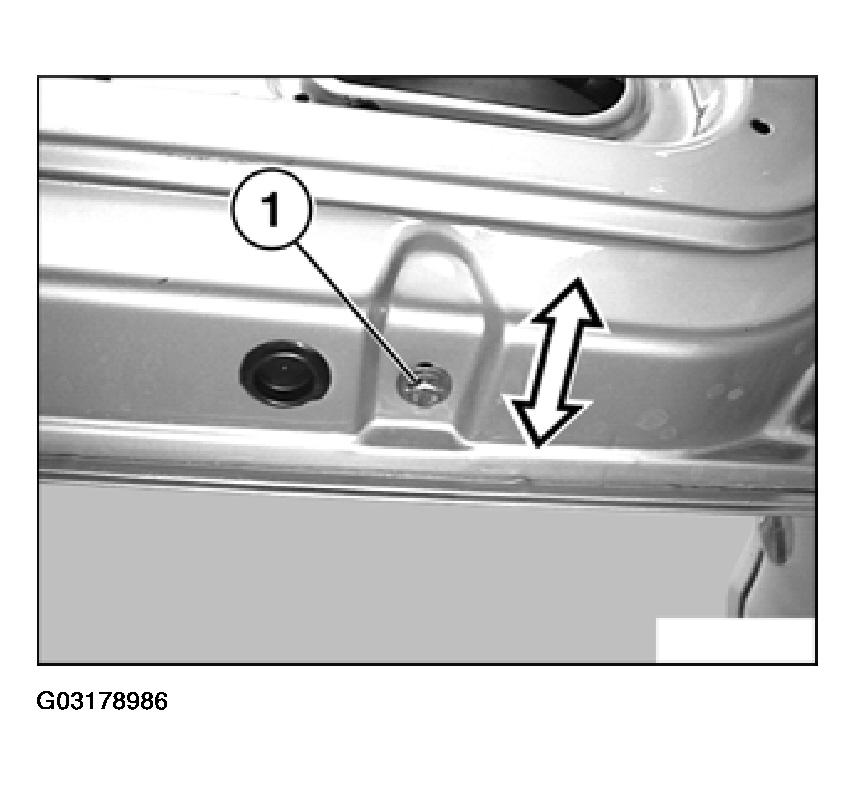

Loosen screw (1) and adjust window guide rail (front).

Fig 6: Loosening Window Guide Rail Screw (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

Preload on door window:

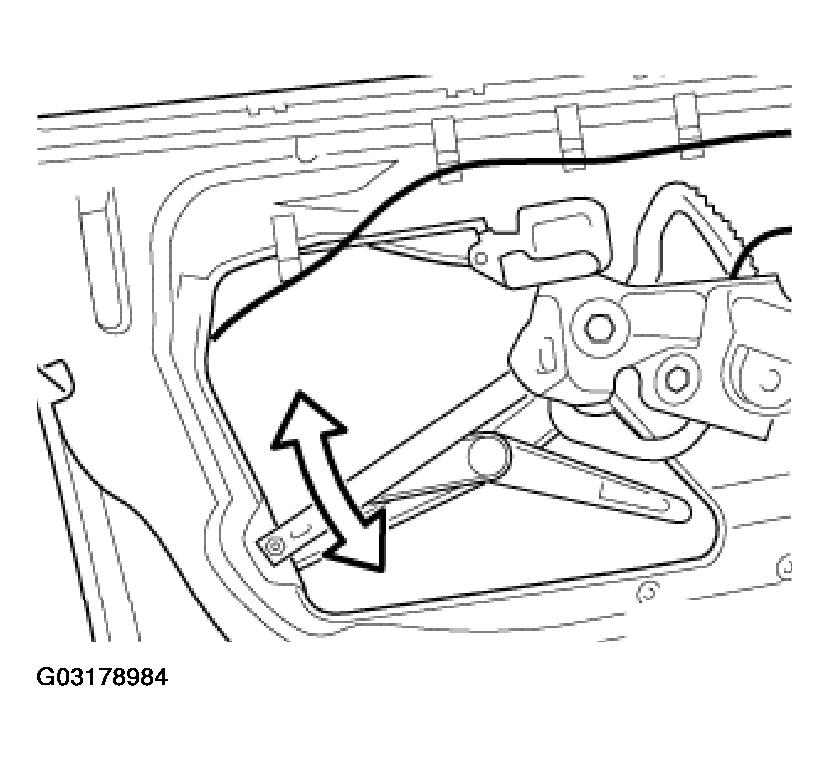

Loosen screw (1) and adjust window guide rail (rear).

Fig 7: Loosening Window Guide Rail Screw (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

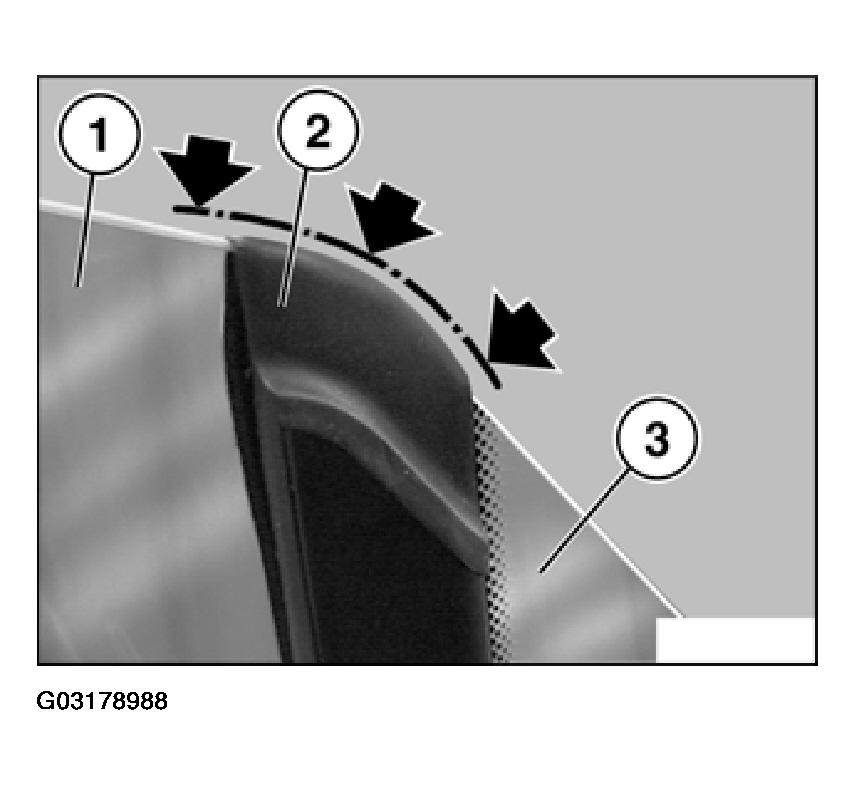

Adjust height of door window (1) until transition from fixed door window (3) to rubber window seal (2) forms a smooth line.

Fig 8: Adjusting Door Window Height

Courtesy of BMW OF NORTH AMERICA, INC.

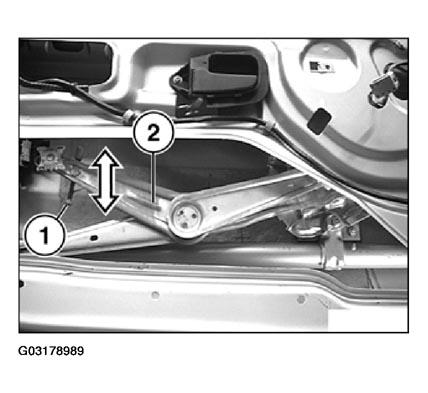

Height of door window is adjusted by turning the screw (1) on the window regulator (2).

Fig 9: Identifying Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.
