51 41 000 Removing and installing front left or right door trim panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

Lift out cover plate.

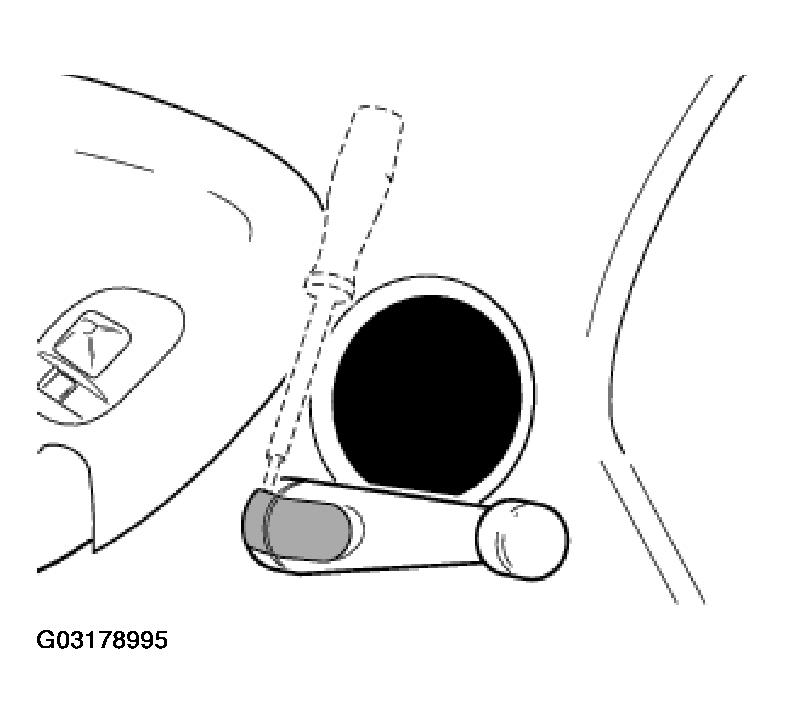

Release screw and remove window crank.

Fig 1: Removing Window Crank

Courtesy of BMW OF NORTH AMERICA, INC.

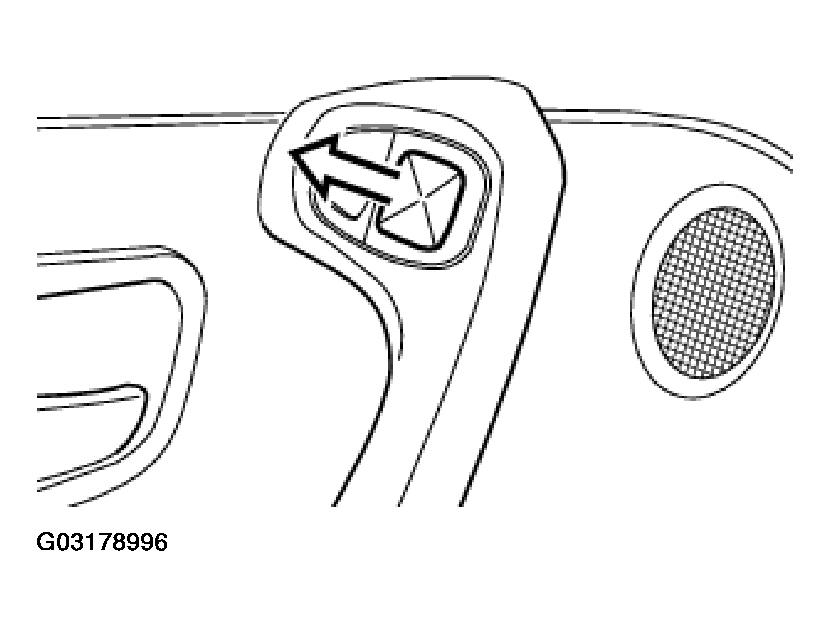

Remove outside mirror adjusting button.

Fig 2: Removing Outside Mirror Adjusting Button

Courtesy of BMW OF NORTH AMERICA, INC.

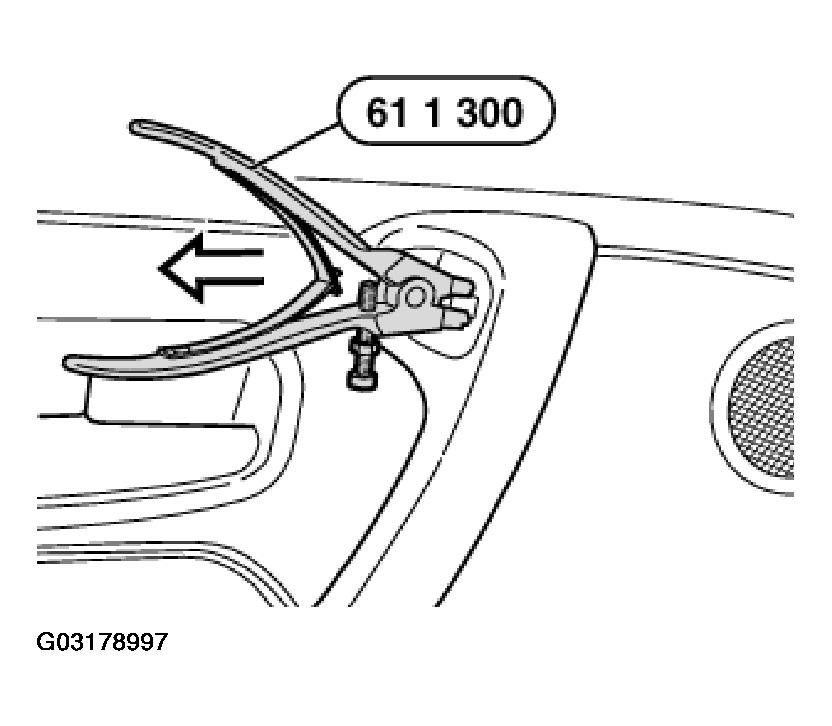

Remove mirror switch with special tool 61 1 300 and pull apart plug connection.

Fig 3: Removing Mirror Switch

Courtesy of BMW OF NORTH AMERICA, INC.

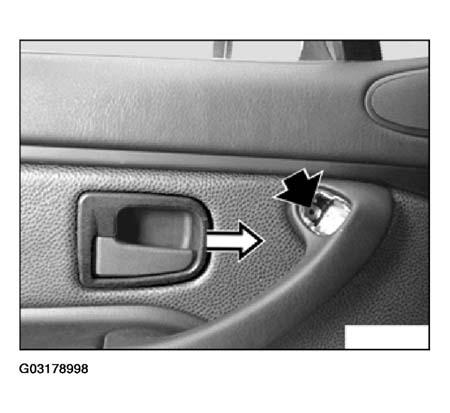

Align plate forward.

Unscrew screw.

Fig 4: Aligning Plate Forward

Courtesy of BMW OF NORTH AMERICA, INC.

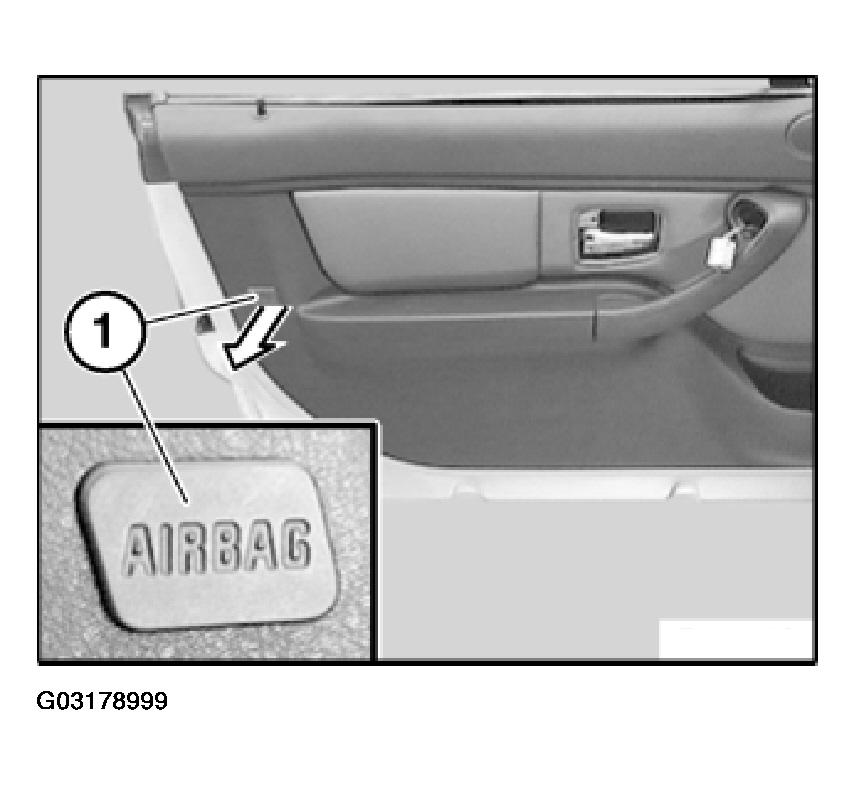

Model with side airbag:

If necessary, lever out cover cap (1) and release screw underneath.

Fig 5: Identifying Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

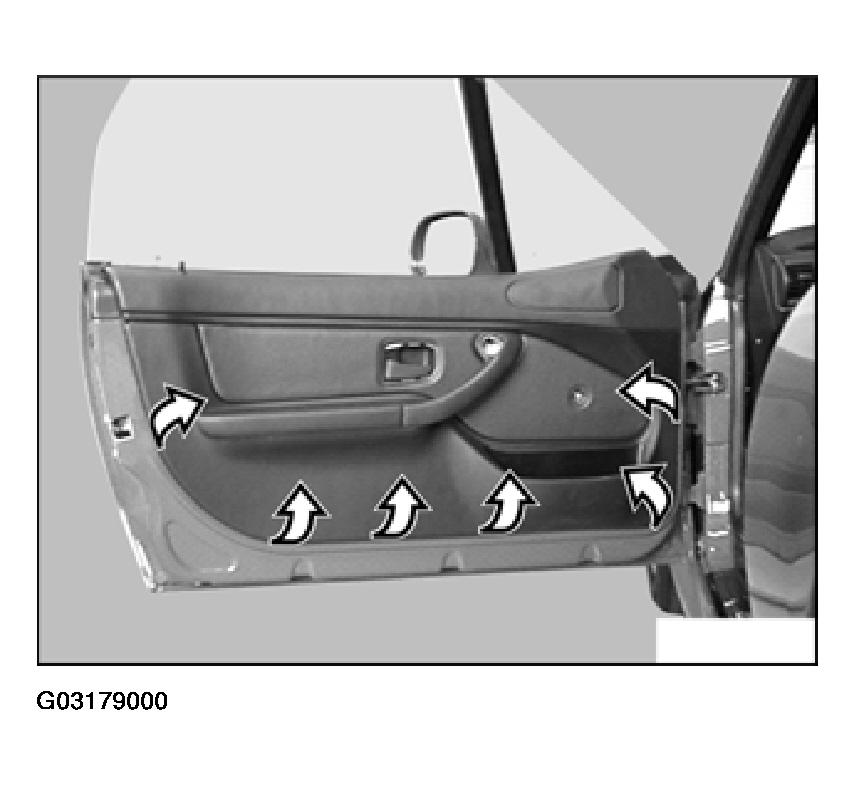

Unclip door trim panel.

Fig 6: Unclipping Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

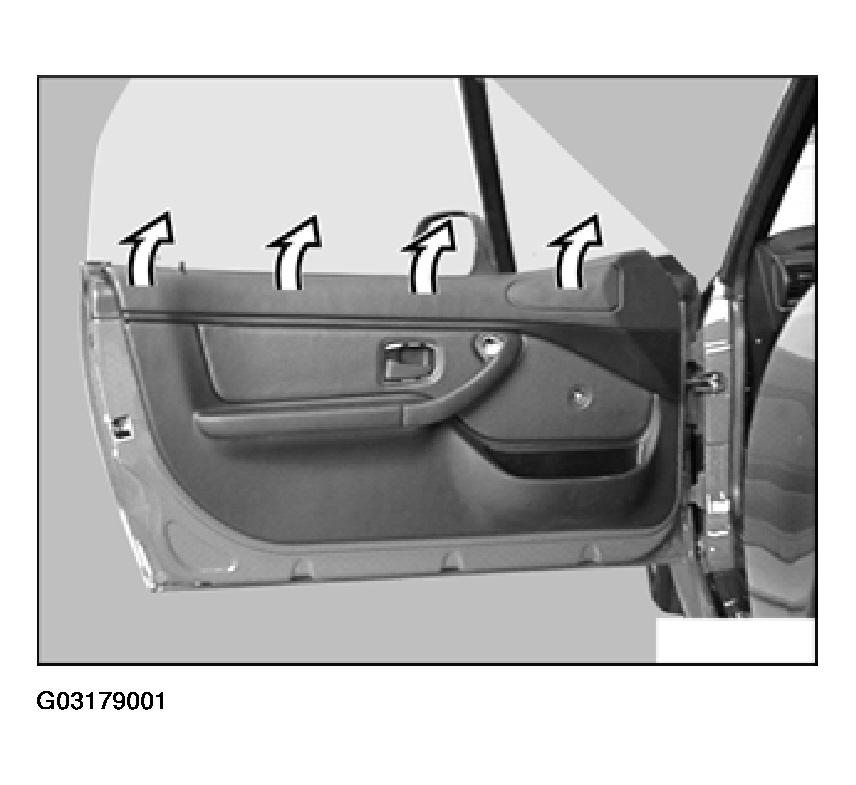

Lift off door trim panel upwards.

Fig 7: Lifting Door Trim Panel Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection on speaker.

Installation:

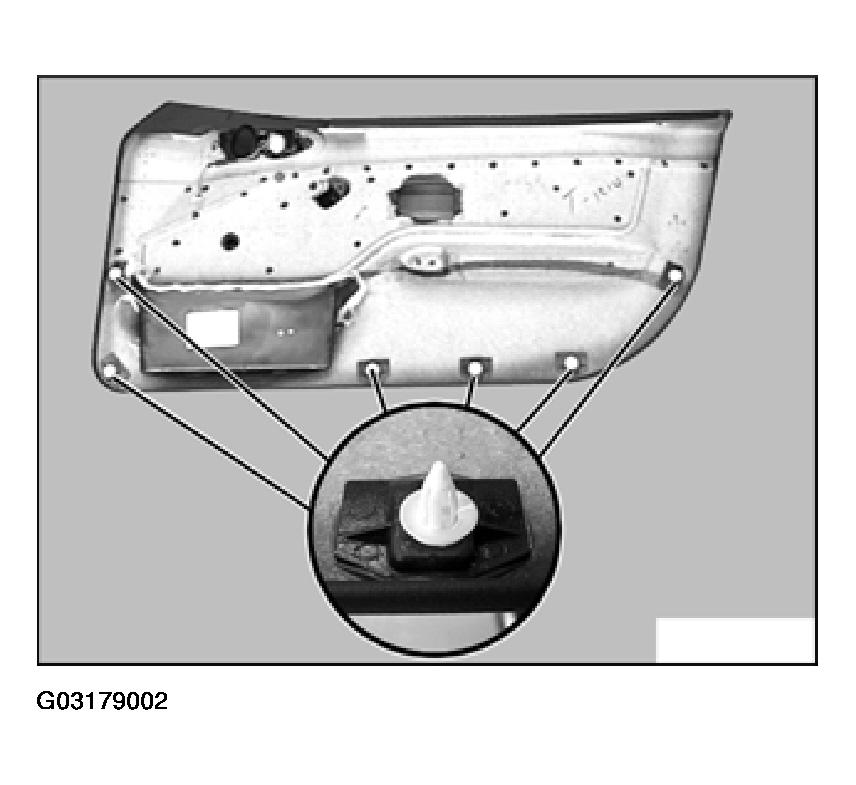

If necessary, replace damaged clips.

Fig 8: Identifying Door Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Model with side airbag:

Installation:

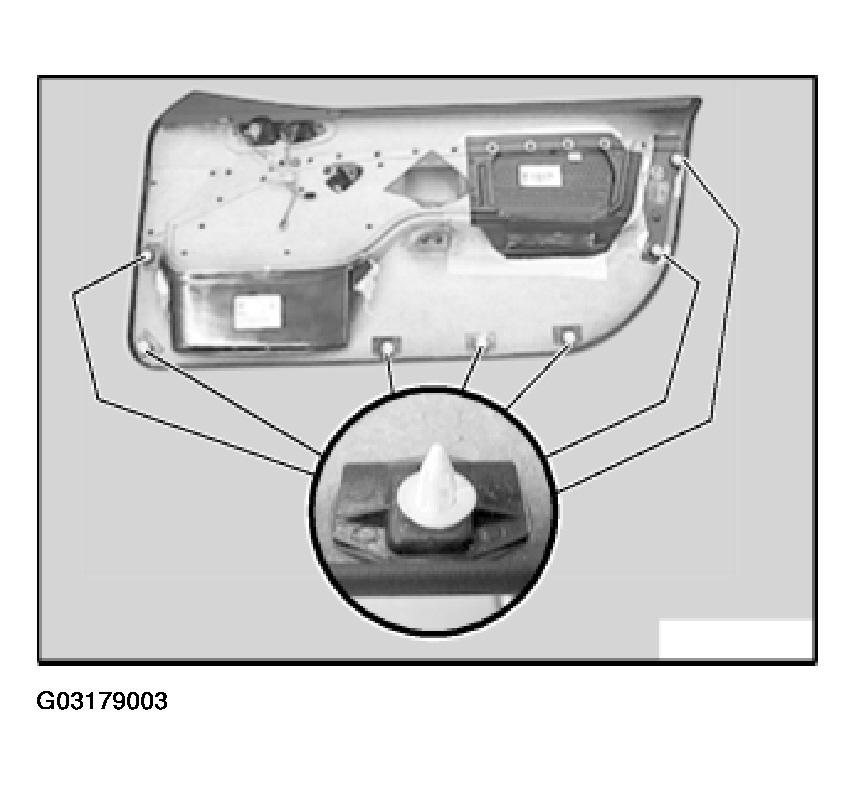

If necessary, replace damaged clips.

Fig 9: Identifying Door Clips (Model With Side Airbag)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

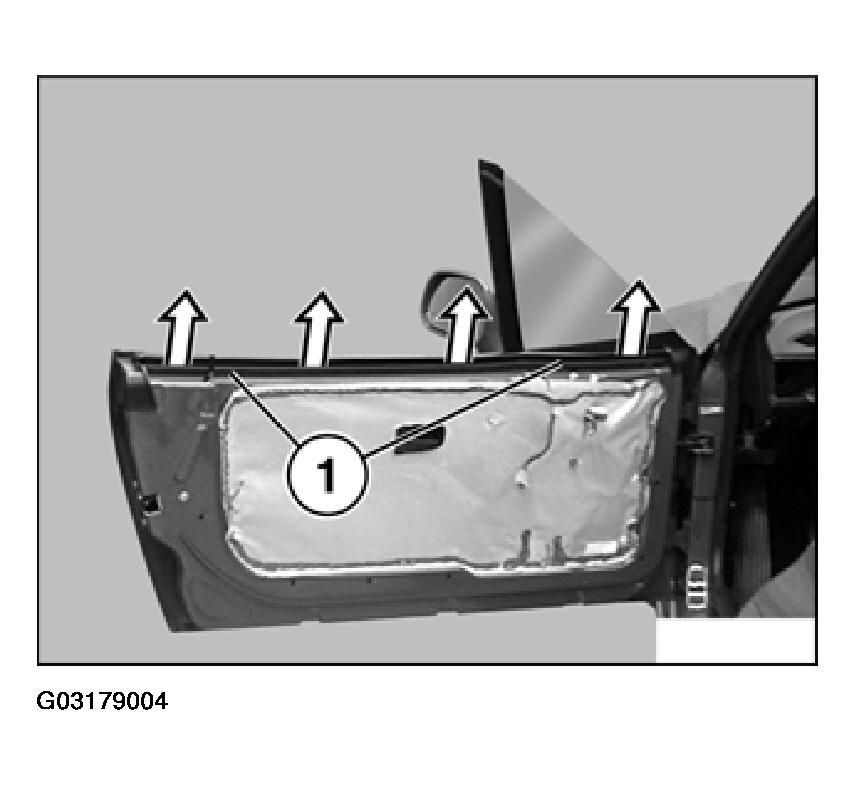

Pull inner cavity cover strip (1) upwards to remove.

Fig 10: Removing Inner Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

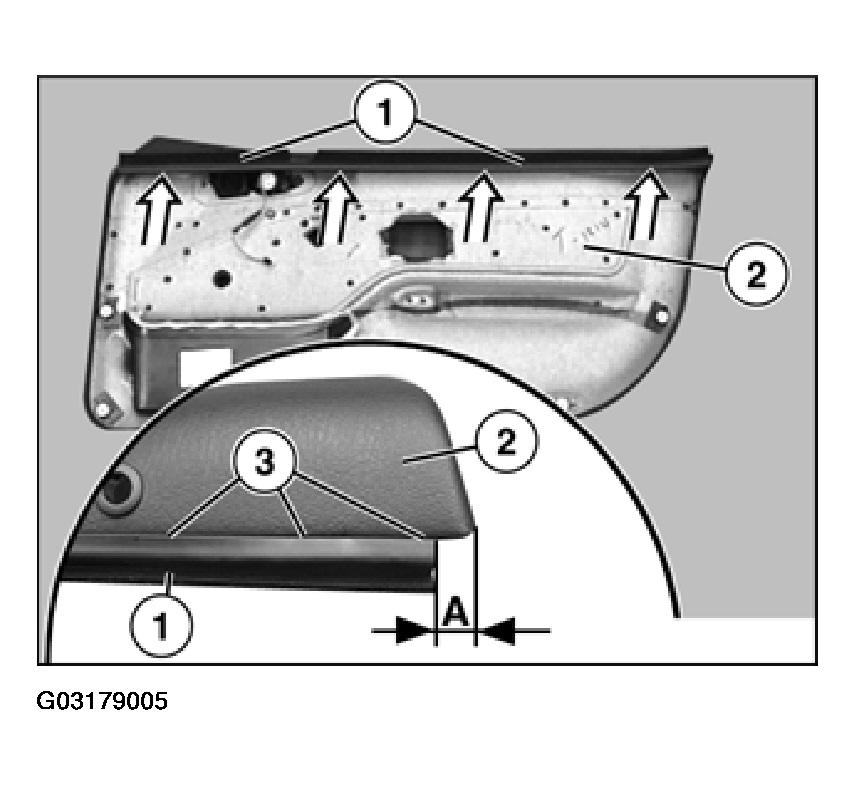

Fit cavity cover strip (1) at back with distance (A) to door trim (2).

Lift sealing lip (3).

Dimension (A) = approx. 8 mm.

Fig 11: Installing Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

• Open door window.
• Lock with vehicle key.
• Check for ease-of-movement on retaining button linkage.
• If necessary, align linkages.
