51 11 001 Replacing front bumper (Z3 Roadster, Z3 Coupe)

Unscrew And Remove License Plate:

Remove complete front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (Z3 ROADSTER, M ROADSTER) .

Version With Fog Light:

Remove foglight insert, refer to 63 17 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FOGLIGHT INSERT .

Replace Center Section (Support Member) Of Front Bumper:

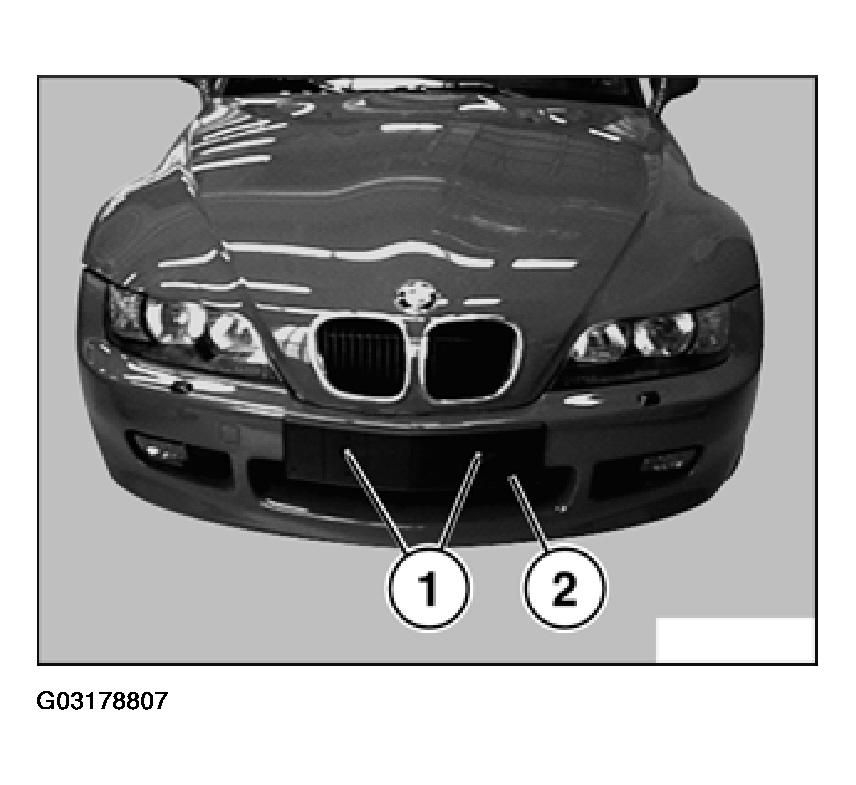

Unfasten screws (1) and remove license plate baseplate (2).

Fig 1: Removing License Plate Baseplate

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Headlight Cleaning System:

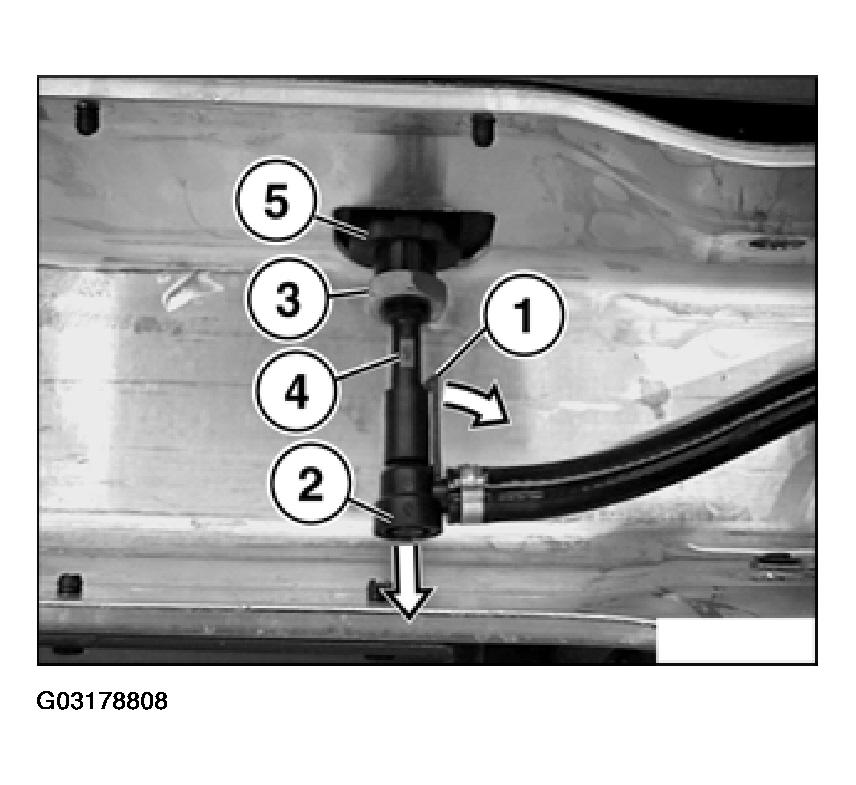

Lift out detent (1) and remove hose connection (2).

Unfasten nut (3).

Remove spray nozzle (4) and left/right clamping ring (5).

Fig 2: Removing Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Headlight Cleaning System:

Installation:

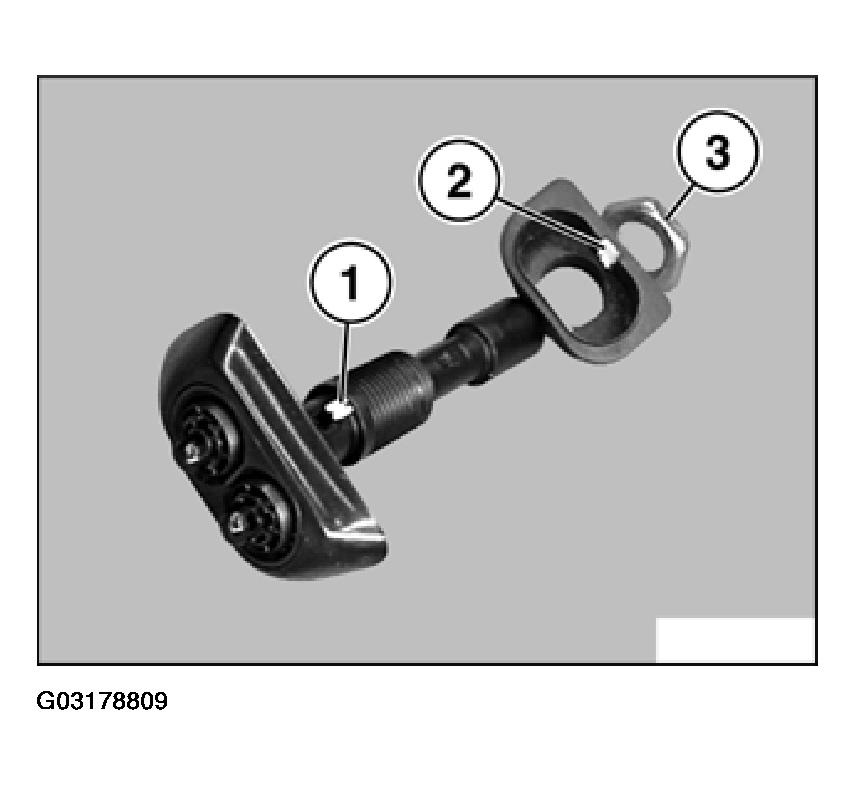

Lug in spray nozzle (1) must be aligned with recess in clamping ring (2).

Fig 3: Identifying Headlight Cleaning System

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten with the nut (3).

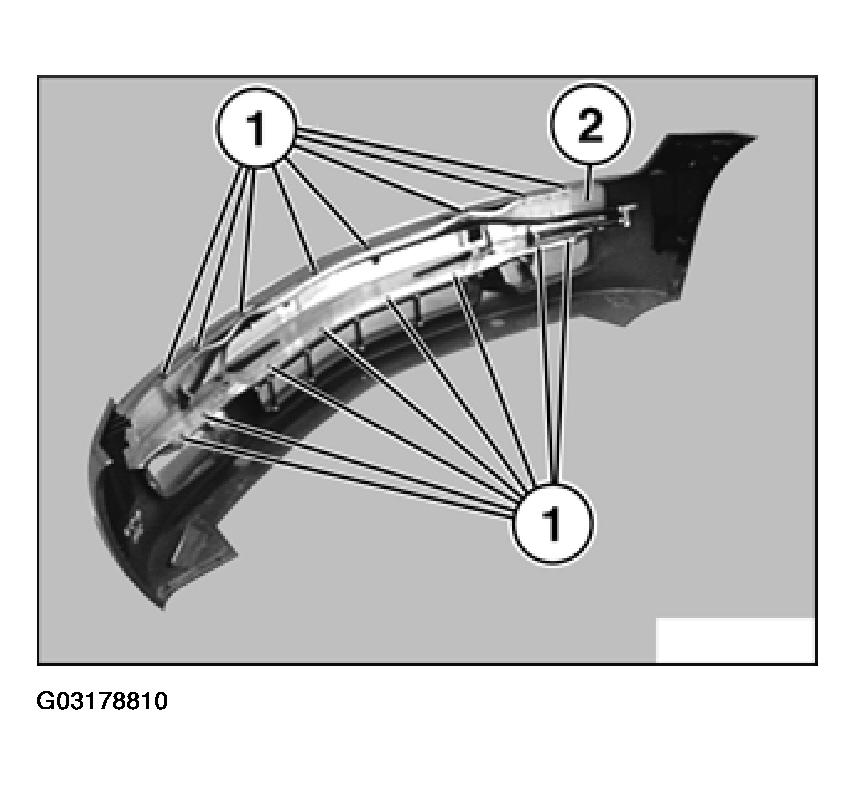

Lift out expanding rivets (1) and remove bumper carrier (2).

Fig 4: Removing Bumper Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Headlight Cleaning System:

If necessary, unfasten expanding rivets (1) and screws (2).

Fig 5: Checking Headlight Cleaning System

Courtesy of BMW OF NORTH AMERICA, INC.

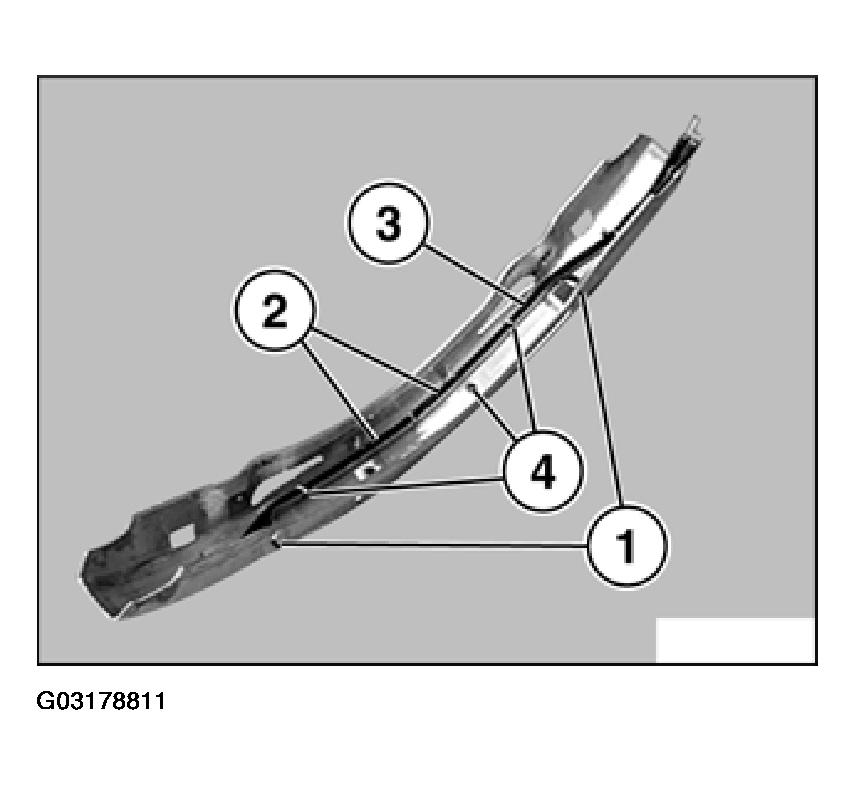

Remove support member (3) with hoses, replace faulty cable ties (4) if necessary.

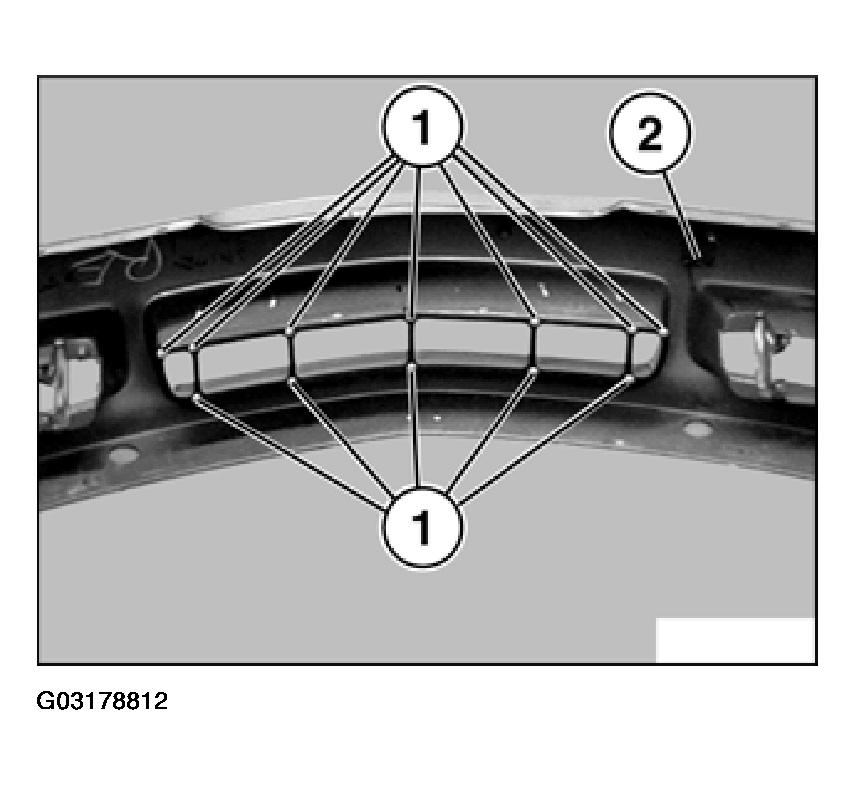

Unfasten retaining washers and remove air grill.

Fig 6: Removing Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Lift cover (2) off towing eye and unfasten catch band.
