63 17 000 Removing and installing/replacing left or right foglight insert

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

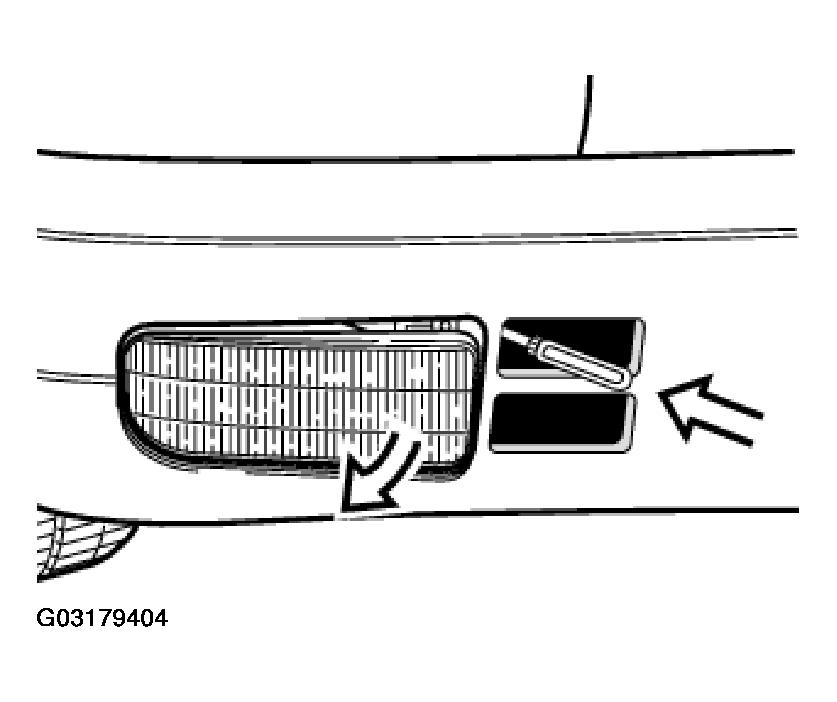

Unclip headlight by inserting a screwdriver through upper aperture. Pull off connector. Disconnect steel-wire clamp and pull out light bulb.

CAUTION: Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb. If necessary, adjust foglight, refer to 63 10 014 ADJUSTING FOGLIGHTS .

Fig 1: Identifying Left Or Right Light Replacing

Courtesy of BMW OF NORTH AMERICA, INC.

Roadster:

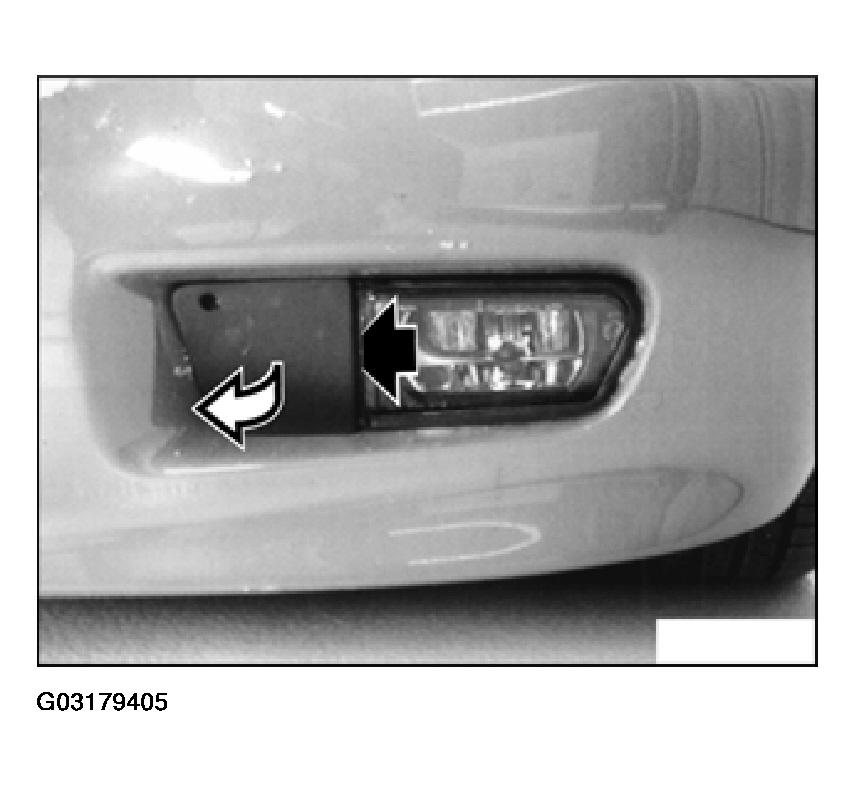

Unclip and remove finisher.

Fig 2: Unclipping And Removing Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

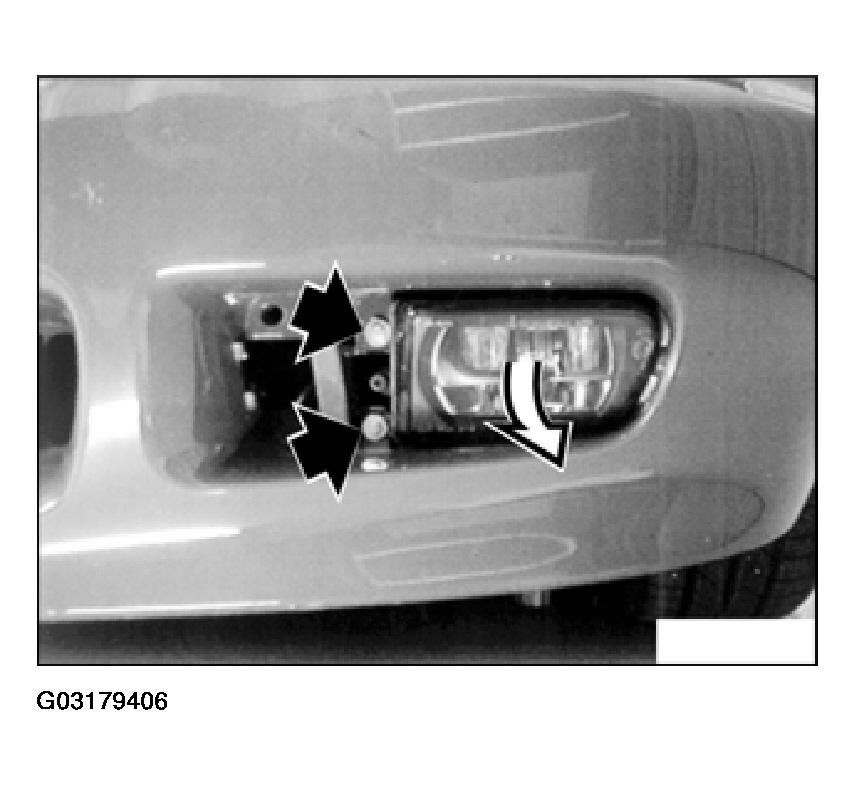

Unfasten screws, pry out headlight insert and remove connector.

Fig 3: Identifying Insert And Remove Connector Pry Out

Courtesy of BMW OF NORTH AMERICA, INC.
