51 11 000 Removing and installing complete front bumper (Z3 Roadster, M Roadster)

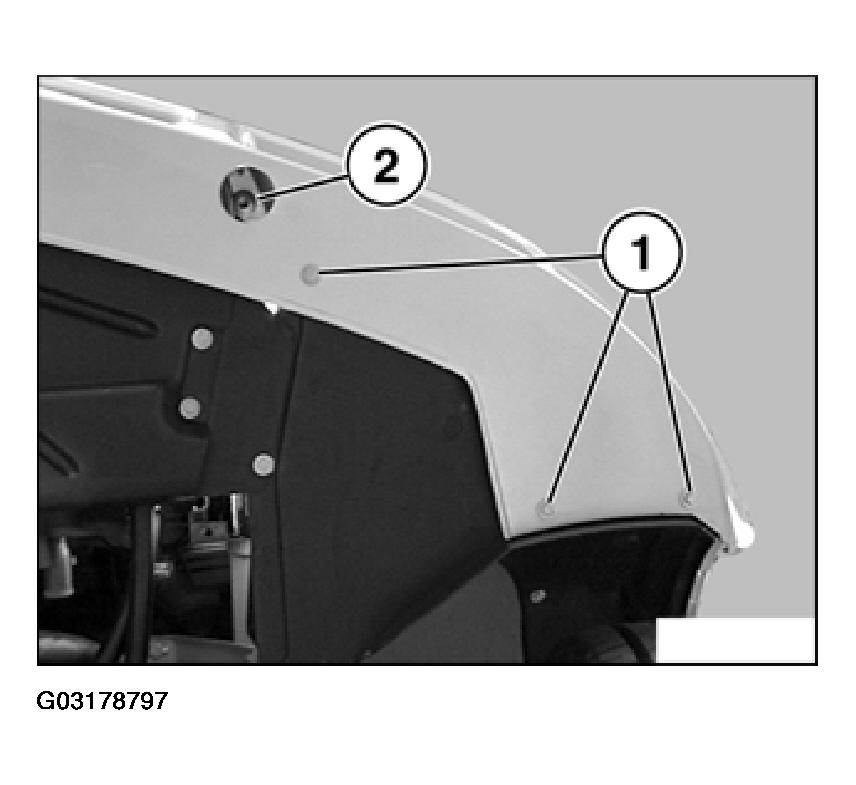

Unfasten hexagon bolts (1) and Torx screws (2) at left/right.

Version without foglights and/or headlight cleaning system: Pull bumper forwards to remove.

Fig 1: Locating Hexagon Bolts And Torx Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Foglights:

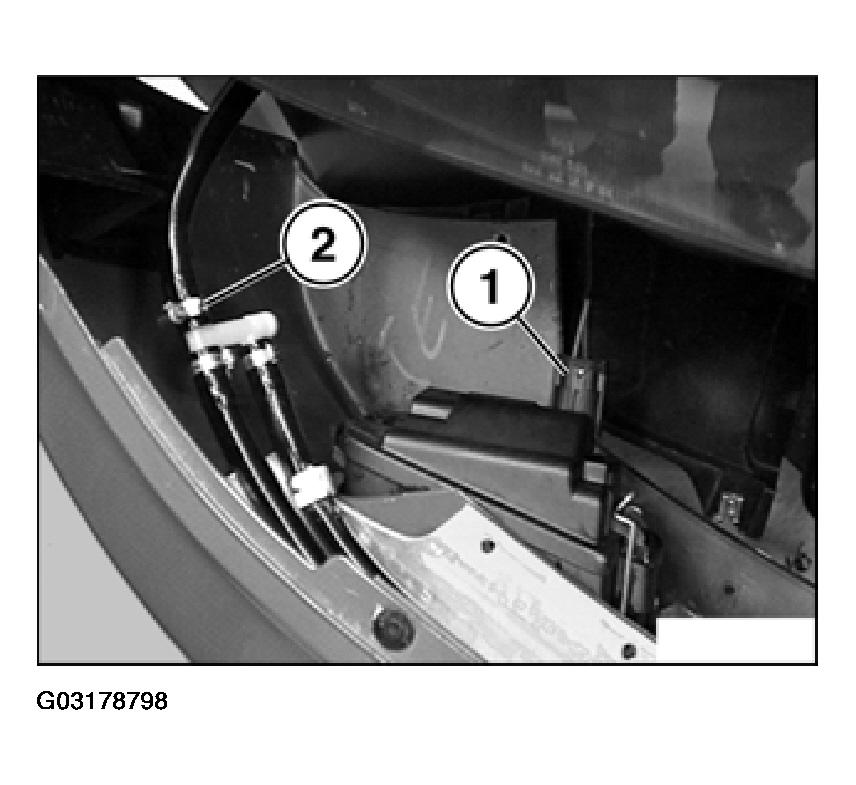

If necessary, remove left/right plug connection (1) from foglights.

Version With Headlight Cleaning System:

If necessary, unfasten hose clip (2) and seal hose firmly.

Fig 2: Identifying Foglights Connection And Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust Bumper:

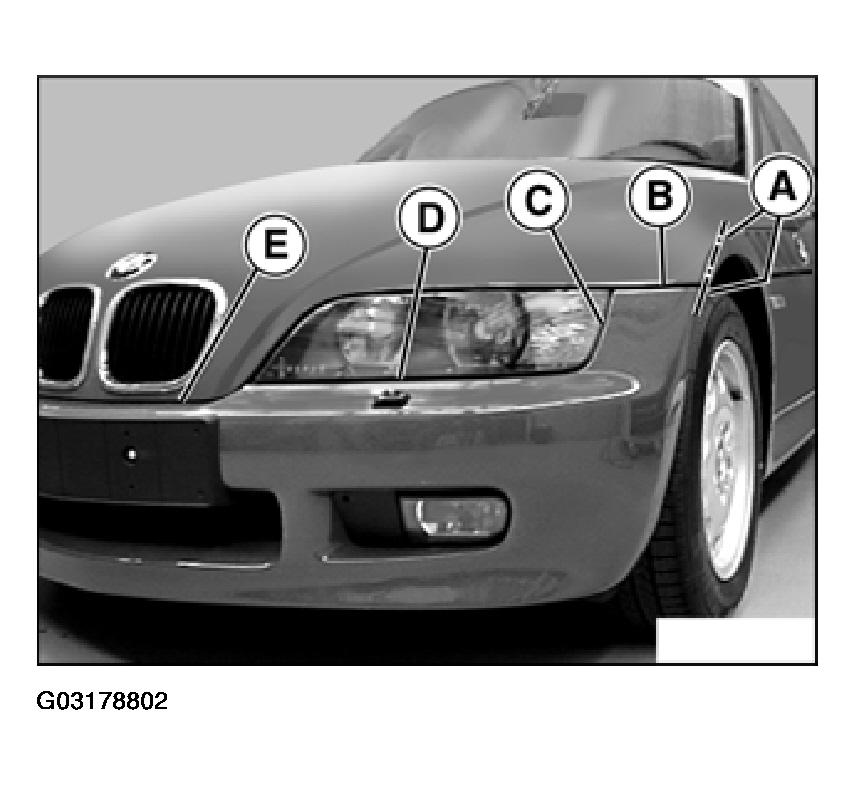

Ideal setting (dimension):

Transition (A) should be flush on left/right side.

(B) 5 mm (tolerance + 0.5/-1 mm).

(C) Transition from below 5 mm (tolerance + 1/-0.5 mm) upwards to 2.5 mm (tolerance + 0.5/-1 mm).

(D) 5 mm (tolerance + 1/-0.5 mm).

(E) 5 mm (tolerance + 1/-0.5 mm).

Fig 3: Adjusting Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

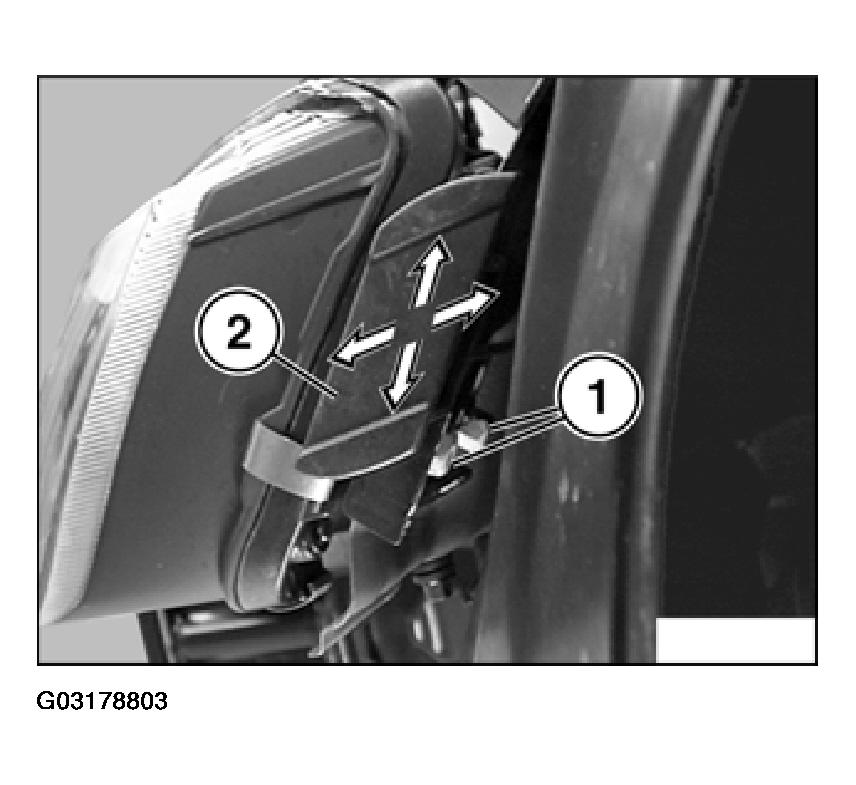

Loosen nut (1) from wheel arch and adjust bracket (2).

Fig 4: Adjusting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

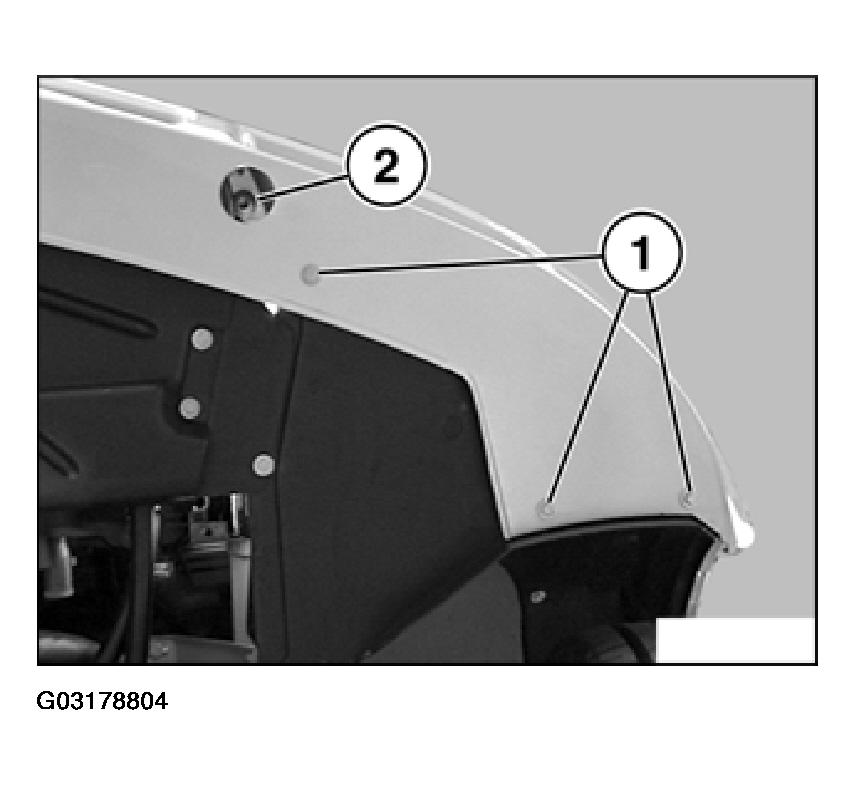

Loosen left/right hexagon bolts (1).

Loosen left/right screw (2).

Fig 5: Removing Left/Right Hexagon Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment with fitted bumper:

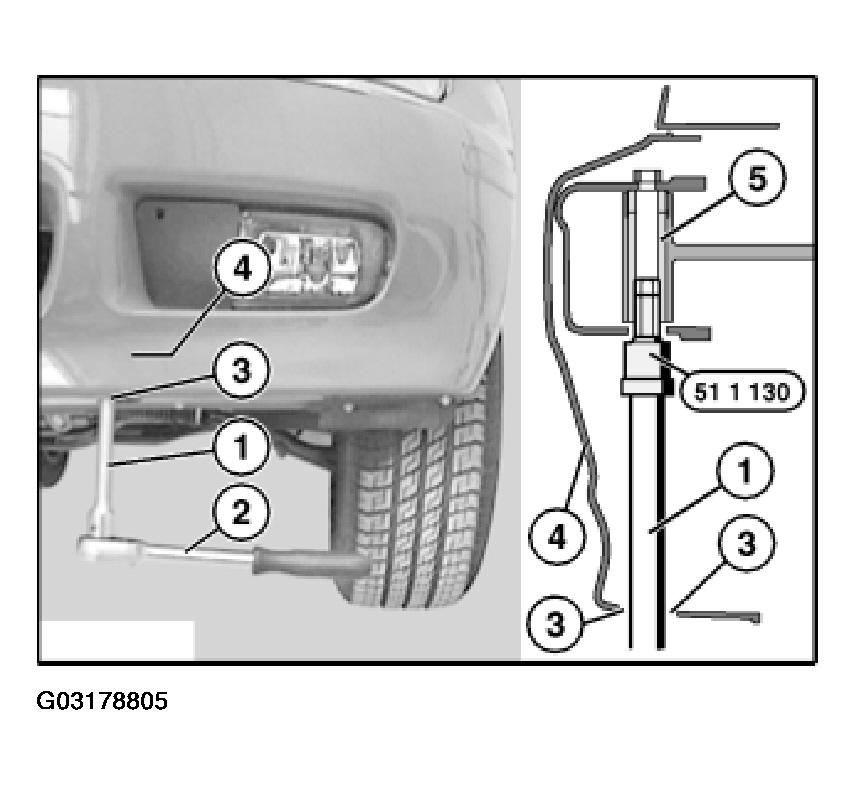

Fit special tool 51 1 130 to standard extension (1) with reversible handle (2) and insert through bore (3) in bumper (4) of shock absorber (5).

Fig 6: Adjusting Bumper Height Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

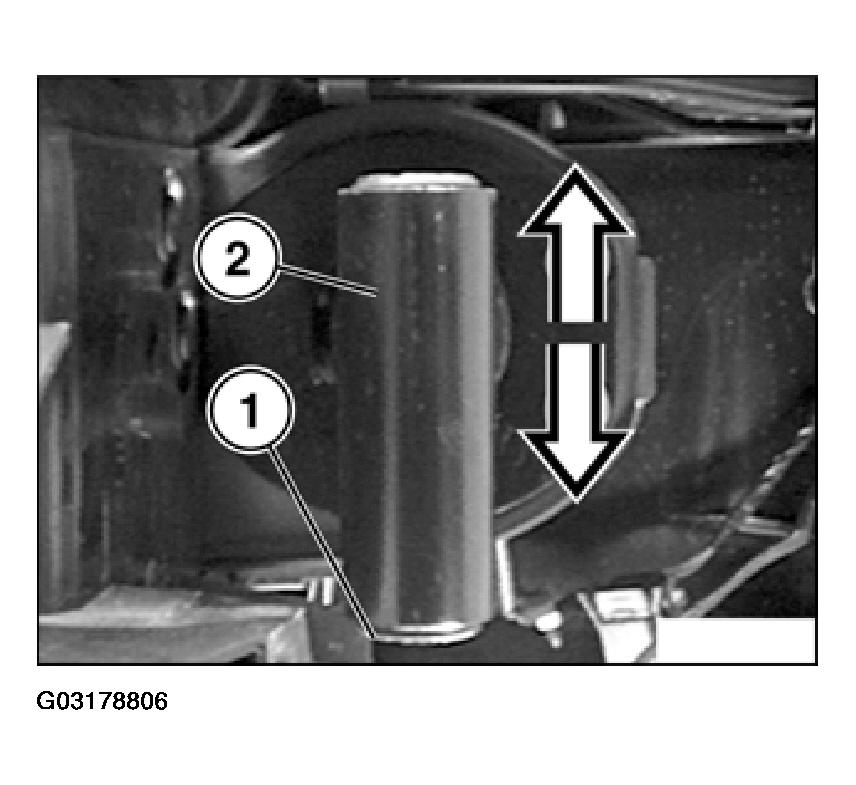

Height of bumper (in front area) is now adjusted by turning socket head cap screw (1) in shock absorber (2).

Fig 7: Turning Socket Head Cap Screw In Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
