11 31 005 Checking camshaft timing (M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

00 9 200
11 2 300
11 3 240
11 3 450
11 4 220

Necessary Preliminary Tasks:

Remove fan impeller with fan clutch. Refer to Refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56) .
Remove cylinder head cover. Refer to 11 12 000 REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER (M52TU / M54 / M56) .
Remove all spark plugs. Refer to 12 12 011 REPLACING ALL SPARK PLUGS .

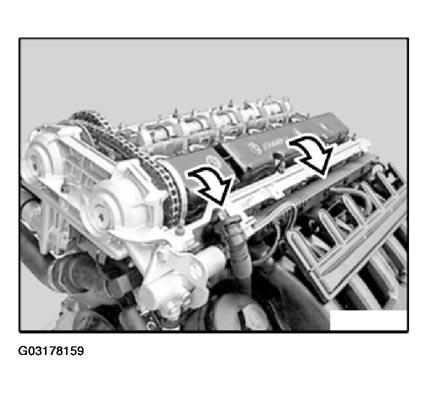

Detach cover for inlet camshaft.

Fig 1: Detaching Cover For Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Cylinder for chain tensioning piston is under spring pressure.

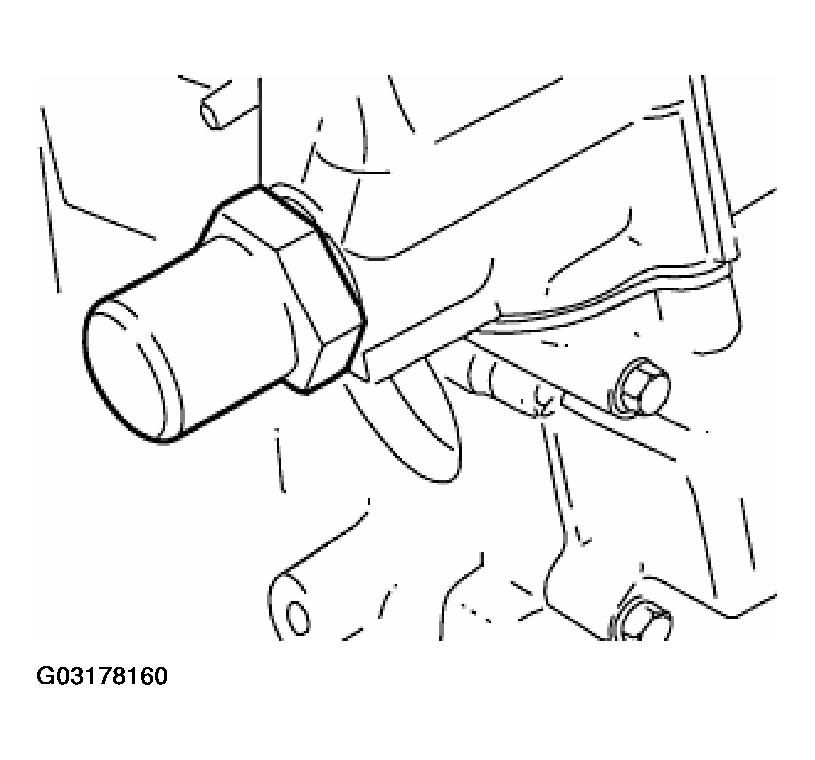

Remove cylinder for chain tensioning piston.

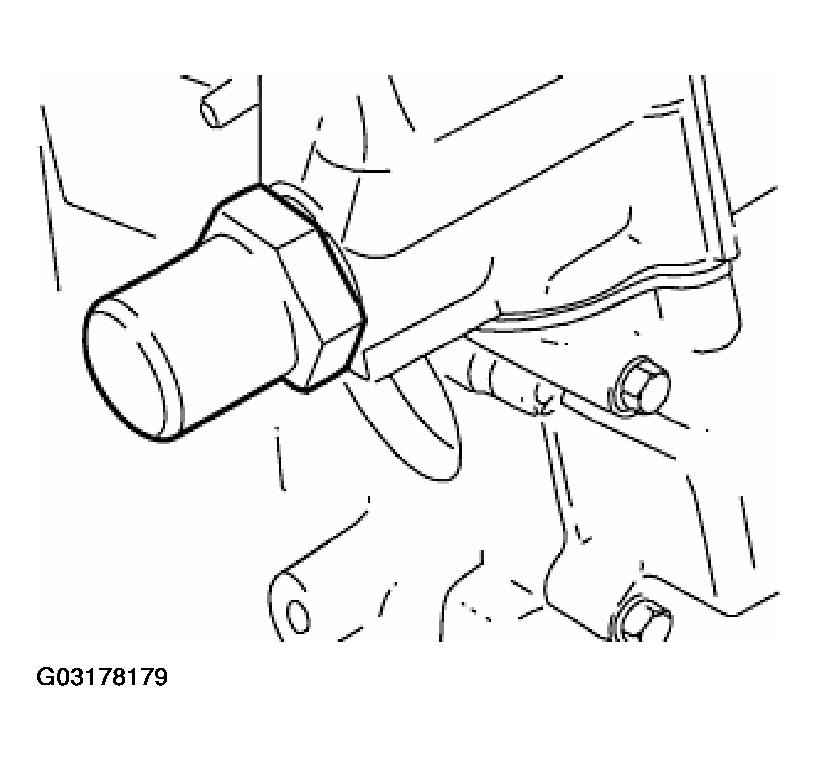

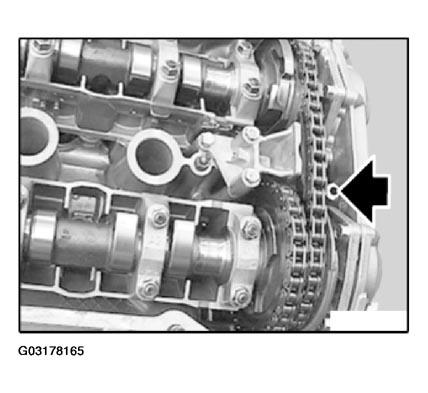

Fig 2: Identifying Cylinder For Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

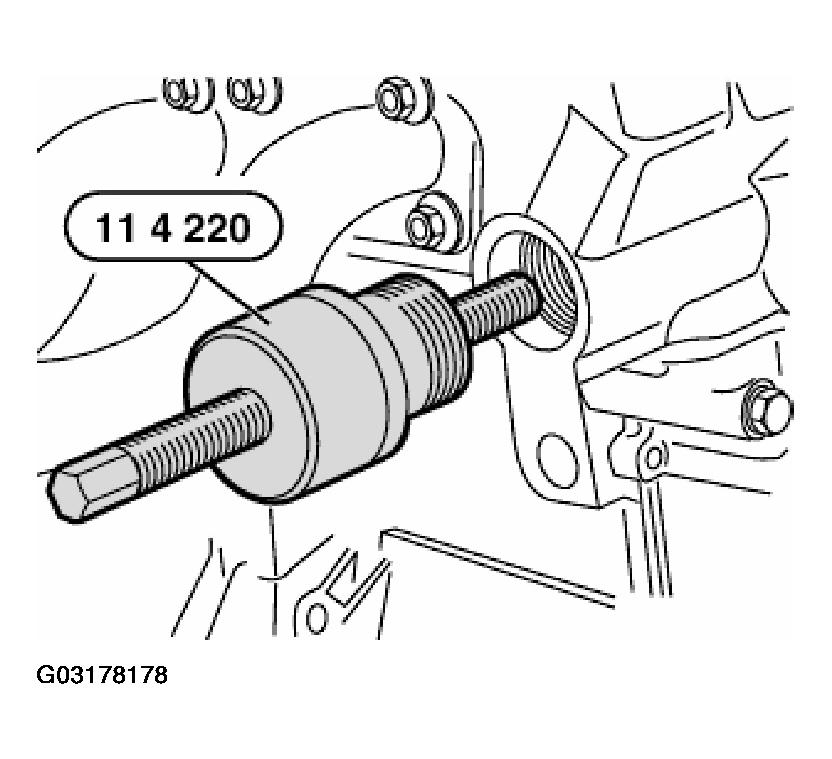

Install special tool 11 4 220.

Fit adjusting screw to bow cover.

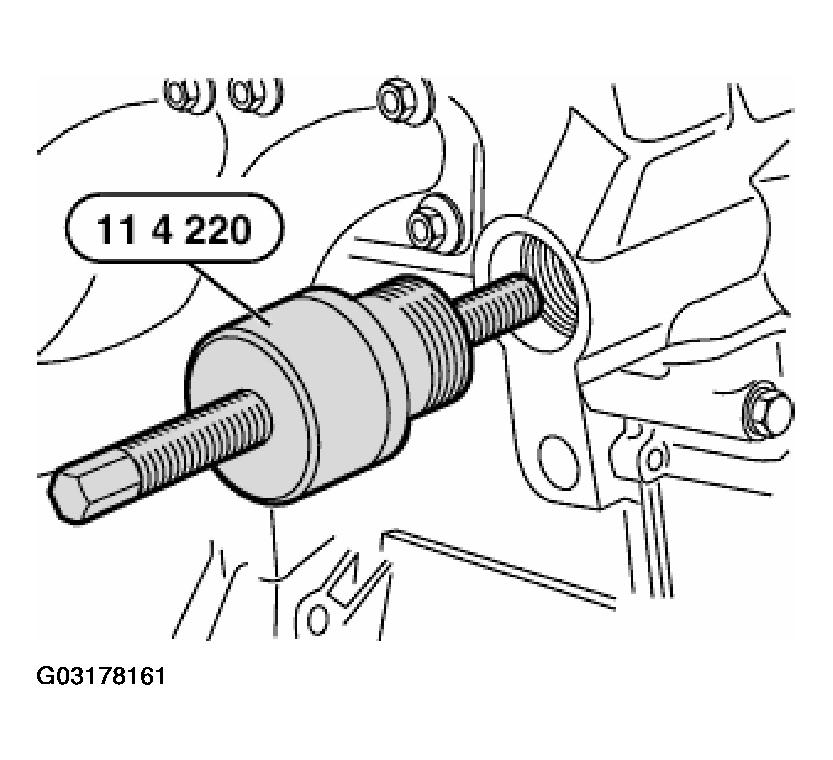

Fig 3: Installing Special Tool 11 4 220

Courtesy of BMW OF NORTH AMERICA, INC.

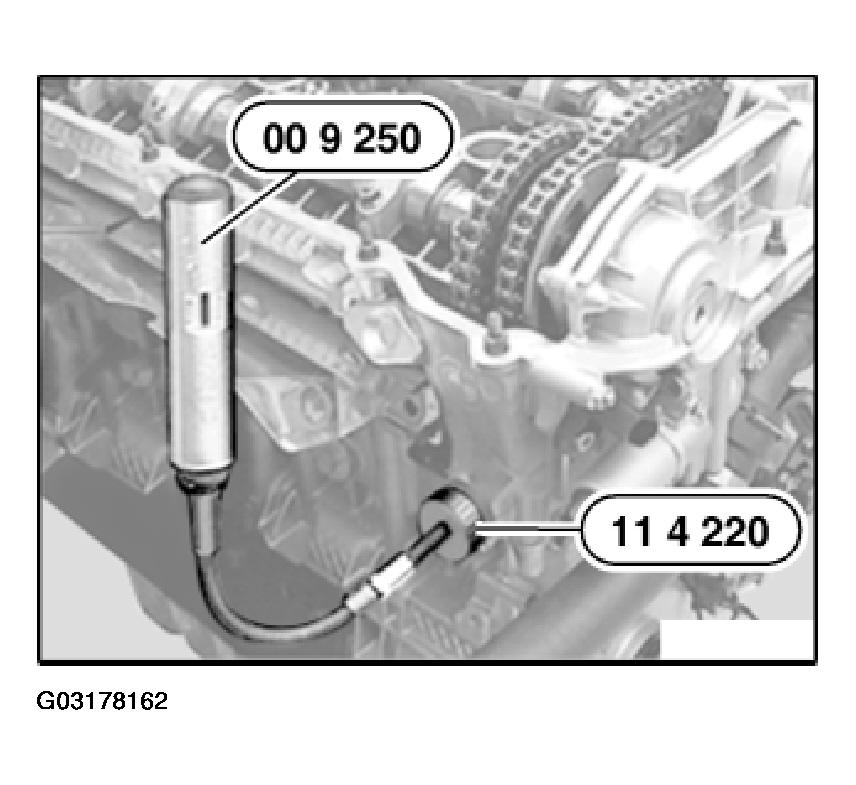

Preload tensioning rail with special tool 11 4 220 by rotating adjusting screw with special tool 00 9 250 or standard torque wrench to 0.7 Nm.

Fig 4: Preloading Tensioning Rail With Special Tool 11 4 220

Courtesy of BMW OF NORTH AMERICA, INC.

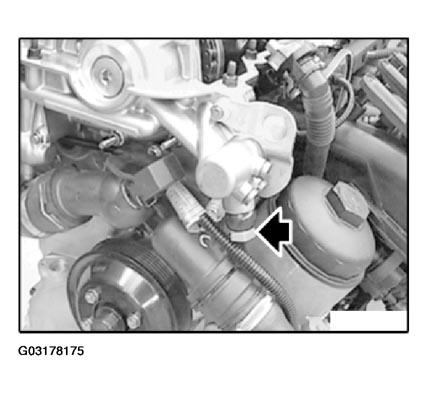

Unscrew oil pressure pipe.

Fig 5: Locating Oil Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

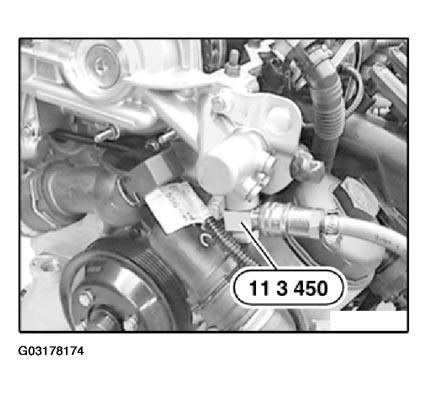

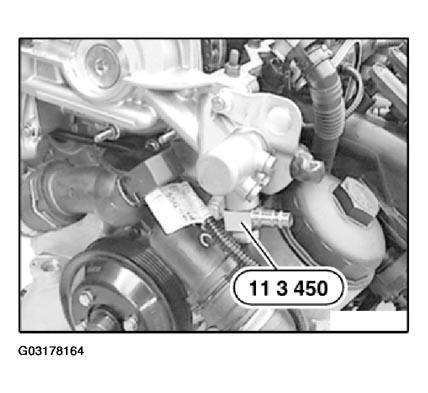

Mount special tool 11 3 450 with banjo bolt of oil pressure line.

Fig 6: Mounting Special Tool 11 3 450 With Banjo Bolt Of Oil Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Cover double VANOS adjustment unit; when the compressed air supply is connected, several drops of oil are sprayed out of the bore.

Fig 7: Locating Double VANOS Adjustment Unit Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air (2 to 8 bar).

Fig 8: Connecting Compressed Air To Special Tool 11 3 450

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the engine is switched off, it is possible that the camshafts are not in their initial positions. With the compressed air supply connected, rotate the engine to return the camshafts to their initial positions.

With compressed air supply connected, crank engine at least two revolutions in direction of rotation until cam tips on inlet and exhaust camshafts on 1st cylinder face each other.

Fig 9: Identifying Position Of Cam Tips

Courtesy of BMW OF NORTH AMERICA, INC.

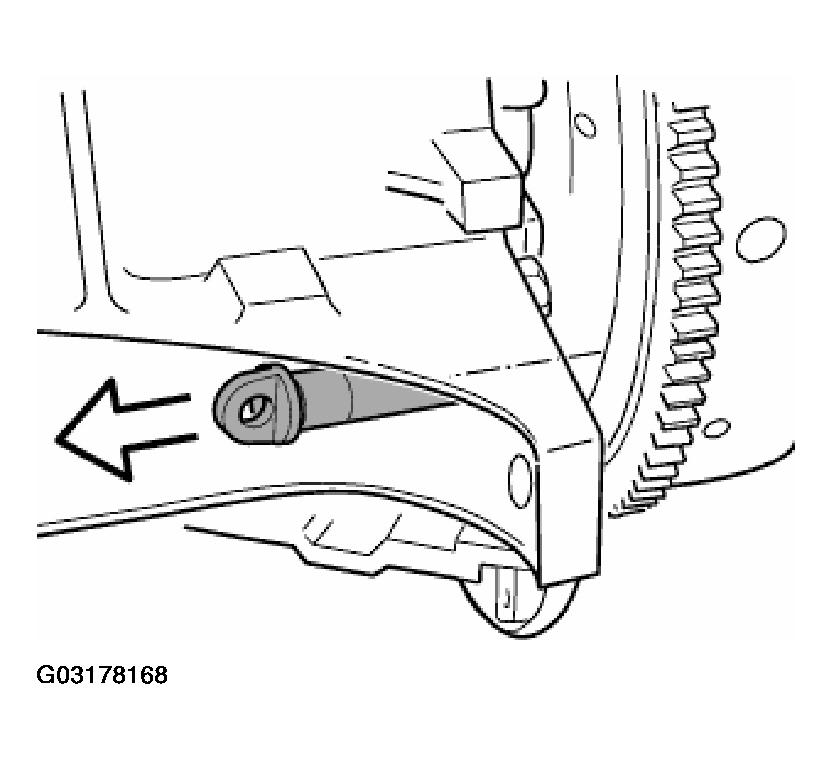

Pull dust guard out of the special tool bore.

Fig 10: Pulling Dust Guard Out Of Special Tool Bore

Courtesy of BMW OF NORTH AMERICA, INC.

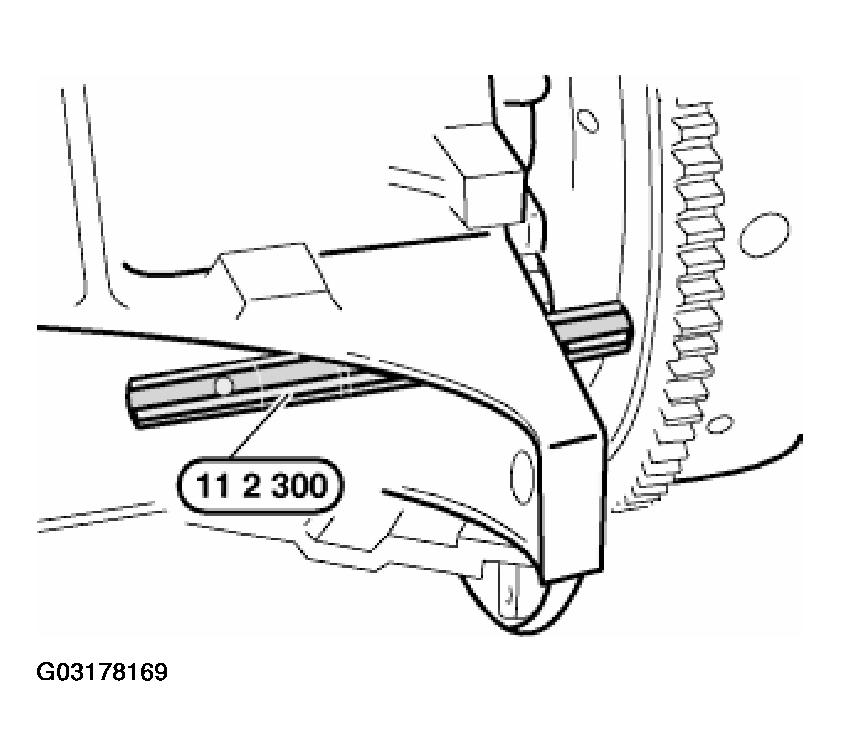

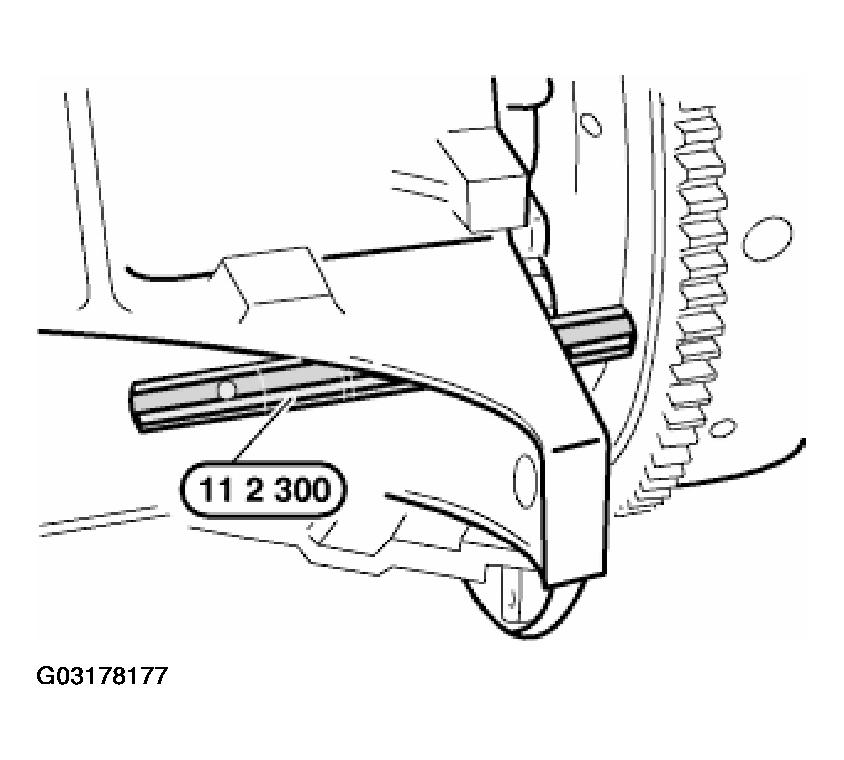

Secure crankshaft with special tool 11 2 300 in TDC firing position of 1st cylinder.

Important!

Do not turn the engine back.

Remove special tool 11 2 300 before starting engine.

Fig 11: Securing Crankshaft With Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic Transmissions Only:

Illustration does not show automatic transmission.

Important!

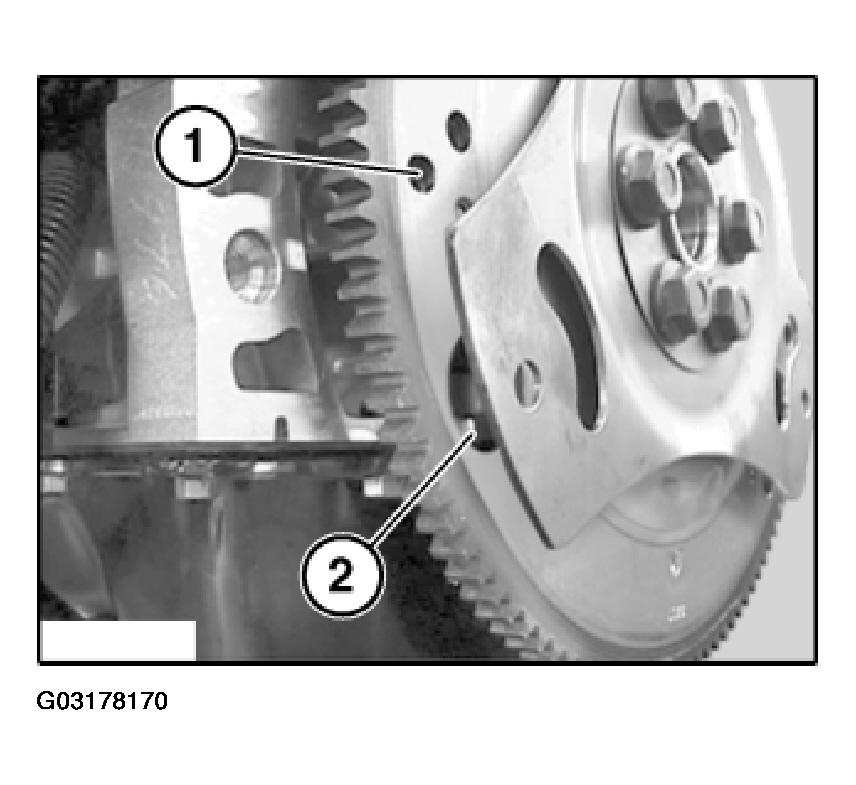

On engines with automatic transmissions, there is shortly before the special tool bore (1) a large bore (2) which can be confused with the special tool bore (1)

If special tool 11 2 300 is secured in the correct bore (1), the engine can no longer be cranked at the central bolt.

Fig 12: Identifying Special Tool Bore And Large Bore

Courtesy of BMW OF NORTH AMERICA, INC.

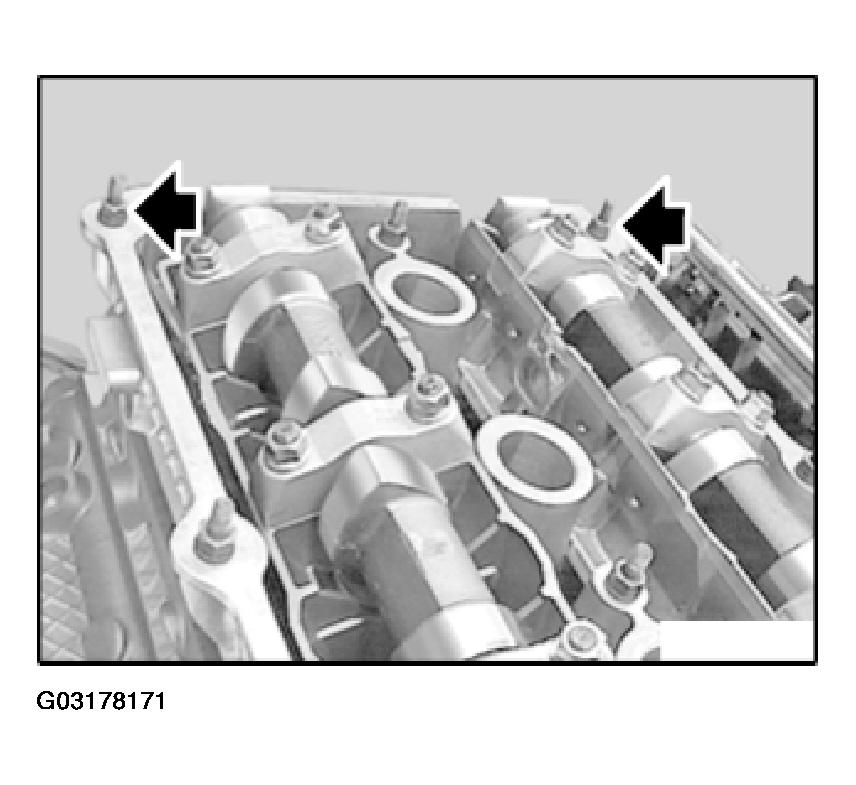

Unscrew studs.

Fig 13: View Of Studs

Courtesy of BMW OF NORTH AMERICA, INC.

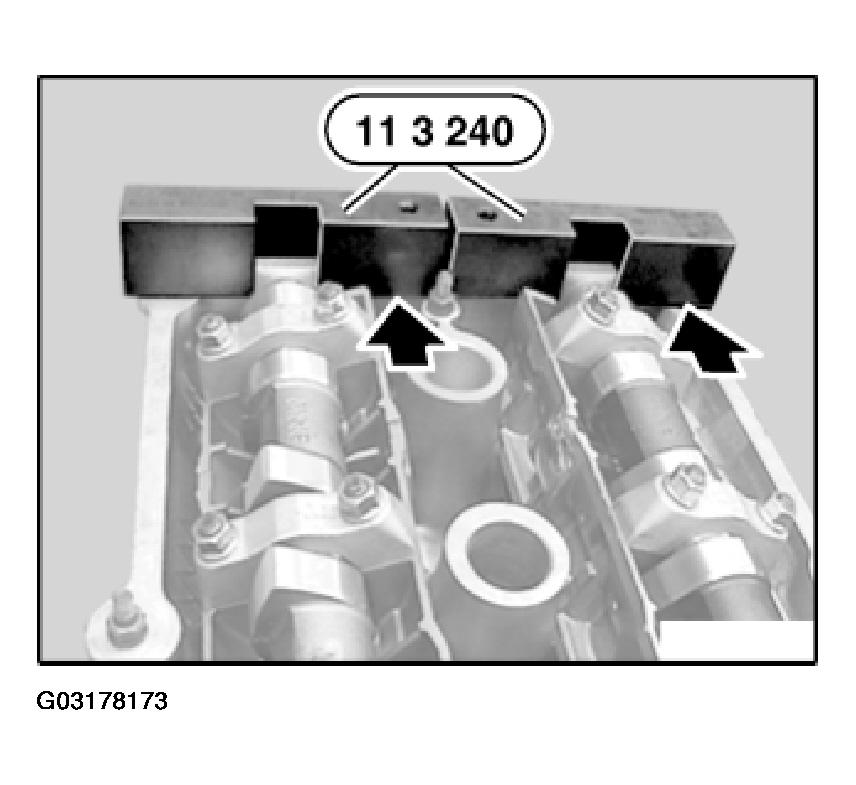

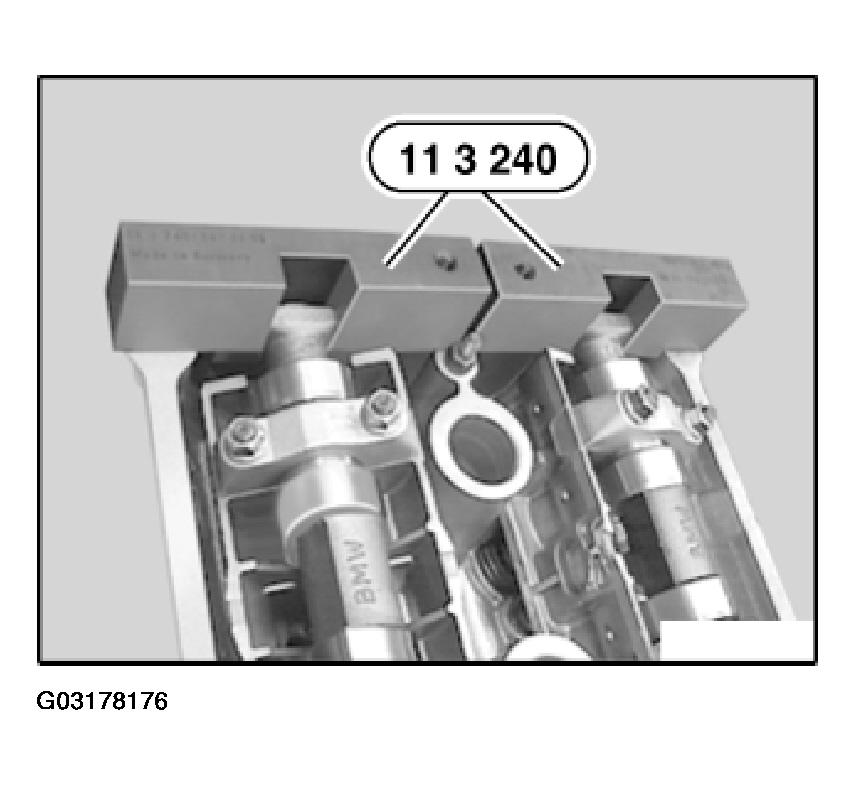

Place special tool 11 3 240 on camshafts.

Fig 14: Installing Special Tool 11 3 240 On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The timing is correctly set if the special tool 11 3 240 rests without a gap on the cylinder head or protrudes up to 1 mm to the inlet side. The timing must be reset if the special tool 11 3 240 protrudes to the exhaust side. If necessary, adjust camshaft timing. Refer to 11 31 505 ADJUSTING CAMSHAFT TIMING (M52TU / M54 / M56) .

Fig 15: Identifying Correct Setting Of Special Tool 11 3 240 On Camshafts
