11 31 090 Removing and installing/replacing chain tensioning piston (M52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Important!

Spring pressure!

Unfasten cylinder for chain tensioning piston. Refer to 11 31 090 REMOVING AND INSTALLING/REPLACING CHAIN TENSIONING PISTON (M52 / M52TU / M54 / M56) .

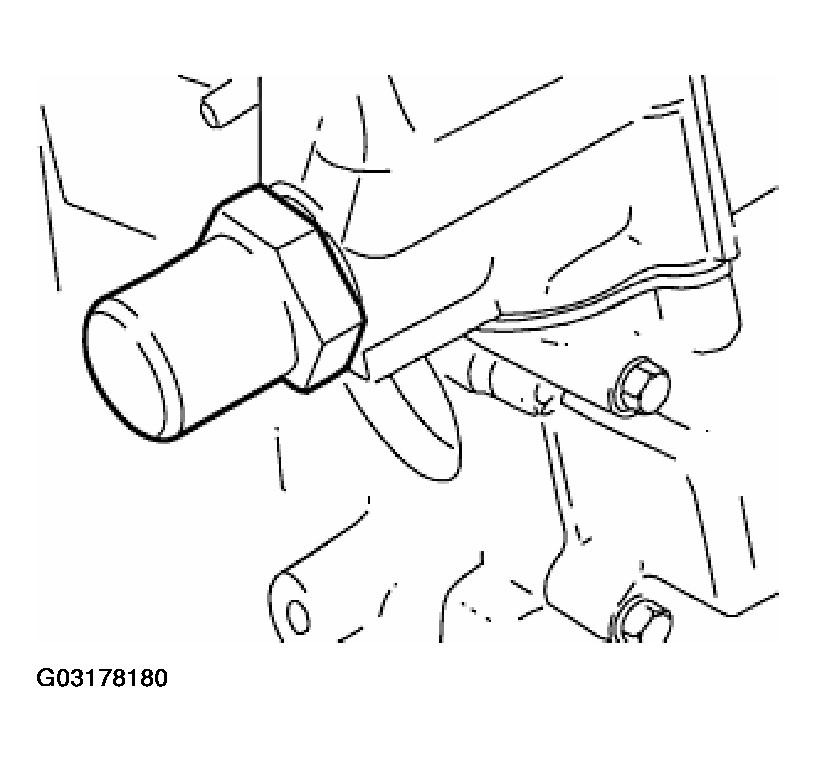

Fig 1: Identifying Cylinder For Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Tightening torque, refer to 11 31 8AZ in CAMSHAFT .

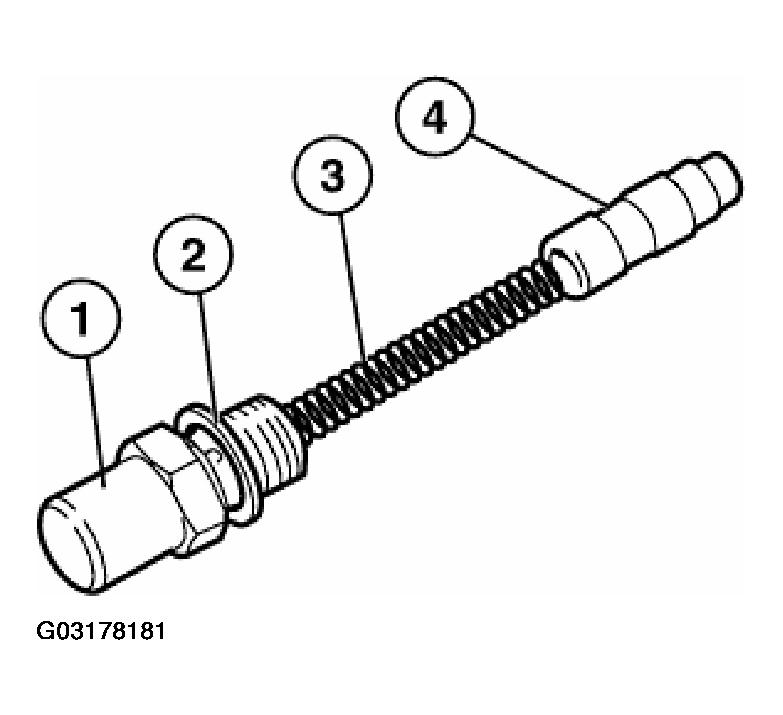

Arrangement of components:

Cylinder for chain tensioning piston.
Sealing ring.
Spring.
Piston.

Fig 2: Identifying Cylinder For Chain Tensioning Piston Components

Courtesy of BMW OF NORTH AMERICA, INC.
