11 12 000 Removing and installing, sealing cylinder head cover (M52TU / M54 / M56)

Remove engine cover.

Remove ignition coils. Refer to 12 13 511 REPLACING IGNITION COIL (M52, M52TU .

Remove wiring harness of ignition coils from cylinder head cover and place to one side.

Press lock.

Pull off the hose for the engine breather.

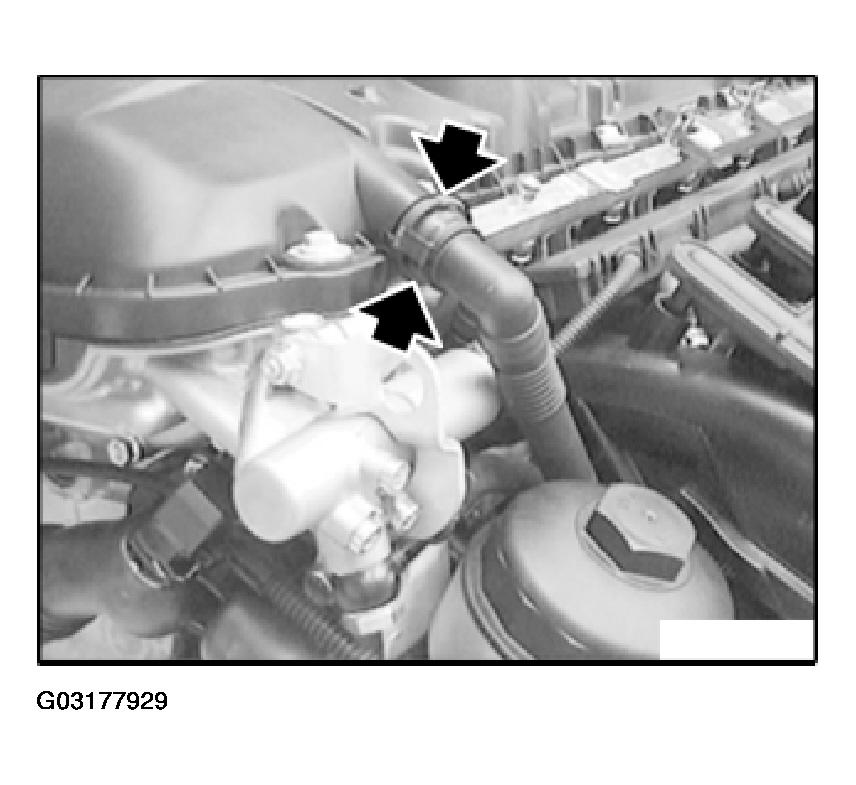

Fig 1: Removing Hose For Engine Breather

Courtesy of BMW OF NORTH AMERICA, INC.

Remove grounding straps (1).

Remove cylinder head cover. Refer to 11 12 000 REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER (M52TU / M54 / M56) .

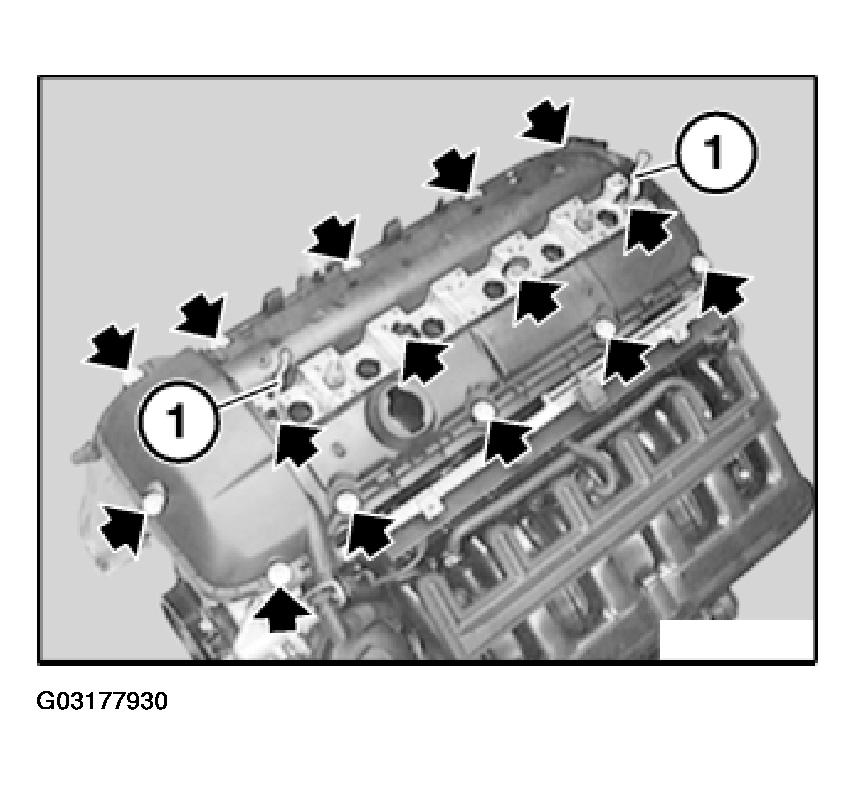

Fig 2: Removing Cylinder Head Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove sealing debris from sealing faces of cylinder head and cylinder head cover.

Apply a sealing bead of Drei Bond 1209 on left and right sides at transition between cylinder head and VANOS adjustment unit.

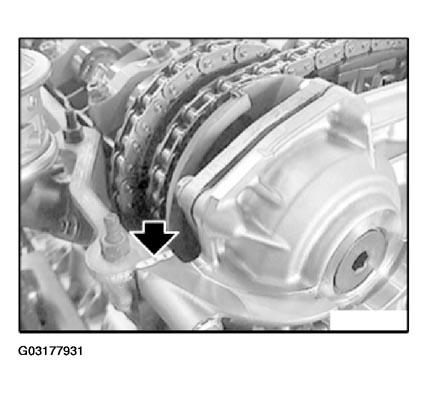

Fig 3: Applying Sealant Between Cylinder Head And VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a thin and even sealing bead of Drei Bond 1209 at transition to half-moon sections at VANOS adjustment unit.

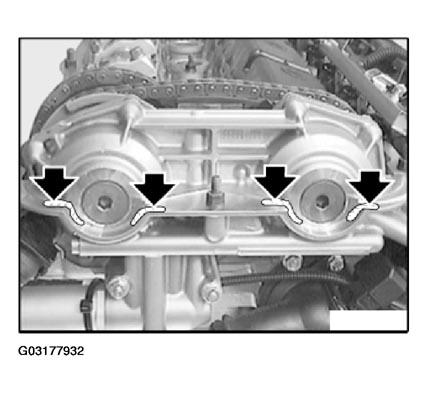

Fig 4: Applying Sealant To VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a thin and even sealing bead of Drei Bond 1209 at transition to half-moon sections at rear of cylinder head.

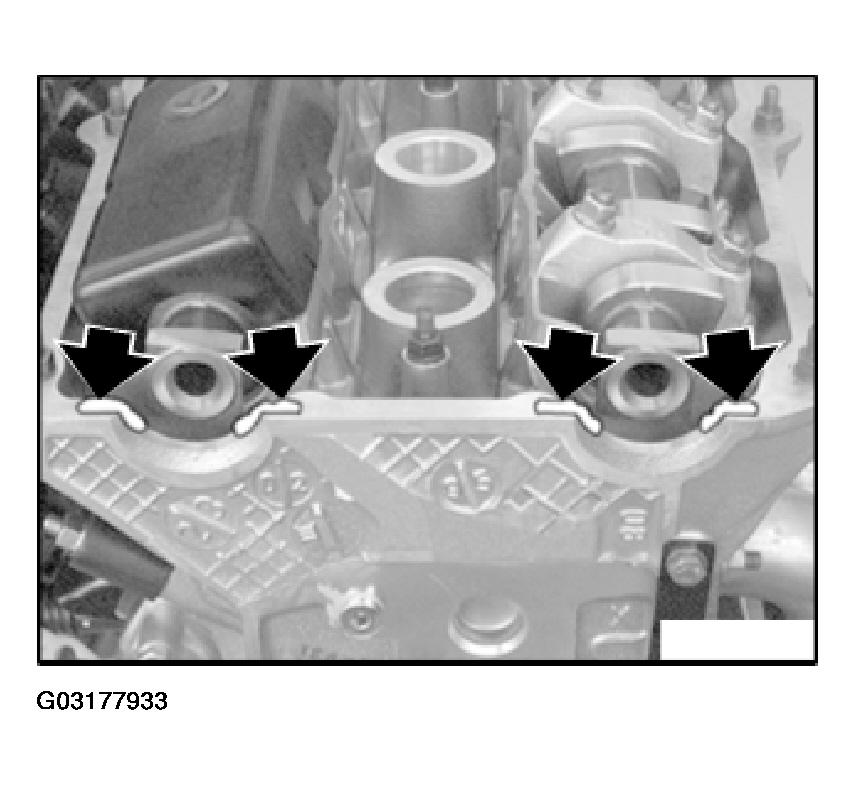

Fig 5: Applying Sealant To Rear Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Check seals and replace if necessary.

Installation:

Make sure gasket is correctly seated on rear and front ends of cylinder head.

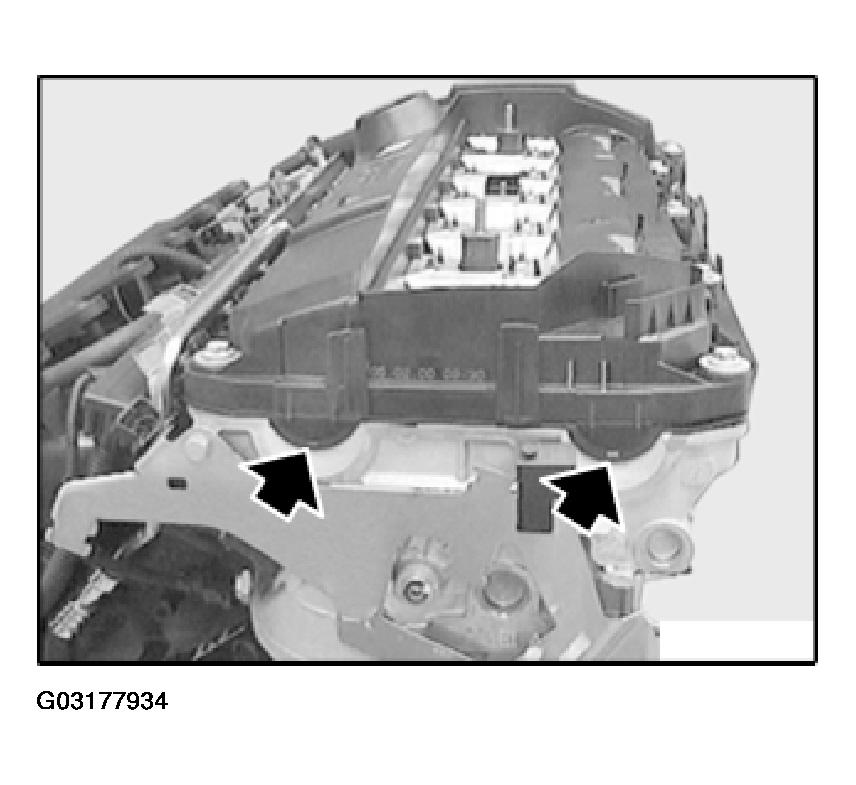

Fig 6: Identifying Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover bolts and align cylinder head cover.

Hand-tighten all cover bolts without preload. Tighten cap nuts crosswise from inside to outside.
