52 16 400 Replacing seat cover for left or right front seat (sports/electric)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to SEATS - SPECIAL TOOLS - 645CI (E63) .

52 0 050

WARNING: US/CND front passenger seat (with OC3 mat) only:

Seat cover must not be separated from padding.

All parts must be replaced completely and released with the diagnosis system in event of defective seat cover, seat heating, OC3 mat or padding.

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove outer cover with actuating unit, refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC) .
Remove inner cover, refer to 52 13 041 REMOVING AND INSTALLING / REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ MANUAL) .

Version with seat heating:

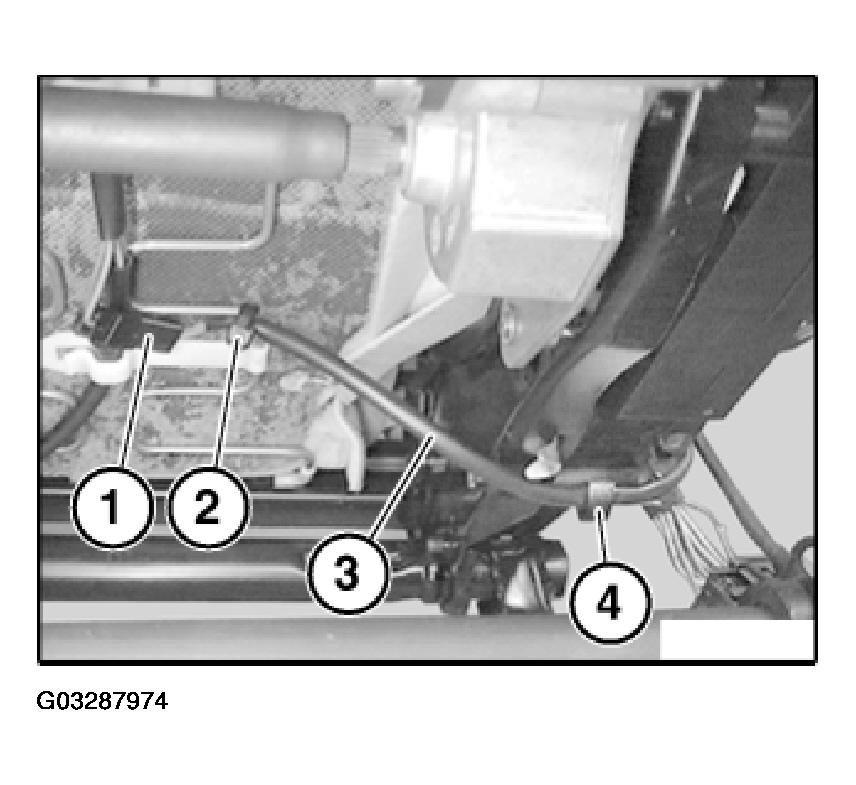

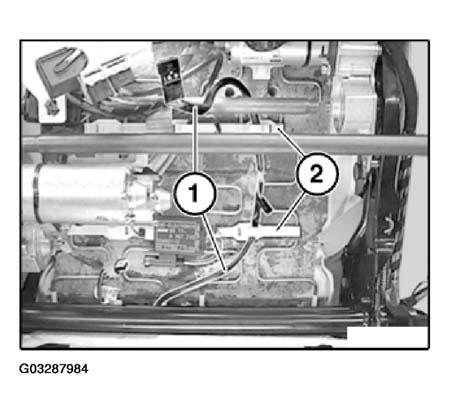

If necessary, disconnect plug connection (1).

Release cable strap (2).

Detach cable (3) from holder (4).

Fig 1: Disconnecting Plug Connection And Releasing Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

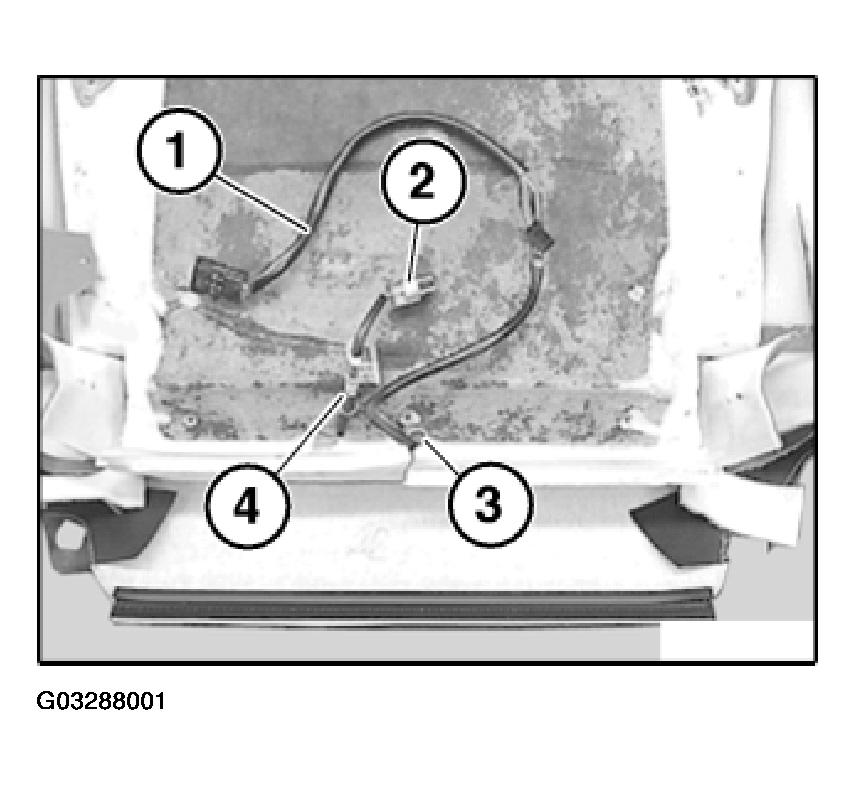

Detach cable (1) from holder (2).

Fig 2: Detaching Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

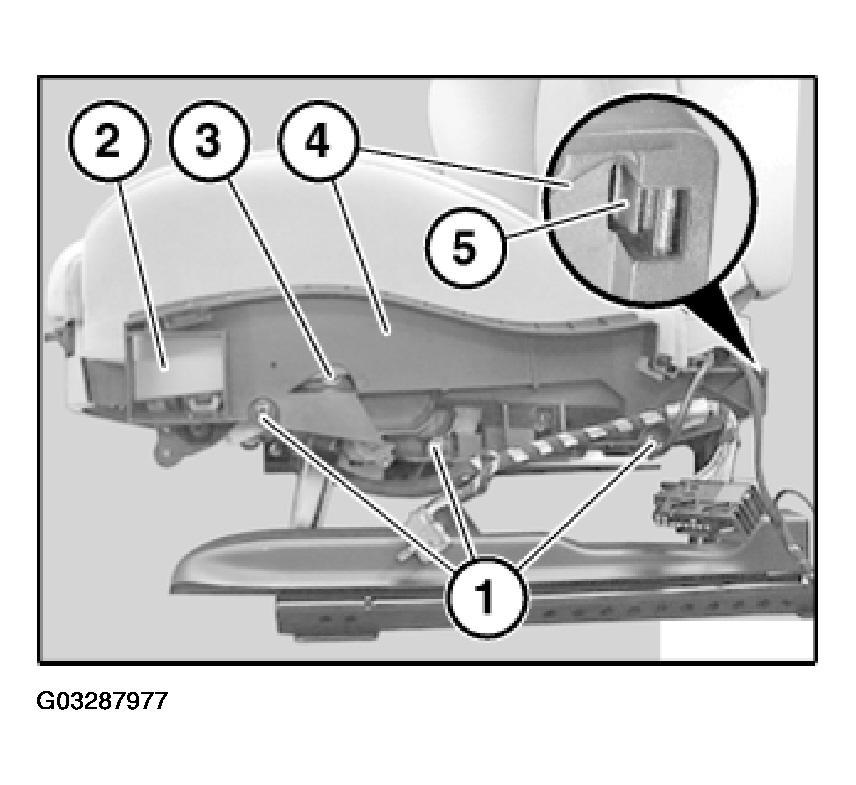

Release screw (1) on inside/outside.

Unclip clips (3) towards bottom and pull trim (2) out a little.

Fig 3: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

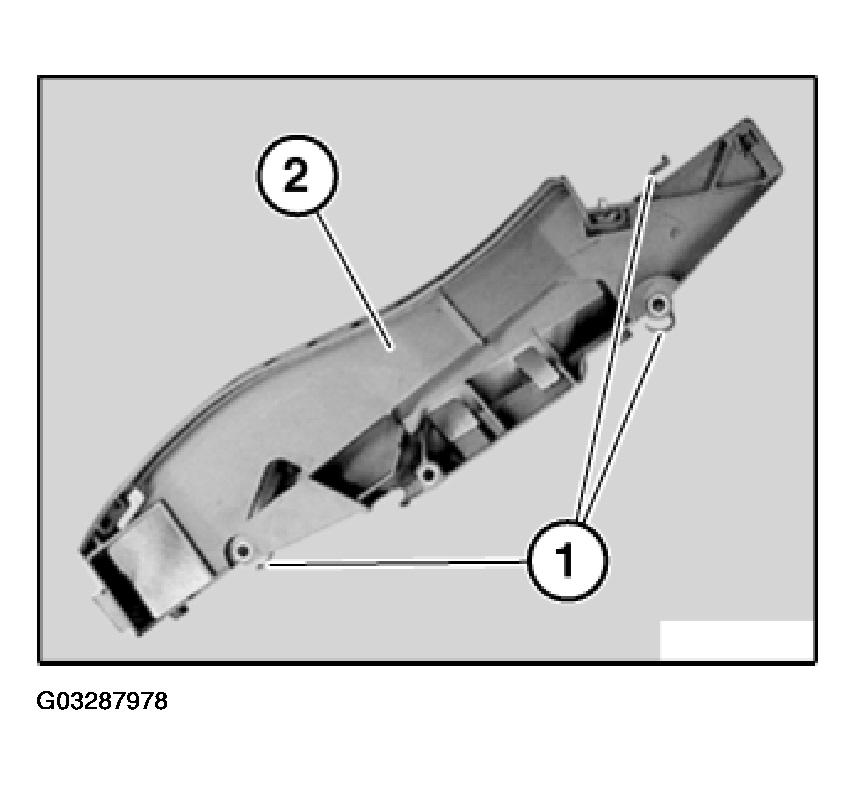

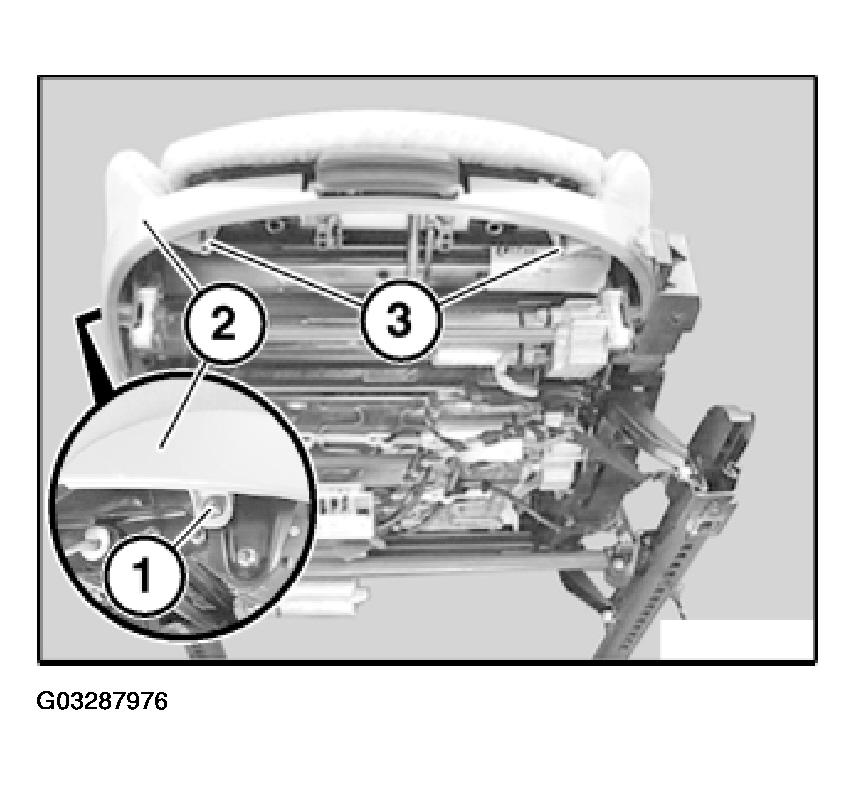

Release screws (1).

Pull trim (2) out a little and release screw (3).

Release clip (5) from carrier (4).

Remove trim (2) and carrier (4).

Fig 4: Removing Trim And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

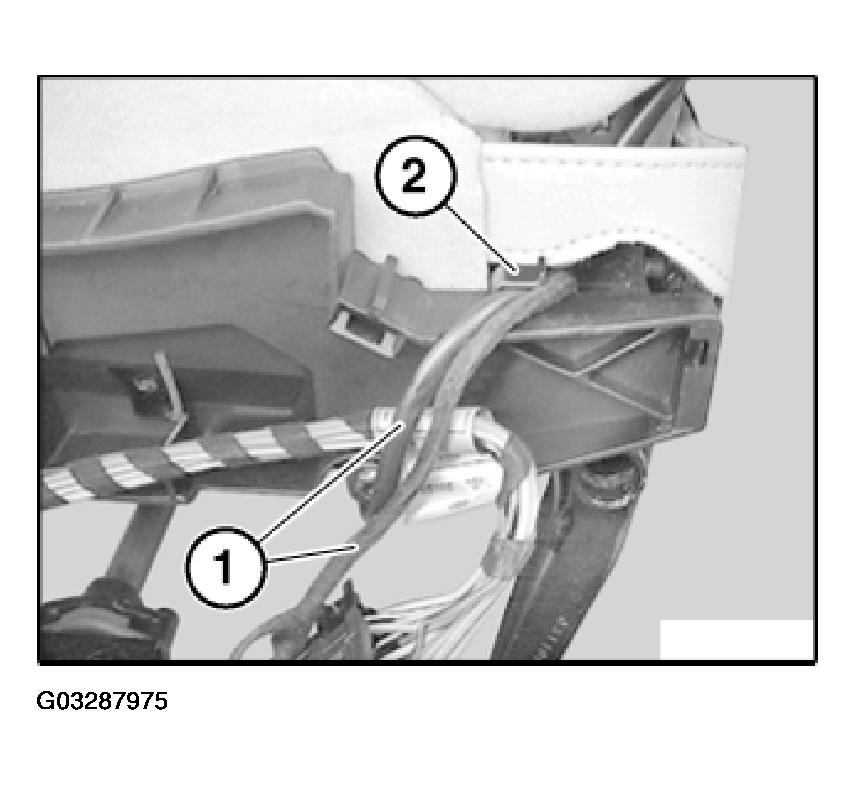

Cable holders (1) on carrier (2) must not be damaged.

Fig 5: Identifying Cable Holders On Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

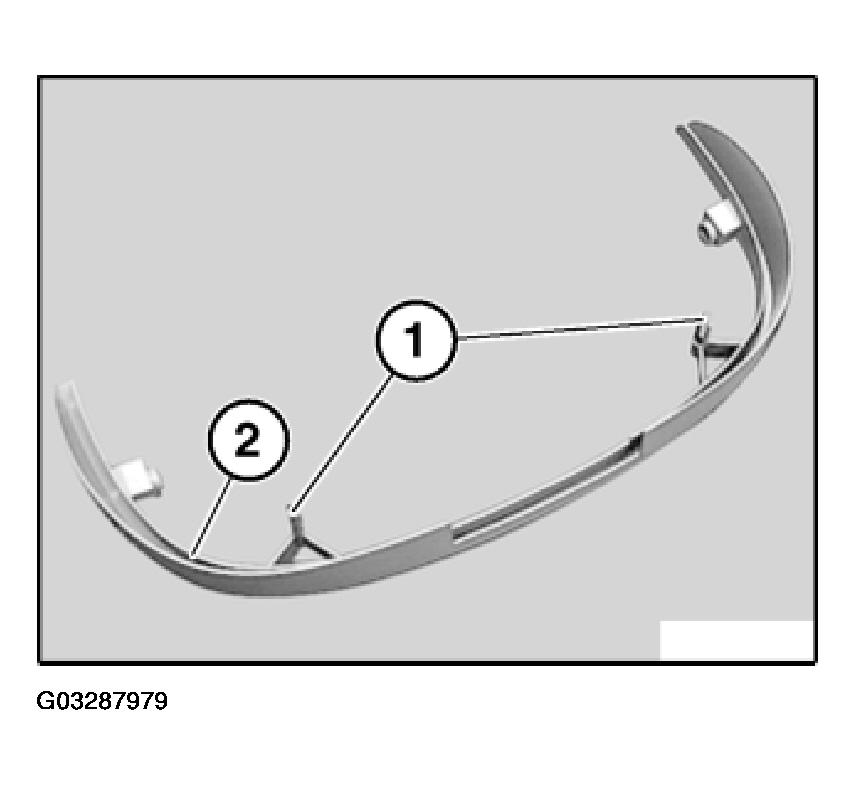

Clips (1) on sports seat trim (2) must not be damaged.

Fig 6: Identifying Clips On Sports Seat Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing holder for actuation" ends here.

Version with seat occupancy detector:

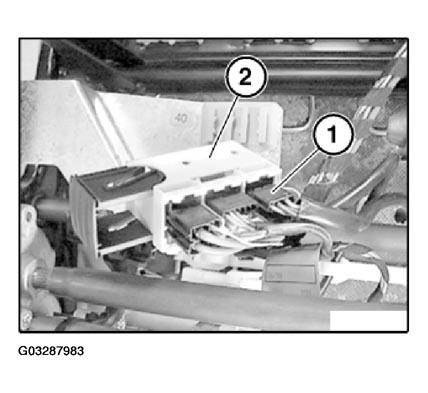

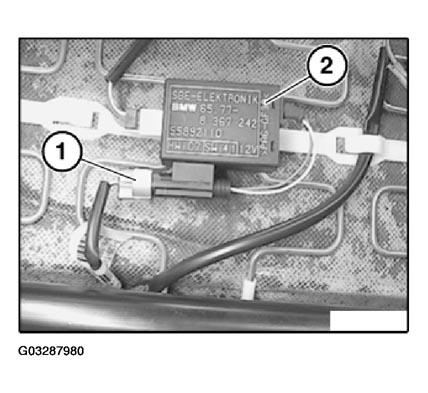

If necessary, disconnect plug connection (1) from control unit (2).

Fig 7: Disconnecting Plug Connection From Control Unit (Version With Seat Occupancy Detector)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

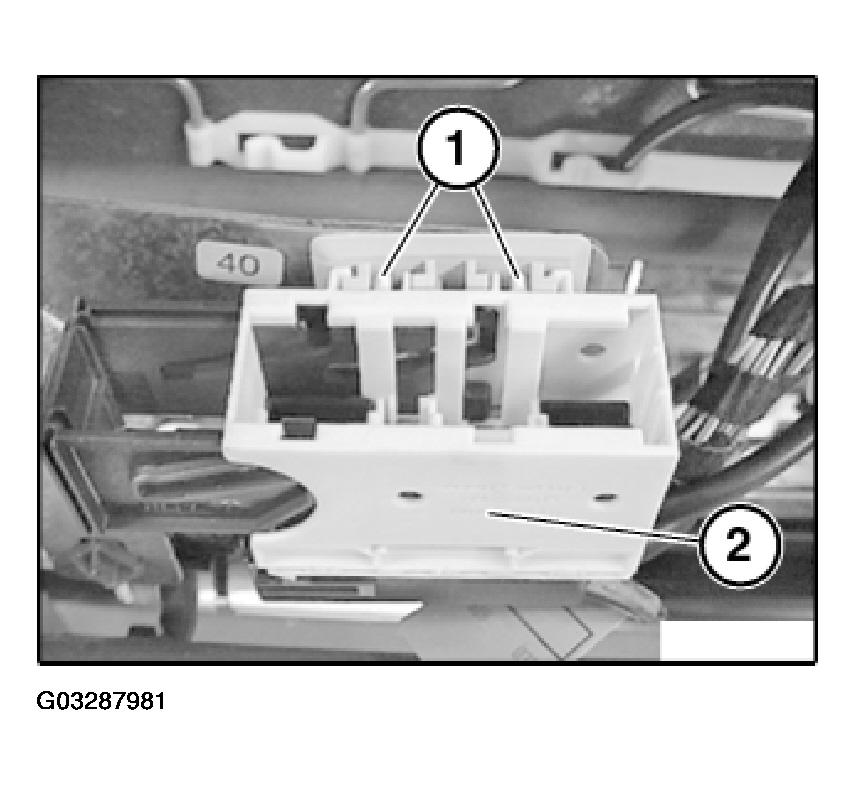

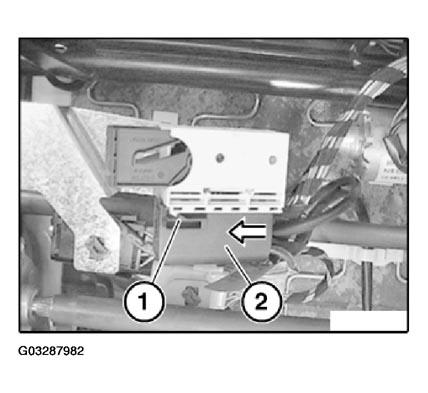

If necessary, release locks (1) and detach plug housing (2).

Fig 8: Releasing Locks And Detaching Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, press lock (1) downwards and detach cover (2).

Fig 9: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) for seat heating from plug housing (2).

Fig 10: Disconnecting Plug Connection For Seat Heating From Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cable (1) out of holders (2).

Fig 11: Pulling Cable Out Of Holders

Courtesy of BMW OF NORTH AMERICA, INC.

E46 only:

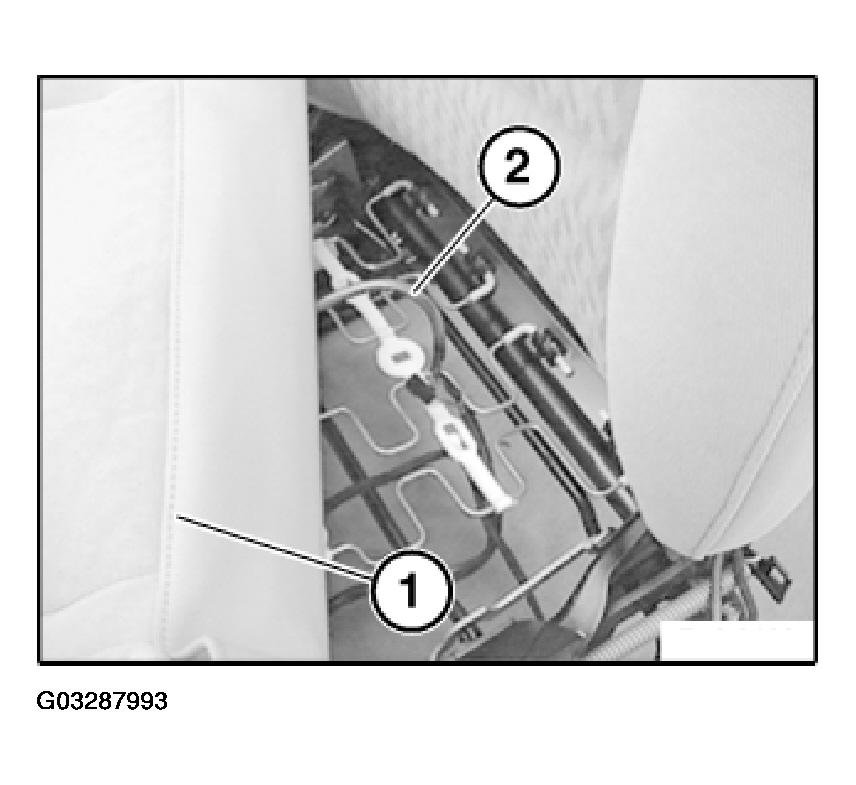

Pull out tongue (1) on seat cover (2) on left/right.

Fig 12: Pulling Out Tongue On Seat Cover On Left/Right (E46)

Courtesy of BMW OF NORTH AMERICA, INC.

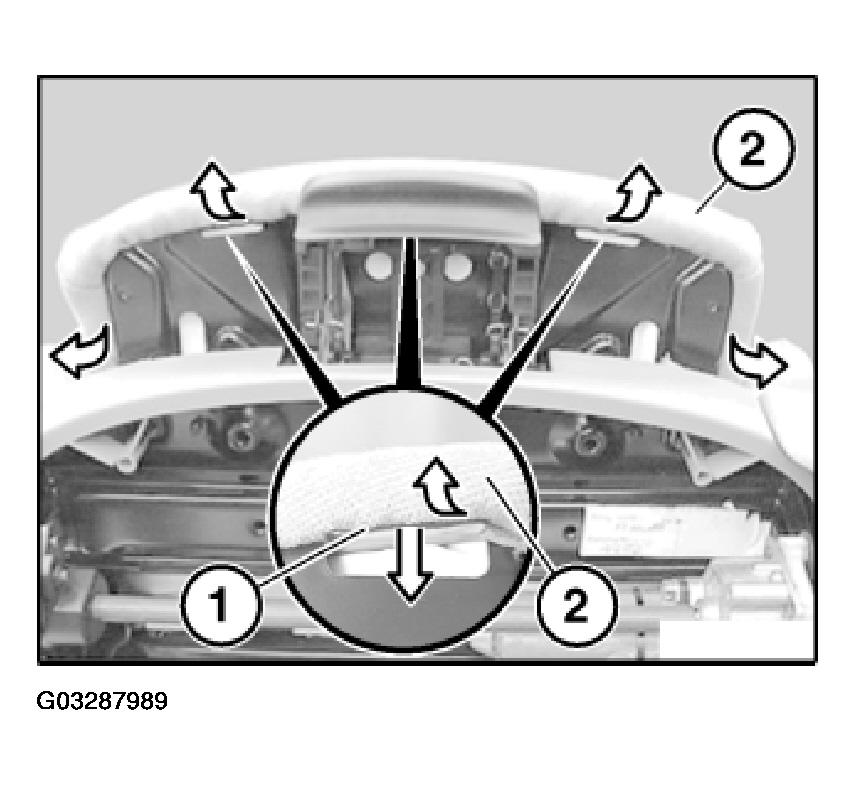

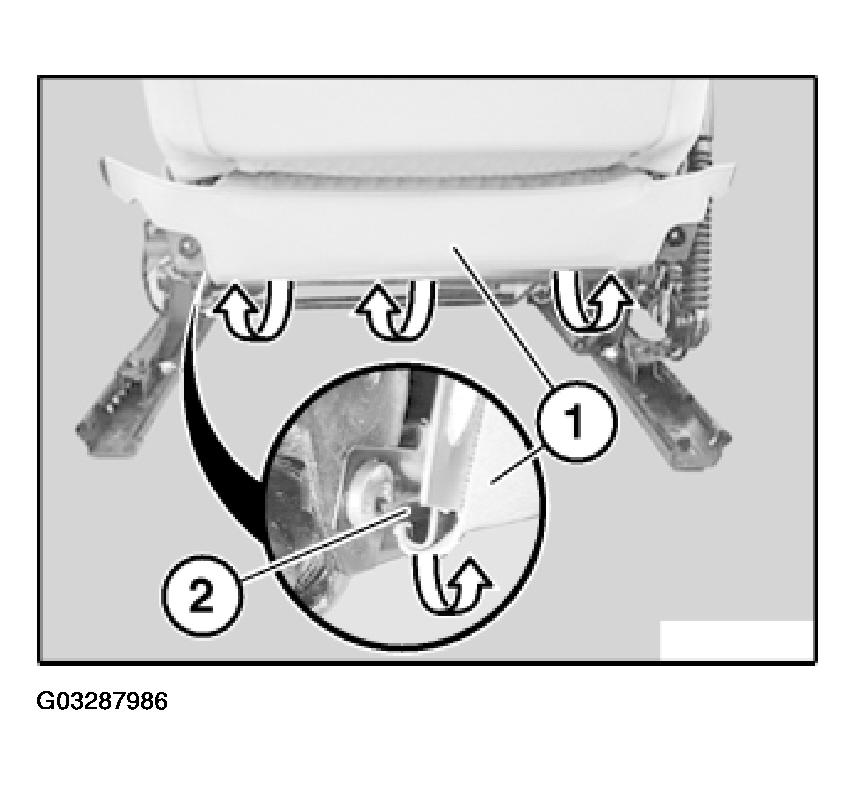

Detach seat cover (1) from seat frame (2).

Fig 13: Detaching Seat Cover From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

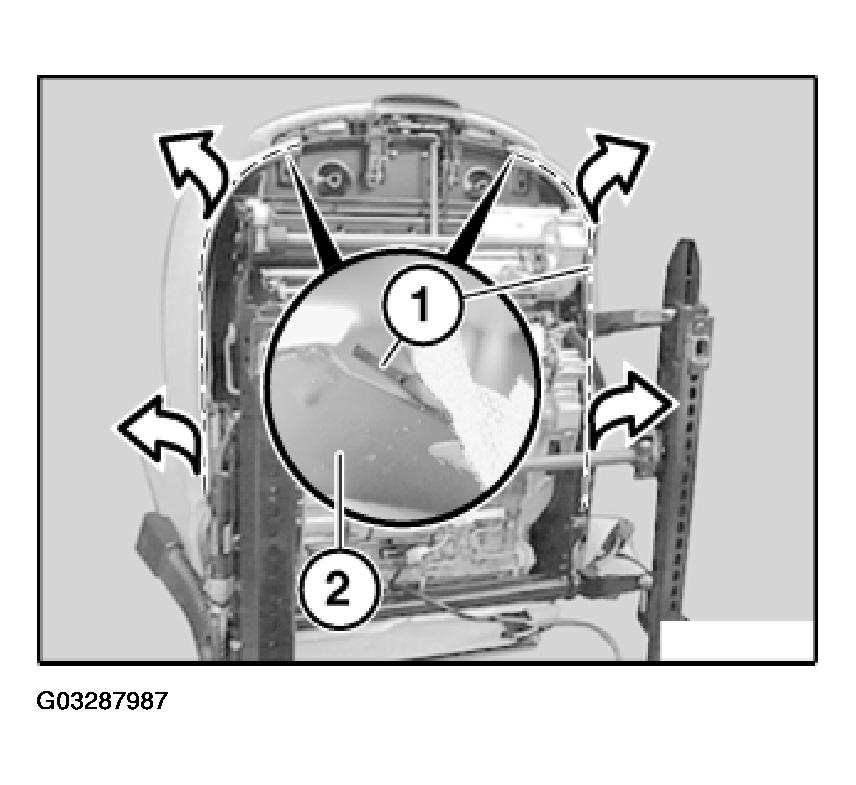

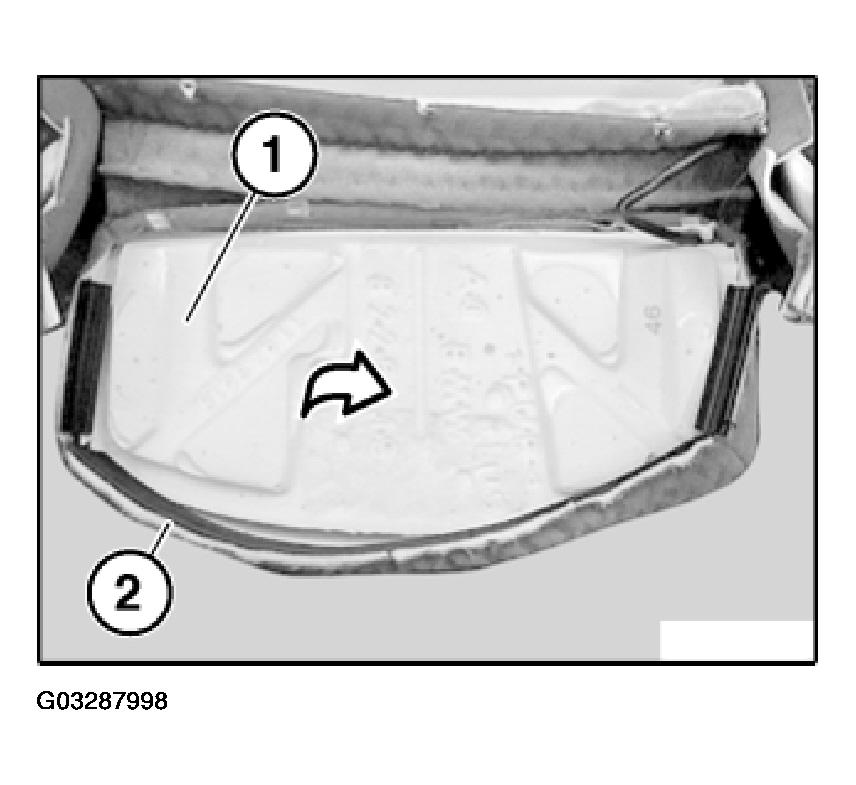

Pull out cover welt (1) completely from seat frame (2).

Fig 14: Pulling Out Cover Welt Completely From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

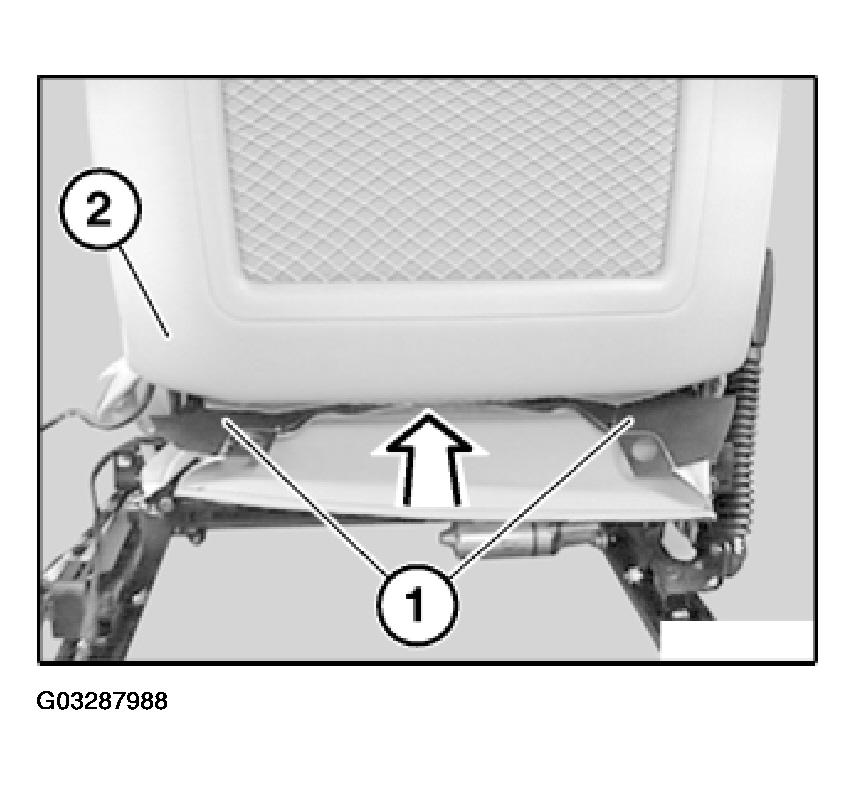

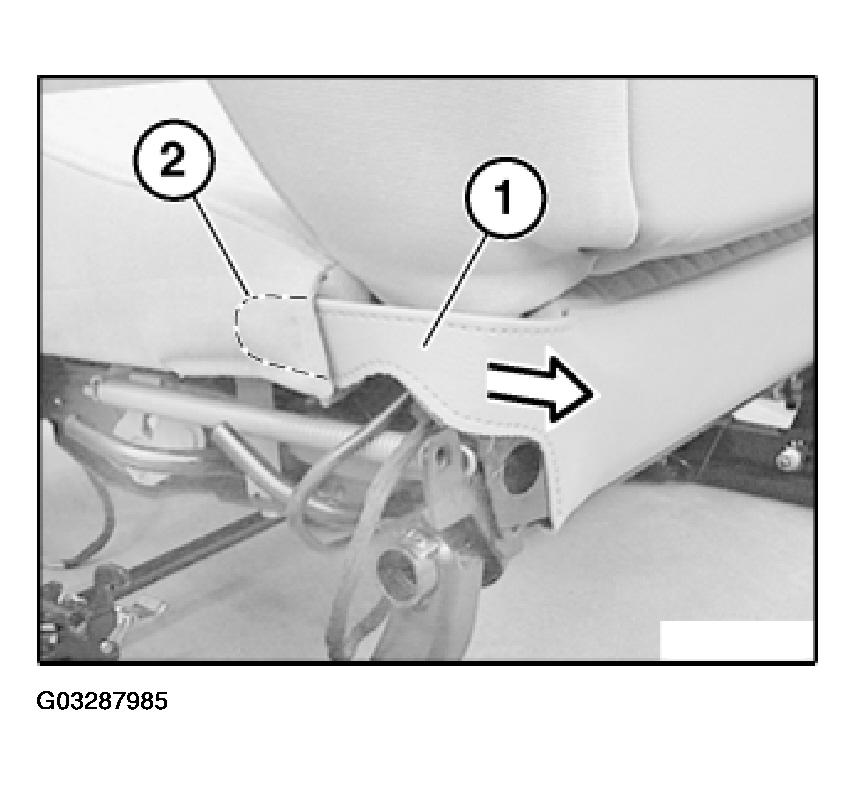

Fold in ends (1) on seat cover and push through under backrest (2) towards front.

Fig 15: Folding Seat Cover Ends

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten thigh support and pull completely towards front.

Bend open retaining plates (1) and remove cover piping (2).

Fig 16: Removing Cover Piping

Courtesy of BMW OF NORTH AMERICA, INC.

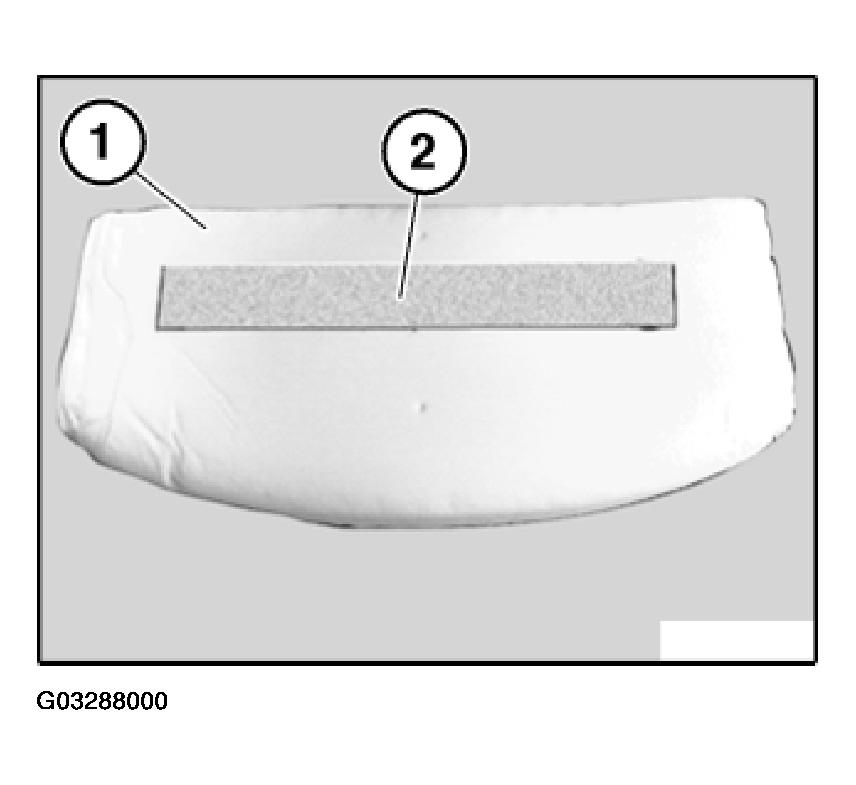

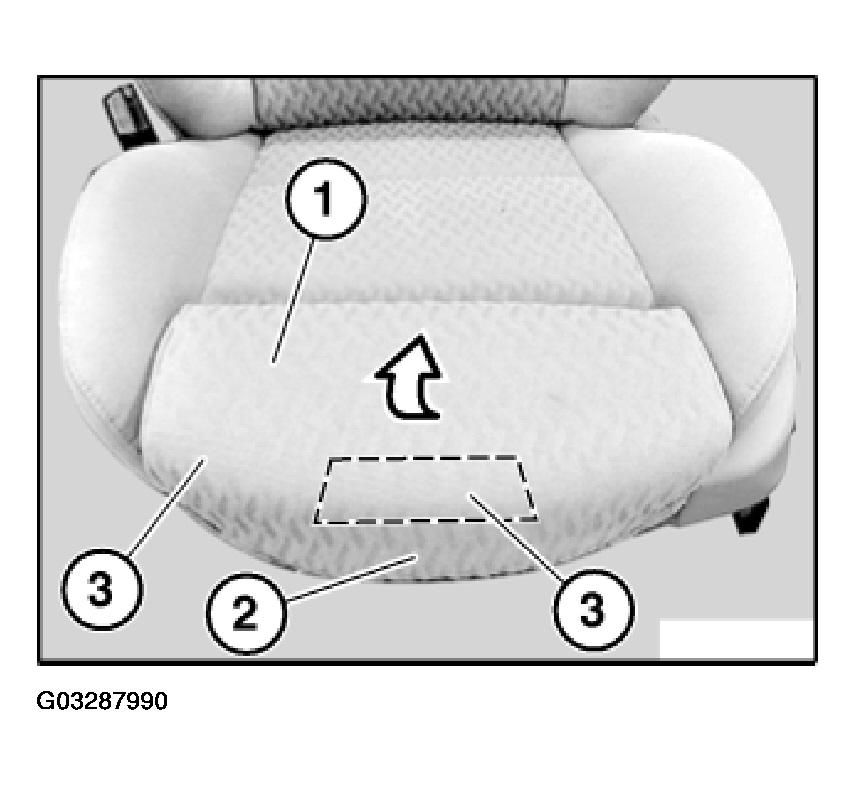

NOTE: Cushion (1) is secured at front with double-sided adhesive tape (3) to carrier (2).

Pull cushion (1) towards top off carrier (2).

Fig 17: Pulling Cushion Towards Top Off Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

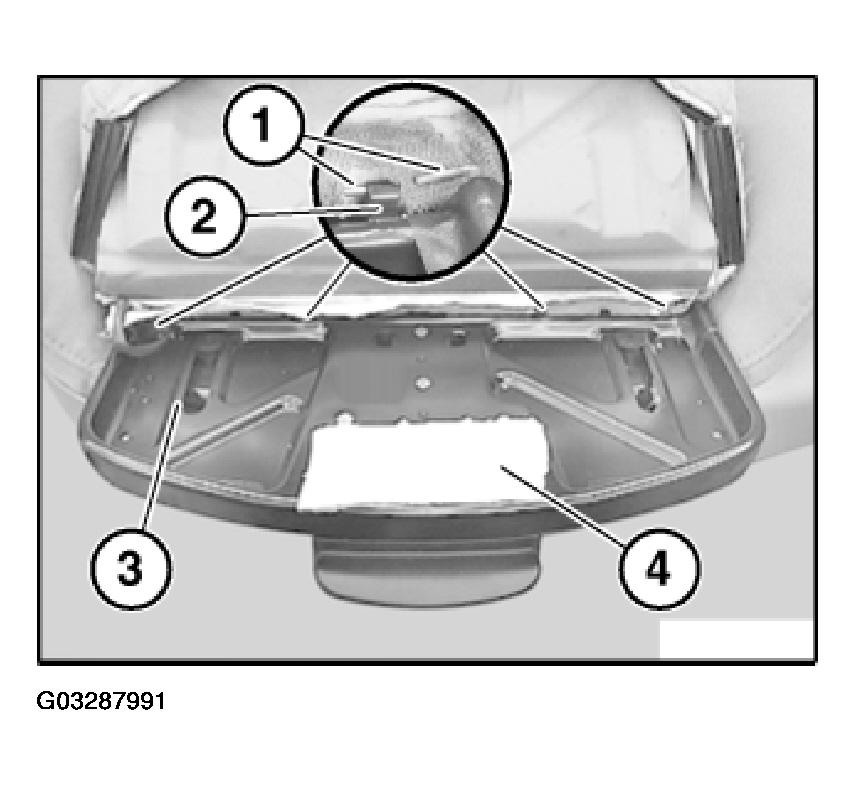

Lever trim wire (1) out of mounts (2).

Fig 18: Levering Trim Wire Out Of Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Stick new double-sided adhesive tape (4) to carrier (3) or attach mount with spray adhesive.

Model without seat heating and without seat occupancy detector:

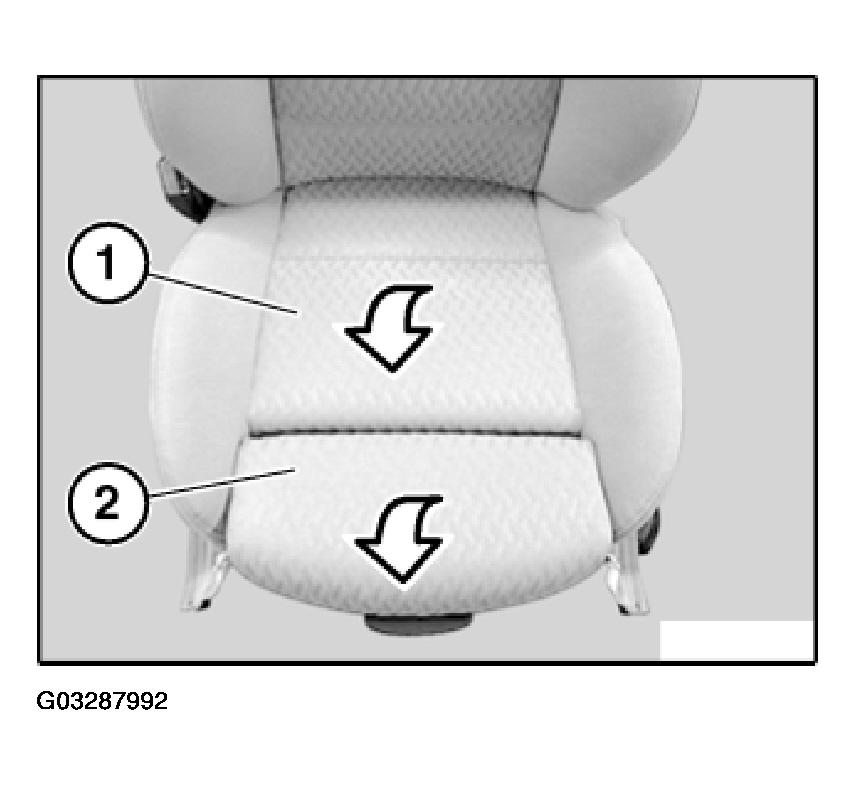

Remove seat cover (1) with thigh support (2) towards front/top.

Fig 19: Removing Seat Cover With Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Model with seat heating and/or with seat occupancy detector:

Pull seat cover (1) forward a little and feed cable (2) out.

Remove seat cover (1) with thigh support towards front/top.

NOTE: The operation "Removing complete seat cushion" ends here.

Fig 20: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

US/CND front passenger seat (with OC3 mat) only:

New seat cover must be completely installed with padding, seat heating and OC3 mat.

Release seat occupancy detector:

Connect diagnosis system
Release seat occupancy detector
Clear fault memory if necessary

The operation "Replacing seat cover for front seat" ends here for the above-mentioned vehicles.

Replacing support or sensor mat:

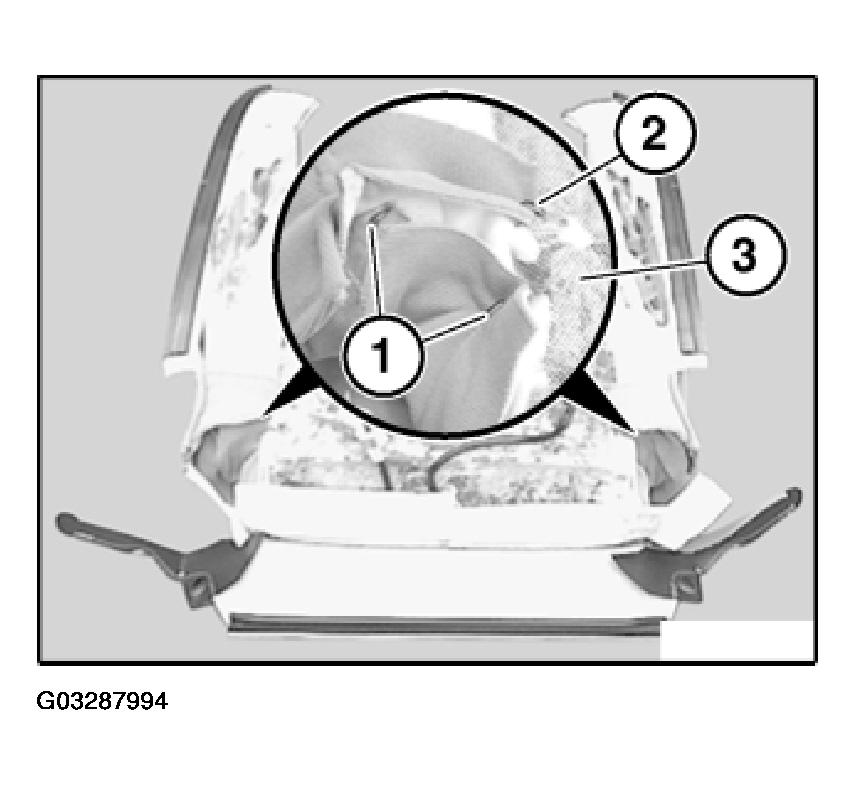

Release clips (1) and (2) at rear left/right from support (3).

Fig 21: Releasing Clips At Rear Left/Right From Support

Courtesy of BMW OF NORTH AMERICA, INC.

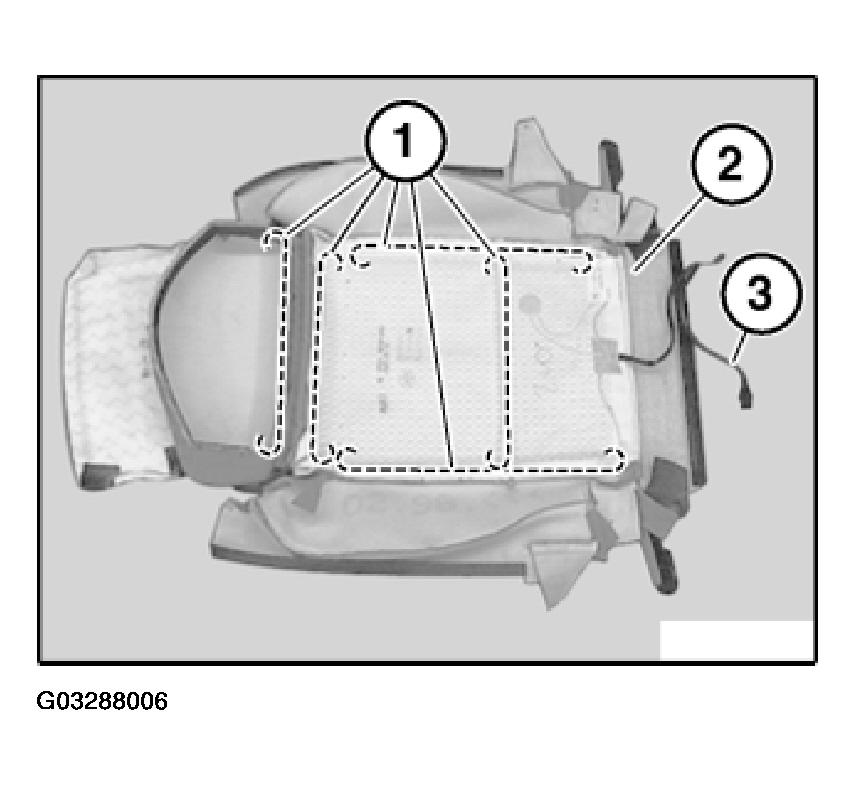

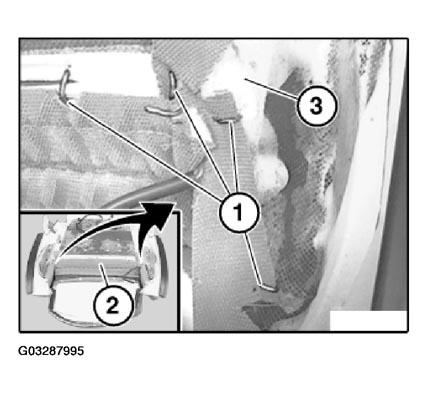

Release all clips (1) on left/right and centre (2) from support (3).

Fig 22: Releasing All Clips On Left/Right And Centre From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Installation:

Note routing of seat heater cable (1).

Fig 23: Identifying Routing Of Seat Heater Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Do not damage with clips.

Release all retainers.

Remove seat cover from support (foam rubber section).

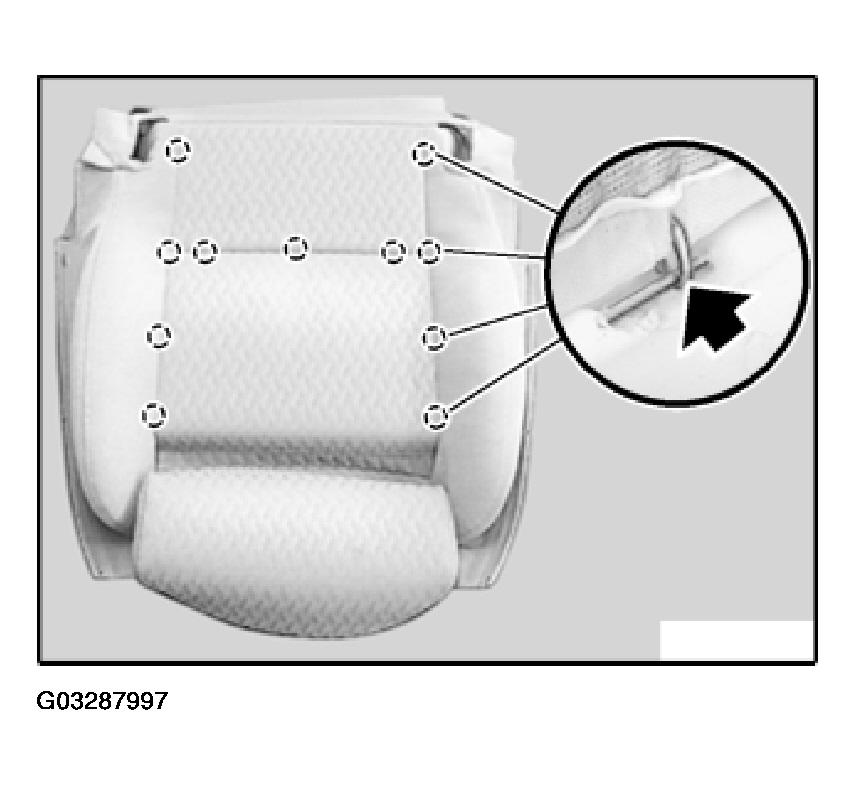

Remove all remnants of clips from seat cover and support.

Fig 24: Removing All Remnants Of Clips From Seat Cover And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Remove support (1) from seat cover (2).

Fig 25: Removing Support From Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Installation:

If necessary, detach heating mat (1) from adhesive tape (2) of thigh support.

3 Seat heater cable

Fig 26: Detaching Heating Mat From Adhesive Tape Of Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Stick double-sided adhesive tape (2) to support (1) or coat with spray adhesive.

Fig 27: Sticking Double-Sided Adhesive Tape To Support

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or with seat occupancy detector:

Installation:

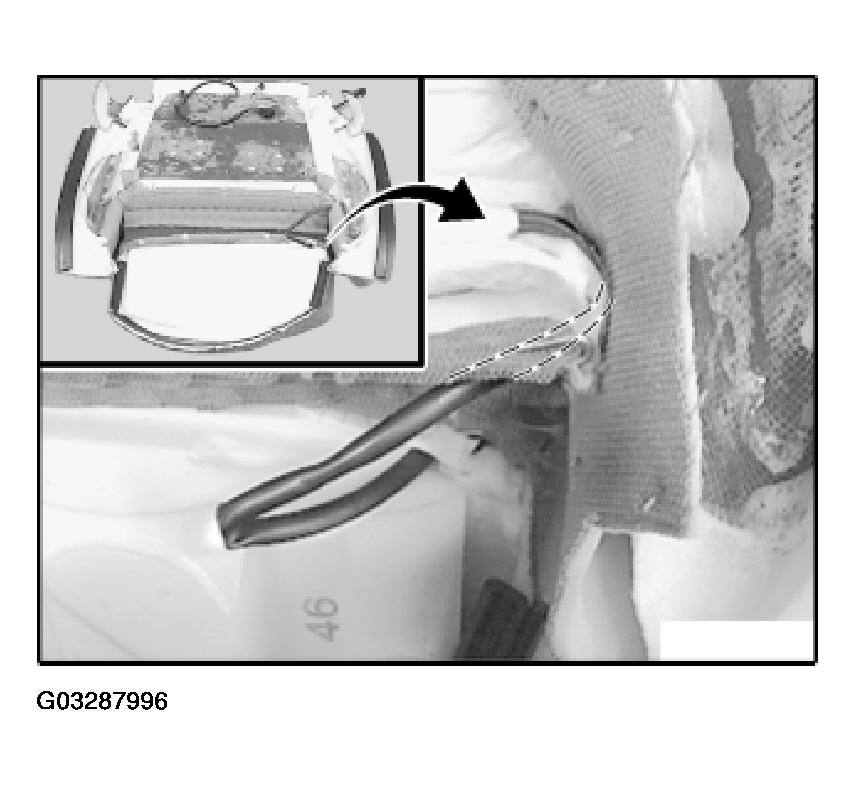

Feed seat heater cable (1) through bore hole (3).

Feed seat heater cable (2) through bore hole (4).

Fig 28: Identifying Feed Seat Heater Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

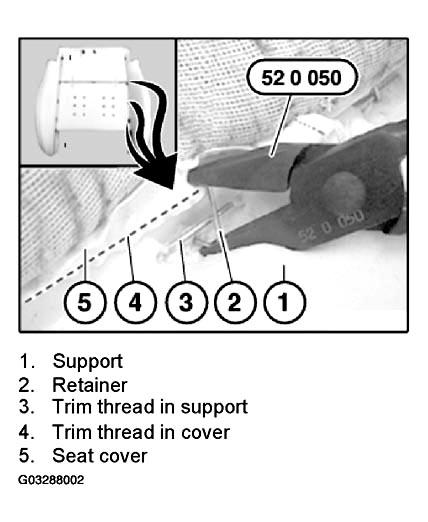

Bend new clips (2) with special tool 52 0 050.

Fig 29: Bending Clips With Special Tool 52 0 050

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

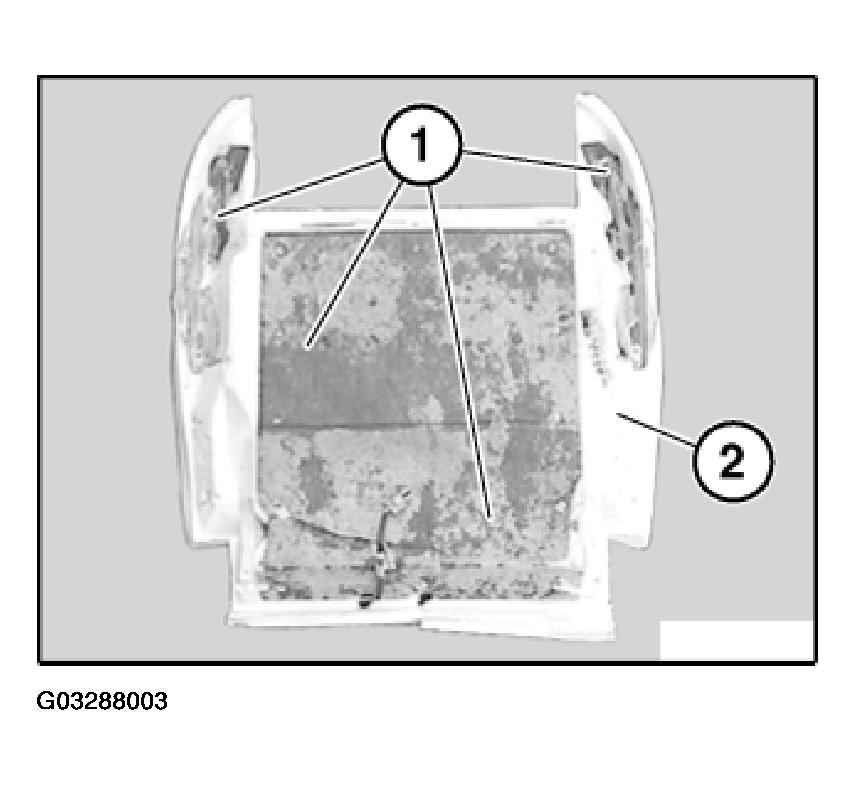

Support (2) must be coated with wax (1) to prevent grinding noises.

Do not remove wax (1) on support (2).

Fig 30: Identifying Wax On Support

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger seat only (replacing support):

Installation:

Make sure foam is not extensively damaged (malfunction of passenger seat occupancy detector).

Lay sensor mat connection without creasing into groove on support.

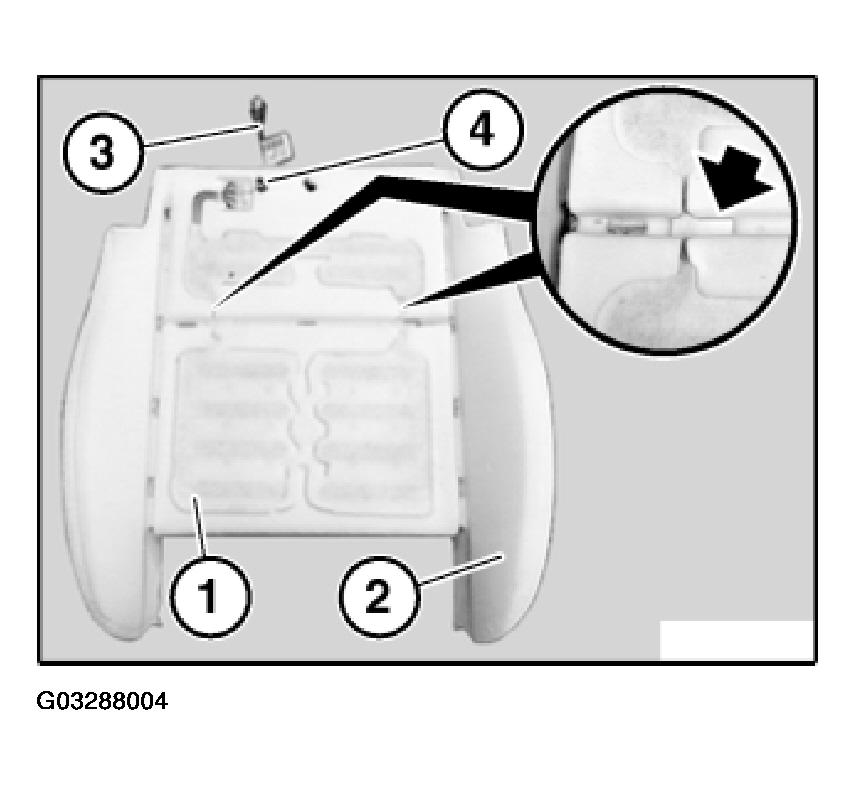

Fit new sensor mat (1) for passenger seat occupancy detector.

Align new sensor mat (1) on foam (2).

Feed plug (3) through bore hole (4).

Fig 31: Feeding Plug Through Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

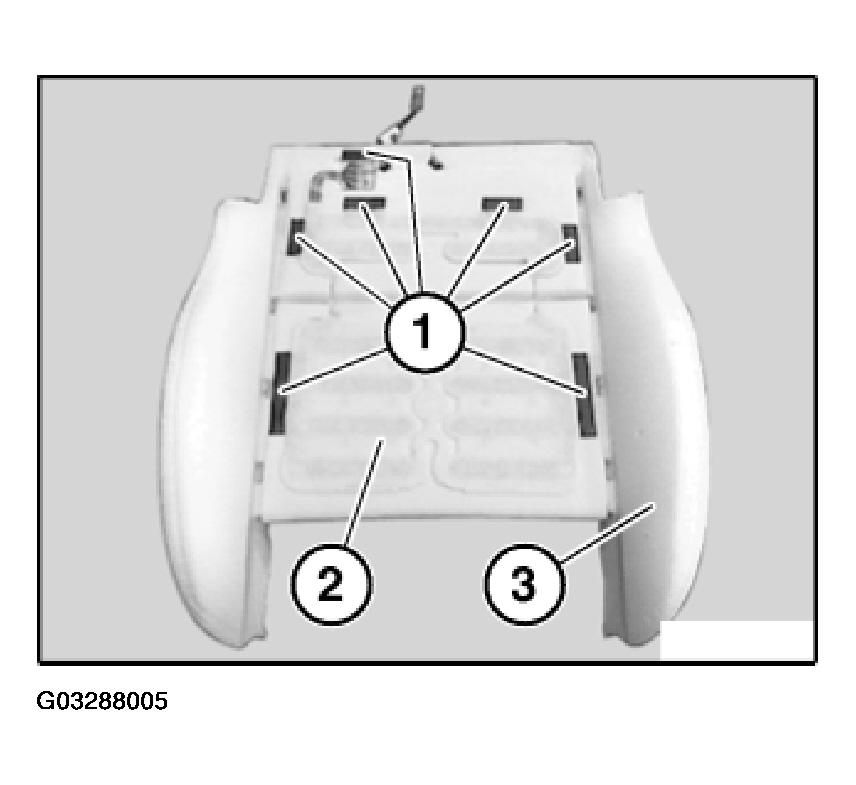

Detach liner (1) at individual points and stick sensor mat (2) onto foam (3).

Fig 32: Installing Sensor Mat Onto Foam

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Replacing support or sensor mat" ends here.

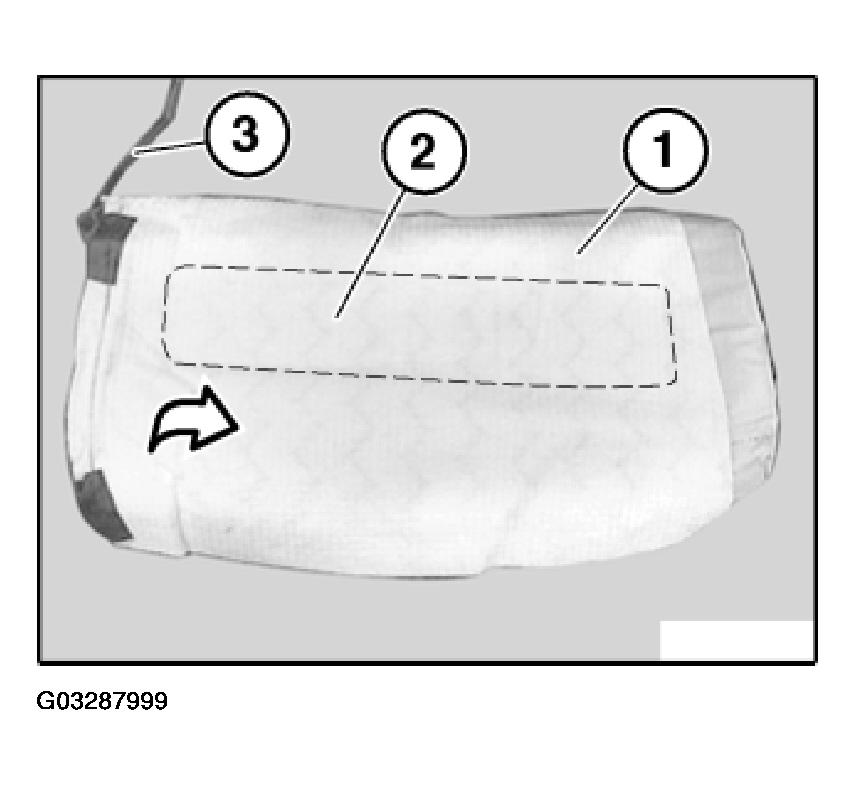

Replacing seat cover:

Remove trim threads (1) from seat cover (2).

Cut new seat cover (2) to size and insert trim threads (1).

(3) Seat heater cable

Fig 33: Removing Seat Cover
