52 14 000 Removing and installing left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove head restraint, refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL) .

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners. Incorrect or improper handling may trigger the pyrotechnical belt tensioner or side airbag and thereby cause injury.

Adjust front seat as far forward and upward as possible.

Switch off ignition!

Release seatbelt screw (1) and feed out seatbelt strap (2).

Tightening torque 31 N.m.

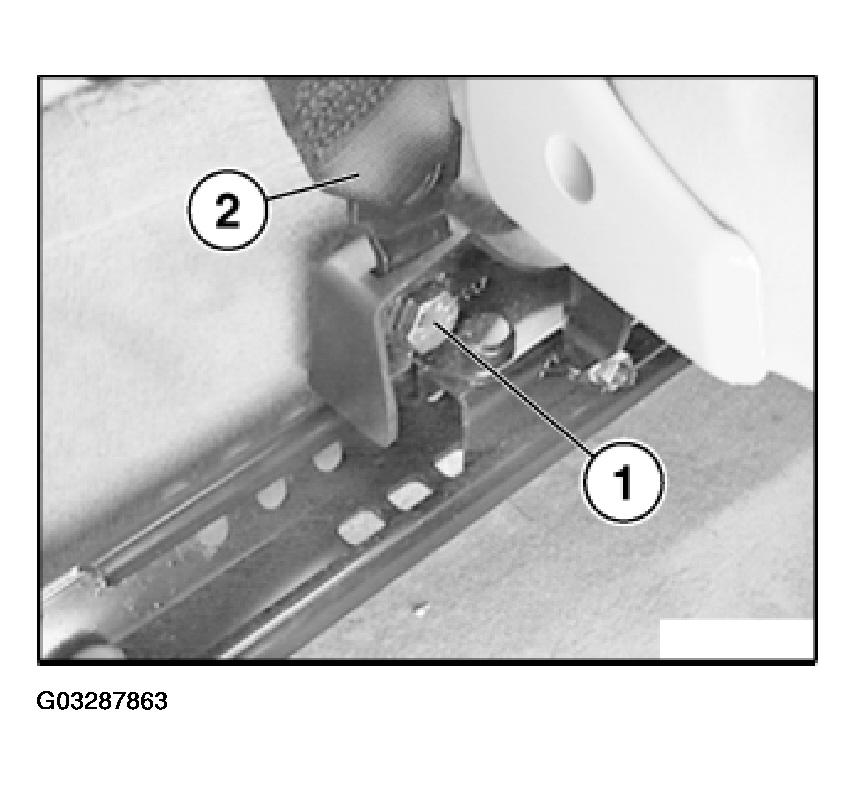

Fig 1: Identifying Seatbelt Screw And Seatbelt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat forwards/upwards as far as possible.

Unfasten screws (1).

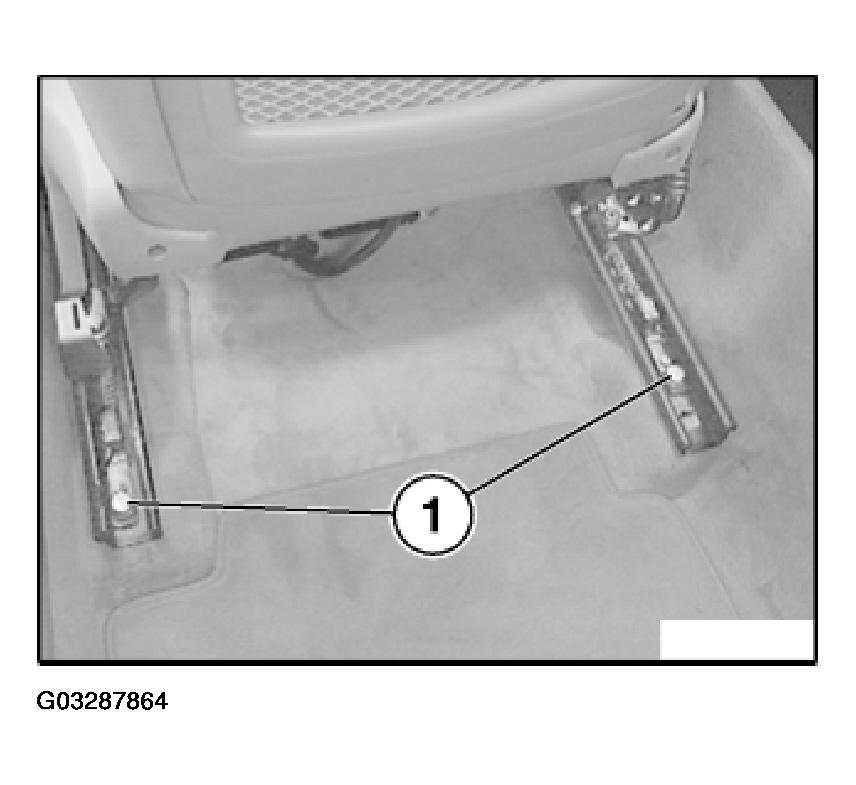

Fig 2: Identifying Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 52 10 1AZ in SEATS - TIGHTENING TORQUES - 645CI .

Move front seat backwards/downwards as far as possible.

If necessary, unclip protective caps upwards.

Unfasten screws (3).

Move seat runners forward so that they are flush.

Unlock lock (1) and disconnect plug connection (2).

IMPORTANT: Cover door sill with protective covers (risk of damage).

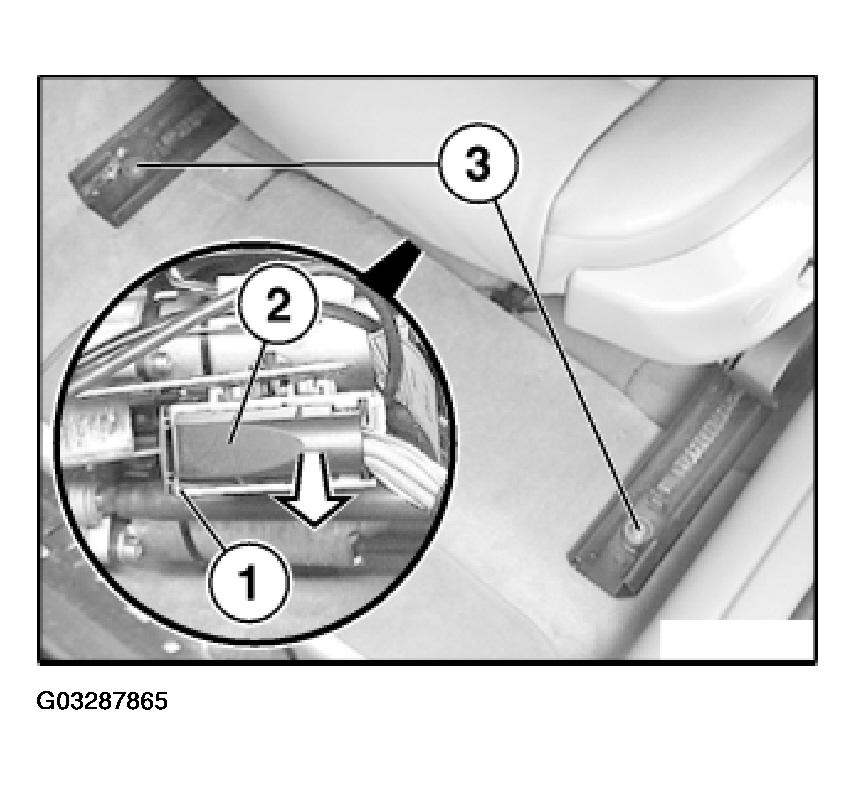

Fig 3: Disconnecting Plug Connection By Unlocking Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out front seat.

Installation:

Floor carpet must not enter area between seat rails and floor panel beside screw points (grating noises).

Tightening torque, refer to 52 10 1AZ in SEATS - TIGHTENING TORQUES - 645CI .
