52 16 040 Removing and installing/replacing outer cover on front left or right seat (sports/electric)

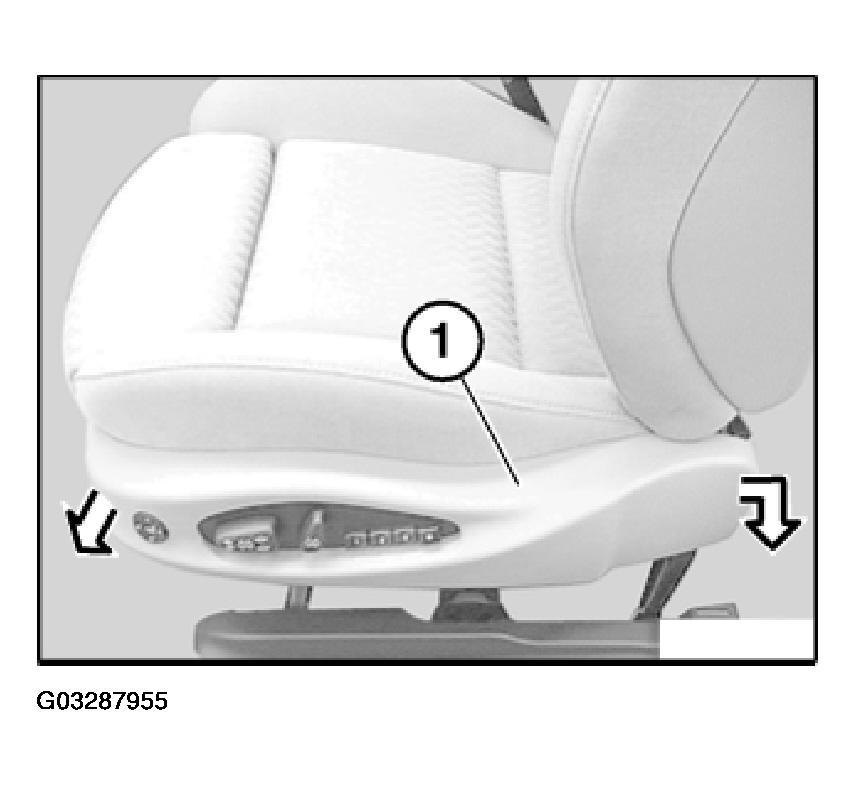

Unscrew bolt (1).

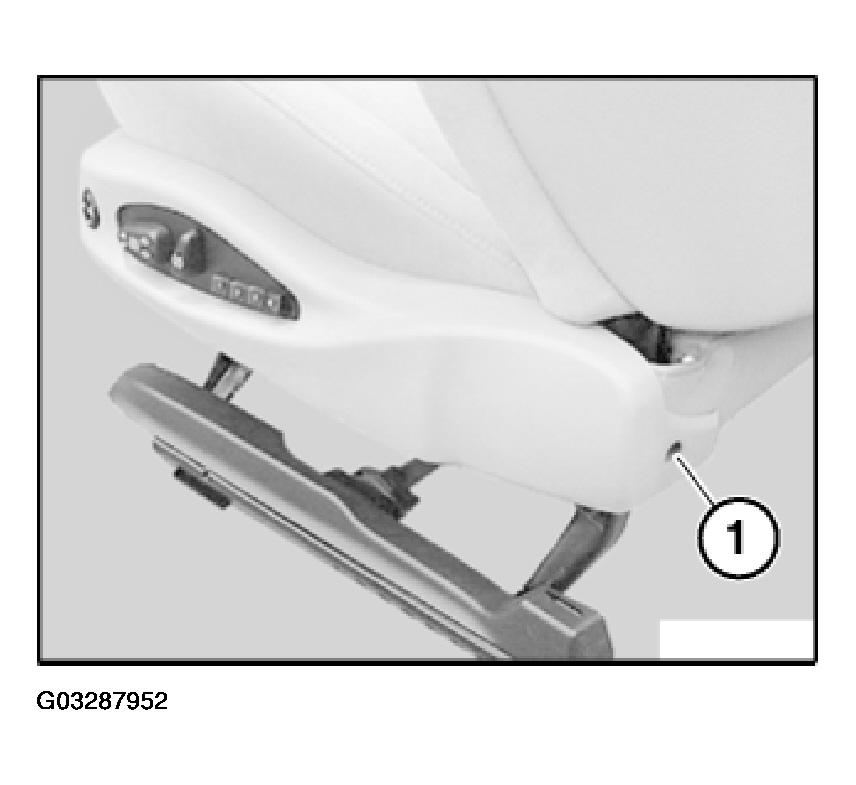

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

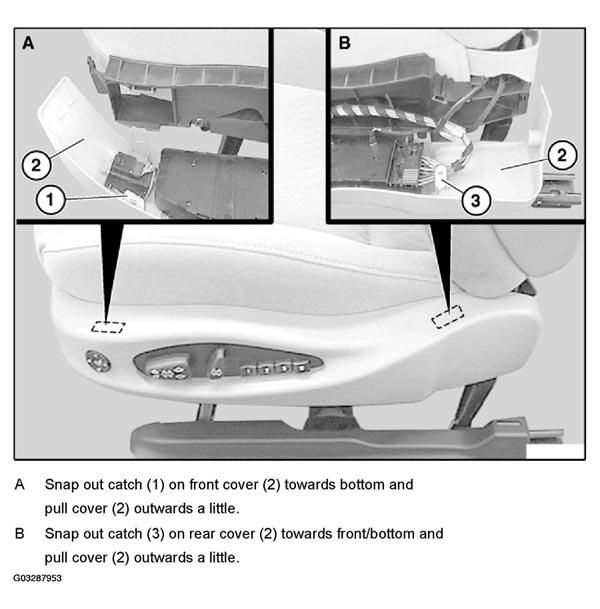

Removing top cover:

Fig 2: Removing Top Cover

Courtesy of BMW OF NORTH AMERICA, INC.

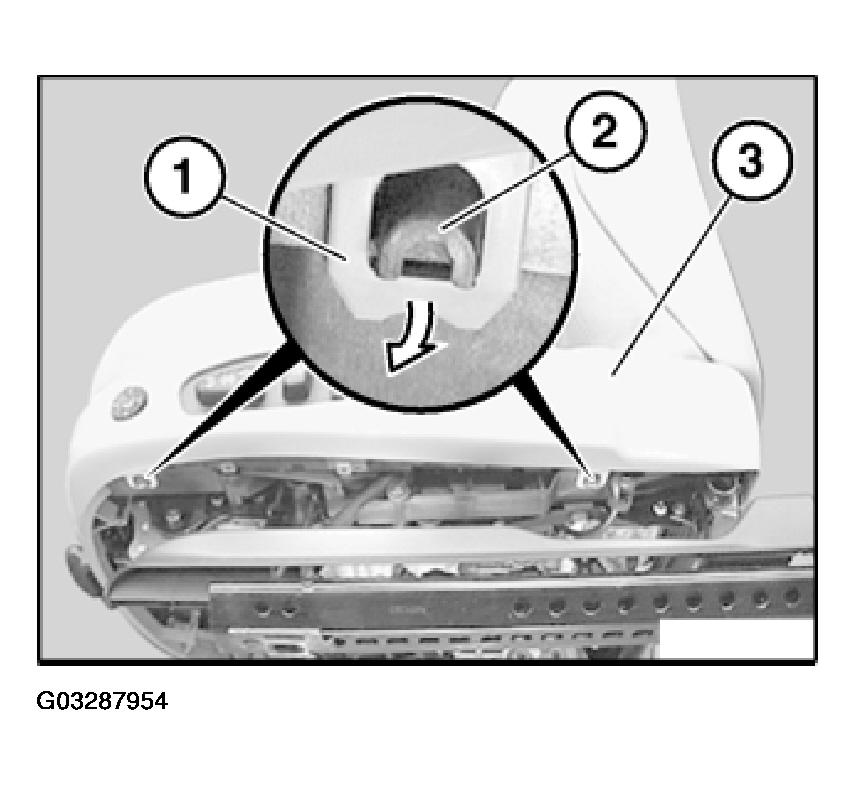

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Levering Lugs On Cover Out Of Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Levering Out Cover At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Do not crush cables (1) during installation.
2. Insert lugs (2) into mounts (3) and snap into place.

Fig 5: Inserting Lugs Into Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

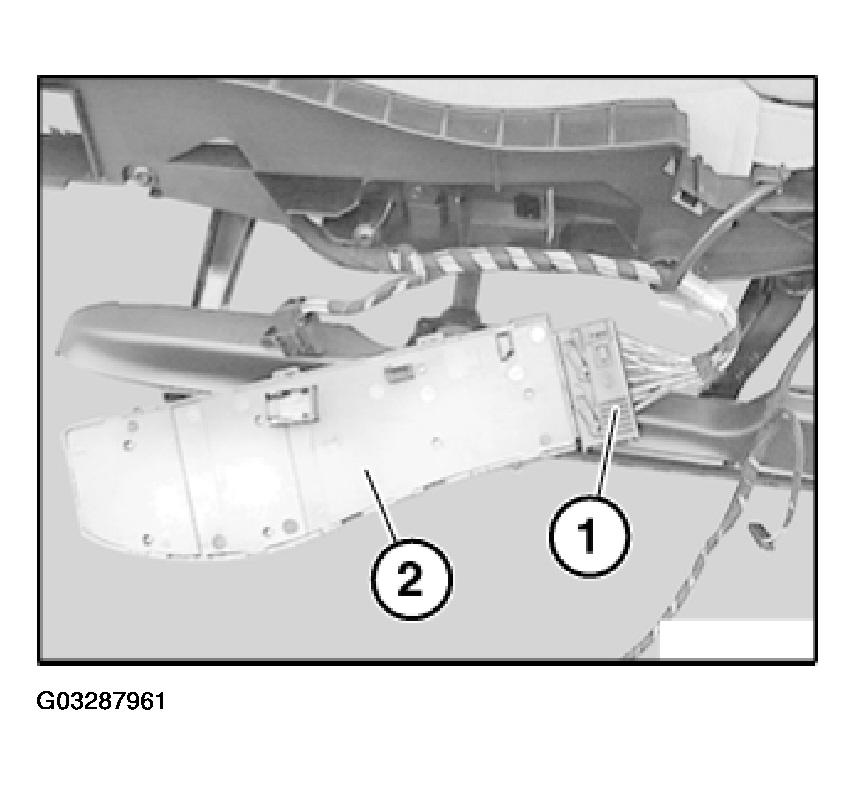

Disconnect plug connection (1).

Lever out lugs (2) and detach switch combination (3).

Fig 6: Detaching Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

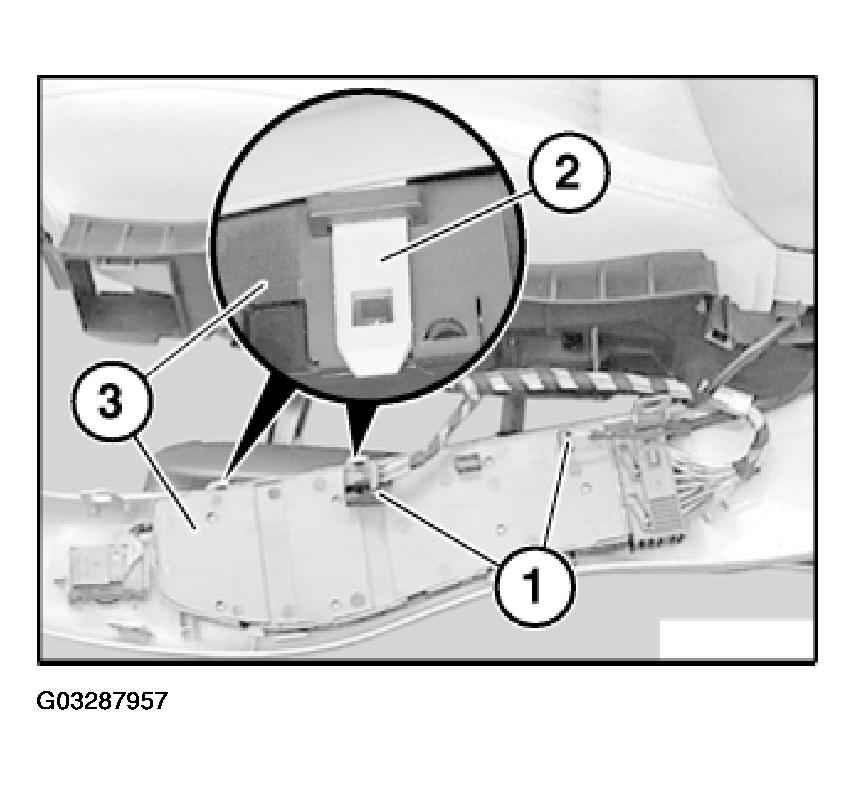

Installation:

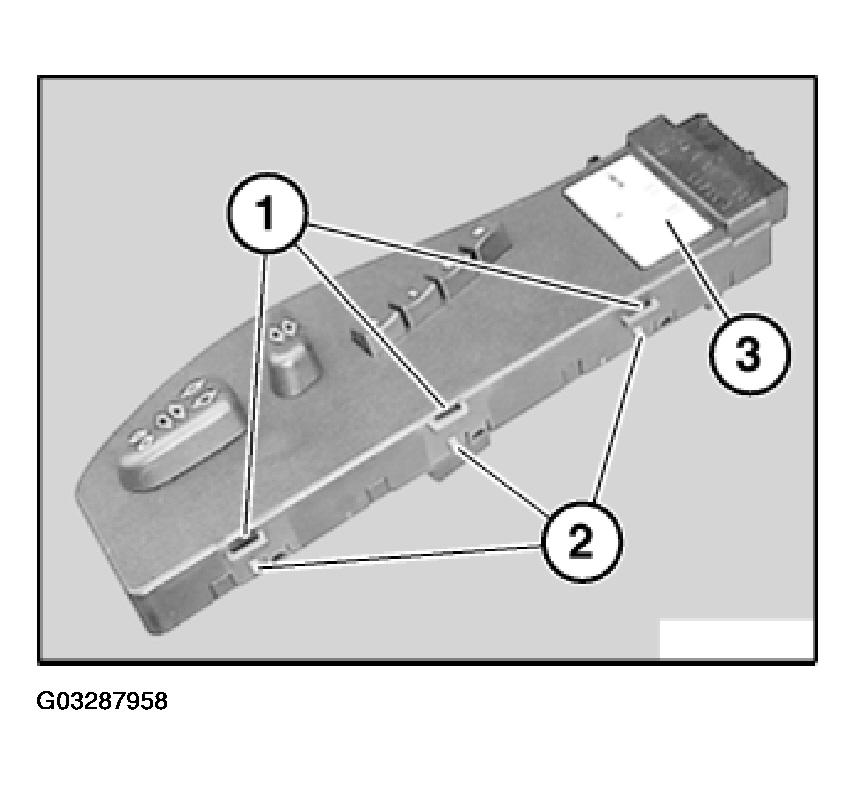

1. Guides (1) and catches (2) on switch combination (3) must not be damaged.

Fig 7: Identifying Guides And Catches On Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

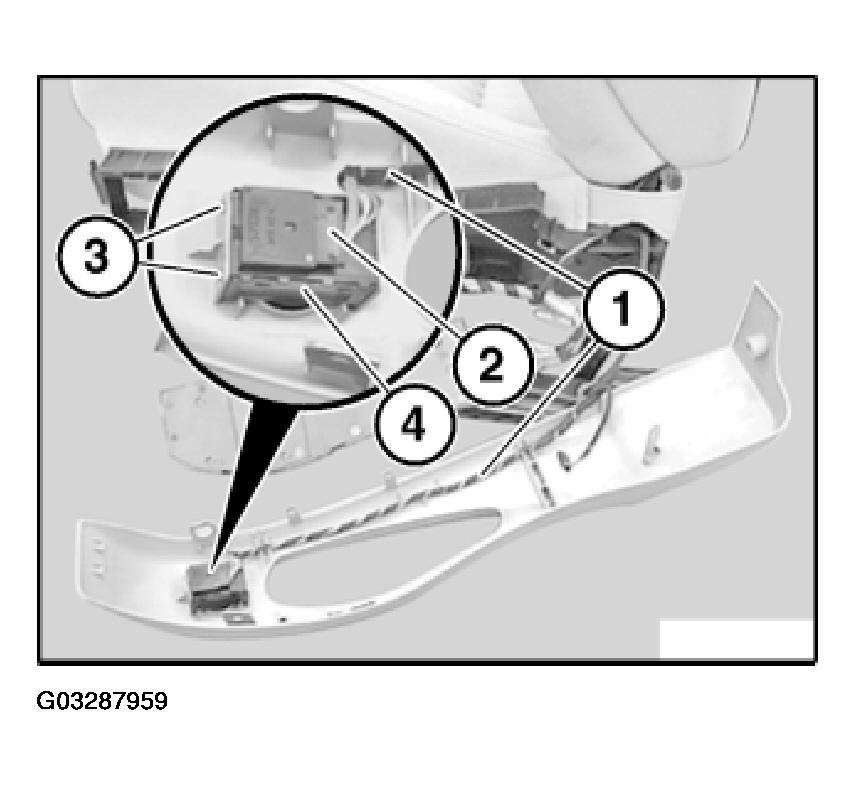

If necessary, expose cable (1) and disconnect plug connection (2).

Replacement only:

If necessary, press down catches (3) on left/right and remove switch (4) from cover.

Fig 8: Removing Switch From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

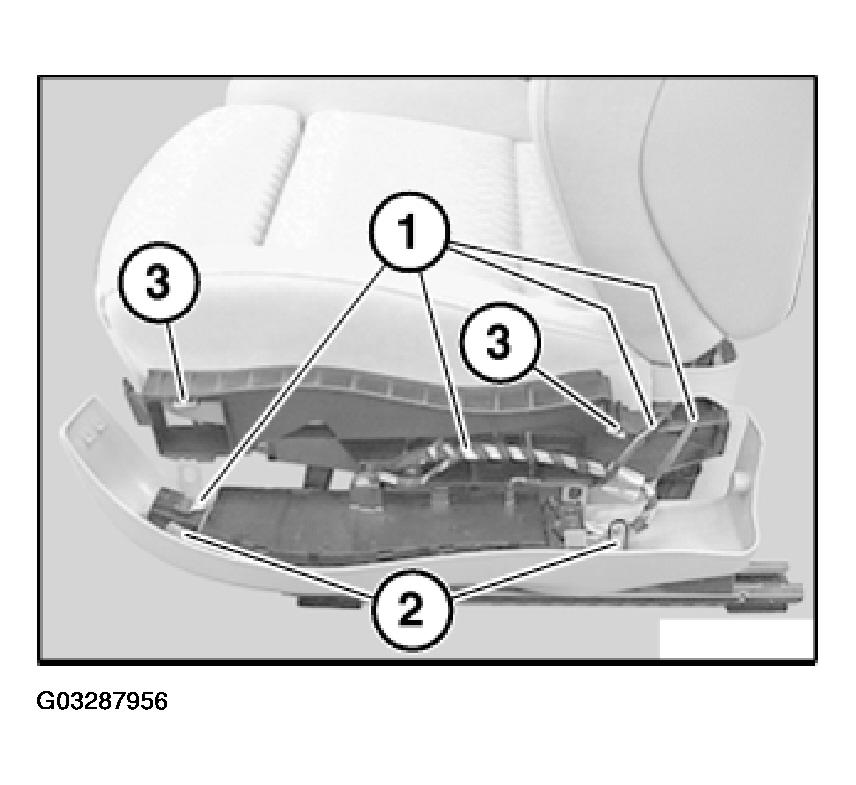

1. Following parts must not be damaged, replace cover (4) if necessary:

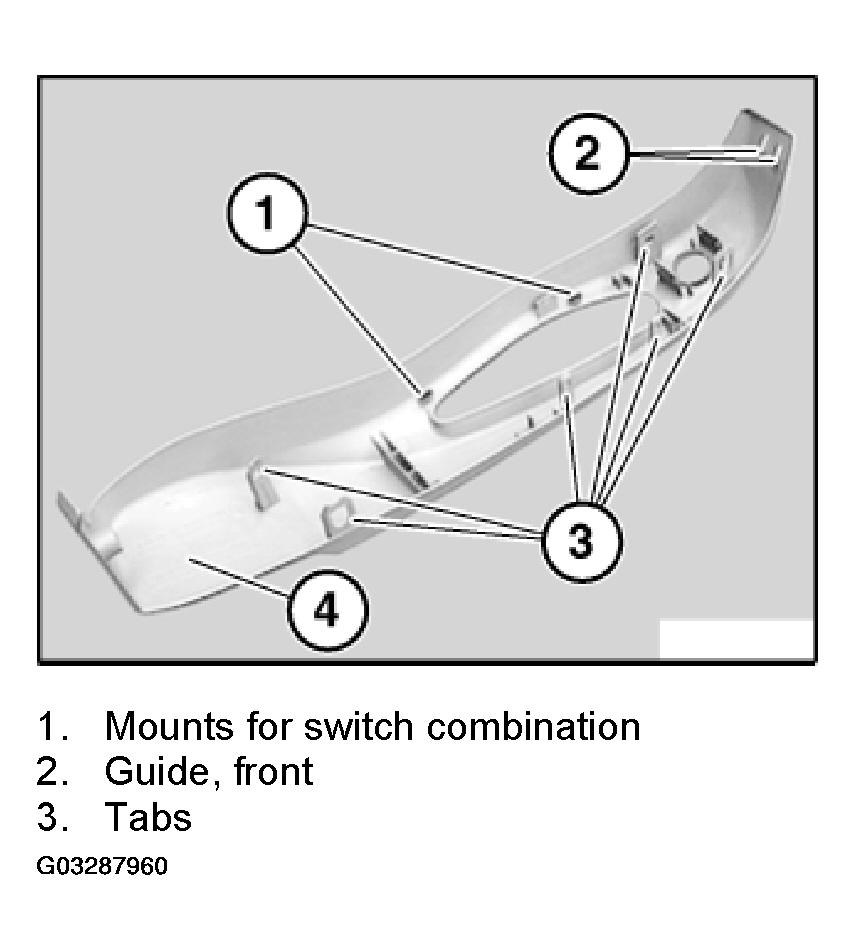

   Fig 9: Identifying Mounts For Switch Combination, Guide, Front And Tabs

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of switch combination only or in event of further work on front seat:

Disconnect plug connection (1) and remove switch combination (2).

Fig 10: Removing Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.
