11 31 051 Replacing timing chain (N52)
Special tools required:
- 00 9 140 .
- 11 0 300 .
- 11 4 280 .
- 11 4 281 .
- 11 4 282 .
- 11 4 283 .
- 11 4 360 .
- 11 4 362 .
- 11 5 200 .
- 11 9 280 .
Necessary preliminary work:
- Remove CYLINDER HEAD COVER .
- Remove all SPARK PLUGS .
- Remove CHAIN TENSIONER .
- Remove CRANKSHAFT SEAL at front
- Remove drive belt TENSIONER .
- Remove VIBRATION DAMPER .

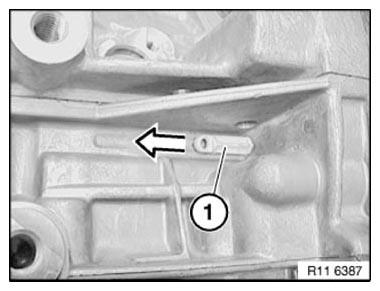

Remove fastener (1) in direction of arrow.
Installation note:
Install fastener (1) with bore hole facing outwards.
Rotate crankshaft at central bolt into TDC position.
Slide special tool 11 0 300 in direction of arrow into dowel hole and secure crankshaft.
If the flywheel is secured in the correct dowel hole with special tool 11 0 300 , the engine can no longer be moved at the central bolt.
Employ a second person for gripping when releasing central bolt (1).

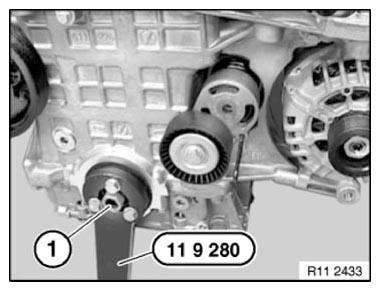

Screw special tool 11 9 280 onto hub of vibration damper.
Release central screw (1).
Tightening torque 11 21 1AZ .
Remove hub towards front.

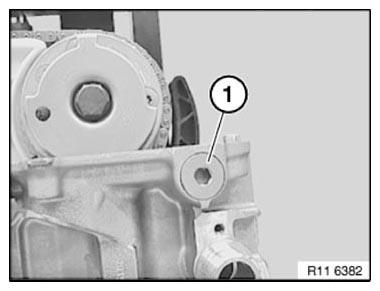

Open plug (1).
Tightening torque 11 31 5AZ .

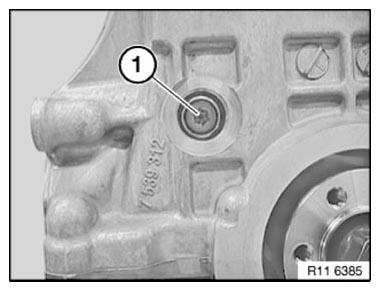

Open plug (1).
Tightening torque 11 11 7AZ .
Installation note:
Replace aluminum screws .

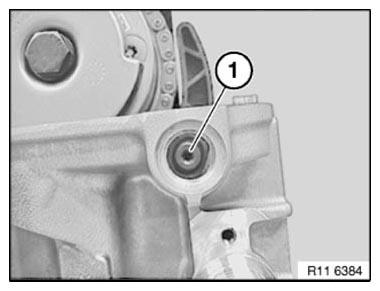

Release bearing pin (1) from timing chain module on cylinder head.
Tightening torque 11 31 5AZ .

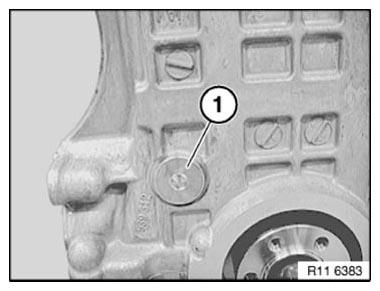

Release bearing pin (1) from timing chain module on crankcase.
Tightening torque 11 31 4AZ .

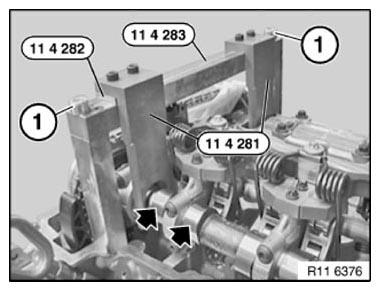

Secure special tool 11 4 283 with bolts (1) to cylinder head.
Mount special tool 11 4 281 on intake and exhaust camshafts.
Do not remove special tool 11 4 280 .
Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

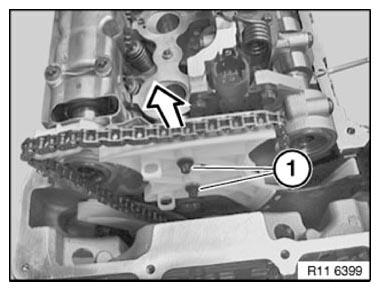

Release bolts (1) from timing chain module on cylinder head.
Tightening torque 11 31 3AZ .
Remove chain module with timing chain and camshaft sprocket upwards in direction of arrow.

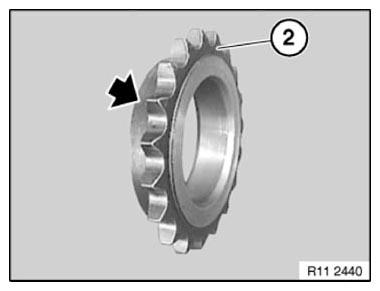

Collar (see arrow) on sprocket (2) points to engine .
Incorrect assembly will result in engine damage .

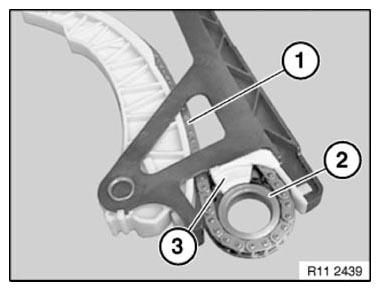

Pull timing chain (1) upwards until camshaft sprocket (2) engages chain guide (3).
Install timing chain (1) and camshaft sprocket (2) in this position.
Installation note:
Always hold timing chain (1) under tension. Timing chain (1) may jam on chain guide (3).
Install hub with central bolt.

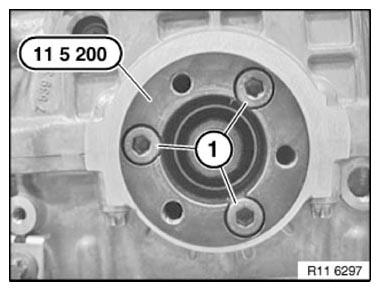

Tighten down special tool 11 5 200 with screws (1) to hub.
Remove TENSIONER for drive belt.

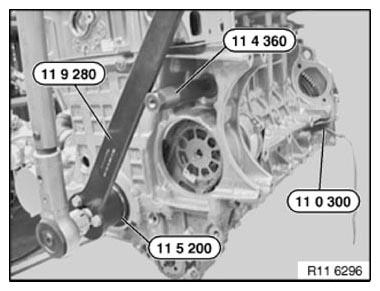

Screw in special tool 11 4 362 from special tool set 11 4 360 .
Mount special tool 11 9 280 on 11 5 200 .
Support special tool 11 9 280 on special tool 11 4 362 .
Special tool 11 0 300 secures crankshaft.
Tighten central bolt to joining torque.
Tightening torque 11 21 1AZ .
Mark central bolt and hub with paint.

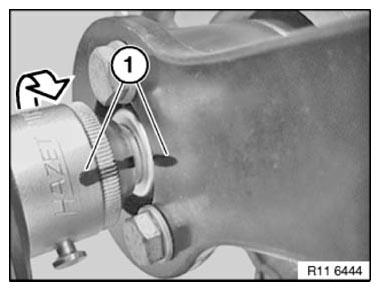

Mark special tools with colored line (1). See Fig 14.
Risk of damage.
If necessary, tighten central bolt to angle of rotation with special tool 00 9 140 .
Tightening torque 11 21 1AZ .
Tighten central bolt with a second person helping.
Tightening torque 11 21 1AZ .
Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .
Install CHAIN TENSIONER .
Crank engine twice.
Check TIMING .
If necessary, adjust VALVE TIMING .
Assemble engine.
