11 14 005 Replacing front crankshaft seal (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove VIBRATION DAMPER .

IMPORTANT: Do not release central bolt .
If the central bolt is released, the camshaft sprockets of the timing chain and the oil pump will no longer be non-positively connected to the crankshaft. Intake and exhaust camshafts can turn in relation to crankshaft.
Risk of damage!

Fig 1: Identifying Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Turn back special tool 11 9 222 .

Push special tool 11 9 221 onto crankshaft.

IMPORTANT: When screws are tightened down (special tool 11 9 224 ) crankshaft seal is pressed inwards approx. 1 mm and thus slackened for subsequent removal.

Insert screws (special tool 11 9 224 ) and tighten down to approx. 20 Nm.

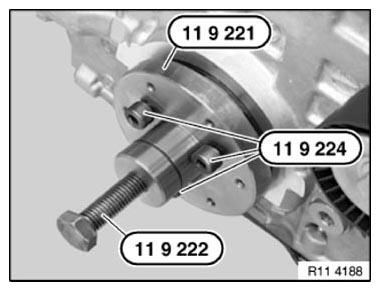

Fig 2: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 371 to 80 Nm into crankshaft seal.

Screw in spindle 11 0 372 .

Release crankshaft seal from housing.

Repeat the operation several times if necessary.

Fig 3: Releasing Crankshaft Seal From Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully saw open crankshaft seal (1) at cutting line (2).

Remove crankshaft seal (1) from special tool 11 0 371 .

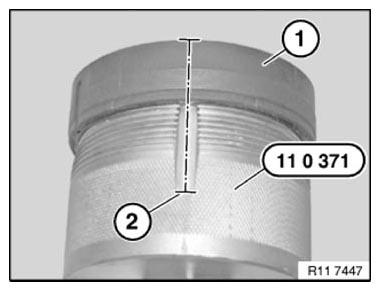

Fig 4: Identifying Cutting Line On Crankshaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The following text describes installation and sealing between the engine block and crankshaft seal.
The engine block will not be leakproof at the outside of the crankshaft seal if you fail to comply with the individual work steps and the work sequence.

Installation note:

Clean sealing surface (1) and degrease thoroughly in area of housing partition.

Apply a light coat of oil to running surface (2) of crankshaft seal.

Graphic N42.

Fig 5: Identifying Sealing Surface And Crankshaft Seal Running Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Push radial shaft seal (1) carefully in direction of arrow on special tool 11 9 235 .

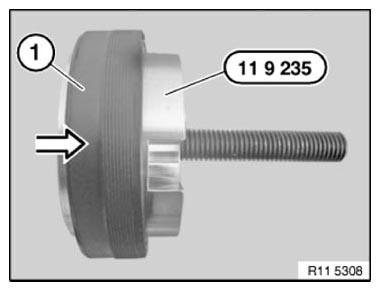

Fig 6: Pushing Radial Shaft Seal On Special Tool 11 9 235

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Special tool 11 9 235 can only be attached with 2 opposite bolts.
Determine hole pattern on special tool.

Screw special tool 11 9 235 on crankshaft with special tool 11 9 234 .

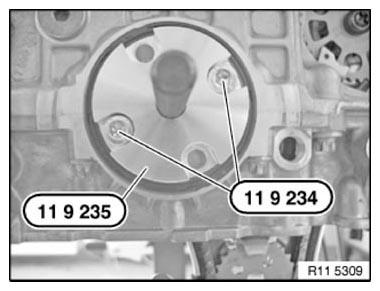

Fig 7: Identifying Special Tools On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

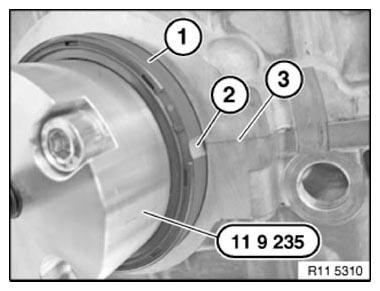

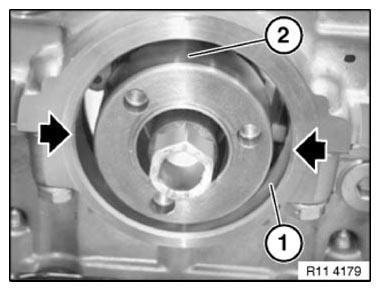

Align groove (2) of radial shaft seal (1) centered to the housing partition (3.

IMPORTANT: After installation, the grooves must be filled with sealing compound.

Fig 8: Identifying Housing Partition And Groove Of Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

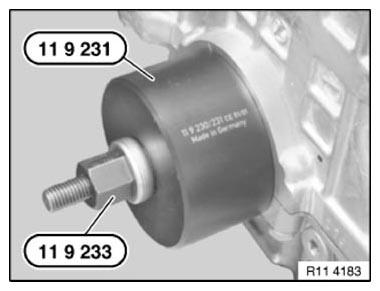

Draw in radial shaft seal with special tool 11 9 231 in conjunction with special tool 11 9 233 until flush.

Fig 9: Drawing-In Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Use PRIMER 1.3 AND LIQUID SEALING 1.4 .

Prepare liquid sealing compound in special tool 11 4 370 .

Remove screw caps (1) from injector (2).

Screw on metering needle.

Insert piston for pressing out.

Injector (2) contains the sealing compound Loctite, manufacturer's number 128357.

Bottle (3) contains the Loctite primer, manufacturer's number 171000.

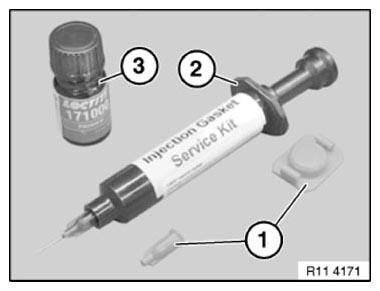

Fig 10: Identifying Loctite Primer, Screw Caps, Injector, And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Before filling with sealing compound:

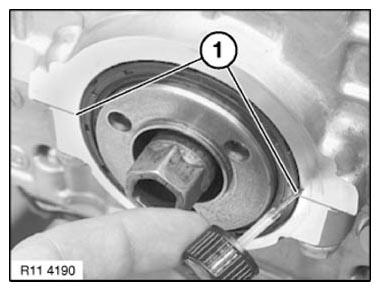

Moisten brush with Loctite primer, manufacturer's number 171000. Insert brush as far as possible into grooves (1) on crankshaft seal in order to coat housing partition on engine block.

Graphic N42.

Fig 11: Inserting Brush Into Grooves On Crankshaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Using injector (2), fill both grooves (3) flush with Loctite sealing compound, manufacturer's number 128357.

Graphic N42.

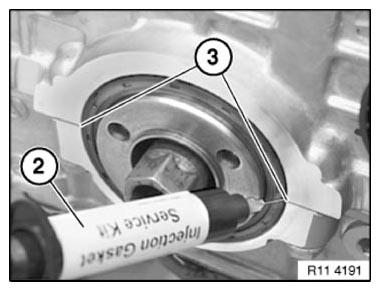

Fig 12: Filling Both Grooves Flush With Loctite Sealing Compound

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Loctite primer, manufacturer's number 171000, binds the Loctite sealing compound, manufacturer's number 128357, and prevents leakage.

Coat surface of sealing compound in both grooves (1) with Loctite primer, manufacturer's number 171000.

Graphic N42.

Fig 13: Inserting Brush Into Grooves On Crankshaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
