11 36 046 Removing and installing or replacing intake and exhaust camshaft adjusters (N52)

Special tools required:

• 11 4 280 .
• 11 4 281 .
• 11 4 282 .
• 11 4 283 .

Necessary preliminary work:

• Remove CYLINDER HEAD COVER .
• Check TIMING .

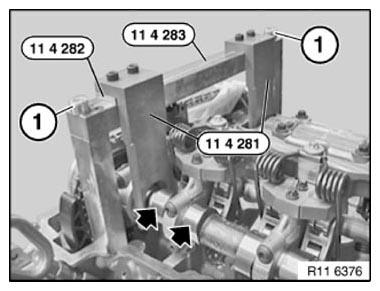

Fit special tool 11 4 283 with screws (1).

Fit special tool 11 4 281 on special tool 11 4 283 .

Fig 1: Fitting Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Release chain tensioner (2).

Tightening torque 11 31 6AZ .

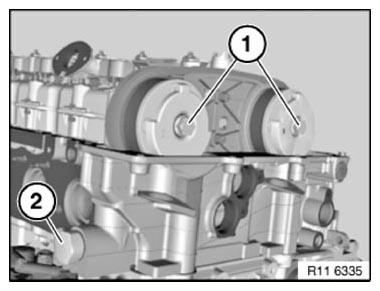

Release central bolts on intake and exhaust adjustment units (1).

Tightening torque 11 36 1AZ .

Installation:

Replace central bolts  .

Fig 2: Identifying Chain Tensioner And Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

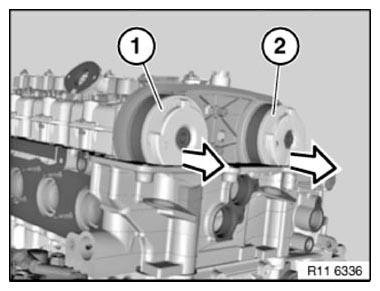

Remove exhaust camshaft adjuster (1) from exhaust camshaft.

Remove intake camshaft adjuster (2) from intake camshaft.

Installation:

To facilitate removal and installation of the intake and exhaust camshaft adjusters, turn the camshaft sensor wheels downwards at the opening.

Fig 3: Removing Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

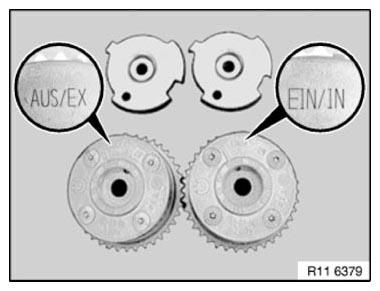

Intake and exhaust adjustment units are different.

VANOS is marked with AUS/EX for the exhaust camshaft.

VANOS is marked with EIN/IN for the intake camshaft.

Camshaft sensor wheels can be fitted alternatively.

Fig 4: Identifying Intake/Exhaust Camshaft Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Position intake and exhaust adjustment units on camshafts.

Installation position of intake and exhaust adjustment units can be freely selected.

Insert central bolts (1).

Tightening torque 11 36 1AZ .

Installation:

Replace central bolts  .

Fig 5: Identifying Chain Tensioner And Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

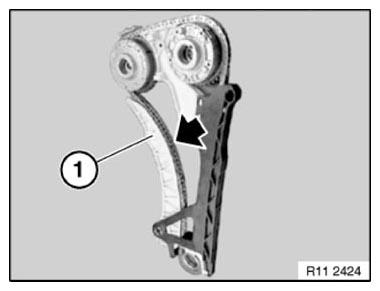

Press tensioning rail (1) by hand against guide rail and make sure timing chain is guided in tensioning rail (1).

Fig 6: Identifying Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Fit CHAIN TENSIONER .

Assemble engine.
