35 11 000 Removing and installing complete bearing block for foot pedal

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove pedal trim, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Vehicles with electric steering column:
- Remove electric steering column drive, refer to 67 64 010 REMOVING AND INSTALLING/REPLACING DRIVE UNIT FOR ELECTRIC STEERING COLUMN ADJUSTMENT .
Vehicles with manual transmission:
- Remove clutch pedal, refer to 35 31 000 REMOVING AND INSTALLING / REPLACING CLUTCH PEDAL .
- Remove clutch master cylinder.

IMPORTANT: After completion of work, carry out function check.

Unfasten plug connection (1).

Remove locking clip (2) and disengage and pull out locking pin.

Release nuts (3) and remove bearing block.

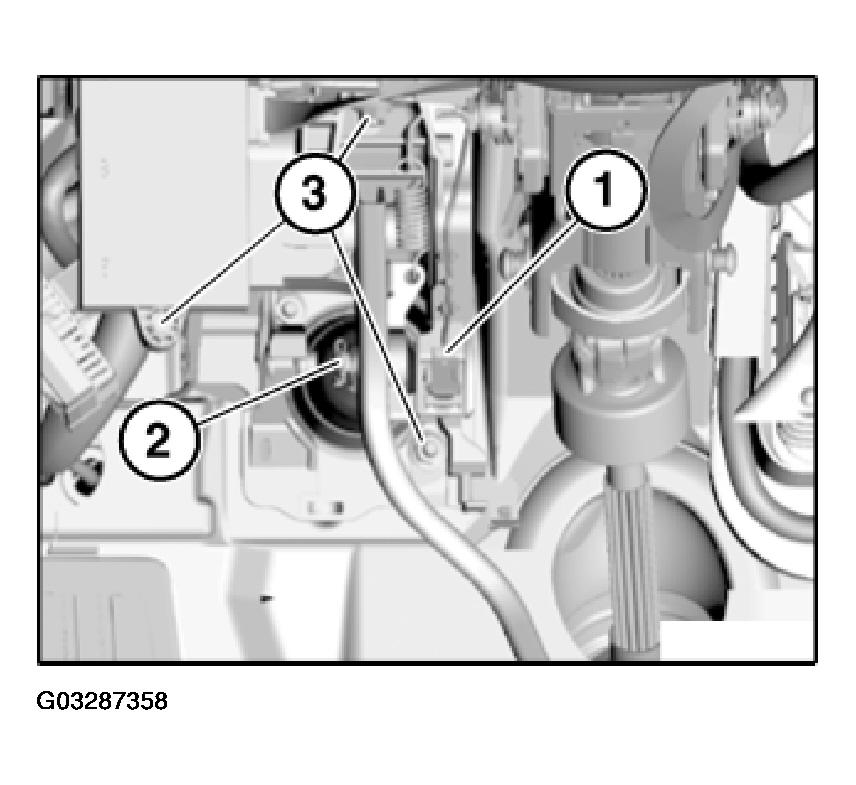

Fig 1: Removing Bearing Block

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace self-locking nuts.

Tightening torque, refer to 35 11 1AZ in PEDAL ASSEMBLY - TIGHTENING TORQUES - 645CI .
