35 31 000 Removing and installing / replacing clutch pedal

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove pedal trim, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove CAS control unit, refer to 61 35 015 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR CAR ACCESS SYSTEM .

Check function after completing tasks.

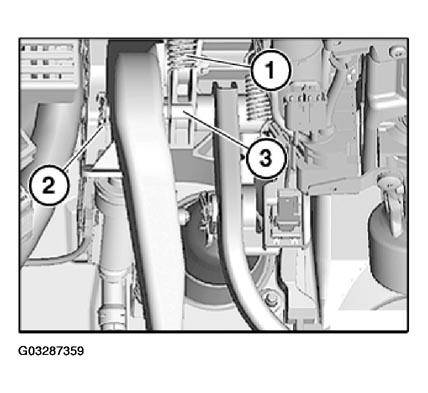

Disconnect return spring (1).

Unclip fastener (2).

Pull out pin (3).

Fig 1: Disconnecting Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

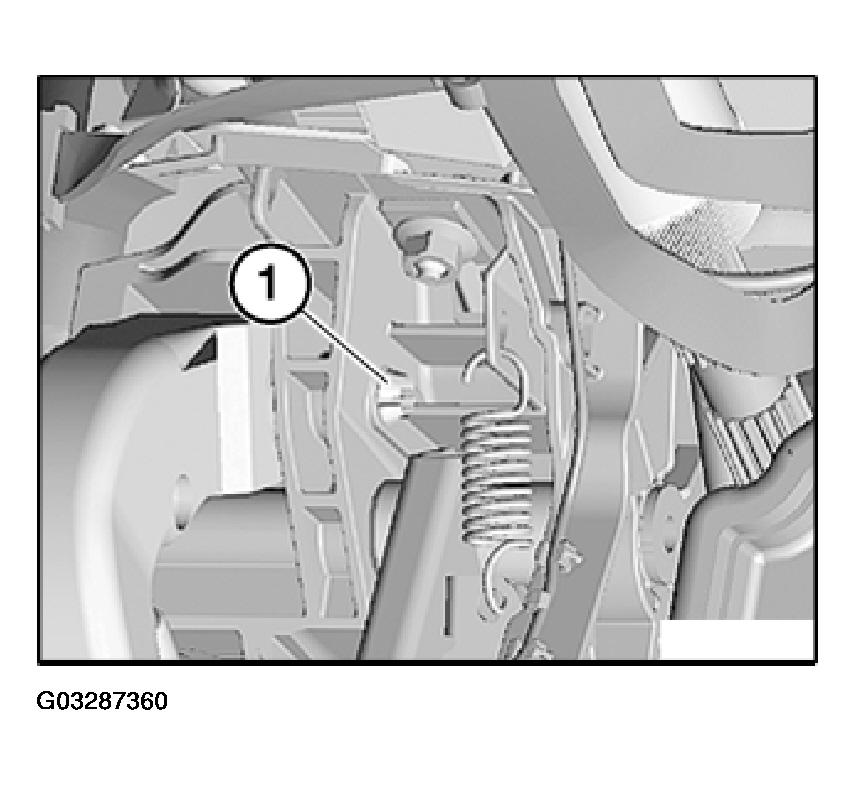

If necessary, disconnect over-center helper spring.

Press hook (1) together and pull out pin.

Fig 2: Pressing Hook And Removing Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace pin.

Remove clutch pedal.
