51 45 185 Removing and installing/replacing trim for pedal assembly

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Unclip trim for pedal assembly (3) at retaining points (2).

Pull back panel for pedals (3) in direction of arrow.

Disconnect associated plug connections and remove trim for pedal assembly (3).

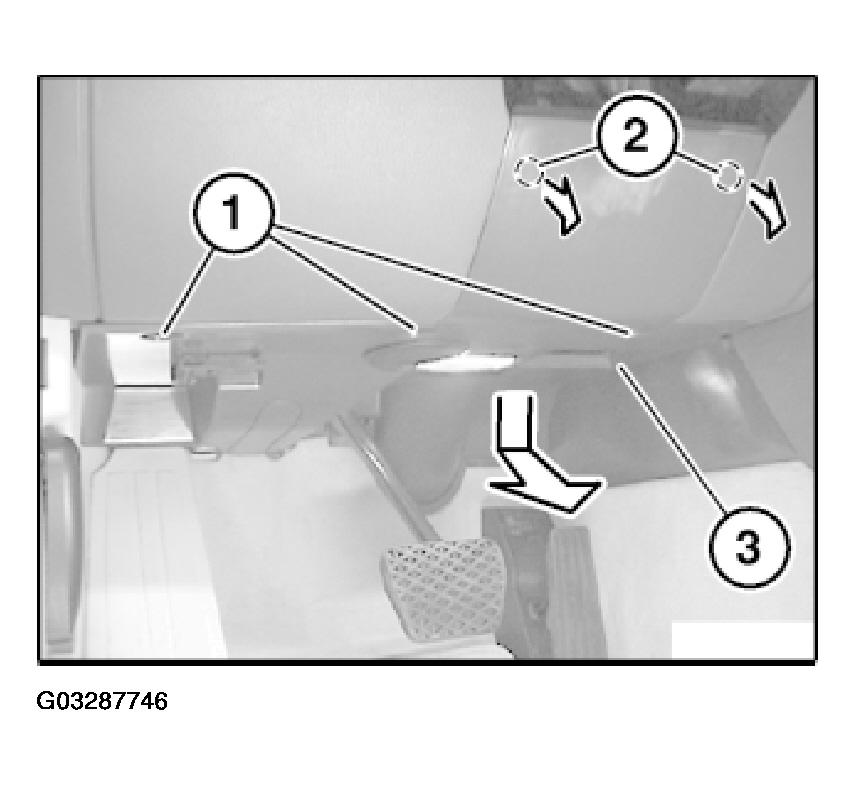

Fig 1: Removing Pedal Assembly Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and clips (2) of trim for pedal assembly (3) must not be damaged.

Replacement:

Remove speaker of hands-free system (4).
Remove footwell light (5).

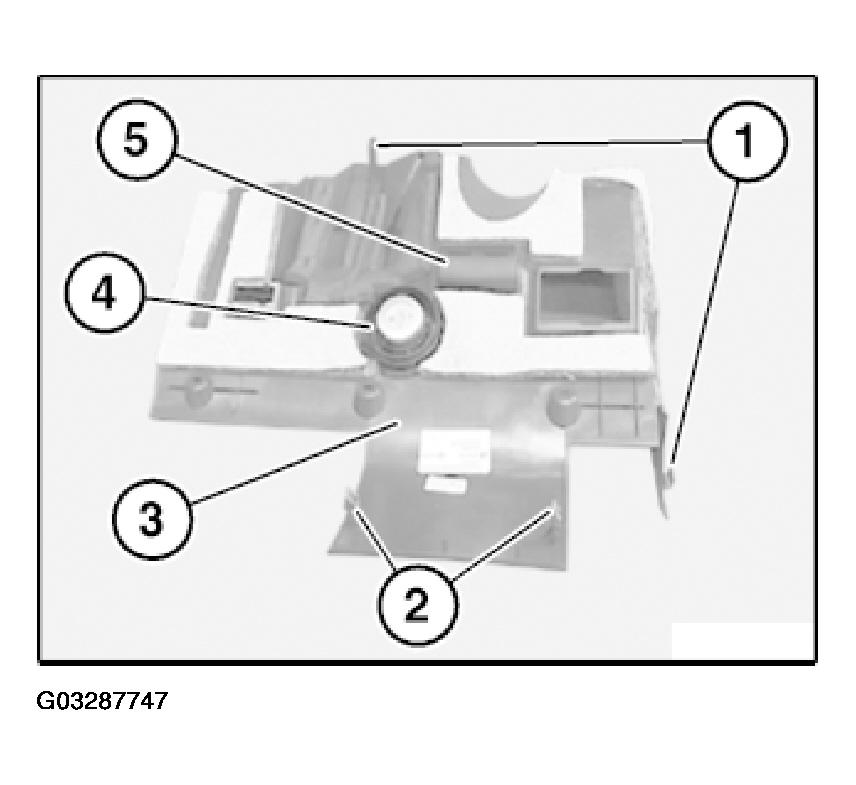

Fig 2: Identifying Guides And Trims Of Pedal Assembly
Courtesy of BMW OF NORTH AMERICA, INC.
