11 34 560 Replacing all valve stem seals (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Firmly press special tool 11 1 480 onto old valve stem seals.

Detach valve stem seal from valve stem by turning and simultaneously pulling special tool 11 1 480 .

Installation:

Insert all VALVES .

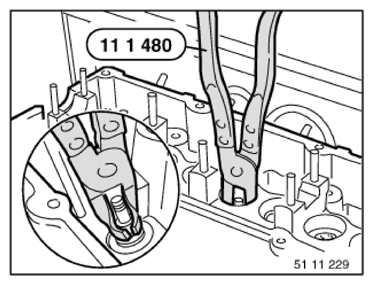

Fig 1: Detaching Valve Stem Seal From Valve Stem

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For use on the N55 engine, special tool 11 6 380 must be re-machined according to the picture with a 10 mm dia. drill bit to a depth of B = approx. 23 mm.

This modification has already been taken into account for reordering.

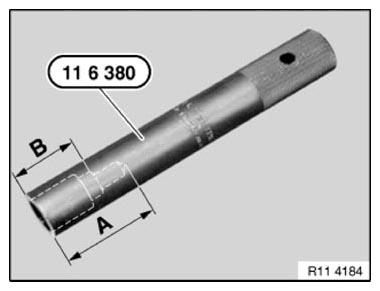

Fig 2: Re-Machining Special Tool (11 6 380) For Use On N55 Engine

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Different diameters at valve stem.
All valve stem seals are color-coded.

For 5 mm dia. valves, the valve stem seal is marked red or brown.

For 6 mm dia. valves, the valve stem seal is marked green.

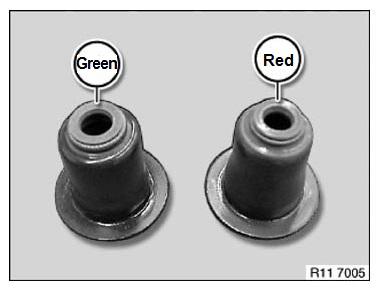

Fig 3: Identifying 5mm Diameter And 6mm Diameter Valve Stem Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit the assembly sleeves (plastic sleeves) contained in the delivery specification on the valve stem end.

Lubricate assembly sleeve.

Press on valve stem seal by hand with special tool 11 6 380 as far as it will go.

NOTE: Graphic N42.

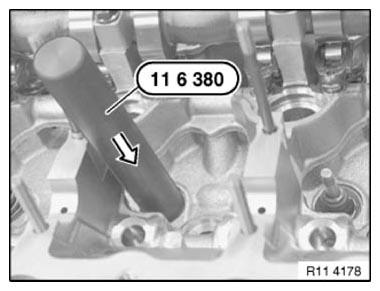

Fig 4: Pressing-On Valve Stem Seal Using Special Tool (11 6 380)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
