11 31 028 Removing and installing/replacing exhaust camshaft (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: It is absolutely essential to follow an exact procedure for removing and installing the exhaust camshaft.
Risk of damage!
The upper and lower bearing strips must be preloaded with a total of six special tools 11 8 550 .

Necessary preliminary work:

Remove CYLINDER HEAD COVER .
Remove ALL IGNITION COILS AND INJECTOR SHAFTS .
Remove EXHAUST CAMSHAFT ADJUSTER
Adjust VALVE TIMING .

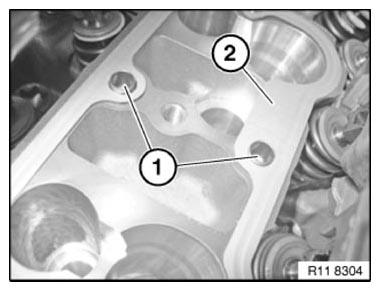

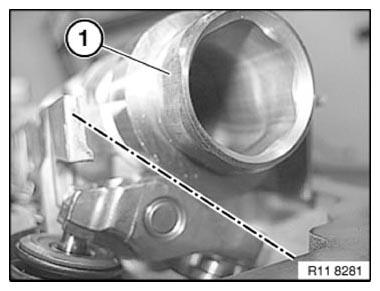

Remove fitting bushes (1).

Installation note:

Check fitting bushes (1) for damage and replace if necessary.

Fig 1: Identifying Fitting Bushes And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

up until 1/2011

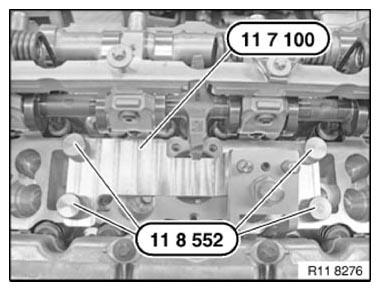

Position special tool 11 7 100 on cylinder 2.

Hand-tighten special tool 11 7 100 with special tool 11 8 552 .

Fig 2: Preparing Special Tools (Engines Up To 1/2011)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

From 1/2011

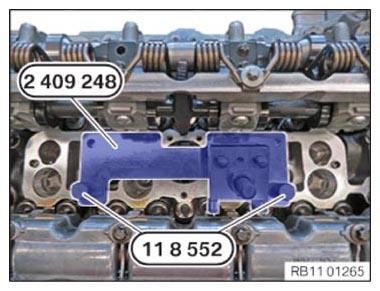

Position special tool 2 409 248 on cylinder 2.

Hand-tighten special tool 2 409 248 with special tool 11 8 552 .

Fig 3: Preparing Special Tools (Engines From 1/2011)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Figure without bearing strip.

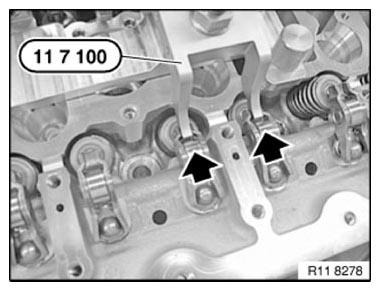

Screw in the roller cam follower at the 2nd cylinder to the end stop using the spindle nut on special tool 11 7 100 .

Fig 4: Screwing In Roller Cam Follower At 2nd Cylinder To End Stop Using Spindle Nut On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

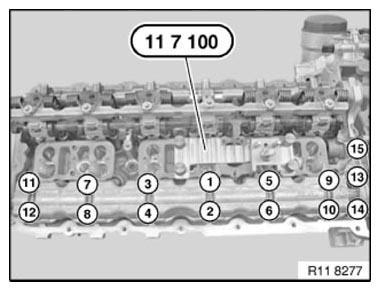

Release screw connection on bearing strip in sequence from 15 to 1.

Remove upper bearing strip (1).

NOTE: The upper and lower bearing strips (1) can also be lifted out completely with exhaust camshaft.

Fig 5: Camshaft Bearing Strip Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

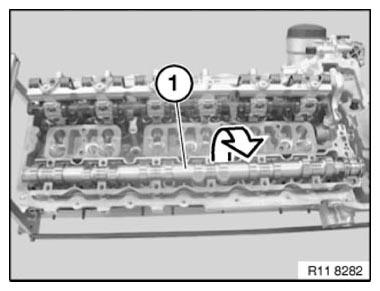

Remove exhaust camshaft (1) from bearing strip in direction of arrow.

Set down exhaust camshaft (1) on special tool.

Fig 6: Removing Exhaust Camshaft From Bearing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

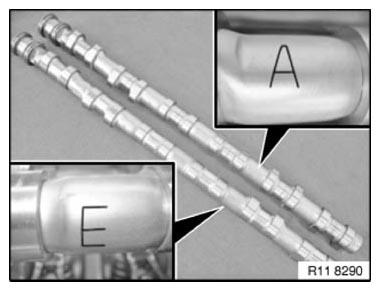

IMPORTANT: Marks of intake and exhaust camshafts are different.
Mixing up the intake and exhaust camshaft will result in engine damage.
A = Exhaust camshaft.
E = Intake camshaft

Fig 7: Identifying Marks Of Exhaust Camshaft And Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Metal plain rectangular compression ring:

IMPORTANT: Plain rectangular compression rings (1) can easily break.

Only renew plain rectangular compression rings (1) when they are broken.

The plain rectangular compression rings have catches at the joint.

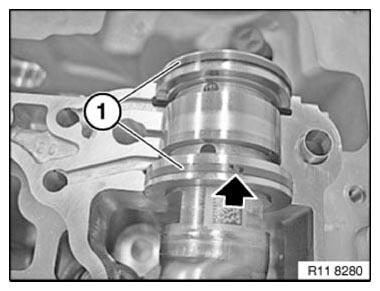

Press plain rectangular compression rings (1) apart upwards and downwards and removed towards front.

Fig 8: Pressing Plain Rectangular Compression Rings Apart

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure plain rectangular compression rings (1) can move freely.

Installation note:

When exhaust camshafts are inserted, no joint must point to a separating joint.

Plastic plain rectangular compression ring:

Installation note:

The plastic plain rectangular compression ring is maintenance free and does not have to be replaced.

Insert plastic rectangular compression ring (1) into groove of exhaust camshaft (2) (see arrow).

Lightly oil plastic rectangular compression ring (1) and rotate in direction of arrow until compression ring (1) is positioned on the exhaust camshaft.

Fig 9: Inserting Plastic Rectangular Compression Ring Into Groove Of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

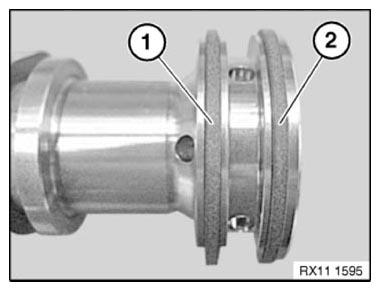

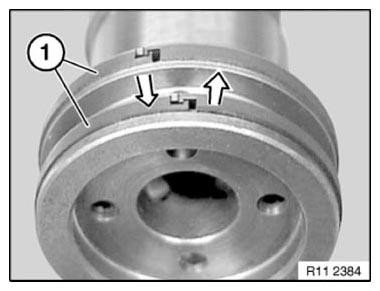

Check plastic plain rectangular compression rings (1 and 2) for freedom of movement.

Fig 10: Identifying Plastic Plain Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Removal on engine:
Set engine to ignition TDC at cylinder No. 1.
Removed cylinder head:
When using special tool 11 9 000 , it will be necessary to remove the aluminium strip.

Installation note:

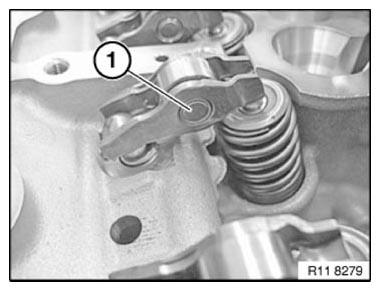

Before mounting the exhaust camshaft, ensure the correct fit of the rocker arm (1) on the hydraulic valve clearance compensating element and the valve.

See Removing and installing/replacing all ROLLER CAM FOLLOWERS .

Fig 11: Identifying Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting bearing strip:

Pre-install special tool 11 7 100 on cylinder no. 2.

IMPORTANT: Special tool 11 8 552 is a special screw.

Press down rocker arms (3) on cylinder no. 2 with spindle nut (2) of special tool 11 7 100 .

Fig 12: Screwing In Roller Cam Follower At 2nd Cylinder To End Stop Using Spindle Nut On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Position lower bearing strip (1) with exhaust camshaft (2) on rocker arms.

Align exhaust camshaft (2).

Cylinder nos. 2 and 4 are at valve overlap.

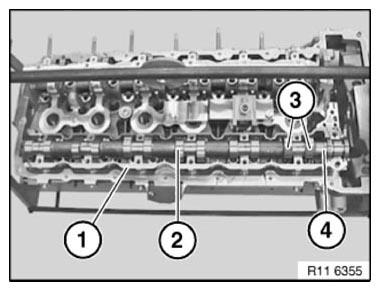

Cams (3) on cylinder no. 1 point upwards at an angle.

Part number (4) on mounting flats of exhaust camshaft (2) points upwards.

Fig 13: Identifying Lower Bearing Strip, Cams, Exhaust Camshaft, And Part Number Position

Courtesy of BMW OF NORTH AMERICA, INC.

Insert exhaust camshaft so that none of the latching mechanisms for the plain rectangular compression rings (1) point to a bearing cap joint.

Center latch mechanism of the plain rectangular compression rings with the bearing cap.

Fig 14: Identifying Plain Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

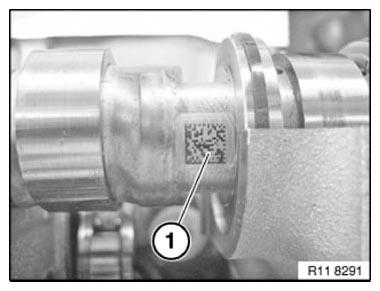

Insert exhaust camshaft so that the data code (1) on the mounting flats faces up.

NOTE: Intake camshaft figure.

Fig 15: Identifying Part Numbers On Intake And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

The cam (1) at cylinder 6 points downward at an angle.

Fig 16: Identifying Position Of Cam At Cylinder 6

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There must be no adhesive residues in the cylinder head threaded holes.
Clean threaded holes.

Fit upper bearing strip (1).

Insert bolts dry.

Join exhaust camshaft to lower and upper bearing strips (1) with torque wrench (2) to 8 Nm in sequential order from 1 to 15.

Release all screws of upper bearing strip (1) from outside inwards by 90°.

Fig 17: Camshaft Bearing Strip Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

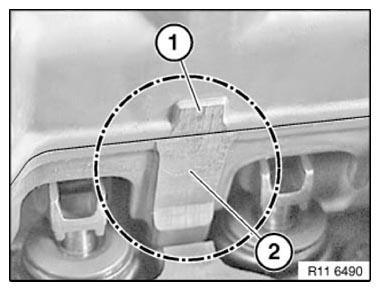

Upper and lower bearing strips must be aligned to each other at ground surfaces (1 and 2).

Make sure that the synchronizing key and the shanks of special tools 11 4 461 rest on the milled surfaces.

Fig 18: Identifying Ground Surfaces Of Upper And Lower Bearing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

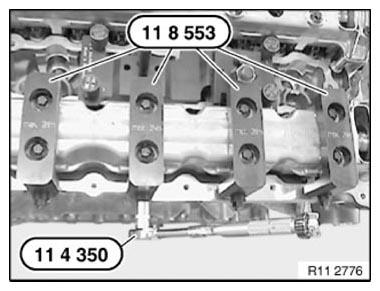

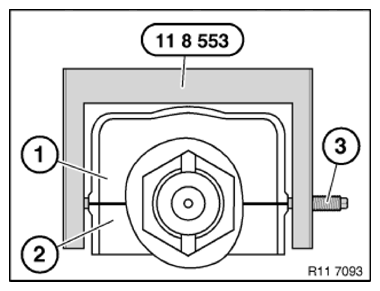

NOTE: Schematic diagram of special tool 11 8 553 at upper bearing strip (1) and lower bearing strip (2).

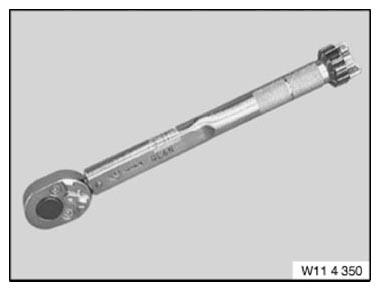

Preload all special tools 11 8 553 with special tool 11 4 350 only.

IMPORTANT: Tighten screw (3) on synchronizing key to 2 Nm. Risk of damage!

Fig 19: Schematic Diagram Of Special Tool At Upper Bearing Strip And Lower Bearing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

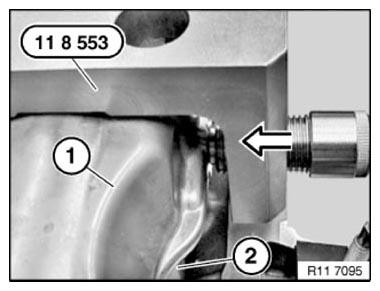

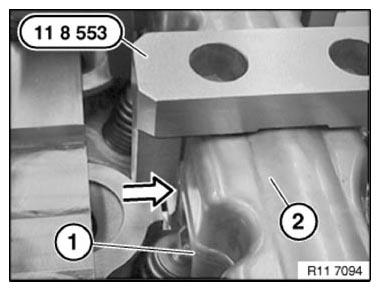

Position special tool 11 8 553 over screw connection of bearing strips.

Make sure that the shanks rest exactly on the ground surfaces of the upper bearing strip (2) and lower bearing strip (1).

Fig 20: Positioning Special Tool 11 8 553 Over Screw Connection Of Bearing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Initially tighten screw of special tool 11 8 553 to ground surfaces of upper bearing strip (1) and lower bearing strip (2).

IMPORTANT: Tighten screws on synchronizing key to 2 Nm. Risk of damage!

Fig 21: Tightening Screw Of Special Tool 11 8 553

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Set special tool 11 8 553 to 2 Nm.
Preload all special tools 11 8 553 with special tool 11 4 350 only.

Fig 22: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tools 11 8 553 to inside of cylinder head with pressure bolt.

Mount special tool 11 8 553 on cylinder no. 2 with pressure bolt facing outward.

Position special tools 11 8 553 so that screw connections (2) of bearing strip are easily accessible.

Fig 23: Positioning Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

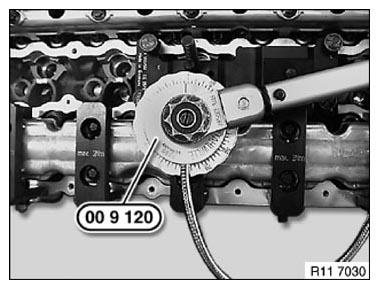

Tighten top and bottom bearing strip with special tool 00 9 120 .

Tightening torque 11 31 1AZ .

IMPORTANT: Remove special tool 11 8 553 only when exhaust camshaft screw connection is completed .

Fig 24: Tightening Bearing Strip Using Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
