11 33 050 Removing and installing/replacing all rocker arms (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

IMPORTANT: Roller cam followers (1) on intake side are divided into bearing classes.
The tolerance classes are marked according to the graphic in numbers from 1 to 5.
Already used roller cam followers (1) may only be reused in the same position.

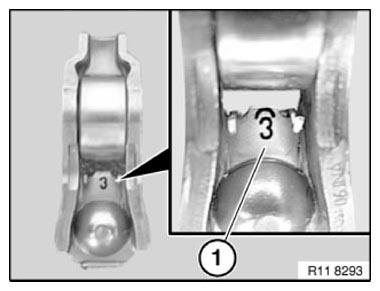

Fig 1: Identifying Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Detach roller cam followers (1) from hydraulic valve clearance compensating element and remove.

Place all roller cam followers (1) in neat order on special tool 11 4 481 .

Installation note:

Prior to installation of intermediate levers, ensure proper installation position of roller cam followers (1).

Classification of intake roller cam follower.

Series: Number 3. standard.

Number 2. slow idle.

Number 4. fast idle.

In case of repair: rough idle.

Repair: 1

Number 1. slow speed in idle.

Number 5. high speed in idle.

Fig 2: Identifying Classification Mark On Intake Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

Detach roller cam follower (1) on exhaust side from hydraulic valve clearance compensating element and remove.

Place all roller cam followers (1) in neat order on special tool 11 4 482 .

Installation note:

Prior to installation of exhaust camshaft, ensure proper installation position of roller cam followers (1).

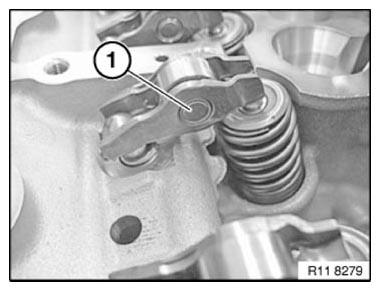

Fig 3: Identifying Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hydraulic valve clearance compensating element (1) on intake side in direction of arrow.

Installation note:

If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 481 .

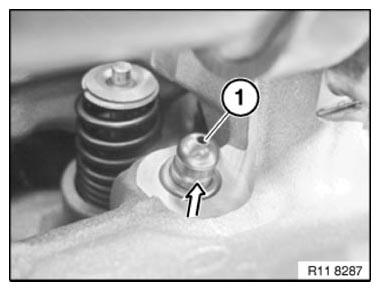

Fig 4: Removing Hydraulic Valve Clearance Compensating Element On Intake Side

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hydraulic valve clearance compensating element (1) on exhaust side in direction of arrow.

Installation note:

If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 482 .

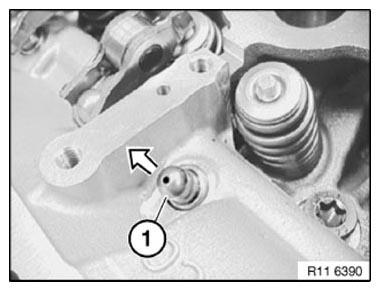

Fig 5: Removing Hydraulic Valve Clearance Compensating Element On Exhaust Side

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
